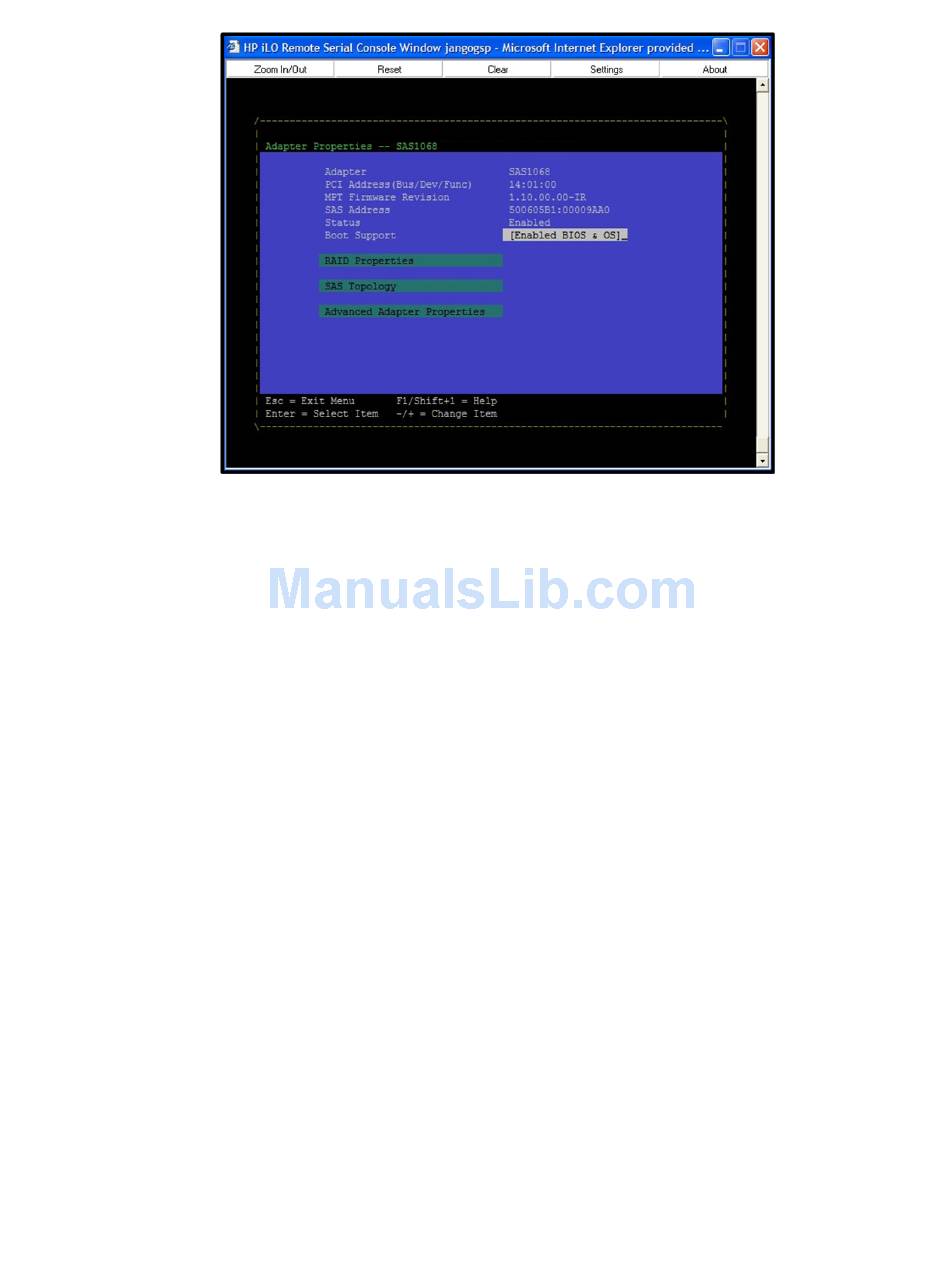

The information fields on the Adapter Properties screen are as follows:
Adapter
PCI Address
MPT Firmware Revision
SAS Address
Status
Boot Support
18 Configuring the Controller Offline
Indicates the specific SAS Host Bus Adapter type.
Displays the PCI address assigned by the system BIOS to the
adapter.
• Bus value range 0x00 - 0xFF, 0 - 255 decimal
• Device value range 0x00 - 0x1F, 0 - 31 decimal
• Function range 0x00 - 0x7, 0 - 7 decimal
Displays the MPT firmware version and type in the format
x.xx.xx.xx-yy, where x.xx.xx.xx indicates the firmware
version and yy indicates the type. In the example screen the
firmware version is 1.23.33.00 and the type is IR.
Displays the SAS Address assigned to this adapter.
Indicates whether the adapter is eligible for configuration utility
software control or is reserved for control by other software:
Enabled, Disabled, or Error.
Enabled Indicates the EFI driver is controlling the adapter,
or will attempt to control the adapter upon
reload.
Disabled Indicates the EFI driver is not controlling the
adapter or will discontinue control of the adapter
upon reload.
Error Indicates that the EFI driver encountered a
problem with the adapter. You can view and
modify settings for the adapter but the available
information and functionality may be limited.
Indicates whether the adapter is eligible for configuration utility
software control, or is reserved for control by other software:
Enabled BIOS & OS, Enabled BIOS Only, Enabled OS Only, or
Disabled.
