Ethernet 10gb 2-port 560sfp+ adapter


Quick Links

HP Ethernet 10Gb 2-port 560SFP+ Adapter

User Guide

This document is for the person who installs, administers, and troubleshoots servers and storage systems. HP assumes you are qualified in the
servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels.
Part Number: 697497-001
May 2012
Edition: 1


Table of Contents

Summary of Contents for HP 697497-001

  • Page 1: User Guide

    User Guide Abstract This document is for the person who installs, administers, and troubleshoots servers and storage systems. HP assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels.
  • Page 2 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
  • Page 3: Table Of Contents

    Contents Technician notes ........................... 4 Warnings, cautions, and notes ........................4 Downloading files ............................. 4 HP contact information ..........................5 Introduction ..........................6 Overview ..............................6 LEDs ................................ 6 Installing an adapter ........................7 Installation overview ..........................7 Preventing electrostatic discharge ........................ 7 Installing an adapter in a server ........................
  • Page 4: Technician Notes

    Warnings, cautions, and notes WARNING: Only authorized technicians trained by HP should attempt to repair this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module-level repair. Because of the complexity of the individual boards and subassemblies, no one should attempt to make repairs at the component level or to make modifications to any printed wiring board.
  • Page 5: Hp Contact Information

    Select Download drivers and software (and firmware). Type the adapter name in the For product box and then click Go. For example, type HP Ethernet 10Gb 2-port 560SFP+. Download the drivers, firmware, or documentation as needed. HP contact information For United States and worldwide contact information, see the Contact HP website (http://www.hp.com/go/assistance).
  • Page 6: Introduction

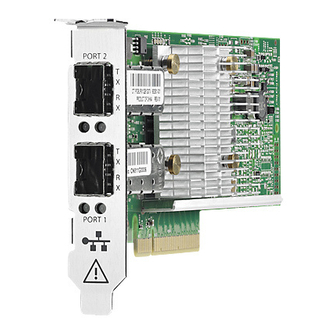

    (http://www.hp.com/go/proliantnics). LEDs The HP Ethernet 10Gb 2-port 560SFP+ Adapter has two ports with LEDs for Link (L) and Activity (A) for each port. A standard-height bracket is shown in the following illustration with SFP+ ports and LEDs. The HP Ethernet 10Gb 2-port 560SFP+ Adapter LEDs operate as described in the following table.
  • Page 7: Installing An Adapter

    NOTE: Before removing the cover of your server, refer to the HP documentation for the proper methods for installing a PCI Express card and avoiding electric shock hazards.
  • Page 8: Installing An Adapter In A Server

    Installing an adapter in a server For additional information on how to safely install a PCI Express card in the server, see the HP ProLiant server documentation. CAUTION: If the server is not PCI Hot Plug compliant, power it down and disconnect the power cord from the power outlet before removing the server access panel.
  • Page 9: Connecting The Network Cable

    Remove the standard profile bracket and place the low profile bracket over the connector. Be careful not to damage the connector or bind the low profile bracket to the connector. Connecting the network cable The HP Ethernet 10Gb 2-port 560SFP+ has two SFP+ ports. These ports support either of the following: • DAC cables •...
  • Page 10: Specifications

    Specifications Cable specifications SFP+ Cable Wavelength Core Size Cable grade Minimum Maximum module type Connector (nm), type of (microns, modal Cable Length Type cable µm) bandwidth (meters) (MHz-km) 850, 62.5 (“FDDI”) 10GBASE-SR Multi-Mode 62.5 (short range) Fiber (MMF) Optical Module 2000 SFP+ N/A, Twin...
  • Page 11: Power And Environmental Specifications

    Compliance Standard PCIe v3.0 Other RoHS 6 of 6 IPv4, IPv6 Microsoft Windows Hardware Quality Labs Server Design Guide version 3.0 SNMP IPv4, TCP and UDP Checksum Offload IPv4/IPv6 TCP, Large Send Offload Receive-Side Scaling Jumbo Frames up to 9000 Bytes Power and environmental specifications Specification Value...
  • Page 12: Regulatory Compliance Notices

    CE compliance of this product is valid if powered with the correct CE-marked AC adapter provided by HP. Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) that are listed in the EU Declaration of Conformity issued by HP for this product or product Regulatory compliance notices 12...
  • Page 13: Canadian Notice (Avis Canadien)

    (in English only) either within the product documentation or at the following HP website (http://www.hp.eu/certificates) (type the product number in the search field). The compliance is indicated by one of the following conformity markings placed on the product: For non-telecommunications products and for EU harmonized telecommunications products, such as Bluetooth®...
  • Page 14 This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
  • Page 15: Electrostatic Discharge

    Electrostatic discharge Preventing electrostatic discharge To prevent damaging the system, be aware of the precautions you need to follow when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices.
  • Page 16: Acronyms And Abbreviations

    Acronyms and abbreviations Canadian Standards Association direct attach cable IPv4 Internet Protocol version 4 IPv6 Internet Protocol version 6 PCIe peripheral component interconnect express PCI-X peripheral component interconnect extended RoHS Restriction of Hazardous Substances SFP+ small form-factor pluggable - plus User Datagram Protocol Acronyms and abbreviations 16...
  • Page 17: Documentation Feedback

    Documentation feedback HP is committed to providing documentation that meets your needs. To help us improve the documentation, send any errors, suggestions, or comments to Documentation Feedback (mailto:docsfeedback@hp.com). Include the document title and part number, version number, or the URL when submitting your feedback.
