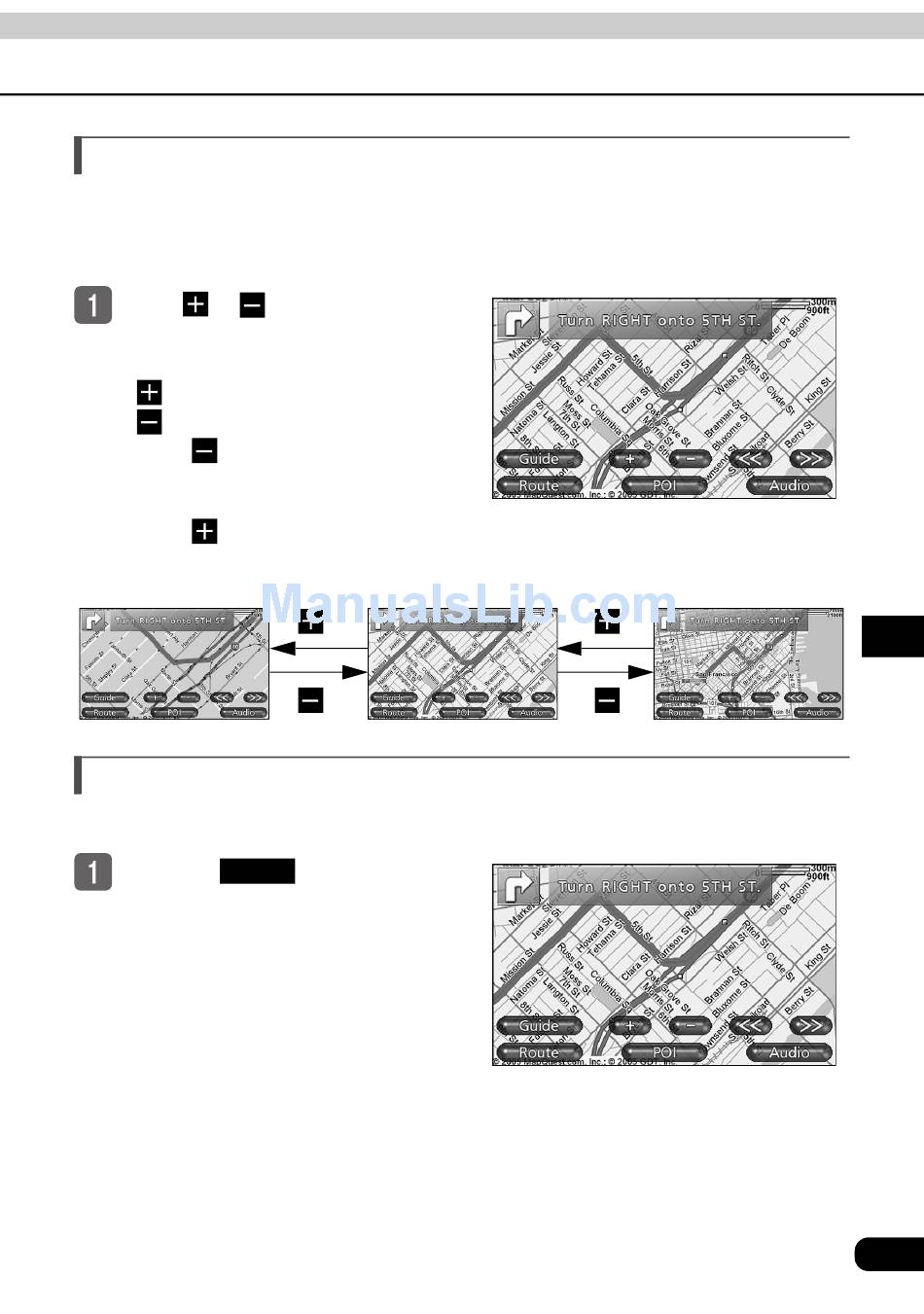

Switching the map reduction scale

When the Area Shot data is downloaded from E-iSERV, three maps of different scales for
each guidance point are downloaded. Any one of the three (small-scale, standard, or large-
scale) can be displayed.
Touch or
map screen.
● The map will switch to the following:
: large-scale map
: small-scale map
● Touch
while the large-scale map is
displayed to return to the standard
map.
● Touch
while the small-scale map is
displayed to return to the standard map.
●Large-scale map

Displaying the all-route map

A map showing the entire route from starting point to destination can be displayed.
Touch the
Route
● The all-route map is displayed.
on the standard
●Standard map
.
●Small-scale map
