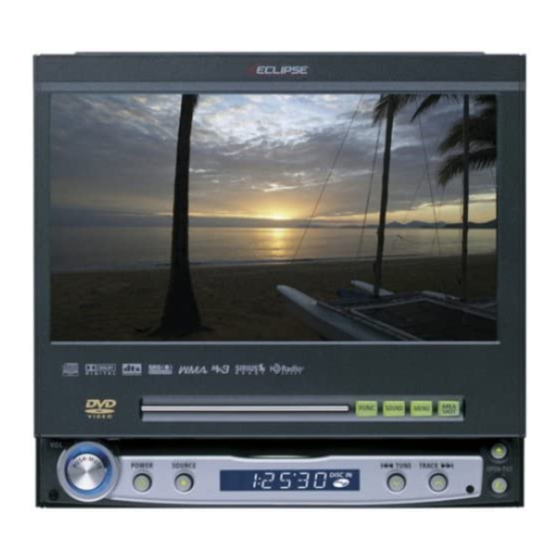

OWNER'S MANUAL
AVX5000
"DVD/MS Multi-Source Receiver with 7" Wide TFT Display"
We appreciate your purchase of this receiver.
Please read through this manual for correct operation.
We suggest that after reading it you keep this manual
in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVX5000 and is the answer not in the manual?

Questions and answers

Related Manuals for Eclipse AVX5000

Summary of Contents for Eclipse AVX5000

  • Page 1 OWNER'S MANUAL AVX5000 "DVD/MS Multi-Source Receiver with 7" Wide TFT Display" We appreciate your purchase of this receiver. Please read through this manual for correct operation. We suggest that after reading it you keep this manual in a safe place for future reference.
  • Page 2 Warnings and cautions signs, illustrated below, are posted throughout this manual as well as on the device itself. They show safe and correct ways to handle the product so as to prevent personal injury to you and others, and to avoid damage to property. Before reading through the manual, take time to read through and learn the important information listed in this section.
  • Page 3 ●Do not modify this system for use other than that specified herein. Also, do not deviate from the installation procedures described herein; Eclipse will not be held liable for damages including, but not limited to serious injury, death or property damage resulting from installations that enable unintended operation.
  • Page 4 ●Do not damage the camera cable. Any holes in the camera will provide a point of entry for moisture and water, which may cause malfunctions, fire or electric shock. ●Some equipment uses batteries. Never install equipment where young children can get access to batteries. If a battery is swallowed, seek medical attention immediately.
  • Page 5 ●Always replace fuses with fuses of identical capacity and characteristics. Never use a high capacity fuse than the original. Using the wrong type of fuse may cause a fire or severe damage. ●If foreign objects or water enters the equipment, smoke comes out, or there is a strange odor, stop using it immediately, and contact your dealer.
  • Page 6 ●When installing a TV antenna on the trunk or similar location, be careful of the tip of the TV antenna when opening and closing the trunk. Otherwise, it could cause injury to eyes, etc. ●Tighten the fasteners for the antenna securely so that it will not vibrate loose and injure a pedestrian or cause an accident.
  • Page 7 ●When changing the installation location for this equipment, please consult the dealer where you bought it for safety reasons. Expertise is necessary for removal and installation. ●Keep volume to a reasonable level so that you can hear sounds from outside the vehicle, including warning sounds, voices, and sirens.
  • Page 8 ●Do not use this equipment except for in-vehicle use. Shocks or injuries may result. ●Be careful of the position of the volume when turning the power source ON. Hearing damage may result if very loud noise is emitted when the power is turned ON.

  • Page 10: Table Of Contents

    Table of Contents Introduction ... 24 Basic operation ... 40 How to operate the tuner... 80 How to operate the CD player ... 87 How to operate the MP3/WMA player... 92 How to operate the optional CD changer... 103 How to operate the DVD player... 106 How to operate the video CD player (Asia only) ...
  • Page 11 Introduction How to use this manual ......24 Features ......... 26 Before using the deck .
  • Page 12 How to eject disc (CD/DVD) or “Memory Stick Duo” ..48 Switching source ....... . . 49 Switching the source .
  • Page 13 Setting the clock display......70 Adjusting the time ........70 Adjusting image quality.
  • Page 14 Selecting a track......... 88 Fast-forwarding/rewinding .
  • Page 15 Downloading MP3/WMA music from internet ... 102 Converting CD music to MP3/WMA files ....102 When writing to CD-R/RW ......102 When playing back CD-R/RW .
  • Page 16 Watching a DVD using the panel buttons ..111 Waching a DVD using the remote control ..111 Operating the video ........112 Playing the video .
  • Page 17 Changing video output ......126 Switching dual play ....... . 127 Table of language codes .
  • Page 18 How to use the Area Shot function ....137 Displaying ePID ........137 Reading Area Shot data.
  • Page 19 What happens if a “Memory Stick Duo” or security code is incorrect? ........162 How to operate the ACC security .
  • Page 20 Adjusting/Saving a PEQ ......179 Selecting a PEQ pattern from memory ....181 Measuring/Displaying frequency characteristics .
  • Page 21 Switching the band ........203 Selecting radio stations.

  • Page 22: U.s.a./Canada/Korea/Taiwan Only

    How to operate the optional TV tuner (U.S.A./CANADA/KOREA/TAIWAN only) How to use the TV ....... . 214 Watching TV .
  • Page 23 For reference Important Points ....... . . 226 If one of these messages appears ......226 Before asking for repairs.
  • Page 24 Before installation Before installation....... . 247 Components ......... . . 247 Installation preparation .

  • Page 25: How To Use This Manual

    Introduction How to use this manual Item title A title is assigned to each item. Operation title A title is assigned to each operation. Detailed operation title A title is assigned to each detailed operation. Operation procedure Describes the operation. Proceed with the operation according to the numerical...
  • Page 26 Section side heading The side heading for the current section. VIII Operation screen A screen showing the operation. XIII XVII XVIII...

  • Page 27: Introduction

    Introduction Features DVD player with sharp video and dynamic sound (Page 106) Plays DVD videos recorded with high image and sound quality. (DVD media is able to record a movie with high quality video and digital sound that exceeds the quality of CD media.) MP3 player that plays back the equivalent of several albums of music recorded on a single music disc (Page 92) MP3 audio compression technology...

  • Page 28: System Upgrade

    Area Shot for displaying map (U.S.A./CANADA only) (Page 134) Using Area Shot, maps to destinations and guidance information can be displayed on your unit if you have set route using E- iSERV (web site). System upgrade ● CD changer (Page 103) A CD changer enables non-stop playing of multiple discs, for long drive convenience.
  • Page 29 Introduction Features ● SIRIUS satellite radio tuner (Page 208) Satellite radio broadcast can be received if the optional SIRIUS satellite radio tuner unit is connected. ● 5.1ch decoder & AV selector unit (Page 170) Fine audio adjustments can be performed by connecting an optional 5.1ch decoder &...

  • Page 30: Before Using The Deck

    Introduction Before using the deck ●Be very careful and pay close attention to safety when operating the audio controls while driving and set the volume level so that you can still adequately hear sounds outside the vehicle. Otherwise accidents may occur. ●Never continue to use the system if it is malfunctioning in any way.
  • Page 31 Introduction Before using the deck ●Do not apply excessive force to the monitor, or damage to the equipment may occur. ●Do not insert any objects other than discs or “Memory Stick Duos” into their respected slots. Otherwise damage may occur. ●Be careful not to get fingers or other objects caught in the monitor when it is being extended or retracted into place.

  • Page 32: About Discs

    About discs ●Water droplets (condensation) can form on the inside of the unit during cold or rainy weather in the same way car windows can fog up. If this occurs, there may be a drop in the performance of the equipment. To help reduce this performance variation, ventilate or dehumidify the vehicle for a short time prior operating the equipment.

  • Page 33: About Handling Discs

    Introduction Before using the deck ●Do not use discs with transparent or semi-transparent portions within the recording area, or see through discs, since they cause the equipment to operate improperly. ●Super Audio CDs cannot be played. ●CCCDs (Copy Control CD) do not conform to official CD standards and are not supported.

  • Page 34: About New Discs

    ●You may notice that some brand new discs are rough Rough Edges around the center hole or outside edge. Remove the Ballpoint pen rough edges with the side of a ballpoint pen, etc. Rough edges may prevent proper loading in the unit. Flakes from the rough edges may also stick to the recorded surface, interfere with playback, and/or damage the disc or equipment.

  • Page 35: About The "Memory Stick Duo

    Introduction Before using the deck About the “Memory Stick Duo” ●Do not leave the “Memory Stick Duo” in places exposed to static electricity or electrical noise. Otherwise, data may be lost. ●To safeguard the components of the player, this equipment will automatically stop the player if a malfunction is detected.

  • Page 36: About Handling The "Memory Stick Duo

    About handling the “Memory Stick Duo” ●Regularly wipe clean any dust or dirt from the surface of the cartridge with a dry cloth. ●Always place in the case provided when transporting or storing. About the LCD panel ●The LCD panel can appear to be white or black when seen from certain angles. ●The screen will be difficult to read when external light source (bright lights, sunlight) falls sunlight falls on the display.

  • Page 37: About Tv (U.s.a./Canada/Korea/Taiwan Only)

    Introduction Before using the deck About TV (U.S.A./CANADA/KOREA/TAIWAN only) ●When the loss of power is lost due to vehicle battery replacement, replacing fuses, etc., all preset channels will be erased. ●It may be difficult for the TV to maintain optimal reception due to variation in signal strength or interference from other objects.

  • Page 38: Name Of Controls And Parts

    Introduction Name of controls and parts The unit can be operated by pressing buttons on the detachable panel (panel buttons) and by touching buttons displayed on the screen (touch switches). Panel buttons With display retracted With display opened VOL button Turn to adjust volume.

  • Page 39: Touch Switches

    Introduction Name of controls and parts Touch switches Unit can be operated by touching switches on the screen. [About the operation of touch switch] ● Touch the switches until you hear a beep. ● Touch the switches lightly to prevent damage to the screen. ●...

  • Page 40: Remote Control

    Remote control PWR button Press to turn unit power ON/OFF. MODE button Press to switch SOURCE modes. BAND button Press to switch radio band. MUTE button Press to mute audio and cancels mute. VOL button Turn to adjust volume. MENU button Press to display DVD menu and title menu.

  • Page 41: Basic Operation

    Basic operation How to turn the power ON or OFF Turning the power on and off When the power is turned on, the last state or mode used prior to power turning off will be restored. When power is OFF, press the ●...

  • Page 42: Basic Operation

    Basic operation Display open/tilt/close Opening the display Turn the ignition switch ON. Press OPEN·TILT ● Opens the display. Do not force the display to open manually. Applying excessive force to the display could damage it. The display can be set to automatically open when the ignition switch is turned ON. (See “Setting the display AUTO CLOSE function”...

  • Page 43: Adjusting The Angle Of The Display

    Basic operation Display open/tilt/close Adjusting the angle of the display With the display open, press for less than 1 OPEN·TILT second. ● The display setting screen will appear. Touch TILT ● The display will tilt upwards by one step (5°). Each touch of switch tilts the panel by another step.

  • Page 44: Switching The Display's Pull-Out Positions

    Switching the display’s pull-out positions With the display open, press for less than 1 OPEN·TILT second. ● The display setting screen will appear. Touch POSITION ● Each time the switch is touched, the display pull out positions will be changed in the following order shown below.

  • Page 45: Closing The Display

    Basic operation Display open/tilt/close Closing the display With the display open, press for less than 1 OPEN·TILT second. CLOSE Touch ●Do not attempt to close the display manually. Applying excessive force to the display could damage it. ●When closing the display, check to make sure it has retracted completely. The display could be damaged if left in a partially closed position.

  • Page 46: Setting The Display Auto Close Function

    Setting the display AUTO CLOSE function The display can be set to automatically open when the ignition switch is turned ON, and automatically close when it is turned OFF. With the display open, press for less than 1 OPEN·TILT second. AUTO CLOSE Touch ●...

  • Page 47: Inserting/Ejecting The Disc Or "Memory Stick Duo

    Basic operation Inserting/Ejecting the disc or “Memory Stick Duo” How to insert disc (CD/DVD) and “Memory Stick Duo” When you want to listen to music, insert a CD into the disc slot. When playing a DVD video, insert a DVD video disc into the disc slot. When reading data (ESN recorded data and sound quality data etc.), insert the “Memory Stick Duo”...
  • Page 48 Install the control panel. ●DVDs and CDs are inserted into the same slot. Only one type of disc can be inserted at any time. ●Do not remove the “Memory Stick Duo” while reading data. Otherwise, data may be lost. Please be aware that Eclipse will not be hold responsible for lost data. VIII XIII XVII...

  • Page 49: How To Eject Disc (Cd/Dvd) Or "Memory Stick Duo

    Basic operation Inserting/Ejecting the disc or “Memory Stick Duo” How to eject disc (CD/DVD) or “Memory Stick Duo” ■ When ejecting a DVD or CD Press ● The disc is automatically ejected. ● If the disc does not eject (is not released from the internal mechanism), press and hold seconds.

  • Page 50: Switching Source

    Basic operation Switching source The unit can be used when the vehicle's ignition switch is on or in the ACC position. ● This unit supports the use of a remote control. A DVD remote control is included. See page 165 for instructions on operation of the remote control. Switching the source Switching source using panel buttons Press...

  • Page 51: Switching Source Using Touch Switches

    Basic operation Switching source Switching source using touch switches Press MENU ● The SOURCE MENU screen will appear. When the SOURCE MENU switch is touched, the operation screen for the available sources is displayed. MENU button...

  • Page 52: Operational Screen For Each Source

    Basic operation Operational screen for each source The operation screen for each source will appear as shown below. ● AM radio operation screen ● CD player operation screen ● DVD player operation screen ● HD radio operation screen (optional: U.S.A. only) ●...

  • Page 53: Adjusting The Volume

    Basic operation Adjusting the volume Adjusting the main volume Adjusting main volume using touch switches Touch ● : Volume UP (louder) : Volume DOWN (quieter) Adjusting main volume using panel buttons Turn the VOL button. ● Adjustment levels from 0 to 80 are available.

  • Page 54: Adjusting Sound Quality

    Basic operation Adjusting sound quality By adjusting the equalizer and the volume balance you can simulate a custom sound environment within the vehicle. Displaying the sound adjustment screen Press SOUND ● The sound adjustment screen will appear. ● Touch any of the following buttons on the sound adjustment screen to display the corresponding adjustment screen.
  • Page 55 Basic operation Adjusting sound quality The following settings/adjustments can be made in the operation screens and setting screens. Touch switch/item Circle Surround II TruBass FADER BALANCE LOUDNESS HARMONIZER Time Aligment Woofer Function The parametric equalizer adjusts 7 frequency bands. Circle surround can easily be simulated using the existing speaker system in your vehicle (when the vehicle has 4 speakers).

  • Page 56: Setting Circle Surround Ii

    Setting Circle Surround II The Circle Surround II function enables surround sound and boosts bass even if the center speaker and sub woofer are not connected. It can also be applied to dialog data when listening to the radio. Touch in the sound CS II adjustment screen.

  • Page 57: Adjusting Peq (Parametric Equalizer)

    Basic operation Adjusting sound quality Adjusting PEQ (parametric equalizer) The parametric equalizer adjusts 7 frequency bands. Touch the adjustment screen. Touch the BAND band to be adjusted. ● Each time the switch is touched, the band will be changed in the following order shown below.

  • Page 58: Selecting A Peq Pattern From Memory

    Touch the to select the Q curve pattern. ● Each time the switch is touched, the Q curve pattern will be changed in the following order shown below. NORMAL SLOW Repeat the operations in step to change the setting for each channel and band.

  • Page 59: Adjusting Pos (Positioning Selector)

    Basic operation Adjusting sound quality Adjusting POS (Positioning selector) Sound localization can be adjusted according to the number and position of passengers in order to obtain optimum acoustic effects. A seat's sound localization can be adjusted simply by touching the switch. Touch in the sound adjustment screen.

  • Page 60: Setting The Balance

    Setting the balance The left/right/front/rear balance can be adjusted so that sound from all speakers arrives at the listener's ears at the same time. FAD/BAL Touch in the POSITION setting screen to display the volume balance adjustment screen. Touch ● The adjustment level can be set to one of 15 levels between F (front) and R (rear).

  • Page 61: Setting Loudness

    Basic operation Adjusting sound quality Setting LOUDNESS Audio can be modulated to correct for insufficient bass and treble when listening at low volume. Touch LOUDNESS adjustment screen. ● Touching the switch toggles between ON and OFF. Setting the harmonizer It is possible to set the sound quality boost level to automatically regenerate harmonics such as reverberation, depth, and tone lost in compression, producing a much clearer sound.

  • Page 62: Simplified Time Alignment Settings (Time Alignment)

    Simplified time alignment settings (Time Alignment) This function corrects the position characteristics and frequency characteristics in order to delay the signals being output from the various speakers so that the signals from each speaker reach the listening position at the same time. Touch SETTING ●...

  • Page 63: Tweeter Settings (Tweeter)

    Basic operation Adjusting sound quality You can select the tweeter installation location and whether or not a tweeter is being used or not, allowing you to select the optimum time alignment settings automatically. Touch Tweeter ● Each time the switch is touched, the tweeter settings will be changed in the following order shown below.

  • Page 64: Setting Sub Woofer

    Setting sub woofer When a sub woofer is connected, the preferred output level for the audio can be set. Touch Woofer in the Time Alignment screen. Phase selection (NON-F Phase) The merging of sound between the front and rear speakers and the woofer can be improved by selecting the phase.

  • Page 65: Woofer Output Setting

    Basic operation Adjusting sound quality Woofer Output can be stereo or mono. Select the method that matches the output method for the sub-woofer system that is connected to the unit. Touch Woofer OUT STEREO or MONO. BACK ● Touch after making changes. The woofer output setting will be saved and system will return to the previous operation screen.

  • Page 66: Woofer Output Level Adjustment

    Touch SLOPE ● Each time this switch is touched, the slope will be changed in the following order shown below. PASS 6 dB/oct 24 dB/oct 18 dB/oct BACK ● Touch after making changes. The crossover setting will be saved and system will return to the previous operation screen.

  • Page 67: Setting Background Screen

    Basic operation Setting background screen The background for the audio operation screen can be changed to a preferred wallpaper. Setting the Background Press and hold FUNC hear a beep. Touch ● Each time switch is touched, the Background screen will be changed in following order shown below.
  • Page 68 ● The mode will change to function mode. FUNC If you press the button once more, function mode will be exited. Touch DATA ● The display will change to the menu screen for data management mode. Touch PICTURE Touch the image file to be read and saved.
  • Page 69 Basic operation Setting background screen Background 1 Touch Background 2 ● The image file that was selected in step above will then be saved. If an image file has already been saved, it will be overwritten. Cancel ● Touch the saving.

  • Page 70: Adjusting/Setting The Screen

    Basic operation Adjusting/setting the screen Switching the FUNCTION switch display Touch switches not frequently used are not displayed in the audio operation screens and DVD screens. These switches can be displayed as follows. Touch FUNC ● The FUNCTION switches appear. ●...

  • Page 71: Changing The Clock Settings

    Basic operation Adjusting/setting the screen Changing the clock settings Touch switches not frequently used are not displayed in the audio operation screens and DVD screens. These switches can be displayed as follows. Press FUNC for less than 1 second. ● The FUNC screen will appear. This turns the clock display on or off.

  • Page 72: Adjusting Image Quality

    Quality adjustments can be made for images as with the audio operation screen and DVD or VTR (optional). Adjusting image quality Contrast, brightness and other picture settings can be adjusted to match preferences for viewing DVD video or the audio operation screen. Press and hold FUNC ●...

  • Page 73: Switching Screen Mode

    Basic operation Adjusting/setting the screen Switching screen mode Touch WIDE Touch NORMAL WIDE2 WIDE3 ● This selects the wide mode. WIDE1...
  • Page 74 NORMAL mode The screen is shown with a vertical to horizontal ratio of 3 to 4. The side edges are black. WIDE 2 mode Only the left and right edges of the screen are stretched out. However, the vertical to horizontal ratio of 3 to 4 is maintained at the center of the screen to provide a comfortable wide screen image.

  • Page 75: Others

    Basic operation Others Setting the steering switch function The vehicle’s factory loaded steering switch becomes inoperable when the this unit is installed. The E-iSERV (web site) provides software that enables steering switch operation. Import this software into this unit. For details, contact the store from which you purchased your unit. Depending on your vehicle’s make and model, material downloaded from the website may not be compatible with your steering switch.

  • Page 76: Reading Steering Switch Data

    Reading steering switch data The steering switch data that has been downloaded from E-iSERV (web site) to a “Memory Stick Duo” can be loaded in the this unit. Insert the “Memory Stick Duo” containing the steering switch data to be saved. Press for less than 1 FUNC...

  • Page 77: Compatibility With Various Switches

    Basic operation Others Compatibility with various switches The compatibility of the deck’s various modes and the steering switches installed on your vehicle are as follows: Source Switch* MODE Tune UP Tune DOWN VOL UP VOL DOWN Source Switch* MODE Tune UP Tune DOWN VOL UP VOL DOWN...

  • Page 78: Setting The Guide Tone

    Setting the Guide tone The guide tone that is emitted when touching a panel switch or touch switch can be set. Press FUNC for less than 1 second. Touch in the Guide Tone FUNCTION screen. ● Touching the switch toggles between ON and OFF.

  • Page 79: Displaying Amplifer Status (E-Amp)

    Basic operation Others Displaying Amplifer Status (E-AMP) If a DSP Amp is connected, the status of the DSP amp will be displayed. Press FUNC for less than 1 second. E-AMP Touch ● The DSP Amp status screen will appear.

  • Page 80: Screen Lock Settings

    Screen lock settings Screen lock enables the unit to switch to a separate audio source such as radio or CD while continuing to display a DVD or TV image. Select the screen lock image settings. Press FUNC until you hear a beep.

  • Page 81: How To Operate The Tuner

    How to operate the tuner How to use the AM/FM radio Preset switches Listening to the AM/FM radio Listening to the radio using touch switches Press MENU Touch for AM radio, or Listening to the radio using panel button Press the SOURCE Switching the band Touch...

  • Page 82: Selecting Radio Stations

    Selecting radio stations Press ● Pressing the switch once moves the frequency one step up or down. ● (up) : Raises the frequency (down) : Lowers the frequency Press and hold ● The station that is closest to the current frequency will be searched for automatically, and searching will stop when the station is received.

  • Page 83: How To Operate The Tuner

    How to operate the tuner How to use the AM/FM radio Saving radio stations There are two modes for saving radio stations, manual and ASM. These modes operate independently. Use manual tuning or automatic tuning to select the station to be saved. Choose a preset switch and touch it until you hear a beep.

  • Page 84: Checking Preset Stations

    Checking preset stations This recalls all the stations that have been preset either automatically or manually and plays them each for 5 seconds. Touch FUNC Touch for less than 1 second. ● “P.SCAN” will be displayed, and the preset stations will each be played back for 5 seconds.

  • Page 85: Creating A Station Name

    How to operate the tuner How to use the AM/FM radio Creating a station name A station name can be created and displayed. Touch FUNC Touch Station Name 1 second. ● The screen will switch to the station name setting mode. Default character type is upper-case alphabet.

  • Page 86: Deleting A Previously Created Station Name

    Upper case characters, alphabet characters Numerical character Touch the ENTER touch switch to enter station name setting mode. The station name is now memorized. Deleting a previously created station name Touch FUNC Press and hold Station Name until you hear 2 beeps in succession.

  • Page 87: Turning Off The Radio

    How to operate the tuner How to use the AM/FM radio Turning off the radio Press ● Press again to turn on the radio and to resume the radio station received prior to turning power off.

  • Page 88: How To Operate The Cd Player

    How to operate the CD player How to use the CD player Listening to a CD Playback starts when a CD is inserted into the disc slot. Listening to a CD using the touch switches Press MENU when a CD has been inserted. Touch ●...

  • Page 89: Selecting A Track

    How to operate the CD player How to use the CD player Selecting a track You can jump to the opening of a track you want to hear. Press ● (up) : Selects next track (down) : Selects previous track Fast-forwarding/rewinding It is possible to fast-forward/rewind the track being played.

  • Page 90: Creating A Title For A Cd

    Creating a title for a CD A CD title can be created and displayed. Touch FUNC Touch for less than 1 TITLE second. ● The screen will switch to the disc title setting mode. Default character type is upper-case alphabet. Touch one of the switch !”# ●...

  • Page 91: Deleting A Previously Created Title

    How to operate the CD player How to use the CD player Upper case characters, alphabet characters Numerical character Touch the ENTER The disc title is now memorized. Deleting a previously created title Touch FUNC Press and hold hear 2 beeps in succession. ●...

  • Page 92: Displaying Cd Text By Scrolling

    Displaying CD TEXT by scrolling CD TEXT (such as disc titles and track titles) stored in the memory can be displayed. A maximum of 16 characters are displayed on the display area at one time. When the CD TEXT exceeds 16 characters, it is displayed by scrolling. After the disc title is displayed by scrolling, track titles are displayed by scrolling.

  • Page 93: How To Operate The Mp3/Wma Player

    How to operate the MP3/WMA player How to use the MP3/WMA player For safety considerations, some functions are disabled while the vehicle is in motion. Folder change switches switch HOME switch Example of MP3/WMA file structure Explanations are based on this example of MP3/WMA file structure. It is not possible to playback WMA files protected by a DRM (Digital Rights Management) system or protected recordings (licensed).

  • Page 94: Playing Mp3/Wma

    Playing MP3/WMA Playback starts automatically when a CD is inserted into the disc slot. Playing MP3/WMA using the touch switches. Press when a disc has been inserted. MENU Touch ● Playback will begin. ● The CD player screen will be shown for about 2 seconds as the system checks whether the inserted CD is a music CD or an MP3/WMA.

  • Page 95: Selecting A Music File

    How to operate the MP3/WMA player How to use the MP3/WMA player Selecting a music file A music file located within a folder can be selected. Selecting with file change switches Touch the music file. ● The currently selected file name and folder name will be shown in the display. ●...

  • Page 96: Fast-Forwarding/Rewinding

    Fast-forwarding/rewinding It is possible to fast-forward/rewind within the current file. Press and hold ● (up) : Fast-forward (down): Rewind If you hear a beep while rewinding (fast-forwarding), the deck has switched to the fast- forward (rewind) mode and will continue until you remove your finger from the button. Changing display of the current level The folder level can be switched and displayed.

  • Page 97: Repeating The Same Music File Or Folder

    How to operate the MP3/WMA player How to use the MP3/WMA player Repeating the same music file or folder Touch FUNC Touch REPEAT ● Repeats the current file. ● The file will repeat until the function is canceled. Touch Touch FUNC Touch REPEAT...

  • Page 98: Playing Music Files In Random Order

    Playing music files in random order Playing music files on folder in random order Touch FUNC Touch for less than one second. RANDOM ● Files will be randomly selected from among all files at the folder currently being played. ● Plays files in random order. ●...

  • Page 99: About Mp3/Wmas

    How to operate the MP3/WMA player How to use the MP3/WMA player About MP3/WMAs MP3 (MPEG Audio Layer III) is a standard format for audio compression technology. By using MP3 a file can be compressed to one-tenth the size of the original. WMA (Windows Media be compressed to a size smaller than MP3 files.

  • Page 100: Id3/Wma Tags

    MP3/WMA files have an “ID3/WMA Tag” that allows input of information so that data such as song title and artist can be saved. This unit supports ID3v. 1.0, 1.1 and WMA tags. Media capable of playing MP3 include CD-ROM, CD-R and CD-RW discs. Compared to CD-ROM media commonly used for music discs, CD-R discs are fragile in high temperature/high humidity environments and sections of the CD-R may become incapable of playback.

  • Page 101: Format Of Discs

    How to operate the MP3/WMA player How to use the MP3/WMA player The format of discs to be used must be ISO9660 Level 1 or Level 2. Also, be sure to record in “MODE 1”. Discs recorded in “MODE 2” are not supported. MP3 files recorded in formats other than those outlined above may result in files that cannot be played normally and file names and folder names that do not display properly.

  • Page 102: File Names

    Only files with the MP3/WMA file extension “.mp3”, “.wma” can be recognized as MP3/WMA and played. Be sure to save MP3 files with the “.mp3” file extension. Be sure to save WMA files with the “.wma” file extension. The “MP” or “WMA” letters of the file extension will be recognized whether entered as uppercase letters or lowercase letters.

  • Page 103: Making And Playing Mp3/Wma Files

    How to operate the MP3/WMA player How to use the MP3/WMA player Making and playing MP3/WMA files MP3/WMA files created by recording broadcasts, records, audio recordings, video recordings or live performances cannot be used for purposes other than personal entertainment without permission of the copyright holder as set forth in copyright law.

  • Page 104: How To Operate The Optional Cd Changer

    How to operate the optional CD changer How to use the CD changer An optional CD changer can be connected and used. POWER button Listening to a CD Listening to a CD using the touch switches Press MENU Touch CDCH Listening to a CD using the panel buttons Press SOURCE...

  • Page 105: Selecting A Track

    How to operate the optional CD changer How to use the CD changer Selecting a track See “How to use the CD player” (Page 88). Fast-forwarding/rewinding See “How to use the CD player” (Page 88). Selecting a CD A CD can be selected from among all the discs in the changer. Touch one of the disc change switches.

  • Page 106: Playing Tracks In Random Order

    Playing tracks in random order Playing tracks on current CD in random order See “How to use the CD player” (Page 88). Playing tracks on all CDs in random order Touch FUNC Touch until you hear a beep. RANDOM ● Setting once will start random playback which will not stop until the function is RANDOM canceled.

  • Page 107: How To Operate The Dvd Player

    How to operate the DVD player Before using the DVD player This unit can output the high quality images and high quality digital sound of DVD videos. It is also possible to switch between different languages recorded on the DVD video (dubbing, subtitles, etc.), and with videos having several angles of the same scene recorded, the preferred angle can be selected and played.

  • Page 108: About Subtitles

    Some DVD discs have subtitles recorded in several different languages, and the subtitles can be switched during playback. The video can also be played without any subtitles displayed. About discs This unit conforms to NTSC color television methods, so please use discs that display “NTSC” on the disc or package.

  • Page 109: How To Operate The Dvd Player

    How to operate the DVD player Before using the DVD player About region codes of playable discs Some DVD discs display a geographical region where the disc can be played. This unit can only play discs with region codes “1” (North America), “3” (Asia) “4” (Australia) or “ALL”. If you play discs with any region code other than those shown above, a “This disc cannot be played”...

  • Page 110: About Dvd Disc Structures

    About DVD disc structures Videos and tracks recorded on a DVD are divided into many segments. Large segments are called “titles”, and each title has a number (“title number”). Title segments are further divided into smaller segments called “chapters”, and each chapter has a number (“chapter number”).

  • Page 111: How To Use The Dvd Player

    How to operate the DVD player How to use the DVD player For safety reasons, DVDs can only be played when the ignition is switched to ON or ACC and the vehicle is completely stopped with the parking brake applied. (Only sound is output if a DVD is played while the car is in motion.) Chapter number POWER...

  • Page 112: Watching A Dvd Using The Panel Buttons

    Watching a DVD using the panel buttons Press SOURCE to select DVD source when a DVD has been inserted. Waching a DVD using the remote control Press MODE to select DVD source when a DVD has been inserted. ●Information for items such as touch switches will be displayed for about 6 seconds.

  • Page 113: Fast-Forwarding/Rewinding Using The

    How to operate the DVD player How to use the DVD player Operating the video Playing the video using the touch switches Touch Playing the video using the remote control Press (PLAY) It is possible to fast-forward or rewind through the video being played. Fast-forwarding/rewinding using the panel buttons Press and hold ●...

  • Page 114: Remote Control

    Fast-forwarding/rewinding using the remote control Press until you hear a beep. CHAPTER : When pressed and released immediately, the picture moves to the next chapter or track. When pressed and held (for 1 second or more), the pictures or track are fast-for- warded.

  • Page 115: Repeating A Chapter

    How to operate the DVD player How to use the DVD player Touch REPEAT ● Repeat the current chapter. ● The chapter will repeat untill the function is canceled. REPEAT Touch Pausing the video using the touch switches Touch Pausing the video using the remote control Press (PAUSE) ●...

  • Page 116: Stopping The Video

    Stopping the video Stopping the video using the touch switches Touch Stopping the video using the remote control Press on the remote control. (STOP) (PLAY) ● If you then press playback will resume from the point where it was stopped. VIII XIII XVII...

  • Page 117: Operating The Disc Menu

    How to operate the DVD player How to use the DVD player Operating the disc menu It is possible to use the menu recorded on the disc. Operating disc menu using the touch switches Touch TITLE MENU TOP MENU Touch select the video you want to play.

  • Page 118: Turning Off The Dvd

    Turning off the DVD Turning off the DVD using the panel buttons Press ● Press again to resume playback. Turning off the DVD using the remote control Press on the remote control. Recorded menu items will differ by disc. The disc is played according to its content so all functions may not be available.

  • Page 119: Searching For A Desired Chapter

    How to operate the DVD player How to use the DVD player Searching for a desired chapter It is possible to search for a particular video segment by title and chapter or by menu number (number for divided segments). Serching by chapter using the panel buttons Press ●...

  • Page 120: Switching Subtitle Language

    Switching subtitle language When subtitles in several languages are recorded on a disc, the subtitles can be switched. Press on the remote control. SUB TITLE ● The subtitle number will be displayed. Switching dubbed audio language If several audio languages are recorded on a disc, the languages can be switched. Press AUDIO on the remote control.

  • Page 121: Setting The Dvd Player

    How to operate the DVD player How to use the DVD player Setting the DVD player The language preferences for voices, subtitles and menu display used during DVD playback can be set in advance. Optional display of the multiple angle mark, viewer restriction and other functions can also be set.

  • Page 122: Setting The Audio Language

    Touch switch Audio Language Sub Title Menu Language Angle Indicator Parental Setting Monitor Setting the audio language The preferred language for video playback can be selected. Touch Audio Language FUNC DVD SETTING screen. Touch the preferred language. OTHER ● Touch to set a language other than those displayed on the screen.

  • Page 123: Setting Subtitle Language

    How to operate the DVD player How to use the DVD player The preferred subtitles for the video playback can be selected. Touch Sub Title DVD SETTING screen. Touch the preferred language. OTHER ● Touch other than those displayed on the screen.

  • Page 124: Setting Menu Language

    Allows selection of a preferred menu language from those recorded on the disc. Touch Menu Language in the FUNC DVD SETTING screen. Touch the preferred language. OTHER ● Touch to set a language other than those displayed on the screen. Touch OTHER in the MENU...

  • Page 125: Setting Display Of Multi-Angle Mark (Angle Selection Mark)

    How to operate the DVD player How to use the DVD player Setting display of multi-angle mark (angle selection mark) The multi-angle mark can be set to display/not display during video playback. Angle Indicator Touch in the FUNC DVD SETTING screen.

  • Page 126: Setting Viewer Restriction

    Setting viewer restriction This function allows viewing restriction to be set so that discs with adult content or violence will not be available to children. Viewer restriction can be set at different levels to match restriction ratings. Touch Parental Setting FUNC DVD SETTING screen.

  • Page 127: Changing Video Output

    How to operate the DVD player How to use the DVD player Touch Monitor SETTING screen. ● Each time the switch is touched, the screen size changes in the order shown below. 16 : 9 4 : 3 WIDE ● 16 : 9 (WIDE) The video is displayed at normal width.

  • Page 128: Switching Dual Play

    When an optional rear monitor is connected, use this function to switch to sources other than the DVD, such as the Area Shot screen. Touch in the FUNC Dual Play DVD SETTING screen. ● Touching the switch toggles between ON and OFF. Switching dual play VIII XIII...

  • Page 129: Table Of Language Codes

    How to operate the DVD player How to use the DVD player Table of language codes These codes are used to specify the language for audio tracks, subtitles and on-screen menu displays. Input Language code 1001 Japanese 0514 English 0618 French 0405 German...

  • Page 130: How To Operate The Video Cd Player (Asia Only)

    How to operate the video CD player (Asia only) How to use the video CD player A video CD recorded with Video-CD ver. 2.0 can be played on this unit. A video CD can be watched only if the vehicle is completely stopped in a safe location with the parking brake set and ignition switch turned ON or ACC.

  • Page 131: Watching A Video Cd Using The Panel Buttons

    How to operate the video CD player (Asia only) How to use the video CD player Watching a video CD using the panel buttons Press SOURCE inserted. Watching a video CD using the remote control Press MODE to select DVD/CD source when video CD has been inserted. Using the menu screen When a video CD featuring PBC (Play Back Control) function is played, the menu screen will be displayed.

  • Page 132: The Scene Being Played

    Advancing to the next scene or returning to the beginning of the scene being played The image can be controlled during playback. This function can be operated by using either the panel buttons or remote control. Press for less than 1 second. ●...

  • Page 133: Specifying A Track To Playback

    How to operate the video CD player (Asia only) How to use the video CD player Specifying a track to playback A track of your choice is directly selectable. This function can only be performed with the remote control. Enter a menu number with the playback.

  • Page 134: Using Slow Motion

    Using slow motion This function can only be performed with the remote control. Press SLOW during video CD playback. Press (PLAY) ● Restarts playback. Turning off the video CD Turning off the video CD using the panel buttons Press ● Press again to resume playback.

  • Page 135: How To Operate The Area Shot Function (U.s.a./Canada Only)

    How to operate the Area Shot function (U.S.A./CANADA only) Before using the Area Shot About the Area Shot Using Area Shot function, maps to destinations and guidance information can be displayed on your unit if you have set route using the E-iSERV (web site). Current vehicle position can also be displayed on the map if an optional GPS unit is connected.

  • Page 136: To Use The Area Shot Function

    To use the Area Shot function In order to use Area Shot, driving instructions such as the direction of travel and the street names of turn intersections must be downloaded from the E-iSERV (web site) and imported into the unit. The process is as follows: Access The E-iSERV (web site).

  • Page 137: How To Operate The Area Shot Function (U.s.a./Canada Only)

    How to operate the Area Shot function (U.S.A./CANADA only) Before using the Area Shot When using the map data, be aware of actual road conditions and obey traffic rules. Copying, publishing, or using maps in electronic media without the expressed written consent is forbidden.

  • Page 138: How To Use The Area Shot Function

    How to operate the Area Shot function (U.S.A./CANADA only) How to use the Area Shot function Displaying ePID ePID is your unit's unique ID. In order to use the E-iSERV (web site), a 16-digit ePID is necessary. Press FUNC to display the FUNCTION screen.

  • Page 139: Reading Area Shot Data

    How to operate the Area Shot function (U.S.A./CANADA only) How to use the Area Shot function Reading Area Shot data The Area Shot data that has been downloaded from E-iSERV (web site) to a “Memory Stick Duo” can be loaded in the the unit and saved there. Insert the “Memory Stick Duo”.
  • Page 140 Touch file name switch to select the route. ● Touch the to move the list. ● The selected route will be read. BACK ● Touch return to the previous screen. ●Data downloaded from the E-iSERV (web site) is saved to folders created in the “Memory Stick Duo”...

  • Page 141: Changing Area Shot Screen

    How to operate the Area Shot function (U.S.A./CANADA only) How to use the Area Shot function Changing Area Shot screen Once Area Shot data has been acquired, a operation screens. Touch ● The Area Shot screen will appear. Audio ● Touch operation screen.

  • Page 142: How To View The Area Shot Screen

    How to view the Area Shot screen A map screen like the one shown will appear when the Area Shot screen has been selected. The map is oriented with north at the top. Guidance information: Information about guidance points are (traveling direction, street names) displayed as a text. Arrows: Indicates the direction to the guidance point.

  • Page 143: Displaying Touch Switch

    How to operate the Area Shot function (U.S.A./CANADA only) How to use the Area Shot function Displaying touch switch The touch switches displayed on the Area Shot screen will disappear if they are not operated for approximately 6 seconds. Perform the following to redisplay the switches. Touch screen.

  • Page 144: Switching The Map Reduction Scale

    Switching the map reduction scale When the Area Shot data is downloaded from E-iSERV, three maps of different scales for each guidance point are downloaded. Any one of the three (small-scale, standard, or large- scale) can be displayed. Touch on the standard map screen.

  • Page 145: Switching Guidance Points

    How to operate the Area Shot function (U.S.A./CANADA only) How to use the Area Shot function GuidebP ● Touch previous map screen. Switching guidance points After passing each location described in the guidance, it is necessary to switch manually to the next guidance screen.

  • Page 146: Switching Text Information

    Switching text information The text information display can be switched ON and OFF. Touch Guide ● This removes the displayed text information. Guide ● Touch again to redisplay text information. Re-scrolling through text information Text information including intersection, street names, and turn directions can be scrolled across the screen by switching through the guidance points.

  • Page 147: Displaying Poi Vicinity

    How to operate the Area Shot function (U.S.A./CANADA only) How to use the Area Shot function Displaying POI vicinity POI vicinity information can be displayed on the maps for various guidance points. A single POI category, such as restaurants or shopping, can be set to be display. A maximum of 5 POI marks can be displayed in the vicinity of a guidance point.

  • Page 148: Displaying Poi Vicinity Information

    Touch ENTER ● POIs from the selected category are displayed when you return to the map display screen. BACK ● Press to return to the previous screen. Displaying POI vicinity information POI vicinity information can be displayed as text on the Area Shot screen. The information is displayed as follows: ●...

  • Page 149: When An Optional Gps Unit Is Connected

    How to operate the Area Shot function (U.S.A./CANADA only) How to use the Area Shot function ● Touch text information for the displayed next page or previous page. ● : Displays POI vicinity information for the next page : Displays POI vicinity information for the previous page ●...

  • Page 150: Esn Security Operating Procedure

    ESN security operating procedure ESN security operating procedure About ESN This unit is equipped with ESN (ECLIPSE Security Network). A preregistered music CD (Key CD), four-digit security code, or a “Memory Stick Duo” on which all unit functions will not operate, even by turning the ignition switch to the ACC, ON position, reconnecting the battery after turning the ignition switch off, or disconnecting the battery during maintenance.

  • Page 151: Esn Security Operating Procedure

    ESN security operating procedure ESN security operating procedure How to switch the security type (Key CD security/ "Memory Stick" security) You can switch the type of security being used (Key CD security or “Memory Stick” security). The initial setting is for “Memory Stick” security. Press for less than 1 second.

  • Page 152: How To Operate The Esn (Key Cd) Security

    How to operate the ESN (Key CD) security How to program the Key CD Press for less than 1 second. FUNC Touch ● The security setting screen will appear. Touch ● “Please insert disc.” will appear. Insert the CD into the slot. ●...

  • Page 153: How To Cancel The Key Cd

    ESN security operating procedure ESN security operating procedure Press for less than 1 second. FUNC Touch ● The security setting screen will appear. Touch CANCEL ● “Please insert disc.” will appear. Insert your Key CD into the slot. ● A “The key disc was cancelled” message appears, then the Key CD is ejected.

  • Page 154: How To Change The Key Cd

    How to change the Key CD First, cancel the existing Key CD. ● Refer to “How to cancel the key CD”. Next, program a new Key CD. ● Refer to “How to program the Key CD”. How to resume normal operation (ESN security lock out) If power is disconnected while ESN security is active (a Key CD was programmed), operation is disabled until power is restored and the unit unlocked.

  • Page 155: What Happens If An Incorrect Cd Is Inserted

    ESN security operating procedure ESN security operating procedure What happens if an incorrect CD is inserted? After the 5th incorrect attempt, the display reads “HELP” for 5 seconds. ● After the “HELP” message appears for 5 seconds, serial number will then appear. Press the FUNC ●...

  • Page 156: How To Operate The Esn ("Memory Stick") Security

    How to operate the ESN (“Memory Stick”) security How to record a security code Press for less than 1 second. FUNC Touch ● The security setting screen will appear. Touch ● The security code entry screen will appear. Insert the “Memory Stick Duo” into the slot.
  • Page 157 ESN security operating procedure ESN security operating procedure Eject the “Memory Stick Duo”. ● Refer to “How to eject disc (CD/DVD) or “Memory Stick Duo”” on page 48. ●If a “Memory Stick Duo” has already been inserted, a “MS EJECT” message appears.

  • Page 158: How To Cancel The "Memory Stick" Security

    How to cancel the “Memory Stick” security The security function can be canceled when the security code that has been recorded with the deck is entered and verified. Canceling the security function can be done by entering the security code into the unit, or by using the “Memory Stick Duo”.

  • Page 159: Memory Stick Duo

    ESN security operating procedure ESN security operating procedure Canceling the security function using a “Memory Stick Duo” Press FUNC for less than 1 second. Touch ● The security setting screen will appear. Touch CANCEL ● The security code entry screen will appear.

  • Page 160: How To Change The "Memory Stick Duo

    How to change the “Memory Stick Duo” You can change the “Memory Stick Duo” and security code that have been recorded by the unit to a different “Memory Stick Duo” and security code. Cancel the security code that has been recorded with the deck. ●...

  • Page 161: Memory Stick Duo

    ESN security operating procedure ESN security operating procedure Press and hold ● If the security code matches the code recorded by the unit, “Security lock was unlocked.” will appear on the display and the security function will be canceled. Canceling ESN security lock using “Memory Stick Duo” After the battery is connected and the unit’s power is turned on, “SECURITY”...
  • Page 162 If the contents recorded in the “Memory Stick Duo” match the information recorded by the deck, “Security lock was unlocked.” will appear on the display for 2 seconds, and then the deck will return to normal operation. ●If the security code does not match the information recorded by the unit, “ERROR_”...

  • Page 163: What Happens If A "Memory Stick Duo" Or Security Code Is Incorrect

    ESN security operating procedure ESN security operating procedure What happens if a “Memory Stick Duo” or security code is incorrect? After the 5th incorrect attempt, the display reads “HELP” for 5 seconds. ● After the “HELP” message was displayed for 5 seconds, the serial number will appear. You will only get 5 unsuccessful unlock code entries.

  • Page 164: How To Operate The Acc Security

    How to operate the ACC security ACC security involves using “Memory Stick” security to record a security code, and then when the ignition switch is turned to OFF and back to ACC, the operation of all buttons is disabled. Press for less than 1 second.

  • Page 165: How To Turn The Security Indicator On/Off

    ESN security operating procedure ESN security operating procedure How to turn the security indicator on/off Once ESN security is activated, the indicator flashes whenever the vehicle's ignition switch is turned off, warning potential thieves that the unit is protected. However, if do not want this visible deterrent, it may be turned off.

  • Page 166: How To Use The Remote Control

    How to use the remote control Before using remote control ●Be sure to properly store the remote control when not in use. An improperly stored remote control could shift during braking or cornering and interfere with driving operation (for example, by becoming lodged under the brake pedal) and cause an accident.

  • Page 167: How To Use The Remote Control

    How to use the remote control How to use the remote control Remote-Control light receptor Turning the power on/off When the power is turned on, the last mode prior to turning off the power such as CD and tuner playing is restored. Press ●...

  • Page 168: How To Select The Tuner

    How to select the tuner Select the tuner mode first. Selecting the FM/AM band Press the BAND ● Each tap will switch tuner modes from FM1 BAND button VIII XIII XVII XVIII...

  • Page 169: How To Play Back Cds

    How to use the remote control How to use the remote control How to play back CDs Select the disc mode first. Press the MODE When two CD changers are connected, press the between CD changer 1 and CD changer 2. MODE button Switching disc modes...

  • Page 170: Replacing The Battery

    Replacing the battery To prevent accidents, store batteries out of the reach of children. If a child has swallowed one, consult a doctor immediately. Use two AA-size batteries. Remove the back cover of the remote control by gently pressing and sliding it in the direction indicated by the arrow.

  • Page 171: How To Operate The Optional 5.1Ch Decoder & Av Selector Unit

    How to operate the optional 5.1ch decoder & AV selector unit Sound quality information Functions of the optional 5.1 ch decoder & AV selector unit is connected The following table shows the finer audio adjustments that can be performed when the optional 5.1 ch decoder &...

  • Page 172: About Parametric Eq

    Item When original sounds are converted to a MP3/WMA format, frequency ranges that are not normally audible to the human ear are compressed. The harmonizer can be Harmonizer used to play back these compressed sounds at as close to their original form as possible so that clear and powerful sound can be enjoyed.
  • Page 173 How to operate the optional 5.1ch decoder & AV selector unit Sound quality information [Parametric equalizer characteristics] 1. Median frequency can be varied. [Sound pressure] 2. Gain can be varied. [Sound pressure] 3. Q (sharpness/band width) can be varied. [Sound pressure] High [Frequency] High...

  • Page 174: About Time Alignment

    With vehicle audio systems, the installation position of the speakers and the position of the listener mean that the distances from the listener to the left and right speakers are almost always different. These differences in the distance from the listener to each speaker in turn means that the time taken for the sound to reach the listener is different for each speaker.

  • Page 175: About Crossover

    How to operate the optional 5.1ch decoder & AV selector unit Sound quality information The frequency band that is stored by audio media such as CDs is a fairly wide range from 20 Hz to 20 kHz, and it is difficult for a single speaker to be able to play back all frequencies in such a wide range.

  • Page 176: About E-Iserv Sound Effect Customizations

    About E-iSERV sound effect customizations The parametric equalizer, time alignment and crossover setting can be adjusted using this unit, or through the E-iSERV (web site). About automatic parametic equalizer This can be used to automatically correct distortion in frequency characteristics (peaks and dips) based on the results of measuring the frequency characteristics inside the vehicle.

  • Page 177: Adjusting Sound Quality

    How to operate the optional 5.1ch decoder & AV selector unit Adjusting sound quality Displaying the sound adjustment screen Press SOUND ● The sound adjustment screen will appear. ● Touch any of the following buttons on the sound adjustment screen to display the corresponding adjustment screen.
  • Page 178 ● Setting screen ● Speaker Level setting screen SP Level ● Time alignment adjustment screen Time Alignment ● X-over setting screen X-Over VIII XIII XVII XVIII...

  • Page 179: Adjusting Peq (Parametric Equalizer)

    How to operate the optional 5.1ch decoder & AV selector unit Adjusting sound quality Adjusting PEQ (Parametric equalizer) If the optional 5.1 ch AV selector unit is connected, the parametric equalizer can be used for a 5-band adjustment of each of the front, center, and rear channels, and a 1-band adjustment of the woofer for a total of a 16-band adjustment.

  • Page 180: Adjusting/Saving A Peq

    Adjusting/Saving a PEQ Touch in the sound adjustment screen. Touch to select the channel to be adjusted. ● Each time the switch is touched, the channel will be changed in the following order shown below. Front Rear Center Woofer Touch BAND to select the band to be adjusted.
  • Page 181 How to operate the optional 5.1ch decoder & AV selector unit Adjusting sound quality Touch to select the Q curve pattern. ● Each time this switch is touched, Q curve pattern will be changed in the following order shown below. SHARP MIDDLE SHARP...

  • Page 182: Selecting A Peq Pattern From Memory

    Selecting a PEQ pattern from memory Touch ● The preset pattern stored in memory will be retrieved. BACK ● Touch after making settings. The PEQ mode adjustments will be saved and system will return to the previous operation screen. Measuring/Displaying frequency characteristics Frequency characteristics inside the vehicle can be measured and displayed on the display.

  • Page 183: To Write Measurement Results To A "Memory Stick Duo

    How to operate the optional 5.1ch decoder & AV selector unit Adjusting sound quality STOP ● Touch To write measurement results to a “Memory Stick Duo” Insert the “Memory Stick Duo”. Press and hold the switch until you hear a beep. ●...

  • Page 184: Adjusting Pos (Positioning Selector)

    Adjusting POS (Positioning selector) Sound localization can be adjusted according to the number and position of passengers in order to obtain optimum acoustic effects. A seat's sound localization can be adjusted simply by touching the switch. Touch in the sound adjustment screen.

  • Page 185: Setting The Balance

    How to operate the optional 5.1ch decoder & AV selector unit Adjusting sound quality Setting the balance The left/right/front/rear balance can be adjusted so that sound from all speakers arrives at the listener's ears at the same time. FAD/BAL Touch setting screen to display the volume balance adjustment screen.

  • Page 186: Setting Loudness

    Setting LOUDNESS Audio can be modulated to correct for insufficient bass and treble when listening at low volume. Touch LOUDNESS ● Touching the switch toggles between ON and OFF. Setting the harmonizer It is possible to set the sound quality boost level to automatically regenerate harmonics such as reverberation, depth, and tone lost in compression, producing a much clearer sound.

  • Page 187: Setting/Adjusting Surround System

    How to operate the optional 5.1ch decoder & AV selector unit Adjusting sound quality Setting/Adjusting surround system Dolby Digital (5.1 ch), DTS (5.1ch), LPCM, and Dolby Pro Logic are supported when the optional 5.1 ch AV selector unit is connected. Playing discs recorded using these technologies allows the listener to enjoy theater-quality sound within a limited space.

  • Page 188: Setting The Center Level

    Adjusts the dialog and music output level heard from center speaker. Touch for Center Level. ● The center level can be adjusted within -10 to 10 (in units of 1 step). : Increase the level. : Decrease the level. Adjusts the dialog and music output level heard from rear speaker. Touch for Rear Level.

  • Page 189: Setting The Compression

    How to operate the optional 5.1ch decoder & AV selector unit Adjusting sound quality Adjusts the sound sensation range (difference between maximum and minimum when playing a DVD with Dolby Digital (5.1 ch) or DTS (5.1 ch). Raising the numerical value of the compression level will narrow the sound range so that dialog and voice will be easier to hear even when background sounds are intense.

  • Page 190: Setting/Adjusting Speakers

    Setting/Adjusting speakers Settings and adjustments can be made to fit the speakers connected to the unit. The following settings and adjustments can be performed when the optional 5.1 ch AV selector unit is connected. ● Time alignment ● X-Over ● Speaker size ●...
  • Page 191 How to operate the optional 5.1ch decoder & AV selector unit Adjusting sound quality Touch to adjust the delay time. ● The delay time can be adjusted within 0.0 to 10.0 ms (in units of 0.1 ms). : Increase the time : Decrease the time BACK ●...

  • Page 192: Automatic Adjustment

    Connect the microphone accessory with an optional 5.1ch decoder & AV selector unit. ● Align the microphone with the actual ear position and attach it to the headrest or another appropriate fixture. (Attach the microphone using tape or string.) AUTO Touch ●...
  • Page 193 How to operate the optional 5.1ch decoder & AV selector unit Adjusting sound quality Front Touch Woofer to select the speaker to be adjusted. Freq Touch to select the cut-off frequency. ● Each time this switch is touched, the cut-off frequency will be changed in the following order shown below.

  • Page 194: Adjusting Sub-Woofer Output Level

    Adjusting sub-woofer output level When a sub-woofer is connected, the preferred output level for the audio can be set. Touch in the sound SETTING adjustment screen. X-Over Touch in the setting screen. Touch for level to adjust the Woofer Level. ●...

  • Page 195: Setting Phase Control

    How to operate the optional 5.1ch decoder & AV selector unit Adjusting sound quality The merging of sound between the front and rear speakers and the sub-woofer can be improved by selecting the phase. Switch to a phase which lets the speakers combine without any disharmony.

  • Page 196: Adjusting Speaker Level

    Adjusting speaker level Touch in the sound SETTING adjustment screen. SP LEVEL Touch in the setting screen. Touch for each speaker to adjust the speaker level. ● The speaker level can be adjusted within -10 to 10 dB (in units of 0.1 dB). : Increase the level.

  • Page 197: Adjusting Speaker Size

    How to operate the optional 5.1ch decoder & AV selector unit Adjusting sound quality Touch SETTING adjustment screen. SP LEVEL Touch screen. Center Touch Woofer to set the speaker size. ● Each time this switch is touched, the speaker size will be changed in the following order shown below.
  • Page 198 ■ Speaker settings and functions Speaker Size NONE Center SMALL LARGE SMALL Front LARGE NONE Rear SMALL LARGE Woofer Function Distributes output to the center speaker to the front left and right speakers. This setting is used when the speakers connected to the unit are unable to output frequencies lower than 100Hz.

  • Page 199: Importing Sound Data

    How to operate the optional 5.1ch decoder & AV selector unit Adjusting sound quality Importing sound data Sound data adjusted by the E-iSERV (web site) can be downloaded to a “Memory Stick Duo” and imported into the unit. Insert the “Memory Stick Duo” to be used for the sound data.
  • Page 200 Touch DATA READ Select a preset switch ● Sound data will be recorded for the selected switch. Cancel ● Touch the to cancel data saving. through VIII XIII XVII XVIII...
  • Page 201 How to operate the optional 5.1ch decoder & AV selector unit Adjusting sound quality ● If the selected switch already contains stored data, a message will be displayed. ● Select to overwrite the data. Do not turn the power or ignition switch off while reading. Interrupting the reading process may corrupt the data.

  • Page 202: Setting Display

    How to operate the optional 5.1ch decoder & AV selector unit Setting display Screen settings of the optional 5.1 ch decoder & AV selector unit Up to two external monitors can be connected when the 5.1 ch decoder & AV selector unit is connected.

  • Page 203: How To Operate The Optional Hd Radio Tuner (U.s.a. Only)

    How to operate the optional HD radio tuner (U.S.A. only) How to use the HD radio Preset switches About HD Radio If the optional HD Radio (High Definition Radio) tuner unit is connected, terrestrial digital broadcasts can be received. When terrestrial digital broadcasts are received, FM reception has the same quality as a CD, and AM reception has the same quality as conventional FM sound.

  • Page 204: Switching The Band

    Switching the band Touch BAND ● Each time the switch is touched, the band will be changed in the following order shown below. HD (FM) HD (FM2) HD (FM3) Selecting radio stations Press ● Pressing the switch once moves the frequency one step up or down. ●...

  • Page 205: Saving Radio Stations

    How to operate the optional HD radio tuner (U.S.A. only) How to use the HD radio Saving radio stations There are two modes for saving radio stations, manual and ASM. These modes operate independently. Use manual tuning or automatic tuning to select the station to be saved. Choose a preset switch and press and hold it until you hear a beep.

  • Page 206: Checking Preset Stations

    Checking preset stations This recalls all the stations that have been preset either automatically or manually and plays them each for 5 seconds. Touch FUNC Touch touch switch for less than 1 second. ● “P.SCAN” will be displayed, and the preset stations will each be played back for 5 seconds.

  • Page 207: Hd Radio Information Screen Display

    How to operate the optional HD radio tuner (U.S.A. only) How to use the HD radio HD radio information screen display Displays the HD radio station name and other information. Touch FUNC ● The function mode is activated. Touch Info ●...

  • Page 208: Hd Radio Reception Settings

    HD radio reception settings The HD radio reception method can be selected. When the HD Radio tuner is connected to this deck for the first time, it will be set at “AUTO” (automatic digital/analog selection). Touch FUNC ● The function mode is activated. Touch Info ●...

  • Page 209: How To Operate The Optional Sirius Satellite Radio Tuner

    How to operate the optional SIRIUS satellite radio tuner (U.S.A. only) How to use the SIRIUS satellite radio Preset switches About SIRIUS satellite radio If the optional SIRIUS satellite radio tuner unit is connected, satellite radio broadcast can be received. With SIRIUS satellite radio, over 100 channels are available including music, sports, news, and entertainment programs.

  • Page 210: Listening To The Sirius Satellite Radio

    Listening to the SIRIUS satellite radio Listening to SIRIUS satellite radio using the touch switches Press MENU Touch SIRIUS Listening to SIRIUS satellite radio using the panel buttons Press to select the SIRIUS mode. SOURCE For information about the operation and set-up of the SIRIUS satellite radio tuner unit, see the SIRIUS satellite radio unit's owner's manual.

  • Page 211: Selecting Sirius Channels

    How to operate the optional SIRIUS satellite radio tuner (U.S.A. only) How to use the SIRIUS satellite radio Selecting SIRIUS channels Press ● Pressing the switch once moves the channel one step up or down. ● (up) : Raises the channel (down) : Lowers the channel Press and hold ●...

  • Page 212: Category Selection

    Category selection The channel can be selected from among categories such as POP and ROCK. Consult the SIRIUS website for details of categories. Touch FUNC Category Touch ● The category selection screen will appear. Touch a category. NEXT ● Touch to switch to the next screen.

  • Page 213: Direct Channel Selection

    How to operate the optional SIRIUS satellite radio tuner (U.S.A. only) How to use the SIRIUS satellite radio Direct Channel selection The channel can be selected by inputting the channel directly. Touch FUNC ● The function mode is activated. Touch Direct ●...

  • Page 214: Saving Sirius Channels

    Saving SIRIUS channels Use manual tuning or automatic tuning to select the channel to be saved. Choose a preset switch and press and hold it until you hear a beep. ● The radio SIRIUS channel is set. Touch the preset switch to tune in the selected station.

  • Page 215: How To Operate The Optional Tv Tuner

    How to operate the optional TV tuner (U.S.A./CANADA/KOREA/TAIWAN only) How to use the TV The unit can be used as a TV if a TV tuner (sold separately) is connected to the unit. The vehicle must be safely parked with the parking brake engaged and the ignition switch in ON or ACC before the TV can be viewed.

  • Page 216: Selecting Channel

    Selecting channel Press ● Pressing the switch once moves the channel one step up or down. (up): Raises the channel (down): Lowers the channel Press and hold ● The station that is closest to the current channel will be searched for automatically, and searching will stop when the station is received.

  • Page 217: Saving Channels

    How to operate the optional TV tuner (U.S.A./CANADA/KOREA/TAIWAN only) How to use the TV Saving channels There are two modes for saving channel, manual and AUTO.P. Use manual tuning or automatic tuning to select the channel to be saved. Choose a preset switch and press and hold it until you hear a beep.
  • Page 218 About AUTO.P Because the AUTO.P function can be used to temporarily save channels for the preset switches, channels saved manually will remain in memory even if AUTO.P is used. Manually saving channels that are used regularly allows them to be restored even after AUTO.P has been used, such as after traveling.

  • Page 219: Checking Preset Stations

    How to operate the optional TV tuner (U.S.A./CANADA/KOREA/TAIWAN only) How to use the TV Checking preset stations This recalls all the stations that have been preset either automatically or manually and plays them each for 5 seconds. Touch AUTO.P second. ●...

  • Page 220: How To Operate The Vtr

    How to operate the VTR How to use the VTR Video tapes can be played by connecting a commercially available VTR deck. For safety reasons, videos can be played only when the ignition is switched to ON or ACC and the vehicle is completely stopped with the parking brake set.

  • Page 221: Switching To The Tv/Vtr

    How to operate the VTR How to use the VTR Switching to the TV/VTR It is possible to switch to VTR mode from TV mode when the optional TV tuner is connected. Touch in the TV screen. ● Touch to return to the TV operation screen. ●When two VTR devices are connected, screen.

  • Page 222: Turning Off The Vtr Mode

    Turning off the VTR mode Press ● Press again to resume playback. MENU ● Press and then touch played before the power was turned off. to resume playback of the video that was being VIII XIII XVII XVIII...

  • Page 223: How To Operate The Back-Eye Camera

    How to operate the Back-eye Camera Back-eye Camera operations When the optional Back-eye Camera is installed, the rear view image can be displayed on the monitor screen. ●Do not rely too heavily on the Back-eye Camera. ●Please use the Back-eye Camera as a backup means to check for obstructions behind the vehicle.
  • Page 224 ●The actual position and distance of people or objects may vary depending on the features of the camera lens. ●Do not expose the camera to strong shocks such as hitting it or knocking it into other objects. The Back-eye Camera may not function properly if the position of the camera or its mounting angle is incorrect.

  • Page 225: Back-Eye Camera Image

    How to operate the Back-eye Camera Back-eye Camera operations Back-eye Camera image Press FUNC for less than 1 second. Touch CAMERA SCREEN ● The rear image appears on the monitor screen. Automatic back-eye camera image display setting The Back-eye Camera image can be set to automatically display when the ignition switch is ON and the vehicle is shifted into reverse.
  • Page 226 ●The range of the image may vary depending on the vehicle and the road conditions. ●There is a limit to the range of the camera. Objects near the ends of the bumper and under the bumper cannot be seen. ●The rear image color may vary from that of the actual objects. ●In the following situations, the screen may be difficult to view but they do not constitute a malfunction: •...

  • Page 227: For Reference

    For reference Important Points If one of these messages appears If any of the following messages are displayed, check the unit while referring to the cause and corrective action columns. Messages CD SEEK CD DOOR OPEN CHECK DISC NO DISC NO CD CD ERROR DVD ERROR...
  • Page 228 Messages PARENTAL LOCK ENABLED THIS FUNCTION IS CURRENTLY DISABLED INVALID CODE REGION CODE ERROR ANTENNA ACQUIRING CALL888-539-SIRIUS SUB UPDATED INVALID UPDATING Cause Viewing restrictions are enabled. A function that has been disabled was selected with the menu. A function that cannot be used while the vehicle is in motion was selected.

  • Page 229: Before Asking For Repairs

    For reference Important Points Before asking for repairs Slight differences in operation can sometimes be mistaken for malfunctions, so check the following table before requesting any repairs. If the following fail to solve the problem, contact your local retailer. Symptom The screen is dark for a brief period when the power is turned on at low temperatures.
  • Page 230 Symptom There is a point of light on the display. The Audio screen is distorted by electrical noise. Possible reason At least 99. 99% of the pixels on the LCD panel are effective, but it is possible that 0. 01% of the pixels may not light or may stay lighted.

  • Page 231: Other

    For reference Other Products equipped with Dolby Digital Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992-1997 Dolby Laboratories, lnc. All rights reserved. Manufactured under license from Dolby Laboratories, Inc. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

  • Page 232: Glossary

    For reference Glossary (Compact Disc Recordable) (Compact Disc Digital Audio) (Compact Disc ReWritable) EQ (Equalizer) (MPEG-1 Audio Layer-3) (Linear PCM) Copy Control CD (Universal Disc Format) This is a disc that can only be recorded once. CD-R Recorded data cannot be deleted. There are two types of CD-R, one having a capacity of 650MB (74 minutes of music), the same as a regular CD, and the other having a capacity of 700MB (80...
  • Page 233 For reference Glossary Viewing Restriction The single division for a song on a music CD is Track called a track. This is a DVD video function that “Restricts playing of discs that support viewing restrictions, in accordance with the regulated levels of each country.”...

  • Page 234: About Care And Maintenance

    For reference About care and maintenance About care and maintenance - main unit ● Use a soft cloth (silicon cloth) to remove dirt from the main unit. If the unit is very dirty, soak a cloth in diluted kitchen detergent, wring dry, then use it to wipe the unit clean.

  • Page 235: Topic Index

    For reference Topic index About screen and sound adjustment [Regarding screen adjustment] To make the audio operation screen or DVD·TV·VTR screen easier to see "Adjusting image quality" ........P71 To change the wallpaper "Setting the Background"...

  • Page 236: About Using Am/Fm Radio

    ● To adjust the MP3/WMA sound "Setting the harmonizer" ........P60 ●...

  • Page 237: About Using The Mp3/Wma Player

    For reference Topic index About using the MP3/WMA player To play an MP3/WMA file "Playing MP3/WMA" ......... P93 To select a music file or folder to listen to "Selecting a music file"...

  • Page 238: About Using The Dvd Player

    About using the DVD player To play a DVD video "Watching a DVD" ......... . P110 To learn about discs ●...

  • Page 239: About Video Cd Player (Asia Only)

    For reference Topic index To set the player "Setting the audio language"....... . . P121 "Setting subtitle language"...

  • Page 240: About Esn Security

    About ESN security To learn about ESN "About ESN" ..........P149 To switch security type "How to switch the security type (Key CD security/"Memory Stick"...

  • Page 241: About Optional Hd Radio (U.s.a. Only)

    For reference Topic index ● To set speakers "Setting/Adjusting speakers" ....... . P189 ●...

  • Page 242: About Optional Tv (U.s.a./Canada/Korea/Taiwan Only)

    About optional TV (U.S.A./CANADA/KOREA/ TAIWAN only) To watch radio "Watching TV" ..........P214 To search for channel "Selecting channel"...

  • Page 243: Index

    For reference Index Adjusting the main volume Adjusting sound quality...53 ANGLE...118 AUTO.P ...82 BRIGHT ...71 CD-R (CD-Recordable)...31 CD-RW (CD-ReWritable)...31 Circle Surround II...55 COLOR ...71 CONTRAST ...71 HOME ...95 How to use the remote control...165 How to use the AM/FM radio ...80 How to use the Area Shot function ...137 How to use the CD changer...103 How to use the CD player...87...

  • Page 244: Specifications

    For reference Specifications Liquid crystal panel Screen dimensions Pixel count Active pixel rate Display format Drive system Usage temperature range Storage temperature range Reception frequency Practical speed Frequency characteristic Stereo separation Wow & flutter Higher harmonic distortion rate Frequency characteristic S/N ratio Dynamic range Total harmonic distortion...

  • Page 245: Common Component

    For reference Specifications Rated output Maximum output Suitable load impedance Power source voltage Power consumption Exterior dimensions Weight Common component 15W x 4 (1kHz, 1%4:) (EIAJ) 50W x 4 (test voltage 14.4V) 4: (each channel) DC13.2V (11-16V) Grounded 0.5W x4 output time about 3.5A About 15A max 180mm (W), 50mm (H), 165mm (D) About 3.6kg...

  • Page 246: How To Contact Customer Service

    For reference How to contact customer service Should the product require service, please contact your nearest Eclipse dealer. <U.S.A./CANADA> Fujitsu Ten Corp. of America 19600 South Vermont Avenue, Torrance, CA 90502 Phone: (310) 327-2151 <AUSTRALIA> Fujitsu Ten (Australia) PTY LTD. 89 Cook Street Port Melbourne, Victoria 3207, Australia Phone: 1800 211 411 <MALAYSIA>...
  • Page 247 For reference How to contact customer service <KOREA> Transpectra Co., LTD. 115-16 nonhyun dong kangnam ku Seoul, Korea. Phone: 02-540-4595 Fax: 02-2-540-4666 <TAIWAN> Sentrek Taiwan, LTD. 1, 9F, Lane 155, Section 3, Peishen RD., Shenkeng, Taipei Hsien, 222 Taiwan, R.O.C. Phone: 02-2662-8110 Fax: 02-2662-8117 <THAILAND>...

  • Page 248: Before Installation

    Before installation Before installation ● Note ● Be sure to disconnect the vehicle battery's negative terminal before installing the main unit. Components Main unit Mounting sleeve Side bracket Bezel Bushing Thin flat screw (4 x 5 mm) Flat head screw (4 x 6 mm) Interconnecting cable (16P) Interconnecting cable (20P) Splicing connector...

  • Page 249: Mounting Instruction

    Mounting instruction Mounting instruction Mounting the main unit -If installing the main unit by the mounting sleeve- Insert the mounting sleeve into the opening in the vehicle dash board or console box. Use a screwdriver or a similar tool to bend the tabs in the mounting sleeve to secure the mounting sleeve.
  • Page 250 Attach the side brackets to the main unit using flat head screws. ● Note ● ● Connect all cables before installing the main unit. ● Be sure to use the accessory mounting screws (M4 x 6) as the mounting screws. If any other screws are used, they may damage the inside of the unit.
  • Page 251 Mounting instruction Mounting instruction Mount the stud bolt to the main unit. Insert the main unit into the mounting sleeve until it locks in place. Install the bezel on the main unit. -If installing the main unit using the side brackets of the vehicle- ●...
  • Page 252 Attach the side brackets to the main unit. ● Note ● Be sure to use the accessory mounting screws (M4 x 6) as the mounting screws. If any other screws are used, they may damage the inside of the unit. Install the main unit in the vehicle.

  • Page 253: Names And Function Of Terminals

    Mounting instruction Mounting instruction Names and function of terminals ● Caution ● Never connect the power supply to the speaker leads, otherwise it causes damage to the main unit. ● Note ● To prevent unconnected leads from shorting out, insulate them by wrapping their tips with electrical tape.
  • Page 254 Name Illumination power supply Antenna power supply External amp turn on Speaker output leads (Front) Speaker output leads (Rear) Ground E-LAN terminal (13P) Front line-out terminals Rear line-out terminals Line-out terminals (Non-fader) GPS antenna terminal (8P) Radio antenna receptacle Back-eye camera external input terminal (4P) VTR input terminals VTR output terminals...

  • Page 255: Connecting The Parking-Brake Signal And The Reverse Signal

    Mounting instruction Mounting instruction Connecting the parking-brake signal and the reverse signal ● Warning ● Verify the parking-brake signal and the reverse signal before making the signal connection. Using the wrong wires may cause accidents or malfunctions. ● Note ● The connecting point for the parking-brake signal and the reverse signal may vary with models and grades.
  • Page 256 Insert the connection wire [parking brake signal wire (red/white), reverse signal wire (fresh green)] of the main unit and the vehicle’s wire into the splicing connector. Push in the terminal (the metal part) of the splicing connector using a pair of pliers.

  • Page 257: System Connection Example

    Mounting instruction Mounting instruction System connection example 1) AVX5000 + GPS105 NO CONNECTION (Do not remove cap) GPS ANTENNA (Supplied with GPS 105) GPS UNIT (Supplied with GPS 105) INTERCONNECTING CABLE (Supplied with GPS 105) MAIN UNIT ANTENNA EXTENSION CABLE...
  • Page 258 2) AVX5000 + TVR105 + CH3083 NO CONNECTION (Do not remove cap) TO ACC (POWER Supply) TO GROUND TV ANTENNA (Supplied with TVR105) MAIN UNIT ANTENNA EXTENSION CABLE ANTENNA PLUG INTERCONNECTING CABLE VIDEO INPUT CONNECTION FRONT SPEAKER REAR SPEAKER INTERCONNECTING CABLE...
  • Page 259 Mounting instruction Mounting instruction 3) AVX5000 + DCU105 + CH3083 SPEAKER INTERCONNECTING CABLE (Supplied with CH3083) DIGITAL OUT (Do not remove cap) SPEAKER CH3083 TO GROUND MAIN UNIT TO GROUND FRONT REAR MICROPHONE (supplied with DCU105) INTERCONNECTING CABLE (Supplied with DCU105)
  • Page 260 4) AVX5000 + DCU105 + CH3083 + Power Amplifier (for 5.1ch system) TO GROUND INSULATE EACH INTERCONNECTING CABLE WIRE WITH TAPE (Supplied with CH3083) DIGITAL OUT (Do not remove cap) CH3083 TO GROUND MAIN UNIT TO SIGNAL INPUT OF AUXILIARY POWER AMPLIFIER...
  • Page 262 CUSTOMER NOTICE Please retain this booklet and write in the serial number of your AVX5000 for identification. The serial number is labeled or stamped on the chassis. Serial No. FUJITSU TEN LIMITED Contact:FUJITSU TEN CORP. OF AMERICA 19600 So. Vermont Avenue, Torrance, CA 90502 Call:800-233-ECLIPSE www.eclipse-web.com...

Table of Contents

Save PDF
