Eagle FISHSTRIKE 1000C Installation And Operation Instructions Manual
  1. Manuals
  2. Brands
  3. Eagle Manuals
  4. Fish Finder
  5. FISHSTRIKE 1000C
  6. Installation and operation instructions manual

Eagle FISHSTRIKE 1000C Installation And Operation Instructions Manual

Fish-finding sonars & mapping gps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Pub. 988-0143-801
www.eaglesonar.com
®

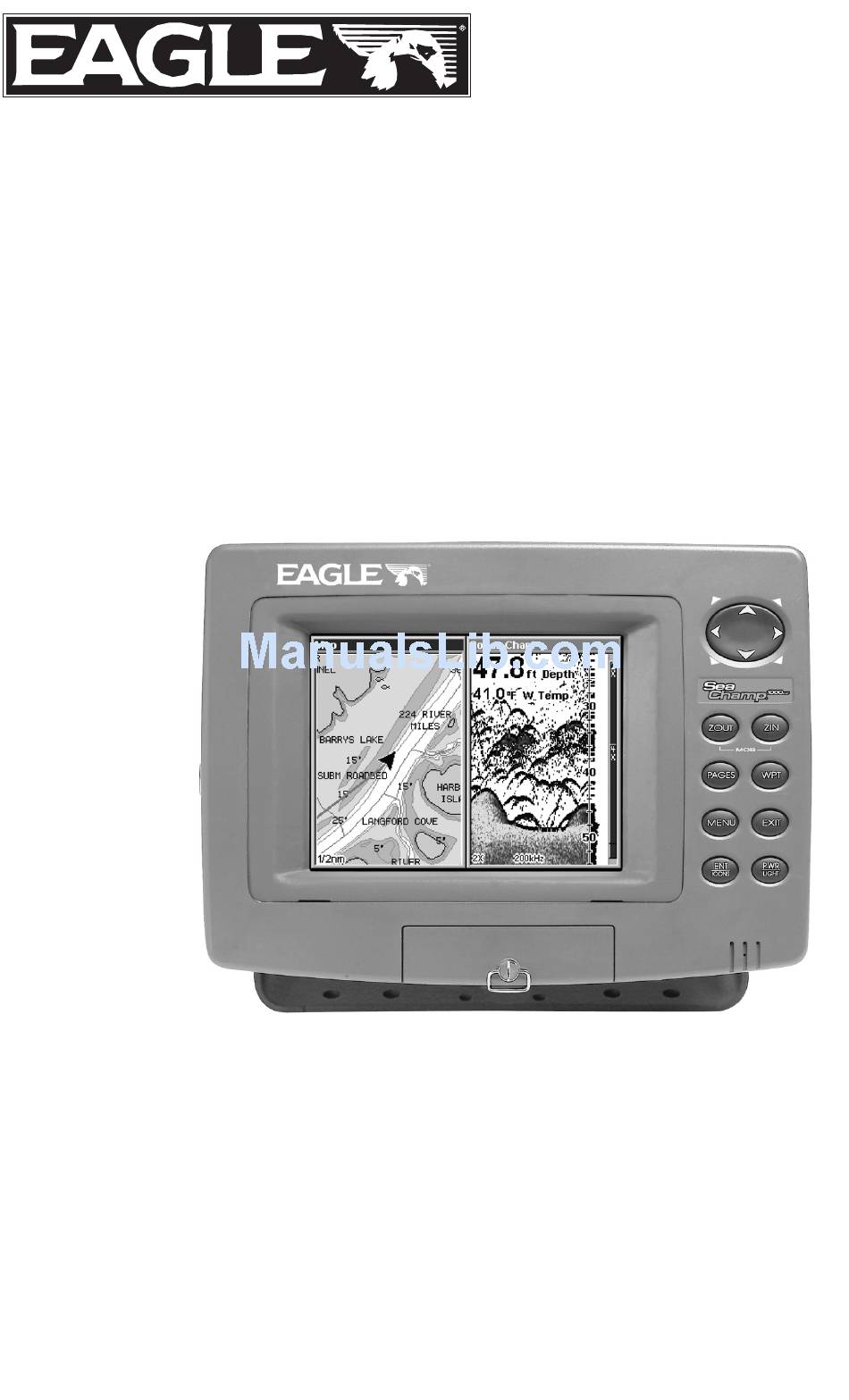

FishStrike 1000C &
SeaChamp 1000 CDF
®
Fish-finding Sonars & Mapping GPS
Installation and Operation
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FISHSTRIKE 1000C and is the answer not in the manual?

Questions and answers

Related Manuals for Eagle FISHSTRIKE 1000C

Summary of Contents for Eagle FISHSTRIKE 1000C

  • Page 1 Pub. 988-0143-801 www.eaglesonar.com ® FishStrike 1000C & SeaChamp 1000 CDF ® Fish-finding Sonars & Mapping GPS Installation and Operation Instructions...
  • Page 2 Ltd. Exit Authority and eXitSource are trademarks of Zenrin Co. Ltd. Eagle Electronics may find it necessary to change or end our policies, regulations, and special offers at any time. We reserve the right to do so without notice. All features and specifications subject to change without notice.

  • Page 3: Table Of Contents

    Section 1: Read Me First!... 1 Specifications: FishStrike 1000C & SeaChamp 1000 How Your Sonar Works ... 5 How Your GPS Works ... 6 Introduction to GPS and WAAS... 7 How to use this manual: typographical conventions ... 10 Section 2: Installation & Accessories... 13 Preparations...
  • Page 4 ASP (Advanced Signal Processing) ... 55 Alarms ... 56 Depth Alarms ... 56 Zone Alarm ... 57 Fish Alarm... 58 Calibrate Speed... 58 Chart Speed... 59 ColorLine... 60 Depth Cursor... 61 Depth Range - Automatic ... 62 Depth Range - Manual ... 63 FasTrack...
  • Page 5 Main Menu ... 94 Pages ... 96 Sonar Page ... 96 Satellite Status Page ... 96 Navigation Page ... 98 Map Page... 99 GPS Quick Reference... 104 Find Your Current Position... 105 Moving Around the Map: Zoom & Cursor Arrow Keys ... 105 Selecting Any Map Item with the Cursor...
  • Page 6 Trails ... 130 Delete a Trail ... 130 Edit a Trail Name ... 130 Edit a Trail Color ... 131 Edit a Trail Pattern ... 131 Utilities... 132 Alarm Clock... 132 Sun/Moon Rise & Set Calculator... 132 Trip Calculator... 132 Trip Down Timer...
  • Page 7 Tidal Current Information ... 150 Tide Information ... 152 Overlay Data ... 154 Overylay Data Style... 157 Pop-up Help... 160 Reset Options ... 161 Screen Contrast and Brightness ... 161 Set Language ... 162 Set Local Time ... 163 Show WAAS Alarm... 164 Software Version Information...
  • Page 8 A CAREFUL NAVIGATOR NEVER RELIES ON ONLY ONE METHOD TO OBTAIN POSITION INFORMATION. When showing navigation data to a position (waypoint), a GPS unit will show the shortest, most direct path to the waypoint. It provides navigation data to the waypoint regardless of obstructions.

  • Page 9: Section 1: Read Me First

    GPS receiver.  First, we want to thank you for buying an Eagle sonar/GPS unit. Whether you're a first time user or a professional fisherman, you'll discover that your unit is easy to use, yet capable of handling demanding navigation and sonar tasks.
  • Page 10 After you've gained some experience with your sonar, you'll want to check out Section 4, which discusses advanced Sonar Options and Other Features. When you come to a sonar menu command on the unit's screen, you can look it up in the manual by skimming over the table of contents, flipping through Section 3, or scanning through the sonar options in Section 4.

  • Page 11: Specifications

    skip ahead to important information on how sonar works, on page 5. (Background on GPS begins on page 6.) Capabilities SeaChamp 1000 Display:... High-brightness LCD; programmable to Resolution:... 320 pixel x 240 pixel resolution. Backlighting:... Fluorescent cold cathode backlit screen with Input power:...
  • Page 12 Receiver/antenna: ... External; EGC 12 parallel channel Recording:... MMC & SD memory cards for recording GPS Background map:... Built-in custom, detailed Eagle map. Custom mapping: ... MapCreate Mapping memory: ... Up to 1 GB on one MMC (or SD) card.

  • Page 13: How Your Sonar Works

    Sonar has been around since the 1940s, so if you already know how it works, skip down to read about the relatively new technology of GPS. But, if you've never owned a sonar fish finder, this segment will tell you the underwater basics.

  • Page 14: How Your Gps Works

    How Your GPS Works You'll navigate faster and easier if you understand how this unit scans the sky to tell you where you are on the earth — and, where you're going. (But if you already have a working understanding of GPS receivers and the GPS navigation system, skip on ahead to Section 2, Installation &...

  • Page 15: Introduction To Gps And Waas

    MapCreate software. These MapCreate custom maps contain much greater detail than the basic background map. These Custom Map Files (file format *.lcm) can also be shared between other Eagle GPS or sonar/GPS units and personal computers. (For example, the exact same...
  • Page 16 The Global Positioning System (GPS) was launched July 17, 1995 by the United States Department of Defense. It was designed as a 24- hour-a-day, 365-days-a-year, all weather global navigation system for the armed forces of the U.S. and its allies. Civilian use was also available, but it was less accurate because the military scrambled the signal somewhat, using a process called Selective Availability (SA.) GPS proved so useful for civilian navigation that the federal...
  • Page 17 Like most GPS receivers, this unit doesn’t have a compass or any other navigation aid built inside. It relies solely on the signals from the satellites to calculate a position. Speed, direction of travel, and distance are all calculated from position information. Therefore, in order for the unit to determine direction of travel, you must be moving and the faster, the better.

  • Page 18: How To Use This Manual: Typographical Conventions

    How to use this manual: typographical conventions Many instructions are listed as numbered steps. The keypad and arrow "keystrokes" appear as boldface type. If you're in a real hurry (or just need a reminder), you can skim the instructions and pick out what menu command to use by finding the boldface command text.
  • Page 19 Next, repeatedly press (or press and hold) the down arrow key to scroll down the menu and select (highlight) the My Trails menu command. Finally, press the Enter key." Step 2 means: "Press the down arrow key repeatedly to scroll to the trail named Trail 1, and press Enter.
  • Page 20 Notes...

  • Page 21: Section 2: Installation & Accessories

    Installation & Accessories Preparations You can install the sonar and GPS systems in some other order if you prefer, but we recommend this installation sequence: CAUTION: You should read over this entire installation section before drilling any holes in your vehicle or vessel! 1.

  • Page 22: Recommended Tools And Supplies

    Read these instructions carefully before attempting the installation. Determine which of the mounting positions is right for your boat. Use extreme care if mounting the transducer inside the hull, because once the epoxy is applied and it is set into position, the transducer cannot be removed.
  • Page 23 water, interference caused by bubbles and turbulence will show on the sonar's display in the form of random lines or dots whenever the boat is moving. NOTE: Some aluminum boats with strakes or ribs on the outside of the hull create large amounts of turbulence at high speed. These boats typically have large outboard motors capable of propelling the boat at speeds faster than 35 mph.

  • Page 24: How Low Should You Go

    CAUTION: Clamp the transducer cable to transom near the transducer. This will help prevent the transducer from entering the boat if it is knocked off at high speed. Good location Poor angle Good and poor transducer locations. How low should you go? For most situations, you should install your Skimmer transducer so that its centerline is level with the bottom of the boat hull.

  • Page 25: Shoot-Thru-Hull Vs. Transom Mounting

    bottom – the face – of the transducer rise above the bottom of the hull. Shoot-thru-hull vs. Transom Mounting In a shoot-thru-hull installation, the transducer is bonded to the inside of the hull with epoxy. The sonar "ping" signal actually passes through the hull and into the water.
  • Page 26 1. Assembling the bracket. A. One-piece bracket: Press the two small plastic ratchets into the sides of the metal bracket as shown in the following illustration. Notice there are letters molded into each ratchet. Place each ratchet into the bracket with the letter "A" aligned with the dot stamped into the metal bracket.
  • Page 27 Transducer Transducer bracket Ratchet Ratchet Add ratchets to bracket and transducer. 2. Aligning the transducer on the transom. A. One-piece bracket: Slide the transducer between the two ratchets. Temporarily slide the bolt though the transducer assembly and hold it against the transom. Looking at the transducer from the side, check to see if it will adjust so that its face is parallel to the ground.
  • Page 28 B. Two-piece bracket: Assemble the transducer and bracket as shown in the following figure. Temporarily slide the bolt though the transducer assembly but don't tighten the nut at this time. Hold the assembled transducer and bracket against the transom. Looking at the transducer from the side, check to see if it will adjust so that its face is parallel to the ground.
  • Page 29 B. Two-piece bracket: Once you determine the correct position for the ratchets, assemble the transducer as shown in the figure in step 2B. Don't tighten the lock nut at this time. 4. Drilling mounting holes. Hold the transducer and bracket assembly against the transom. The transducer should be roughly parallel to the ground.
  • Page 30 Both bracket types: Attach the transducer to the transom. Slide the transducer up or down until it's aligned properly with the bottom of the hull as shown in the preceding and following figures. Tighten the bracket's mounting screws, sealing them with the caulking compound. Adjust the transducer so that it's parallel to the ground and tighten the nut until it touches the outer washer, then add 1/4 turn.
  • Page 31 7. Make a test run to determine the results. If the bottom is lost at high speed, or if noise appears on the display, try sliding the transducer bracket down. This puts the transducer deeper into the water, hopefully, below the turbulence causing the noise. Be careful not to install the transducer bracket below the bottom of the hull! TROLLING MOTOR BRACKET INSTALLATION (single-frequency only)

  • Page 32: Hulls With Floatation Materials

    TRANSDUCER ORIENTATION AND FISH ARCHES If you do not get good fish arches on your display, it could be because the transducer is not parallel with the ground when the boat is at rest in the water or at slow trolling speeds. Transducer aimed too far back Full fish arch...

  • Page 33: Testing Determines Best Location

    layers. The sonar signal must pass through solid fiberglass. A successful transducer installation can be made on hulls with flotation materials (such as plywood, balsa wood or foam) between layers of fiberglass if the material is removed from the chosen area. Fill with resin Flotation material Epoxy to hull first...
  • Page 34 Transducer location (high speed) Shoot-thru-hull transducer locations for high speed or trolling speed operation. To choose the proper location for shoot-thru-hull mounting, follow these testing procedures: (You may need a helper to complete these steps.) 1. Anchor the boat in about 30 feet of water. Add a little water to the sump of the boat.

  • Page 35: Shoot-Thru-Hull Installation

    3. Now move the transducer around to find the best location with the strongest possible bottom signal. If you find a spot with an acceptable bottom signal, mark the location and move on to step 4. If you can't get an acceptable bottom signal, try turning up the sensitivity by three or five keystrokes and then move the transducer around once more.
  • Page 36 Sand this surface (unit's face) Orient the Skimmer with the nose facing the bow of the boat. WARNING: Use only the epoxy available from LEI. It has been formulated to work with these installation procedures. Other epoxy types may be too thin or may not cure to the right consistency for optimum transducer performance.

  • Page 37: Speed/Temperature Sensors

    This unit is packed with a transducer containing a built-in temp sensor. The SeaChamp package also includes a speed sensor. If you have a FishStrike 1000c and want a speed sensor or additional temp sensor, see the Accessory Ordering Information in the back of this manual.

  • Page 38: Optional Speed Sensor Installation

    GPS socket Blank Accessory socket Optional temp sensor antenna Optional speed module or combination speed/temp sensor Optional Speed Sensor Installation All the units in this series can display speed and distance traveled, but only the SeaChamp 1000 wish to purchase an optional additional sensor for your unit, refer to the accessory ordering information inside the back cover of this manual.
  • Page 39 remain in the water when the boat is on plane. Also make sure the location doesn't interfere with the boat's trailer. Typically, the sensor is mounted about one foot to the side of the transom's centerline. Once you've determined the proper location for the unit, place the sensor on the transom.

  • Page 40: Gps Antenna/Receiver Module Installation

    GPS Antenna/Receiver Module Installation C DF The FishStrike 1000c and SeaChamp 1000 packages include the EGC-12w GPS module. This device contains the unit’s external antenna and receiver for GPS and WAAS signals. The antenna/receiver module comes with a 25-foot extension cable.

  • Page 41: Power Connections

    communication port. Com port one (Com-1) can be used to receive NMEA format GPS data. The com port can also transmit NMEA format GPS data to another device. The optional data cable will contain three wires. Com-1 uses the yellow wire to transmit, the orange wire to receive and the shield wire for signal ground.
  • Page 42 This will protect both the unit and the power cable in the event of a short. It uses a 3-amp fuse. To unit Transducer Power connections for FishStrike 1000c and SeaChamp 1000C DF WARNING: This product must be independently fused with the enclosed 3-amp fuse (or equivalent), even if you connect to a fused accessory or power buss.

  • Page 43: Mounting The Unit: Bracket Or In-Dash

    wires are attached correctly. Mounting the Unit: Bracket or In-Dash You can install the unit on top of a dash with the gimbal bracket. It can also be installed in the dash or mounted on a portable power supply. If you use the supplied bracket, you may be interested in the optional ...
  • Page 44 [9.58] Front view (left) and side view (right) showing dimensions of the sonar/GPS unit when mounted on gimbal bracket. Holes in the bracket's base allow wood screw or through-bolt mounting. You may need to place a piece of plywood on the back side of thin fiberglass panels to reinforce the panel and secure the mounting hardware.
  • Page 45 Once a location is determined, use the bracket as a template and mark the mounting holes and the hole for the cables. Drill a 1-inch (25.4 mm) hole in the dash for the power, transducer and antenna cables. Screw the bracket to the mounting surface. To pass all connectors through the 1"...

  • Page 46: Mmc Or Sd Memory Card Installation

    MMC or SD Memory Card Installation Your unit uses MultiMedia Cards to store information, such as sonar logs, custom maps, waypoints, trails and other data. The unit can also use Secure Digital Cards (SD card) to store data. The unit can use up to two cards;...

  • Page 47: Other Accessories

    Other Accessories MMC and MapCreate Other available accessories include MMC cards, MMC card readers and MapCreate™ 6 custom mapping software for your computer. MMC card readers are available in USB versions. MapCreate™ 6 CD-ROM, left; MMC card reader for USB ports, right. If these accessories are not available from your dealer, see the accessory ordering information on the inside back cover of this manual.
  • Page 48 Notes...

  • Page 49: Section 3: Basic Sonar Operation

    Quick Reference on page 49. Keyboard MMC drawer FishStrike 1000C sonar/GPS unit, front view, showing sonar screen, keyboard and access door for the MMC compartment. 1. PWR/LIGHT (Power & Light) – The PWR key turns the unit on and off and activates the backlight.

  • Page 50: Power/Lights On And Off

    2. PAGES – Pressing this and the ← → arrow keys switches the unit between the four different page screens. (Satellite Status Page, Navigation Page, Map Page and Sonar Page.) Each page represents one of the unit's major operation modes. 3.

  • Page 51: Main Menu

    Main Menu The unit has a Main Menu, which contains some function commands and some setup option commands. The instructions in this section will deal only with sonar functions, the basic commands that make the unit show sonar signals on your screen. This unit will work fine right out of the box with the factory default settings.

  • Page 52: Satellite Status Page

    destination waypoint, Point of Interest or map cursor location; or after you reach the end of a route or trail. Sonar Setup command: sets various sonar options. GPS Setup command: sets various GPS receiver options. System Setup command: sets general configuration options. Sun/Moon Calculations command: finds the rising and setting time of the sun and the moon.

  • Page 53: Navigation Page

    No matter what Page you are on, a flashing current position indicator/question mark symbol and flashing GPS data displays indicate that satellite lock has been lost and there is no position confirmed. WARNING: Do not begin navigating with this unit until the numbers have stopped flashing! Navigation Page This screen has a compass rose that not only shows your direction of...

  • Page 54: Sonar Page

    always at the top of the screen. The arrow in the center of the screen is your present position. It points in the direction you're traveling. Map Page, showing position on Bull Shoals Lake, Arkansas. The full map option (left). Map with sonar option (right). Map Page is the default screen that appears when you turn on the unit.
  • Page 55 To get to the Sonar Page: Press the select . (Clear the Pages Menu by pressing ONAR offers five chart display options under the Sonar Page category. To access them, press |← or→ to PAGES The Sonar Page has its own menu, which is used for advanced functions and for setting various options.
  • Page 56 Sonar Page Menu. Most of these functions are discussed in Sec. 4. Digital data overlay (depth & temperature) Fish arches Structure Sonar Page showing full sonar chart mode. You can customize how the Sonar Page displays its pictures and other data in many ways.

  • Page 57: Sonar Quick Reference

    FishStrike 1000C and SeaChamp 1000CDF 1. Mount the transducer, antenna and unit. Connect the unit to electric power and the transducer. (If GPS operation is desired, connect GPS antenna, too.) Make sure the MMC is in. (See complete installation details beginning on page 13.) 2.

  • Page 58: Sonar Operations

    Sonar Operations As you can see from the quick reference on the previous page, basic operation is pretty easy, right out of the box. If you are a sonar novice, try operating the unit with the factory defaults until you get a feel for how it's working. As you're learning the basics, there is one setting you might want to tinker with from time to time —...
  • Page 59 Adjusting sensitivity in Auto Sensitivity Mode is similar to manually adjusting a car's speed with the accelerator pedal while cruise control is on. You can tell the car to run faster, but when you let off the gas the cruise control automatically keeps you from running slower than the minimum speed setting.

  • Page 60: Fish Symbols Vs. Full Sonar Chart

    San Francisco Bay saw clouds of clutter in the water but no fish arches. When a downrigger was pulled up, it brought up several small jellyfish. The fisherman switched their Eagle sonar to Fish I.D., which screened out the schools of jellyfish and clearly showed the game fish there as fish symbols.
  • Page 61 Aside from being just plain fun, this program can help you learn both basic and advanced operations without burning boat fuel! Eagle is the first sonar manufacturer to provide this type of training tool for customers.
  • Page 62 A free training emulator is available for your unit on our web site. The emulator works exactly like your real sonar/GPS unit. Using the Sonar Simulator and GPS Simulator features, it allows you to play back sonar logs, run GPS routes and trails, even create real waypoints you can use in the field! You can even take snapshots of the Sonar Chart and print them or e-mail them to friends.

  • Page 63: Section 4: Sonar Options & Other Features

    Section 4: Sonar Options & Other Features Material in this section is arranged in alphabetical order. ASP (Advanced Signal Processing) The ASP feature is a noise rejection system built into the sonar unit that constantly evaluates the effects of boat speed, water conditions and interference.

  • Page 64: Alarms

    Alarms This unit has three different types of sonar alarms. The first is the Fish Alarm. It sounds when the Fish I.D. feature determines an echo is a fish. Another alarm is the Zone Alarm, which consists of a bar on the side of the screen.

  • Page 65: Zone Alarm

    4. Press ← to HALLOW 5. To turn off the alarm, press ONAR LARMS To switch to a different depth setting, open the Sonar Alarms menu and repeat the instructions in step 3 above. To adjust and turn on the deep alarm: 1.

  • Page 66: Fish Alarm

    4. To set the lower boundary for the Zone Alarm, use ← or→ to select , then press ↑ or ↓ to move the bottom of the bar to the desired OWER depth. 5. Press |← to EXIT echo — fish, bottom, structure — within the zone alarm's depth range will trigger the zone alarm.

  • Page 67: Chart Speed

    actual speed, you will enter – 10 in the calibration window. If the sensor is reading 5 percent slower than true speed, you will enter + 5 in the window. A good way to gauge your speed sensor's performance is to compare its reading with the ground speed measured by your unit's GPS functions.

  • Page 68: Colorline

    If you do experiment with chart speed, remember to reset it to maximum when you resume trolling or moving across the water at higher speed. To change chart speed: 1. From the Sonar Page, press 2. The Chart Speed Control Bar appears. Press ↓ to decrease chart speed;...

  • Page 69: Depth Cursor

    Fig. 1A Fig. 2A Fig. 3A The "A" figures to the left show locations with ColorLine set at the factory level of 70 percent. The "B" figures on the right show the same locations with ColorLine increased to 84 percent. In Figure 1B, no fish are near the left structure, but the right structure shows fish holding Depth Cursor The depth cursor consists of a horizontal line with a digital depth box on...

  • Page 70: Depth Range - Automatic

    Sonar Page menu with Depth Cursor command selected (left). Sonar chart with the depth cursor active (right). The line indicates the large The cursor can be moved to any location on the screen, letting you pinpoint the depth of a target. 1.

  • Page 71: Depth Range - Manual

    2. The Depth Range Control Scale appears. Press ↑ or ↓ to select a different depth range. A blue bar highlights the selected range. The lighter range numbers can not be selected. 3. When the new range is selected, press Depth Range - Manual You have complete control over the range when the unit is in the manual mode.

  • Page 72: Fish I.d. (Fish Symbols & Depths)

    Fish I.D. (Fish Symbols & Depths) The Fish I.D. feature identifies targets that meet certain conditions as fish. The microcomputer analyzes all echoes and eliminates surface clutter, thermoclines, and other undesirable signals. In most instances, remaining targets are fish. The Fish I.D. feature displays fish symbols on the screen in place of the actual fish echoes.

  • Page 73: Fishtrack

    Fig. 1 B Fig. 1 A Fish symbols appear in surface clutter Many fish Fewer fish arches visible symbols visible Fig. 2 B Fig. 2 A No fish shown Fish arches above structure Figures 1A and 2A (left) show Sonar Page in normal chart mode. Figures 1B and 2B (right) show the same underwater scene with Fish I.D.

  • Page 74: Frequency (Change Transducer Frequency)

    Symbols with FishTrack depths Sonar Features menu with Fish I.D. Depths selected (left). When the check box to the left is unchecked, the feature is off. Sonar Page showing Fish I.D. symbols and FishTrack depths turned on (right). Frequency (Change Transducer Frequency) (Dual-Frequency Transducers only) A dual-frequency transducer operates with both 200 kHz and 50 kHz.

  • Page 75: Hyperscroll

    Sonar Features menu with a frequency of 200 kHz selected. To change the frequency setting to 50 kHz: 1. From the Sonar Page, press 2. Press → ↓ to 3. Press EXIT EXIT To change the frequency setting to 200 kHz: 1.

  • Page 76: Noise Rejection

    The Sonar Page menu with the Log Sonar Chart Data command selected (left). Sonar Chart Logging menu, with the Start Logging command selected (right). The MMC has 11.7 MB of free space, which will record the scrolling chart for 20 minutes and 44 seconds. To record or log chart data: 1.
  • Page 77 Overlay Data Shown window (left); Data viewer with Sonar Data To overlay information on your screen: 1. Press |↓ to MENU 2. If you have overlay data on your display, you’ll see a list of that data on the overlay data shown menu. To add data select press .
  • Page 78 3. When you have finished removing all the items you want from the screen, press to return to the page display. EXIT Overlay Data Shown, with water speed selected (left). Press ENT to To move overlaid data: You may find it useful to rearrange data floating in your display window.

  • Page 79: Overylay Data Style

    The overlay data on this sonar display includes, Depth, Temperature, Ground Speed and the Track the boat is following. NOTE: Some data types can be displayed in only one font size. If that is the case, the Data Size box will not be displayed for that data type. Overylay Data Style Do you like a digital readout or do you prefer an analog gauge look? With the Overlay Style feature you can mix and match your data to suit...

  • Page 80: Ping Speed & Hyperscroll

    Gauge menu with setup highlighted. To change setup menu, scroll down, highlight setup and press . Use → ← to select desired setup mode, then press ENT. There are four primary setup options in the analog menu: Themes, Tick Marks, Thresholds and Text. You can make gauges transparent from all the setup menus except Text Setup.

  • Page 81: Reset Options

    Sonar Menu with Ping Speed command selected (left). The Ping Speed Control Bar (right) at default setting. To change Ping Speed: 1. From the Sonar Page, press 2. The Ping Speed Control Bar appears. Press ↑ to increase ping speed; press ↓...

  • Page 82: Reset Water Distance

    System Setup menu with Reset Options command selected (left). The Reset Options dialog box, with "Yes" selected (right). NOTE: Reset Options does not erase any waypoints, routes, plot trails, or sonar logs. Reset Water Distance The sonar chart's Digital Data display option includes a window that shows distance traveled, called Water Distance ("W Distance").

  • Page 83: Sensitivity & Auto Sensitivity

    transducer to the lowest part of the boat. In this example, we will use 3.5 feet. This will entered as a negative 3.5 feet, which makes the depth indicators perform as if the transducer's lower in the water than it really 1.
  • Page 84 Automatic Sensitivity The default sensitivity mode is automatic. The unit bases the sensitivity level on water depth and conditions. When the unit is in the automatic mode, sensitivity is automatically adjusted to keep a solid bottom signal displayed, plus a little more power. This gives it the capability to show fish and other detail.

  • Page 85: Sonar Chart Mode

    To adjust sensitivity in manual mode: 1. First, turn off Auto Sensitivity: from the Sonar Page, press ENSITIVITY 2. Press ↑ to ENSITIVITY Press ↓ or ↑ to pick a different sensitivity setting. When it's set at the desired level, press To turn Auto Sensitivity back on: From the Sonar Page, press NOTE:...

  • Page 86: Full Sonar Chart

    Pages Menu, showing sonar chart display options. Full Sonar Chart This is the default mode used when the unit is turned on for the first time or when it's reset to the factory defaults. The bottom signal scrolls across the screen from right to left. Depth scales on the right side of the screen aid in determining the depth of targets.

  • Page 87: Split Zoom Sonar Chart

    Split Zoom Sonar Chart A split chart shows the underwater world from the surface to the bottom on the right side of the screen. The left side shows an enlarged version of the right side. The zoom range shows at the bottom left corner of the screen.

  • Page 88: Digital Data/Chart

    3. The Sensitivity Control Bar appears. Press ↓ to decrease sensitivity; press ↑ to increase sensitivity. When it's set at the desired level, press . (When you reach the maximum or minimum limit, a tone sounds.) EXIT The Split Frequency Sonar Chart page allows you to adjust sensitivity separately for each window.

  • Page 89: Map With Sonar Split Screen

    items from any of these categories for display in any data box. The category divisions are only there to help you sort through the information. To change information displayed in a data box: On the page with the digital data box you wish to change, press |↓...

  • Page 90: Sonar Simulator

    When this screen is activated, you need to specify which side of the Menu, is active. To toggle between the two windows, press window with the blue title bar at the top of the screen is the active window. To switch back, just press Sonar Simulator This unit has a built-in simulator that lets you run it as if you were on the water.
  • Page 91 2. To use the default sonar chart log stored in the unit, press The recorded chart begins scrolling across the screen, just as if you were on the water. 3. Turn off Sonar Simulator by pressing |↓ to ETUP ONAR Title bar with chart file name...

  • Page 92: Stop Chart

    Stop Chart If you are running multiple units on a boat or using this unit in a car, there are times when you may want to turn off the sonar. This command turns off the sonar and stops the chart from scrolling. Sonar restarts automatically each time you turn on your unit.

  • Page 93: Transparency

    Sonar Features menu with Surface Clarity selected. 2. Press ↓ to ENT. URFACE LARITY ↓ or ↑ to select clarity level| 3. Press EXIT EXIT EXIT Surface clutter In the illustration on the left, Surface Clarity is turned off. The view on the right shows Surface Clarity set on high. Transparency Use the transparency menu to adjust the transparency of menu windows.

  • Page 94: Zoom & Zoom Bar

    Main Menu with Transparency command selected. To adjust Menu Transparency level: ↓ Press slider MENU MENU RANSPARENCY RANSPARENCY ↑ ↓ bar appears. Press to move the bar. The lower end of the scale makes the menus opaque; the upper end is maximum transparency. Zoom &...

  • Page 95: Zoom Pan

    Sonar page zoomed 2X (left). The same view zoomed 4X (right). Zoom Pan Your unit has the handy ability to quickly zoom in on any portion of the water column with just the touch of an arrow key. The Zoom Pan feature lets you rapidly move the zoomed area up and down to different depths.
  • Page 96 Notes...

  • Page 97: Section 5: Sonar Troubleshooting

    Section 5: Sonar Troubleshooting If your unit is not working, or if you need technical help, please use the following troubleshooting section before contacting the factory customer service department. It may save you the trouble of returning your unit for repair. For contact information, refer to the last page, just inside the back cover of this manual.
  • Page 98 This causes the sonar to automatically increase its Discrimination or noise rejection feature. This can cause the unit to eliminate weaker signals such as fish or even structure from the display. 3. The water may be deeper than the sonar's ability to find the bottom. If the sonar can't find the bottom signal while it's in the automatic mode, the digital sonar display will flash continuously.
  • Page 99 NOISE A major cause of sonar problems is electrical noise. This usually appears on the sonar's display as random patterns of dots or lines. In severe cases, it can completely cover the screen with black dots, or cause the unit to operate erratically, or not at all. To eliminate or minimize the effects of electrical noise, first try to determine the cause.
  • Page 100 Notes...

  • Page 101: Section 6: Basic Gps Operations

    Basic GPS Operations This section addresses the unit's most basic GPS operations. The tutorials presented in Sec. 6 follow a chronological order. Sec. 7, Advanced GPS Operations, will discuss other more advanced functions and utilities. Material in Sec. 7 is arranged in alphabetical order. Before you turn on the unit and find where you are, it's a good idea to learn about the different keys, the four Page screens and how they all work together.

  • Page 102: Power/Lights On And Off

    Navigation Page, Map Page and Sonar Page.) Each page represents one of the unit's major operation modes. 3. MENU – Press this key to show the menus and submenus, which allow you to select a command or adjust a feature. This also accesses search functions for streets, intersections, addresses and highway exits.
  • Page 103 will deal only with functions and basic commands that make the Unit do something. The unit will work fine for these lessons right out of the box with the factory default settings. But, if you want to learn about the various options, see Sec. 8, System Setup and GPS Setup Options. You can access the Main Menu from any of the four Page screens by pressing .

  • Page 104: Sonar Page

    Trip Calculator command: shows trip status and statistics. Timers command: controls the up timer, down timer and alarm clock settings. Browse MMC Files command: this allows you to view the installed MMC card and the files it contains. Pages The unit has four Page displays that represent the four major operating modes.
  • Page 105 WARNING: Do not begin navigating with this unit until the numbers have stopped flashing! This screen shows a graphical illustration of the satellites that are in view. Each satellite is shown on the circular chart relative to your position. The point in the center of the chart is directly overhead.

  • Page 106: Navigation Page

    Navigation Page This screen has a compass rose that not only shows your direction of travel, but also the direction to a recalled waypoint. It also has a Navigation with Sonar option that will display two windows, one with a sonar chart, the other with the compass rose.

  • Page 107: Map Page

    The Off Course window shows the current cross track error. This shows the distance you are off-course to the side of the desired course line. The course line is an imaginary line drawn from your position when you started navigating to the destination waypoint. The course line is shown on the Navigation Page screen (and the Map Page screen) as a red line.
  • Page 108 shows in the lower right corner. In the example below, the range is 15 miles from the left edge of the map to the right edge of the map. The Zoom In and Zoom Out keys zoom the map to enlarge or reduce its coverage area and the amount of mapping detail shown.
  • Page 109 The medium-detail U.S. maps contain: all incorporated cities; shaded metropolitan areas; county boundaries; shaded public lands (such as national forests and parks); some major city streets; Interstate, U.S. and state highways; Interstate highway exits and exit services information; large- and medium-sized lakes and streams; and more than 60,000 navigation aids with 10,000 wrecks and obstructions in U.S.
  • Page 110 turning off the display of POIs you're not watching for. (To see how, turn to Map Detail Category Selection on page 147.) The Map Page has its own menu, which is used for several functions and for setting various options. To access the Map Page Menu, from the Map Page, press display options under the Map Page category.
  • Page 111 arrows appear, which allow you to not only resize the window from side to side, but also gives you the option of stacking the windows, one on top of the other. The Two Maps page with one window stacked on top of the other. 3.

  • Page 112: Gps Quick Reference

    Start outdoors, with a clear view of the open sky. As you practice, try navigating to a location at least a few blocks away. While you're learning, navigation in too small an area will constantly trigger arrival alarms. 1. Connect the unit to electric power and the antenna module. Make sure the MMC is in.

  • Page 113: Find Your Current Position

    Find Your Current Position Finding your current position is as simple as turning the unit on. Under an unobstructed sky, the unit automatically searches for satellites and calculates its position in approximately one minute or less. If for some reason satellite acquisition takes longer, you may be inside a structure or vehicle or in terrain that is blocking signal reception.

  • Page 114: Selecting Any Map Item With The Cursor

    Now that you've seen how the unit can find where you are, let's search for something somewhere else. Searching is one of the most powerful features in the Eagle GPS product line. In this example, we'll look for the nearest fast-food restaurant. For more information on different types of searches, refer to Sec.
  • Page 115 Category Selection menu (left) and list of the nearest restaurants (right). 4. You could scroll ↑ or ↓ to select another restaurant, but for now we will just accept the nearest one. Press ENT. 5. The POI information screen appears. This is how you can use the unit as a business phone directory! If you wanted to navigate there, you could press ENT, since the G command is highlighted.

  • Page 116: Set A Waypoint

    Map screen showing the result of a restaurant search. 7. To clear the search and return to the last page displayed, press . (Before you completely exited out of the Search menus, you EXIT EXIT could have gone looking for another place.) NOTE: Search works from mapping and POI data loaded in the unit.
  • Page 117 Fig 1. Fig 3. Sequence for setting a waypoint. Fig. 1: while traveling, press WPT twice to call up the Find Waypoint screen (Fig. 2) and set a point. Fig. 3: a message says the waypoint has been saved. Fig. 4: vehicle continues on its way;...

  • Page 118: Navigate To A Waypoint

    Create Waypoint by Entering a Position 1. Press |→ to 2. Press ↓ to NTERED 3. Press → to ATITUDE change the first character, then press → to the next character and repeat until the latitude is correct. Press 4. Press ↓ to ONGITUDE change the first character, then press →...

  • Page 119: Set Man Overboard (Mob) Waypoint

    Course line (red) Off course range, set at 0.20 mile Navigation Page, navigating toward waypoint 003. Set Man Overboard (MOB) Waypoint One of boating's most terrifying events is having a friend or family member fall overboard. It's particularly dangerous at night or if you're out of sight of land.

  • Page 120: Navigate To Cursor Position On Map

    The cursor is redirected toward the Man Overboard position on the Map Page. The victim is astern of the vessel. The GPS shows which direction to steer to for the rescue. The man overboard position is also stored in the waypoint list for future reference.
  • Page 121 Navigate to cursor. In this example, the town of Oologah, Oklahoma has been selected. 3. Press and the unit will begin navigating to the cursor MENU location. The Map Page will display a red line from your current position to the cursor position.

  • Page 122: Navigate To A Point Of Interest

    Navigate to a Point of Interest POIs in view on the map can be located easily by using the Navigate to Cursor command above. Just use the cursor to select the POI. The other method involves searching for POIs with the Find Waypoint command, launched with the key.
  • Page 123 Sequence for saving a trail and beginning a new one. My Trails command (left). The Trails Menu (center). The arrow to the right of Trail 17 indicates the trail is "active," and the check to the left indicates the trail is visible on the map display. The third figure (right) shows the Edit Trail menu, with the Active command selected.

  • Page 124: Displaying A Saved Trail

    Tip: Another quick way to stop recording one trail and begin a new one is to use the New Trail command: Press RAILS Caution: You also have the option of completely turning off trail recording, under the trail Options command. However, if the Update Active Trail option is left off, it will cancel the automatic trail creation feature.

  • Page 125: Visual Trailing

    The other two methods provide a full range of navigation data and work with both the Map Page and Navigation Page. The only difference between them is "navigating a trail" follows a trail forward (from start to end) while "backtracking" follows a trail in reverse (from end to start.) When hiking at walking speed with a hand-held GPS, we often use visual back trailing because it is a bit better at following each little...
  • Page 126 Figure 1. Figure 2. Figure 4. Figure 3. Navigate a trail menu sequence: Fig. 1, My Trails command. Fig. 2, Trails Menu. Fig. 3, Edit Trail Menu. Fig. 4, Edit Route Menu with Navigate command highlighted for Trail 6. A trail is always converted to a "route"...

  • Page 127: Transfer Custom Maps And Gps Data Files

    Present position arrow Trail point Navigate trail, map views: the driver (left) is northbound heading straight toward trail point 6. The northbound driver (right) has reached point 6 and has turned west to follow trail. 1. Press MENU MENU 2. Press ↓ to enter the Saved Trail list, then use ↑ or ↓ to select the desired Trail Name| 3.

  • Page 128: Gps Data Files

    NOTE: To load a Navionics GPS Data files: GPS Data Files contain waypoints, routes, trails and event marker icons. Instructions for copying GPS Data Files between your computer and a MMC are contained in the instruction manual for your MMC card reader and MapCreate 6 software.

  • Page 129: Cancel Navigation

    The unit will display a completion message when the data transfer is finished. To return to the Page view, repeatedly press EXIT From left to right, these figures show the sequence for naming and saving a GPS Data File from the unit's memory to an MMC. Loading to unit memory: There may be more than one GPS Data File (*.USR) on the card.
  • Page 130 Notes...

  • Page 131: Section 7: Advanced Gps Operations

    Advanced GPS Operations Find Distance from Current Position 1. While on the Map Page press: 2. Center your cursor over the position you want to find the distance to. A rubber band line appears, connecting your current position to the cursor's location.

  • Page 132: Create Icon On Map

    Icons are similar to waypoints, but they do not store as much information as waypoints do. You can't use a menu to navigate to icons like you can with waypoints. But, you can use the map cursor and navigate to any icon on the map. You can create an icon at the cursor position on the map, or at your current position while you are navigating.

  • Page 133: Navigate To An Icon

    Delete icons menu. The Delete All Icons command will ask if you are sure. Press ← to . All icons will be deleted from the map. The Delete by Symbol command will launch the Select Symbol menu. Press ← or ↑ or → or ↓ to select the icon symbol to delete, then press .

  • Page 134: Create And Save A Route

    Create and Save a Route You have the option of creating and editing a route in the unit, or you can make a route on your computer with our MapCreate 6 software. PC-created Routes MapCreate is the easiest method for preparing a route, simply because your PC's larger screen, keyboard and mouse are easier to manipulate than the gimbal-mounted unit.
  • Page 135 Edit Route menu (left). Edit Route Waypoints menu (right) with Add From Map command selected. 3. Use the Zoom keys and arrow keys to move the map and cursor until the cursor is centered on the spot where you want your route to begin. 4.

  • Page 136: Delete A Route

    5. Move the cursor to the next point in the route, a spot where you need to turn or change direction, and press 6. Repeat step five until the route reaches your destination. 7. To save your route, press screen, with the route automatically named "Route 1" and stored in the unit's internal memory.

  • Page 137: Navigate A Route

    3. Use ↓ and ↑ to select a command from the Edit Route Waypoints menu and press route by clicking on a map location with the cursor. Add Waypoint calls up the Waypoint list so you can insert a waypoint. The Remove Waypoint command will delete the waypoint from the route.

  • Page 138: Navigate A Route In Reverse

    Navigate a Route in Reverse Here's how you run a route backward, from the end waypoint to the beginning waypoint: 1. From the AVIGATION press |↓ to MENU MENU ↓ 2. Press to select route name| AVIGATE 3. Upon arrival at your destination, cancel navigation: press |↓...

  • Page 139: Edit A Trail Color

    Tip: You can quickly call up the Edit Trail menu by selecting a trail on the map with the cursor. Simply move the cursor over a trail and a pop-up box appears. Press Trail selected with map cursor (left). The pop-up box shows distance and bearing from current position to the selected point on the trail.

  • Page 140: Utilities

    Utilities Utilities are useful tools for traveling or for outdoor activities. Alarm Clock To get to the alarm clock menu: press LARM LOCK Sun/Moon Rise & Set Calculator To get to the Sun/Moon menu: press ALCULATIONS Trip Calculator To get to the Calculator menu: press ALCULATOR Trip Down Timer To get to the Down Timer menu: press...

  • Page 141: Selecting A Waypoint

    Waypoint Symbol To edit waypoint symbol: 1. Press name| |↓ to 2. Use arrow keys to select desired symbol and press the previous page, press Waypoint Position To edit waypoint position: 1. Press name| |↓ to 2. Latitude: press → to character, then press →...
  • Page 142 1. Press |→ to 2. Press ↓ to ROJECTED 3. Press → to HOOSE map feature or Point of Interest. When the point has been selected, press and the point's position appears as the reference position. 4. Press ↓ to ISTANCE then press →...

  • Page 143: Section 8: System & Gps Setup Options

    Section 8: System & GPS Setup Options Alarms This unit has several GPS alarms. The factory default setting has all the alarms turned on. You can turn the alarms off and on and change their distance settings. You can set an arrival alarm to flash a warning message and sound a tone when you cross a preset distance from a waypoint.

  • Page 144: Auto Satellite Search

    4. When your adjustments are finished, return to the last page displayed by repeatedly pressing IMPORTANT ALARM NOTES: Anchor Alarm - The anchor alarm may be triggered even when you're sitting still. This typically happens when using small (less than 0.05 mile) anchor alarm ranges. Arrival Alarm - If you set the arrival alarm's distance to a small number and you run a route (see the Navigate Routes segment), this unit may not show navigation data to the next waypoint, once...

  • Page 145: Communications Port Configuration

    Main Menu (left); MMC File Browser (right). Communications Port Configuration The unit has two NMEA 0183 version 2.0 compatible communication ports, or com ports for short. The Com Port Menu, which is accessed from the System Setup Menu, allows you to configure the communications ports to send or receive data to another electronic device, such as an autopilot.

  • Page 146: Coordinate System Selection

    2. Press ↓ to OMMUNICATIONS 3. A menu appears showing the prefixes of the available NMEA sentences. A check mark next to a prefix means the prefix is in use. Use ↑ ↓, → ← to select a prefix, then press again to check the box and turn a prefix on.) 4.

  • Page 147: Map Fix

    on this unit. Your position and datum in use determines which one to use. If you use standard, and your position is off significantly, then try the alternate. NOTE: When the position format is changed, it affects the way all positions are shown on all screens.
  • Page 148 latitude/longitude lines must be parallel with the edge of the map. USGS maps are parallel, others may not be. Also, this works better with smaller scale maps.) The reference position can be anywhere on the map, but the closer it is to your location, the smaller the numbers will be that you'll have to deal with.

  • Page 149: Customize Page Displays

    Customize Page Displays Several page display options have customizable data boxes to provide constant on-screen information. The various data available from your unit are divided into categories in the Data Viewer menu. These categories include GPS Data, Navigation, Trip Calculator, Time, Sonar Data and Miscellaneous Data. You can select items from any of these categories for display in any data box.

  • Page 150: Gps Simulator

    A Page display can show a limited number of data boxes. You can not turn them off or add more data boxes. GPS Simulator The GPS simulator lets you use the unit as if you were outdoors navigating somewhere. It's a great way to practice using your unit. You can set the starting location by entering latitude/longitude (Starting Position) or from a stored waypoint, map place or POI location ( HOOSE...

  • Page 151: Simulating Trail Or Route Navigation

    1. From the Map Page, go to the simulator menu. Pick a at or near the beginning of your trail/route. Enter an OSITION approximate RACK toward the start of the trail/route. 2. Set to zero. Select PEED which turns on the simulator and returns you to the Map Page 3.

  • Page 152: Map Auto Zoom

    3. In a moment, your present position marker arrow appears on the map in the location you selected with the cursor. The unit will consider that spot as it's last known position until changed by either a live satellite lock-on or a new simulator location. Map Auto Zoom This receiver has an auto zoom feature that eliminates much of the button pushing other brands of GPS receivers force you to make.

  • Page 153: Earth Map Detail

    check to select the level of map detail you prefer. Use ↑ ↓ to choose off, low, medium or high, then press Pop-up Map Info From the Map Page, press . With the option highlighted, press and uncheck it (turn off.) After the option is set, press return to the page display.

  • Page 154: Map Overlays (Range Rings; Lat/Long Grid)

    Map Overlays (Range Rings; Lat/Long Grid) The map screen can be customized with four range rings and/or grids that divide the plotter into equal segments of latitude and longitude. Range rings are handy for visually estimating distances on the map. The ring diameters are based on the current zoom range.

  • Page 155: Map Detail Category Selection

    GPS Setup Menu (left); Map Datum Menu (right). Map Detail Category Selection This menu determines which of the mapping features are shown on the screen. This includes, waypoints, trails, icons, cities, highways, etc. You can select any of these items, customizing the map to your needs. To get to Map Categories: ↓...

  • Page 156: Navionics  Charts

    In Track Up mode, map shows "N" and arrow to indicate north. Map orientation is shown in north up (left) and track up (right). This is fine if you're always traveling due north. What you see to your left corresponds to the left side of the map, to your right is shown on the right side of the map, and so on.

  • Page 157: Port Information

    Entrance to Chesapeake Bay in a MapCreate 6 custom map with a 10- mile zoom (left). The same position on Navionics chart at 11.15-mile zoom (center) and with a 5.56-mile zoom (right). To display a Navionics chart: 1. Install the Navionics MMC in the memory card compartment and turn on the unit.

  • Page 158: Tidal Current Information

    The Port Services information screen has two windows. The top window lists the various service categories. The lower window lists the detailed services available in each basic category. Port Services icons Navionics chart showing Port Services icon selected by cursor. 3.
  • Page 159 When you zoom in to a sufficiently small zoom range, the icon itself becomes an animated arrow showing tidal current velocity and direction for the selected tidal station. At larger zoom ranges, you can select the boxed "C" icon and it becomes an animated arrow with a pop- up name box.

  • Page 160: Tide Information

    The Tidal Current Information screen displays daily tidal current data for the station at the present time. The graph at the top of the example above is an approximate view of the flood and ebb pattern from midnight (MN), to noon (NN) to midnight (MN). The velocity scale at the top left side of the graph changes dynamically based upon the maximum velocity of the current for that day.
  • Page 161 Cursor line Tide Station icon Navionics chart showing Tide Station icon selected by cursor. In the example above, the tide is at 2.8 feet and falling, as shown by the down arrow at the top of the icon. The Tide Information screen displays daily tidal data for the station at the present time.

  • Page 162: Overlay Data

    You can look up tidal data for other dates by changing the month, day and year selection boxes. To select another date: 1. Use → and ← to highlight month, day or year, then press 2. Use ↑ and ↓ to select the desired month, day or year, then press To clear the information screen, press EXIT Overlay Data...
  • Page 163 Selecting the category name and pressing will show the category's contents, so you can choose items within it. An expanded category (one with a "–" next to its name) can be collapsed to hide its contents. Just select the category name and press 3.
  • Page 164 Overlay Data Shown, with Bearing option selected (left). Press ENT to access R To move overlaid data: You may find it useful to rearrange data that is floating in your display window. 1. From one of the Map Pages, press 2.

  • Page 165: Overylay Data Style

    Map Page with Track and Speed set as overlay data. Track is set to a large size with Speed set to a medium size. NOTE: Some data types can be displayed in only one font size. If that is the case, the Data Size box will not be displayed for that data type.
  • Page 166 The Gauge Setup menu. There are four primary setup options in the analog menu: Themes, Tick Marks, Thresholds and Text. You can make gauges transparent from all the setup menus except Text Setup. Themes setup allows you to change gauge style, color scheme, and needle style.
  • Page 167 The Secondary Data or Sec. Data button is only active when you have a dual-gauge setting selected for display. It allows you to choose what information you want displayed in secondary gauge. The secondary data button takes you to the same Data Viewer screen as the Customize Page and Overlay Data commands.

  • Page 168: Pop-Up Help

    The Text Setup menu( left) with transparent gauge labeled as "track"; Text Setup menu with destination address entered in units text position (right). Text setup allows you to individually label gauges. There are two windows in Text Setup: Gauge Text and Units Text. Units Text is positioned at the bottom of the gauge.

  • Page 169: Reset Options

    System Setup menu (left) with Pop-up Help command highlighted. The example on the right shows the Pop-up Help message for the Screen command, located on the Map Menu. Reset Options To reset all features to there factory defaults: Press MENU MENU NOTE: Reset Options does not erase any waypoints, routes, icons, plot trails...

  • Page 170: Set Language

    Screen Command (left) and Screen Menu with Contrast selected, (right). To adjust the display's brightness: Press ↓ to RIGHTNESS scale is minimum contrast; the right end is maximum contrast. To adjust the screen's display mode: Press ↓ to ISPLAY Set Language This unit's menus are available in 10 languages: English, French, German, Spanish, Italian, Danish, Swedish, Russian, Dutch and Finnish.

  • Page 171: Set Local Time

    Set Local Time Using the correct local time setting is handy when estimating local arrival time while navigating. Also, the time and date are saved when a waypoint is created. To access the Set Local Time menu, you must first acquire your position.

  • Page 172: Show Waas Alarm

    3. You can return to this command and press feature on. Software Version Information From time to time, Eagle updates the operating system software in some of its products. These software upgrades are usually offered to customers as free downloads from our web site, www.eaglesonar.com.

  • Page 173: Sounds And Alarm Sound Styles

    Sounds and Alarm Sound Styles Sounds triggered by key strokes and alarms can be adjusted: You first press MENU Sounds command (left); The Sounds menu (right). Once in the Sounds menu To set Key Press Sounds: With the option highlighted, press check it (turn on) or uncheck it (turn off).

  • Page 174: Trail Options

    Trail Options There are several options you can use with trails. Some affect all trails, other options can be applied to a particular trail. You can change the way trails are updated and the way they’re displayed. Trails also may be hidden, created or deleted in the trail menu.

  • Page 175: Update Trail Criteria (Auto, Time, Distance)

    Update Trail Criteria (Auto, Time, Distance) The options are automatic, time, or distance. When it's in the default automatic mode, the unit doesn't update the plot trail while you're traveling in a straight line. Once you deviate from a straight line, the unit "drops"...

  • Page 176: Specific Trail Options

    Update Time Rate setting (left) and Update Distance setting (right). Specific Trail Options Delete Trail To delete a specific trail: From the Trails Menu, press ↓ to Saved . Select a trail and press . The Edit Trail menu appears as Trails →...

  • Page 177: Units Of Measure

    Units of Measure This menu sets the speed and distance (statute or nautical miles, meters), depth (feet, fathoms, or meters), temperature (degrees Fahrenheit or Celsius) and heading (true or magnetic) units. To change the units: Press MENU MENU System Setup Menu (left); Units of Measure Menu (right). To set Speed/Distance Unit of Measure: Press ↑...
  • Page 178 Notes...

  • Page 179: Section 9: Searching

    NOTE: The background map loaded in your unit lets you search for U.S. Interstate Highway exits and exit services, as well as some land features, including cities and lakes. For a full set of searchable land features, including landmarks, streets, addresses and Points of Interest, you must load your own high-detail custom map produced with our MapCreate 6 software.
  • Page 180 Find Address Menu. press ↑ or ↓ to change the first number, then 3. To enter an address, press → to move the cursor to the next number and repeat until the number is correct, then press ENT. press ↓ to There are two options: 4.
  • Page 181 NOTE: We recommend you do not enter a city name unless the list is too long to search through. The unit can actually search quicker when you don’t enter a city name. Find city field (left); search in particular city option (center); Find City When the necessary search fields are filled in, press ↓...

  • Page 182: Find Any Item Selected By Map Cursor

    the map, press appears, with the Go To Waypoint command highlighted. If you want to go ahead and navigate to the POI address, just press EXIT. Map Page showing location of the address on the map, highlighted by cursor (left). This address is a business in the POI database, so you can display the POI information window, then navigate to it (center).
  • Page 183 Find Highway Exits command (left) and Find Exit menu (right). 2. First, select a highway name by pressing , which calls up the menu. There are two highway search options You can spell : A. out the highway name in the top selection box. Press ↑ or ↓ to change →...
  • Page 184 Find Exit menu with an exit selected in the Exit List. 4. In the Exit Information screen you have two choices. navigate or "go to" the exit. Go To Exit option (left); Find On Map option (right). Tip: You can also look up some additional information on the Exit Services located near this exit.

  • Page 185: Find Map Places Or Points Of Interest (Poi)

    Exit Information screen (left); general location and amenities information (right). Find Map Places or Points of Interest (POI) 1. Press , press (To narrow your search, press → then press press ENT. subcategory before pressing EAREST Find Waypoint menu with Lodging POI category selected (left) and with the RV Parks subcategory selected (right).

  • Page 186: Find Streets Or Intersections

    3. Search by name of POI. spell out the POI in the top selection box. Press ↑ or ↓ to change the first letter, then press repeat until the name is correct, then press to the lower selection list by pressing from the list, then press screen.
  • Page 187 Find Streets command (left); Find Streets menu (right). 2. You must first fill in a street name in the First Street dialog box. Press to display the spell out the street in the top selection box. Press first letter, then press repeat until the name is correct, then press jump down to the lower box and pick a street from the selection list.
  • Page 188 The Find Streets menu (left) with the Find First Street command highlighted. Streets Found list (right). The Map Page appears, with the cursor pointing to the found street Map Page showing results of a street search. The cursor points to the located street. If you want to navigate to the found street at the cursor location, just press MENU...
  • Page 189 The Find Streets menu reappears with the street you're searching for in the First Street box. (In this example, it's 80th Street.) 4. Now fill in the second street. Press menu appears again. Just like before, there are two options You can spell out the second street in the top selection box.

  • Page 190: Find Waypoints

    Map Page showing results of an intersection search. The cursor points to the located intersection. If you want to navigate to the found intersection, just press MENU EXIT Find Waypoints 1. Press ENT. 2. If searching for the waypoint , press If searching for the By Name ENT.
  • Page 191 Calculating message (left) and list of the nearest waypoints (right). . To see location information on the closest waypoint, press the Waypoint Information screen appears. (If you wanted, you could select another waypoint from the list with the A. To navigate command is already highlighted.) The unit will show navigation information to the waypoint.
  • Page 192 Find By Name menu (left); Waypoint Information screen (center); The found waypoint is highlighted by the cursor on the Map Page (right). A. To navigate command is already highlighted.) The unit will show navigation information to the waypoint the waypoint, press B.

  • Page 193: Section 10: Supplemental Material

    Section 10: Supplemental Material Datums Used by This Unit WGS 1984 Default Adindan Mean for Ethiopia, Sudan Adindan Burkina Faso Adindan Cameroon Adindan Ethiopia Adindan Mali Adindan Senegal Adindan Sudan Afgooye Somalia Ain el Abd 1970 Bahrain Ain el Abd 1970 Saudi Arabia Anna 1 Astro 1965 Cocos Islands...
  • Page 194 DOS 1968 New Georgia Islands (Gizo Island) Easter Island 1967 Easter Island European 1950 Mean for Austria, Belgium, Denmark, Finland, France, West Germany, Gibraltar, Greece, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland European 1950 Mean for Austria, Denmark, France, West Germany, Netherlands, Switzerland European 1950...
  • Page 195 North American 1927 Mean for CONUS (Continental United States) North American 1927 Mean for CONUS (East of Mississippi River) including Louisiana, Missouri, Minnesota North American 1927 Mean for CONUS (West of Mississippi River) North American 1927 Alaska North American 1927 Bahamas (Except San Salvador Island) North American 1927...
  • Page 196 Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Peru, Trinidad & Tobago, and Venezuela South American 1969 Argentina South American 1969 Bolivia South American 1969 Brazil South American 1969 Chile South American 1969 Colombia South American 1969 Ecuador South American 1969 Ecuador (Baltra, Galapagos) South American 1969...

  • Page 197: Fcc Compliance

    This device complies with Part 15 of the U.S. Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 198 THIS IS A LEGAL AGREEMENT BETWEEN THE END-USER WHO FIRST PURCHASES THIS PRODUCT AS A CONSUMER ITEM FOR PERSONAL, FAMILY, OR HOUSEHOLD USE ("YOU") AND EAGLE ELECTRONICS, INC., THE MANUFACTURER OF THIS PRODUCT ("WE", "OUR", OR "US"). USING THE PRODUCT ACCOMPANIED BY THIS LICENSE AGREEMENT CONSTITUTES ACCEPTANCE OF THESE TERMS AND CONDITIONS.
  • Page 199 DATABASES LIMITED WARRANTY "We", "our", or "us" refers to Eagle Electronics, Inc., the manufacturer of this product. "You" or "your" refers to the first person who purchases the product as a consumer item for personal, family, or household use. The Databases Limited Warranty applies to the one or more databases that your product may contain.
  • Page 200 EAGLE ELECTRONICS FULL ONE-YEAR WARRANTY "We," "our," or "us" refers to EAGLE ELECTRONICS, INC., the manufacturer of this product. "You" or "your" refers to the first person who purchases this product as a consumer item for personal, family or household use.

  • Page 201: How To Obtain Service

    …in the USA: We back your investment in quality products with quick, expert service and genuine Eagle parts. If you're in the United States and you have technical, return or repair questions, please contact the Factory Customer Service Department. Before any product can be returned, you must call customer service to determine if a return is necessary.
  • Page 202 Notes...

  • Page 203: Accessory Ordering Information For All Countries

    5. Write the Return Authorization (RA) number on the outside of the box underneath your return address. 6. For your security, you may want to insure the package through your shipping courier. Eagle does not assume responsibility for goods lost or damaged in transit.

  • Page 204: Visit Our Website

    Visit our web site: www.eaglesonar.com  Eagle Pub. 988-0143-801 © Copyright 2005 All Rights Reserved Printed in USA 012605 LEI-Eagle...

This manual is also suitable for:

Seachamp 1000c df

Table of Contents

Save PDF
