Installing A Hot-Swap Power Supply - IBM System x3800 Type 8865 User Manual

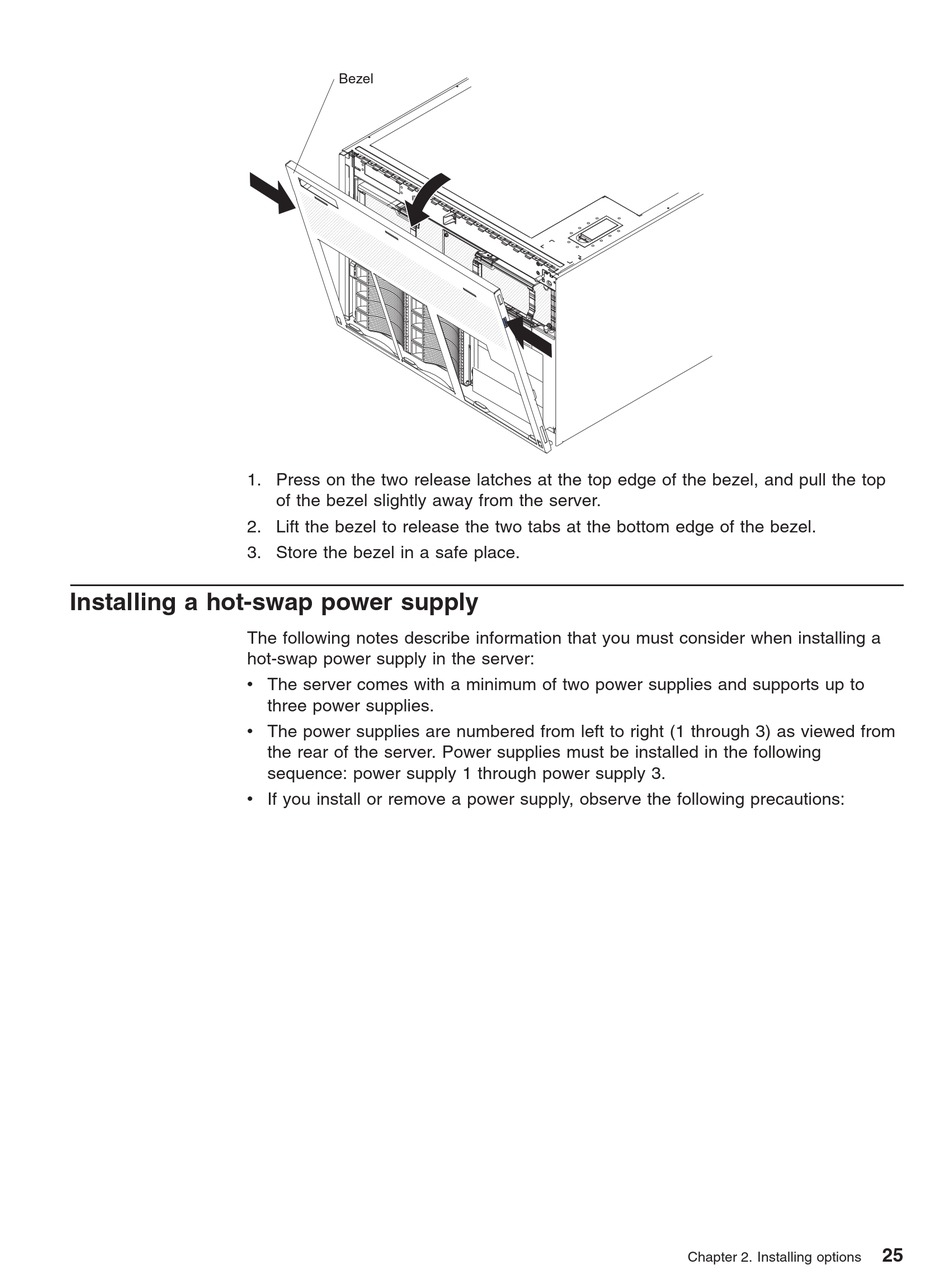

1. Press on the two release latches at the top edge of the bezel, and pull the top
2. Lift the bezel to release the two tabs at the bottom edge of the bezel.
3. Store the bezel in a safe place.

Installing a hot-swap power supply

The following notes describe information that you must consider when installing a
hot-swap power supply in the server:
v The server comes with a minimum of two power supplies and supports up to
v The power supplies are numbered from left to right (1 through 3) as viewed from
v If you install or remove a power supply, observe the following precautions:
Bezel
of the bezel slightly away from the server.
three power supplies.
the rear of the server. Power supplies must be installed in the following
sequence: power supply 1 through power supply 3.
Chapter 2. Installing options
25
