I/O board internal connectors and jumpers

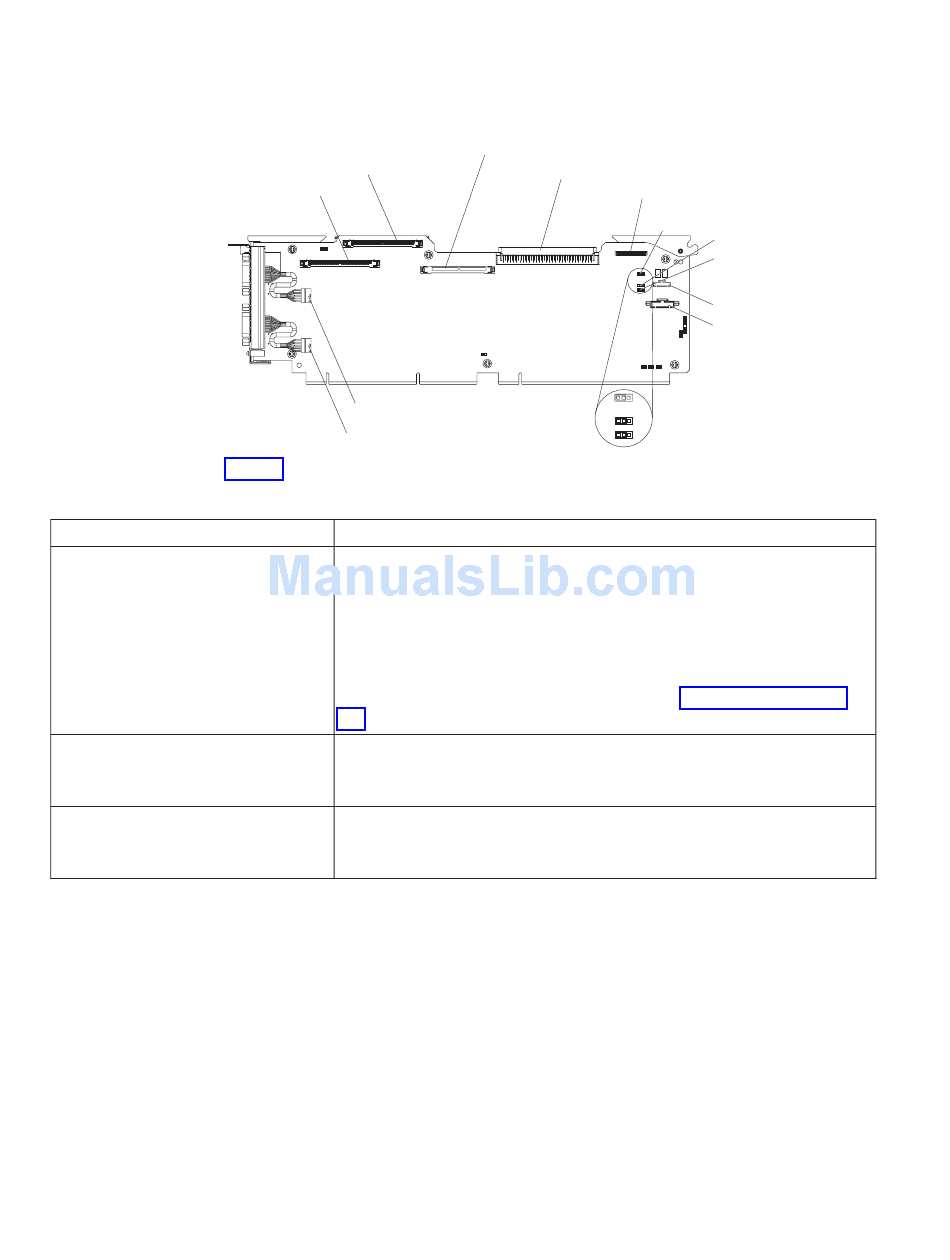

The following illustration shows the internal connectors and jumpers on the I/O
board.
Table 2 describes the function of each three-pin jumper block.
Table 2. I/O board jumper blocks
Jumper name
Power-on password override (J9)
Boot recovery (BIOS) (J14)
Wake on LAN bypass (J15)
16
IBM System x3800 Type 8865: User's Guide
SAS 1
SAS 2
System serial (COM 1)
SP serial (COM 2)
Description
The default position is pins 1 and 2. Change the position of this
jumper to pins 2 and 3 to bypass the power-on password check.
Changing the position of this jumper does not affect the
administrator password check if an administrator password is set. If
the administrator password is lost, the I/O board must be replaced.
For more information about passwords, see "Passwords" on page
59.
The default position is pins 1 and 2 (use the primary page during
startup). Move the jumper to pins 2 and 3 to use the secondary
page during startup.
The default position is pins 1 and 2. Move the jumper to pins 2 and
3 to prevent a Wake on LAN packet from waking the system when
the system is in the powered-off state.
Remote Supervisor Adapter II SlimLine
Media devices
Light path diagnostic
1 2 3
Default jumper
position
1 2 3
1 2 3
Power-on password
override
Boot recovery
Wake-on-LAN
bypass
Front USB
Battery
