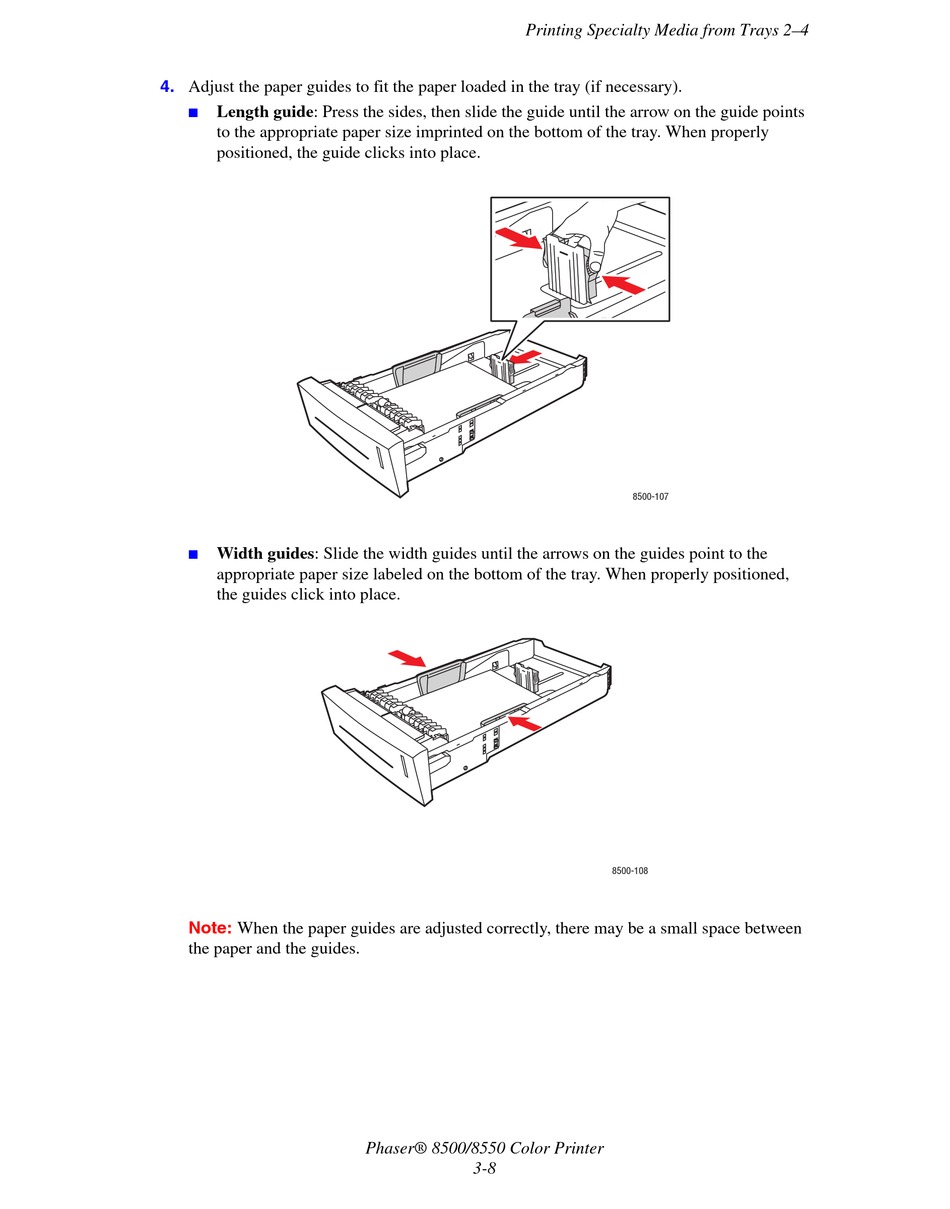

4. Adjust the paper guides to fit the paper loaded in the tray (if necessary).
Length guide: Press the sides, then slide the guide until the arrow on the guide points
■
to the appropriate paper size imprinted on the bottom of the tray. When properly
positioned, the guide clicks into place.
■ Width guides: Slide the width guides until the arrows on the guides point to the
appropriate paper size labeled on the bottom of the tray. When properly positioned,
the guides click into place.
Note: When the paper guides are adjusted correctly, there may be a small space between
the paper and the guides.
Printing Specialty Media from Trays 2–4
Phaser® 8500/8550 Color Printer
3-8
8500-107 8450-107
8500-108 8450-108
