Manual System Operation
While the main objective of the Pro Logic is to automate the operation of your pool/spa system, there may be
certain times when you want to override the automatic operation and control the equipment manually. To operate
the pool equipment manually while keeping the automation active, perform the following procedures. Note that if
you turn a relay on manually, it will remain on until either you turn it off manually, or the next time the programmed
automatic operation would normally turn that relay off. Example: the filter pump is programmed to run from 9:00A
to 5:00P daily. If you turn the filter pump on manually at 8:00PM, it will run continuously until the next day at
5:00PM at which time it will turn off and follow the normal program from then on. Manually turning off a relay
works in a similar fashion.

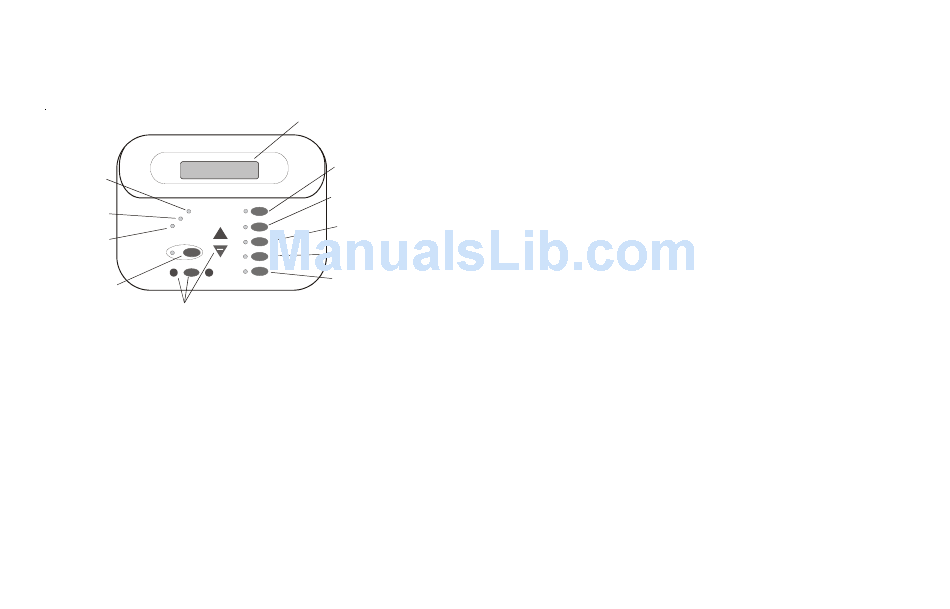

Heater
Indicator
Valve 3
Indicator
Heater
Option Valve
Check System
Check System
Indicator
Service
>
Menu
Service Button
(main display only)
Menu and Navigation
Buttons

Filter Pump

Single Speed Filter Pump: If the pump is currently off, press the FILTER button to turn on the pump. Pressing the
FILTER button again will turn off the pump. However, if there is a heater in the system, and it is operating, and the
"Heater Cooldown" feature is enabled (Configuration Menu) then: when you press the FILTER button to turn off
the filter, only the heater will turn off, the Filter LED will flash and the display will indicate "Heater Cooldown". At
this point the filter pump will automatically turn off after 5 minutes of heater cooldown operation. If you want to
override the heater cooldown, simply press the FILTER button again to turn off the filter pump.
Two Speed Filter Pump: If the pump is currently off, simply press the "FILTER" button to turn on high speed
operation of the filter pump. The "Filter" LED will illuminate continuously. Pressing the "FILTER" button again will
switch to low speed operation and the "FILTER" LED will flash. Note that if the pump has been off for more than
30 seconds, it will run at high(est) speed for 3 minutes regardless of selection. This high speed operation helps allow
the pump to prime and establish normal water flow.
Variable Speed Filter Pump: If the pump is currently off, press the "FILTER" button to turn the filter pump on to
the last speed (1, 2, 3, or 4) that was used. A temporary display is generated indicating the current speed selection
(Filter On:Spd 1). Pushing the "+" or "-" button changes the speed selection. If the pump has been off for more than
30 seconds, it will run at the highest speed for 3 minutes regardless of selection. This high speed operation helps
allow the pump to prime and establish normal water flow.
Freeze Protection: This function protects the pool, plumbing, and equipment against freeze damage. If Freeze
Protection is enabled and the AIR temperature sensor falls below the preset freeze protection temperature (see
Filter Configuration), the Pro Logic will turn on the filter pump to circulate the water.
External Input Interlock:
If enabled, this function will force the filter pump off when the external input is active. External Input Interlock will
have precedence over Freeze Protection for Filter output.
Display
Pool/Spa Button
Salt Level
(Pool/Spa/Spillover)
3200ppm
Filter Pump
(On/Off)
Pool/Spa
Lights
Filter
+
(On/Off)
Lights
Aux 1
Aux 1
(On/Off)
>
Aux 2
Aux 2
(On/Off)
3
• Low Volts -- If the chlorinator cell voltage is too low.
• No Cell Power -- If no chlorinator cell power is detected on the printed circuit board.
• Check Flow Switch -- If the flow switch input is invalid.
• Cell Power Error -- If a chlorinator cell power error is detected on the printed circuit board.
• Cell Missing -- If the chlorinator is enabled but no cell is detected.
• Filter VSP Comm Error-- If variable speed is selected for the Filter and the Hayward VSP interface
is not responding.
• Filter VSP Drive Comm Error -- If variable speed is selected for the Filter and the Hayward VSP
drive controller is not responding.
• Filter VSP Err: x -- If variable speed is selected for the Filter and the Hayward VSP is indicating and
error. x is the same decimal error displayed by the VSP itself.
• Aux1 VSP Comm Error -- If variable speed is selected for the Aux1 relay type and the Hayward VSP
interface is not responding.
• Aux1 VSP Drive Comm Error -- If variable speed is selected for the Aux1 relay type and the
Hayward VSP drive controller is not responding.
• Aux1 VSP Err: x -- If variable speed is selected for the Aux1 relay type and the Hayward VSP is
indicating and error. x is the same decimal error displayed by the VSP itself.
For Pool Filter and Aux using Gen2 EcoStar Variable Speed Pumps only:
• Main Voltage is too low
• Main Voltage is too high
• Remote Stop was pressed (Press "+" to restart)
• Prime Failed (Press "+" to restart)
• Failed to start (Press "+" to restart)
• Pump has stalled (Press "+" to restart)
• SVRS tripped (Press "+" to restart)
• Drive failure (see Pump Display)
• CSM Comm Error: -- If Chemistry Sensing is enabled and the Chemistry Sense Module (CSM) is
not responding.
• pH Probe Error -- If the CSM indicates that there is a problem with the pH probe.
• pH Low - Check Feeder -- If a pH level of 6.9 or less is detected, check the feeder for proper
operation
• pH High - Check Feeder -- If a pH level of 8.1 or higher is detected, check the chemical supply and
the feeder for proper operation
• pH Timeout - Check Feeder -- If the unit has been dispensing pH for more than the selected timeout
without reaching the desired level. Check the chemical supply and the feeder. If both are OK, the
timeout may need to be increased. Press the "+" button to reset the alarm and resume dispensing.
• pH Calibration Error -- When using the pH Calibration Wizard and the entered test result was
different from the measured pH level by ± 1.0 or more. The pH probe may need to be cleaned or
replaced.
• ORP Probe Error -- If the CSM indicates that there is a problem with the ORP probe.
• ORP Low - Check Chlor -- If an ORP level of 350mV or less is detected. Check the chlorinator for
proper operation.
