MINOURA North America
(for U.S. residents only)
1996 East Avenue, Hayward, CA 94541 U.S.A.
Phone 1-510-538-8599
Fax
1-510-538-5899
Mail
support@minourausa.com

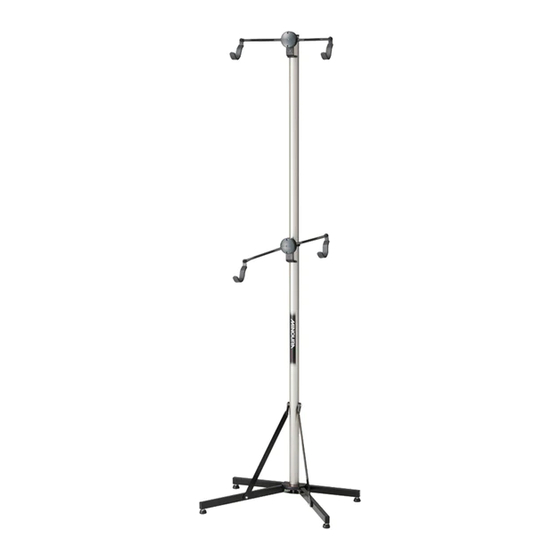

P-500AL-2 "Pair Stand"
Cradle Hook is padded with soft foamed PVC coating
to prevent scratch problem to your bike frame
The upper cradle height is adjustable in two positions
The main pillar is made of single light alloy tubing
for lightweight and great stiffness
The stainless band clip has been modified to be easier
assembling type. P-500AL-2 adopts 45mm type band
Bike Cradle is angle adjustable to fit your bike frame's top-tube angle.
Also each Cradle Hook is position & angle adjustable for perfect fit
The lower Bike Cradle position is fully adjustable with
Minoura's original stainless band clip II
Unique K-shaped leg design is stable and allows to set
P-500AL-2 next to the wall for minimizing space
!
If you have any questions or need help, you should contact the dealer where you purchased or the Minoura
distributor in your country first. The distributor can be found on our web site.
Only when you cannot get enough service, you can contact us.
MADE IN JAPAN
Minoura strongly recommends placing the
P-500AL-2 next to a wall for safety to prevent
from falling backward accident.
MINOURA Japan Headquarters
(for ALL worldwide customers)
1197-1 Godo, Anpachi, Gifu 503-2305 Japan
Fax
+81-(0)584-27-7505
Mail
minoura@minoura.jp
Web
www.minoura.jp
- 1 -
instructions manual
(ver.2.1 2009/07)
Advertisement
Related Manuals for MINOURA P-500AL-2
Summary of Contents for MINOURA P-500AL-2
- Page 1 P-500AL-2 next to a wall for safety to prevent from falling backward accident. If you have any questions or need help, you should contact the dealer where you purchased or the Minoura Contact distributor in your country first. The distributor can be found on our web site.
- Page 2 Cradle Bar How To Setup Your P-500AL-2 Required Tools: 1 x 5mm Hex Wrench (included) 1 x 10mm Spanner Top Frame Cradle Hook 1 x 13mm Spanner Bolt Variation Main Pillar A) Cradle Support Type-A B) Angle Adjust Plate (plain type)
- Page 3 Put the Main Pillar over the Pillar Base, then screw the M6x18 Main Pillar M6x18 Bolt (B) Bolts (type-B) into the holes temporarily to hold the Main Pillar. (see Fig. E) Raise up both Support Bars. Insert the Plastic Shim between <Fig.
- Page 4 Do not adjust the angle too sharply or your <Fig. O> bike may not stay securely on the stand. To display your bikes as securely as possible, the P-500AL-2 must stand vertical. Using the Foot Adjusters, make sure all feet are contacting the Lock Nut ground evenly.
