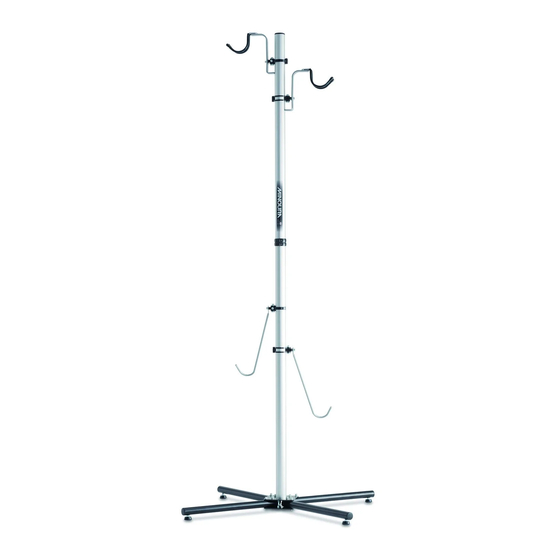

MINOURA P-600AL Instruction Manual

Stainless Band Clip
Left Side
Front Leg
Leg Base Plate
Right Side Front Leg

Required Tools for Assembling

1 x M5 Hex Wrench
1 x 10mm Spanner
1 x 13mm Spanner

Bolt Type Recognition

Type-A: plain type bolt
Type-B: with Spring Washer
MADE IN JAPAN

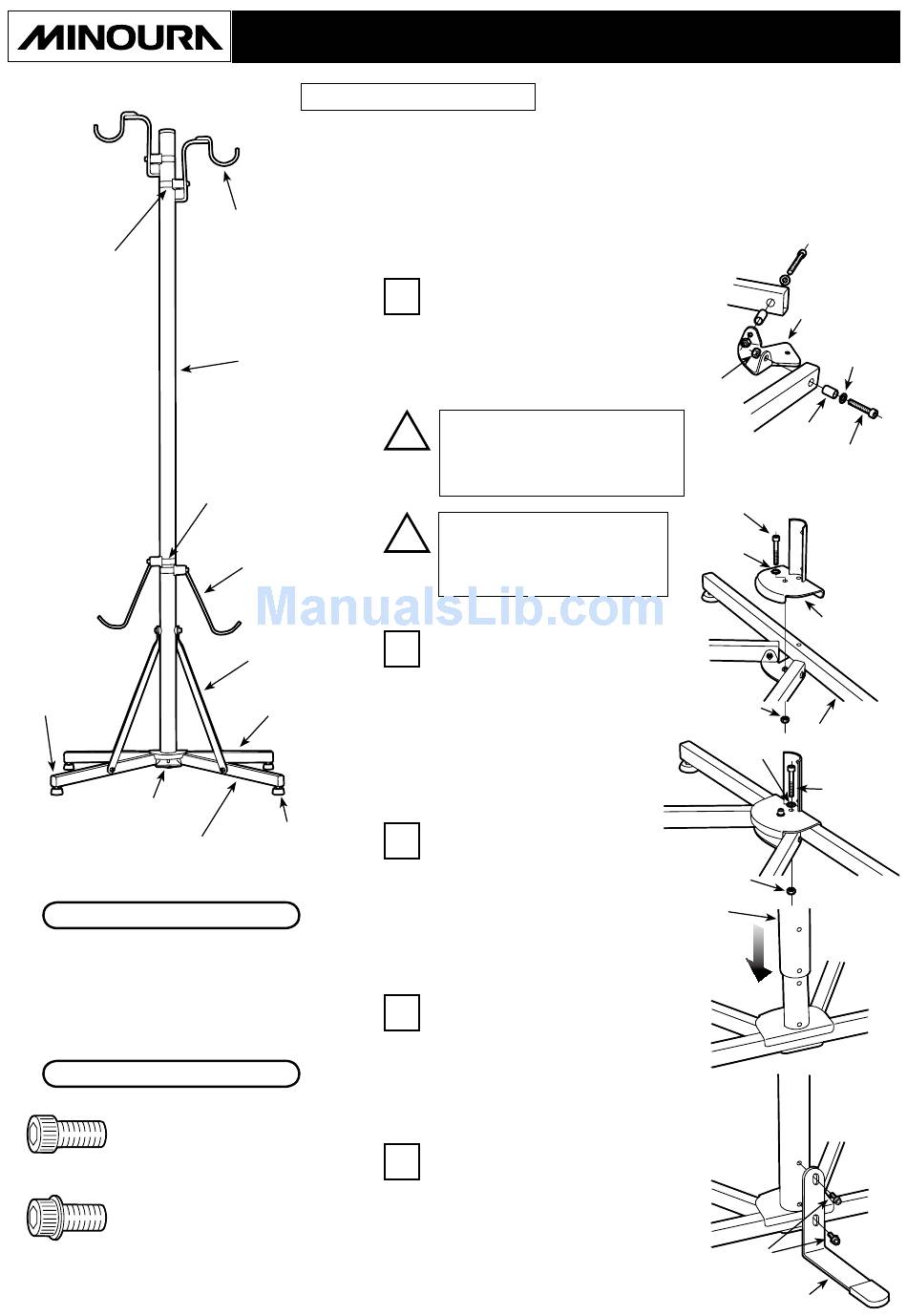

P-600AL "Closet Cyclist 2" instructions manual

IMPORTANT NOTICES

• For use of normal human-powered 2-wheel bicycles only. Heavy and long bikes
such as tandem, electric assisted and downhill / freeride bikes don't fit P-600AL.
• P-600AL may lose balance when hanging bike on just one side only depends on
the bike weight. Be careful about the stability when taking off the bike.
Upper Hook
• You should setup P-600AL along a wall to prevent falling backward problem. Do
not install the bike on the backside of P-600AL.
Main Pillar
Stainless Band Clip
Lower Hook
Reinforcement Bar
Rear Leg
Height Adjuster
Install both right and left Front Legs to the
1
Leg Base Plate with the supplied M6x35
bolt (type-A), Flat washer, Collar and M6
Nylon nut. (see Fig. A)
Be sure the Legs are different
!
for right side and left side.
Each Reinforcement Bar must
be located inward.
Be sure the collar insertion
!
direction is different on right
and left side. Follow as
shown in Fig. A.
Place the Rear Leg on the Leg Base
2
Plate, and put the Pillar Base Plate
onto the assembled legs.
Put the M6x40 bolt (type-A) with
M6 Flat Washer into the front side
hole, then tighten to M6 Nylon Nut
temporarily. (see Fig. B)
Put the M6x40 bolt (type-A)
3
with M6 Flat washer into the
backside hole and tighten to M6
Nylon Nut firmly.
After that, tighten the front side
bolt firmly too. (see Fig. C)
Insert the Main Pillar onto the Pillar
4
Base Plate.
Make sure the Main Pillar must cover
on the bracket, not placing beside the
bracket. (see Fig. D)
Attach the Backside Leg on the back
5
of the Main Pillar, then tighten with
the supplied two M6x18 bolts (type-B)
temporarily.
Please note that you will tighten
these bolts firmly after installing the
Reinforcement Bars. (see Fig. E)
Leg Base Plate
M6 Nylon Nut
Collar
M6x35 Bolt (type-A)
M6x40 Bolt (type-A)
M6 Flat
Washer
M6 Nylon Nut
M6 Flat
Washer
M6 Nylon Nut
Main Pillar
M6x18 Bolt
Backside Leg
(2009/07)
M6 Flat
Washer
(Fig. A)
Pillar Base
Plate
Rear Leg
(Fig. B)
M6x40 Bolt
(type-A)
(Fig. C)
(Fig. D)
(Fig. E)
