MINOURA PAIR STAND Manual

Bicycle display stand "PAIR STAND" instruction manual
Upper Pillar
Lower Pillar
Reinforcement Arm
Front Leg

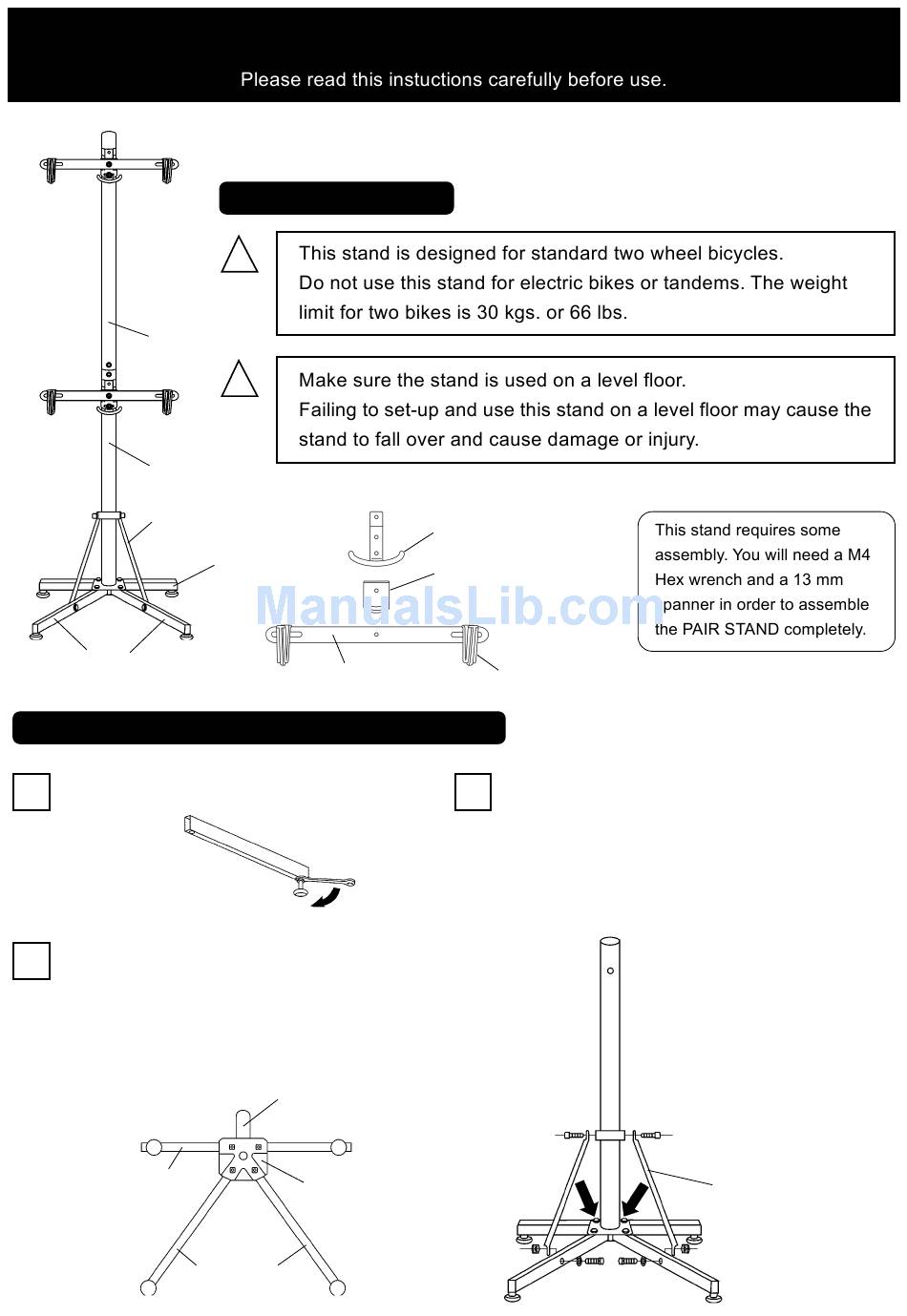

HOW TO ASSEMBLE YOUR PAIR STAND
Screw the foot adjuster to the nut located on each leg
1
end.
Insert four M8x55 bolts into the holes on the bottom of
2
the Lower Pillar, then put through the legs. The long leg
is for rear section, and the short legs are for front sec-
tion. Be sure to fit the legs to the shape of the horrow of
the bottom plate.
Rear Leg

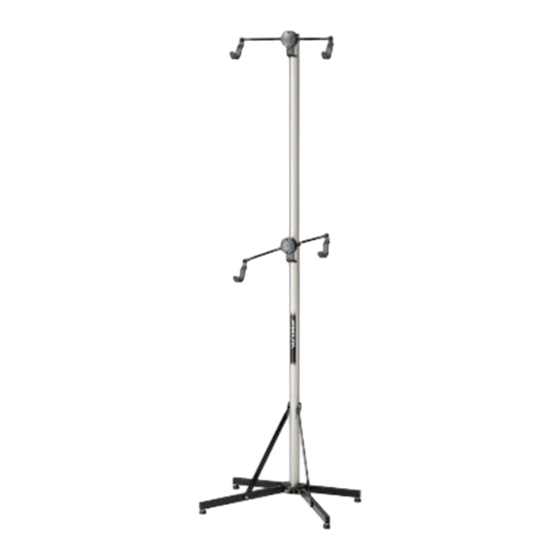

Thank you for purchasing Minoura PAIR STAND bike display stand.
This stand can hold up to two bikes horizontally in a space as same as for only one bike.
IMPORTANT NOTES
!
!
Rear Leg
Alloy Stay
(Fig. A)
Lower Pillar
Bottom Plate
Front Leg
(Fig. B)
Lower Support
Angle Adjust Plate
(projection is foreside)
Frame Hook
Install the Reinforcement Arms between the Lower Pillar and
3
the Front Legs by tightening the M6x14 bolts for the pillar
side, and M6x30 bolts for the leg side. After installing the
Reinforcement Arms, tighten the M8x55 bolts firmly. Wrong
step may make you unable to install the Reinforcement Arms.
Reinforcement Arm
(Fig.C)
