T-817 Wheel Truing Stand Instruction Manual
Thank you for purchasing the Minoura T-817 Truing Stand.
The T-817 is an economic truing stand, ideal for truing wheels
and it neatly folds together when not in use.
Diagram A
Assembling the T-817

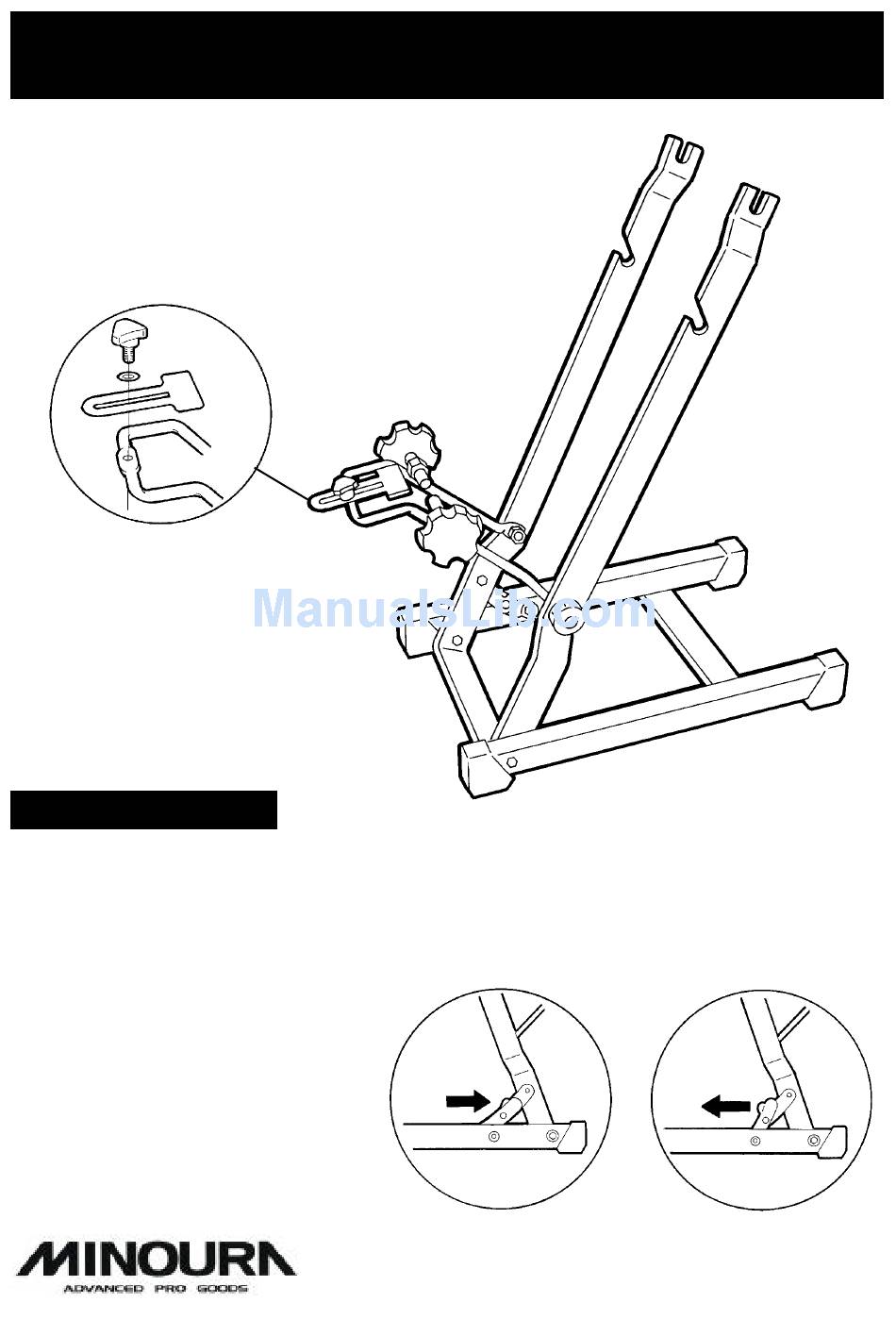

The T-817 is supplied ready to use with just the gauge bolts and plate to fit. Please assemble
these parts as per diagrams A and B. Extend the main gauge (which holds the wheel) to the
upright position and lock into place as per diagrams B and C.
The stand is now ready for use.
Please read this instruction manual carefully before use.
MINOURA CO., LTD.
1197-1 Godo, Anpachi, Gifu 503-2305 Japan / Email : minoura@minoura.jp
MADE IN JAPAN
Diagram C
Diagram B
Diagram D
