Important Notes
●RS-5000 is designed for a standard
2-wheel sport bicycle.
Not recommendable for any other type
of bikes like as long wheelbase tandem,
recumbent bike, heavy e-Bike or DH
bike.
●Do not open the legs in wrong direction.
Failure to do so will make the clamp
faces sideward and become unworkable.
To solve this problem, close the legs
once then open in the correct direction.
You need to fully open the legs until they
touch the projection on the pillar back.
●Place RS-5000 on flat and level floor.
Minoura will not guarantee the stability
when being placed on slanted floor due
to the A-shaped leg design.
●Place the fix side jaw lower than the
moving side jaw.
This will insure the load can be support-
ed. Failure to do so may cause the bike
to fall out of the stand.
●Clamp jaws open/close with the linkage
operated by the lever.
This mechanism increases the power
unexpectedly so too much force may
cause damage to the linkage, lever and
the bike frame itself.
Do not try to clamp hard by just pulling
up the lever. What you need is just
turning the knob for tightening the jaws.
●Support the bike with your hand when
rotating on RS-5000.
Make sure the bike's gravity point must
be lower than the clamp jaws.

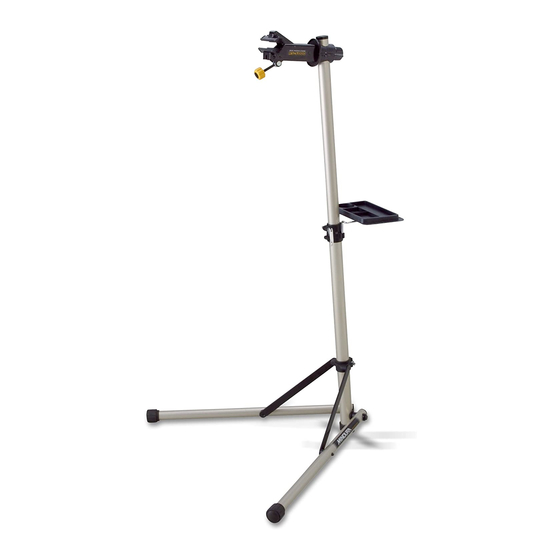

Bicycle Maintenance Stand
RS-5000

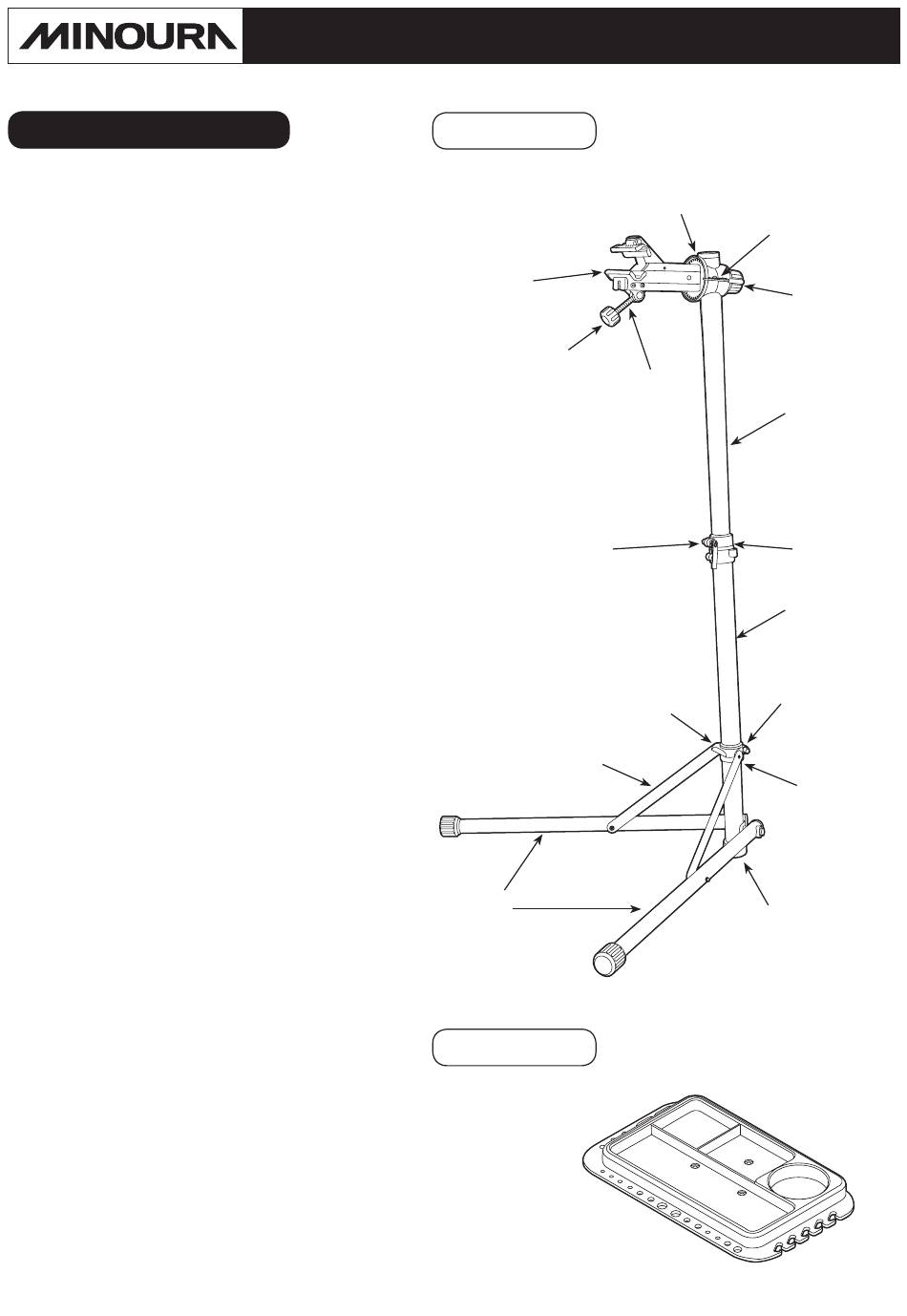

Part Names
Clamp Jaws
Clamp Knob
Clamp Lever
Upper Pillar Positioning
Quick Release
Leg Base
Support Bar
Leg
Option
- 1 -
instructions manul
(Ver.1.1 2014/6)
Gear Clutch
Clutch Release
Lever
Back Knob
Upper Pillar
Pillar Joint
Lower Pillar
Leg Opening
Quick Release
Rubber Cap
Plastic tray for placing parts
and tools installing behind
the pillar joint
RS-5000 Tool Tray
Projection
