WORK STAND W-300 INSTRUCTION MANUAL
IMPORTANT NOTE
Thank you for purchasing Minoura "W-300

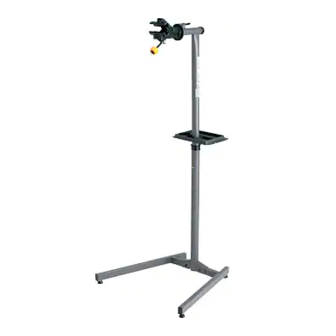

W-300 has foldable leg mechanism so you can save the storage
space when you don't use this stand.
Also the clamp jaws can rotate fully 360 degrees and fix at any
angle, so you can keep your standing position during your work
even for maintenance on lower part of your bike such as the bottom
bracket or the derailleur.
In addition, this stand can be used as a bike display stand.
W-300
W-300
W-300" bike repair stand.
W-300
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MINOURA W-300
Summary of Contents for MINOURA W-300

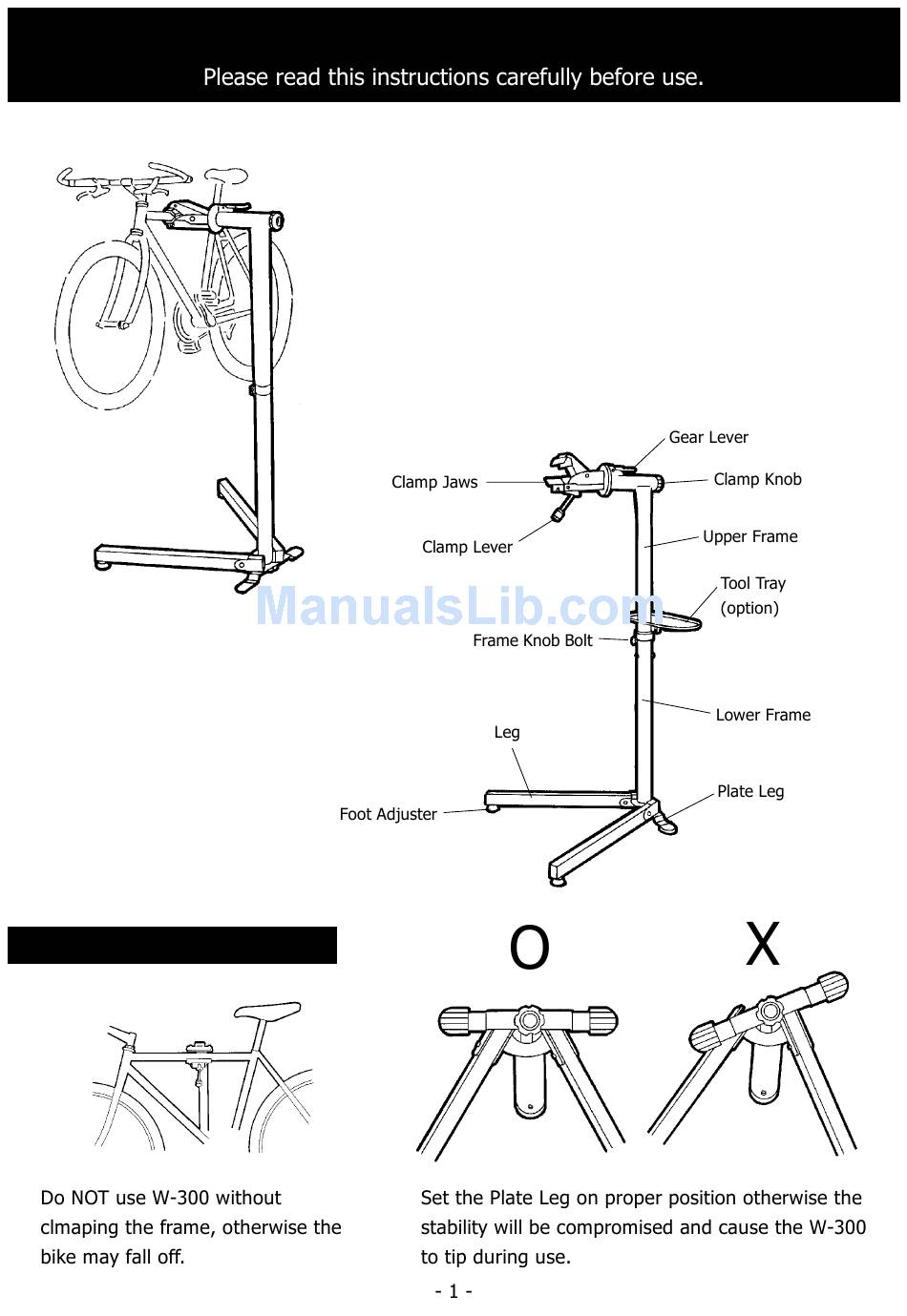

- Page 1 W-300” bike repair stand. Thank you for purchasing Minoura “W-300 W-300 has foldable leg mechanism so you can save the storage space when you don’t use this stand. Also the clamp jaws can rotate fully 360 degrees and fix at any...
- Page 2 HOW TO SET-UP YOUR W-300 Place the Lower Frame on the level floor and fully open the Leg. Attach the Plate Leg onto the bottom of the Lower Frame and secure it with supplied Knob Bolt. (see Fig. A & B) Install the Foot Adjuster on both legs.
- Page 3 Insert the Upper Frame into the Lower Frame (see Fig. F) then fix the position by tightening the supplied small knob bolt and the spring. (see Fig. G) If you purchased the optional “ ”, insert it to the Upper Frame before inserting the Upper Frame into the Lower Frame, and tighten the knob bolt to fix the position and angle.
- Page 4 HOW TO USE THE CLAMP W-300 has unique one lever operation system for both opening/shutting and adjusting the jaws. Please read the following operation manual carefully and use it effectively and safely. TO ADJUST THE JAWS When the clearance between the clamp jaws and the bike is too small, turn the adjuster knob on the lever anti-clockwise.
- Page 5 Remove and replace the clamp rubber. (see Fig. N) Push the E-rings onto the rubber projections and finish the installing new clmap rubber. (see. Fig. O) IF THE CLAMP LEVER HAS COMPLETELY FALLEN OFF... Once you had removed the thread of the roll nut in the clamp jaws compeletely by your improper adjustment (Fig.
