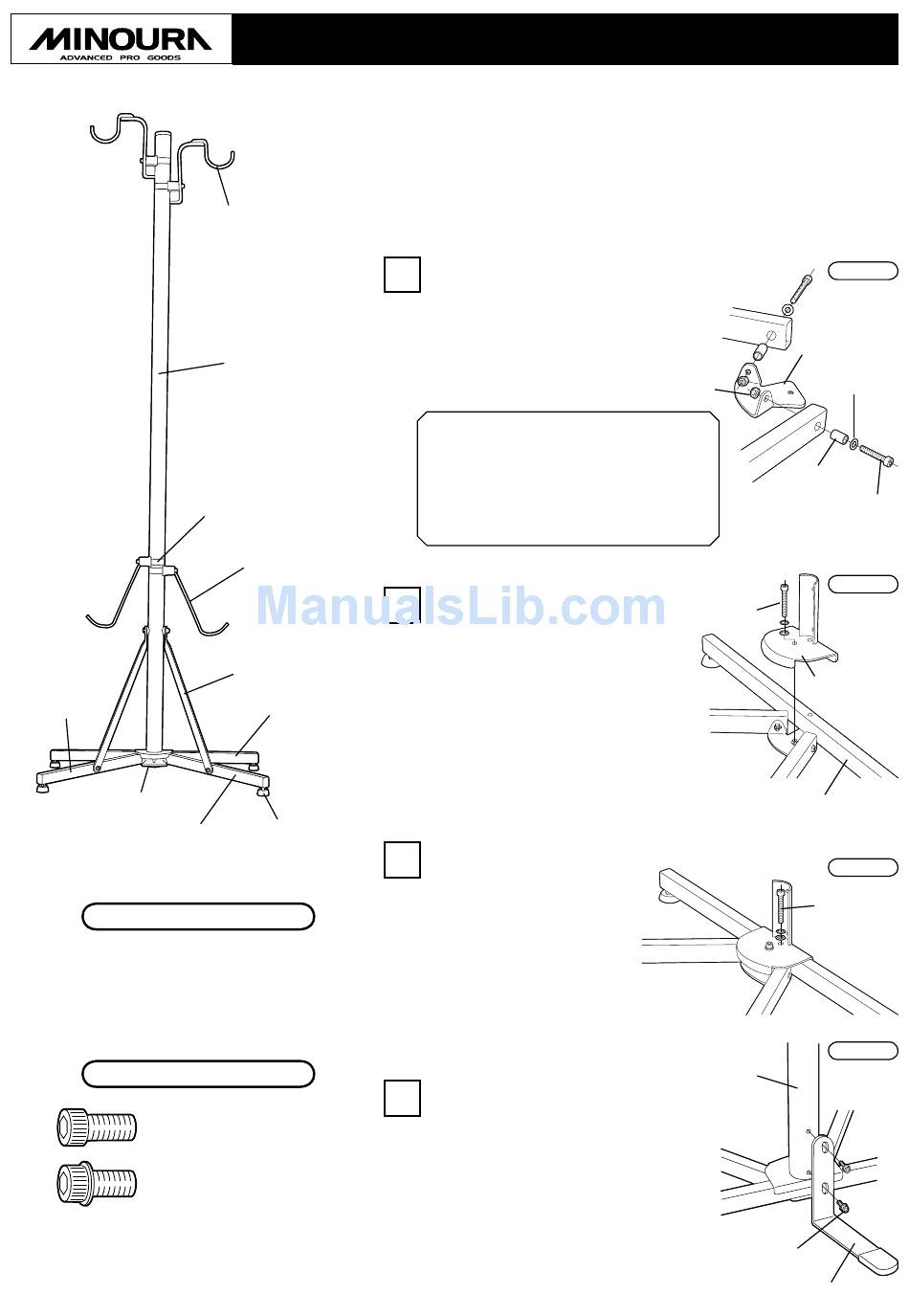

MINOURA P-600AL CLOSET-CYCLIST 2 Manual

Left Side
Front Leg
Leg Base Plate
Right Side Front Leg
Required Tools for Assembling
1 x 5mm Hex Wrench
1 x 13mm Open Wrench
Bolt Type Variation
Type-A: plain type bolt
Type-B: with Spring Washer
MADE IN JAPAN
P-600AL "Closet Cyclist 2" instructions manual

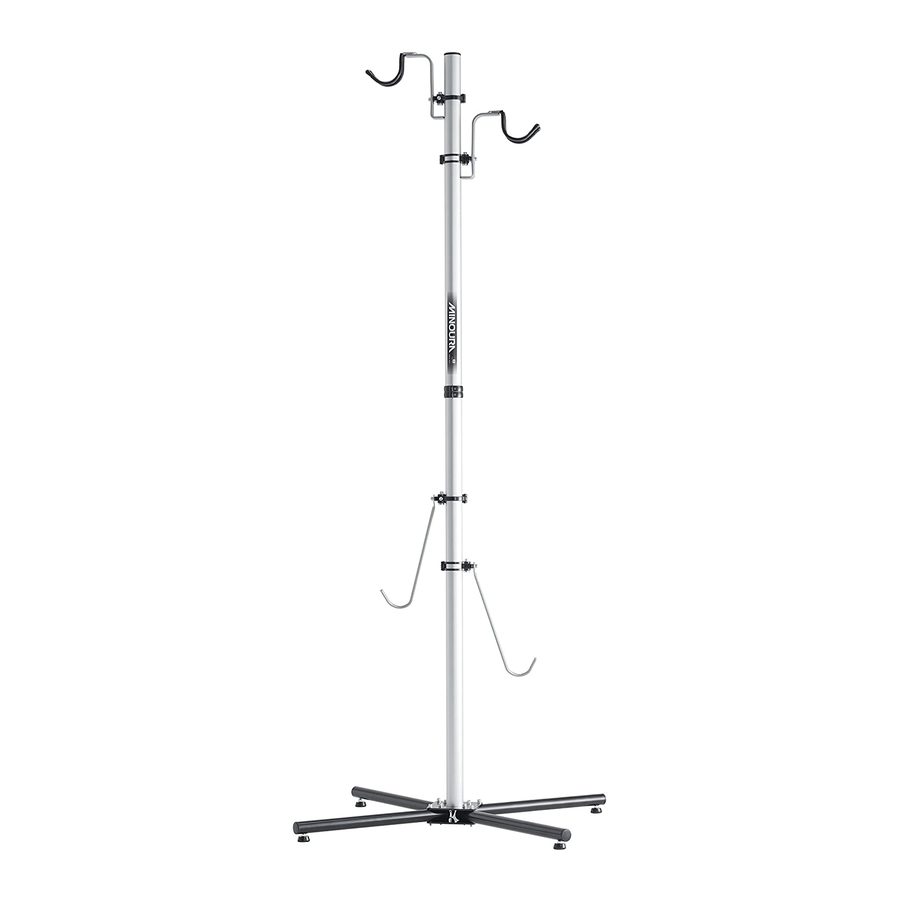

Thank you for purchasing Minoura " P-600AL Closet Cyclist 2 " bicycle
display stand. This stand can hold up to two bikes in a narrow space
vertically in order to save your storage space as much as possible.
Please read this instructions manual to assemble and use the stand correctly
Upper Hook
and safely.
Main Pillar
Stainless Band Clip
Lower Hook
Reinforcement Bar
Rear Leg
Height Adjuster
Install both side Front Legs to the
1
Leg Base Plate with supplied M6x35
type-A bolt, Flat washer, Collar and
M6 Nylon nut. (see Fig. A)
The Legs are different for right
side and left side.
Each Reinforcement Bar must be
inward.
Place the Rear Leg on the Leg
2
Base Plate, and apply the Pillar
Base Plate onto the assembled legs.
Put the M6x40 type-A bolt with
Spring and Flat washer into the
front side hole and tighten them
temporarily. (see Fig. B)
Put the M6x40 type-A
3
bolt with Spring and Flat
washer into the backside
hole and tighten firmly.
After that, tighten the front
side bolt firmly too.
(see Fig. C)
Insert the Main Pillar onto the
4
Pillar Base Plate.
Apply the Backside Leg on the
back of the Main Pillar, then
tighten with the supplied two
M6x18 type-B bolts temporarily
(not firmly). (see Fig. D)
M6 Nylon Nut
Collar
M6x40 Bolt
Main Pillar
M6x18 Bolt
Backside Leg
Fig. A
Leg Base Plate
Flat Washer
M6x35 Bolt
Fig. B
Pillar Base
Plate
Rear Leg
Fig.C
M6x40 Bolt
Fig. D
