MINOURA GravityStand-2 Instruction Manual

<Assembled Image>
Cradle Hook is
padded with soft
urethane to protect
your bikes finish.
Angle & position are
adjustable.
!
Hook pad may leave
a mark on the frame.
Consider wrapping
the hook with bar
tape to avoid any
staining.
Cradle height is
adjustable in 3
positions without
requiring any tools.
Set up is very easy.
Just lean to the wall.
(Pillar should be set
parallel to the wall)
!
GravityStand is designed to keep
enough stability. But we highly
recommend you to fix the stand
to the wall with the supplied strap
to prevent any
accident.

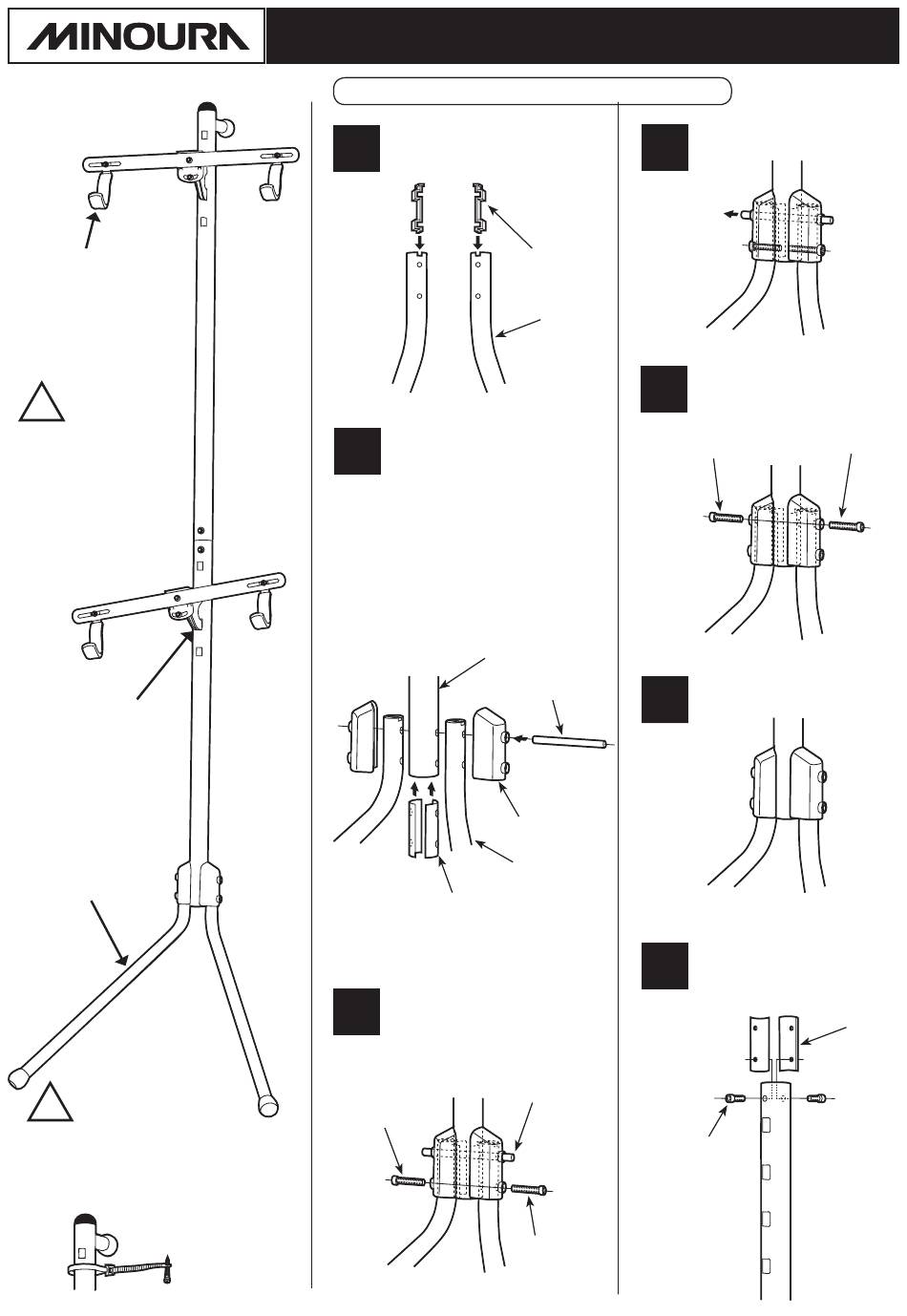

GravityStand-2
Required Tool: 1 x M5 Hex Wrench
1
2
3
M6x40 Bolt
M3.5x15 or 25
Screw
Insert Plastic Bracket into
each Leg.
Plastic
Bracket
Leg
Insert Metal Plate Nut
into Lower Pillar from the
bottom.
Put Plastic Cover onto each
Leg, then put through Guide
Pin into either hole for
temporally assembling.
Make sure the square holes
on the Lower Pillar face to
the front side.
Lower Pillar
Guide Pin
Plastic Cover
Leg
Metal Plate Nut
Screw M6x40 Bolt into the
hole without Guide Pin.
(You don't need to tighten
the bolts so much now.)
Guide Pin
M6x40 Bolt
- 1 -
instructions manual
(ver.1.3 2014/8)
(included)
4

Remove Guide Pin.

Remove
5
Screw M6x40 Bolt to
another hole.
M6x40 Bolt
6
Tighten all M6x40 Bolts
firmly.
7
Install Metal Plate Nut to
the top holes on Lower Pillar
with M6x12 Bolt.
M6x12 Bolt
M6x40 Bolt
Metal
Plate
Nut
