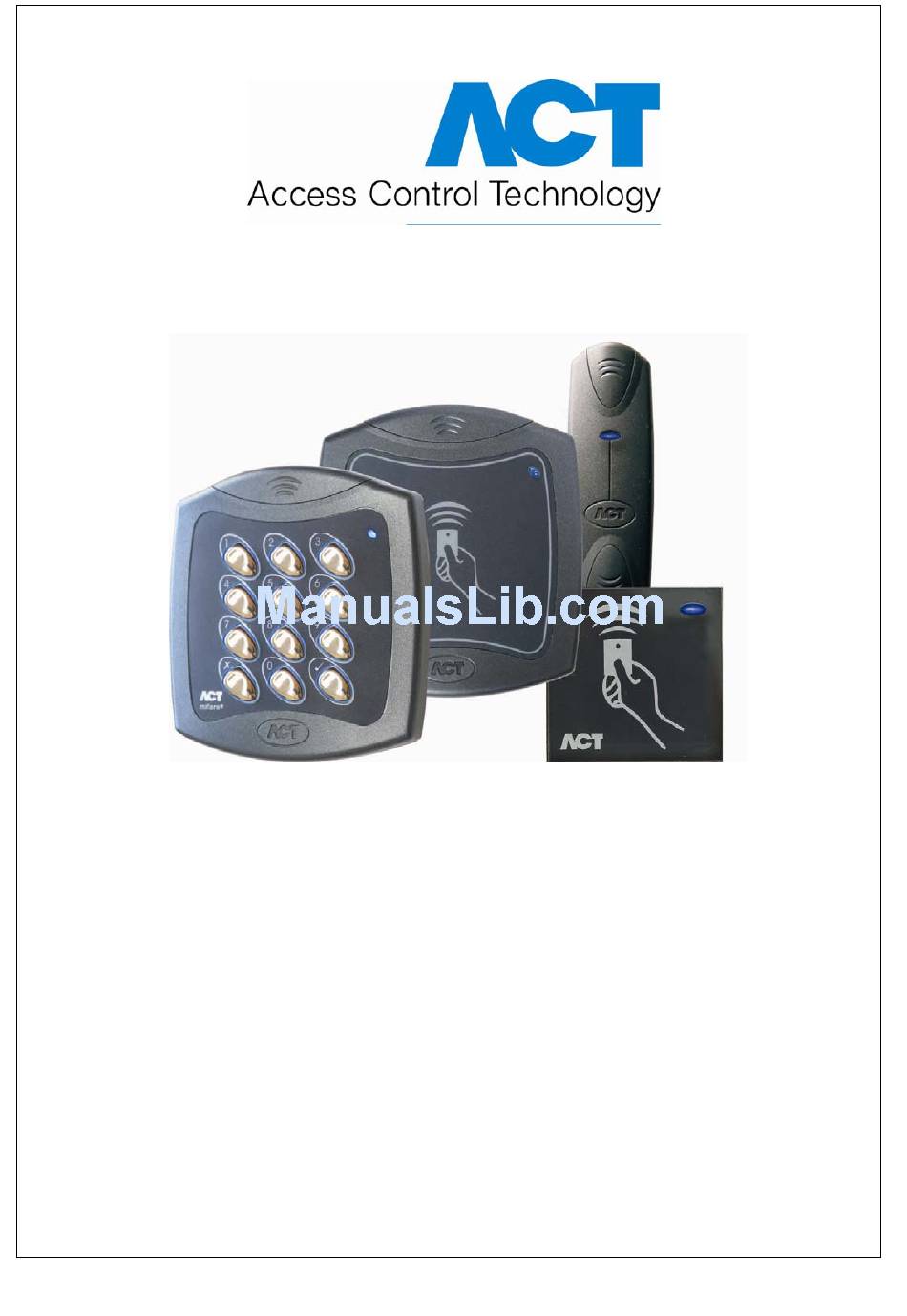

- Page 1 Operating & Installation Instructions for ACTpro MIFARE Classic Readers 18-00070...
-
Page 2: Table Of Contents
ACTpro MIFARE classic Operating and Installation Manual Rev 1.0 Contents ABOUT MIFARE CLASSIC (STANDARD)………………………………………………………………………..2 INSTALLATION NOTES…………………………………………………………………………………………….2 PRODUCT SPECIFICATION……………………………………………………………………………………….2 ORDERING INFORMATION………………………………………………………………………………………..2 READER OUTPUT DATA FORMAT………………………………………………………………………………3 WIRING INFORMATION FOR “CLOCK & DATA” OUTPUT…………………………………………………..3 WIRING INFORMATION FOR “WIEGAND” OUTPUT………………………………………………………….4 READER CONFIGURATION……………………………………………………………………………………….5 OPERATION………………………………………………………………………………………………………….5 ……………………………………………………………………………………………………..5 SECTOR READER …………………………………………………………………………..5 SERIAL AND REVERSE SERIAL READER... -
Page 3: About Mifare Classic (Standard)
The MIFARE Classic 1K cards offers 1024 bytes of data storage, split into 16 sectors; each sector is protected by two different keys, called A and B. ACT use the A key for read and B key for Write (this may not be the same for all manufacturers). -
Page 4: Reader Output Data Format
ACTpro MIFARE classic Operating and Installation Manual Rev 1.0 Reader Output Data Format Clock and Data The default data output format from the ACTpro MIFARE classic readers is Clock and Data encoded as 10 BCD digits (also known as Magnetic Stripe Track/2 or ABA). Wiegand The reader can be configured to output Wiegand formatted data rather that the default clock &... -
Page 5: Wiring Information For "Wiegand" Output
ACTpro MIFARE classic Operating and Installation Manual Rev 1.0 Wiring Information for “Wiegand” Output The standard Wiegand wiring colours for ACTpro MIFARE classic readers are shown below. Reader PIN Description Recommended wiring colour Description Sense White Direction – connect for entry Clock / D1 Green Clock / D1... -
Page 6: Reader Configuration
The default sector reader operation of ACTpro MIFARE readers is to read the batch numbers that are encoded into Sector 1 from the MIFARE cards and fobs issued by ACT. However the readers can be programmed to read any specified sector data, this allows the readers to be installed on sites that are already using MIFARE cards. See section on reader re-programming. -
Page 7: Backlight Operation
Wiegand 37 bit Output Note: If the reader has been re-programmed (see next page), then a series of notes is played after the Second Beep Set, this indicates that the default programming to read ACT MIFARE cards has been changed. -
Page 8: Reader Reprogramming
Programming Card. ACTpro MIFARE readers that have been programmed to read non ACT MIFARE cards and fobs will play a series of ascending notes after being powered up in addition to the standard beep codes, this is to indicate that it no longer reads the MIFARE cards and fobs issued by ACT. -
Page 9: Mounting Instructions
ACTpro MIFARE classic Operating and Installation Manual Rev 1.0 Mounting Instructions Flush Mount Unit Surface Mount Unit... -
Page 10: Mifare Panel Mount Installation
ACTpro MIFARE classic Operating and Installation Manual Rev 1.0 Installation diagram for MIFARE Panel Mount Reader Rear view of the ACTpro MIFARE Panel Mount reader connection to the ACTpro Door Controllers & Door Stations...
