ACT ACTPRO 1010 Wiring Instruction

The ACTpro 1010 is configured to read ISO Track 2 of magnetic stripe card media.
ACTpro 1010
Reader (Entry)
ACTpro 1010
Reader (Exit)

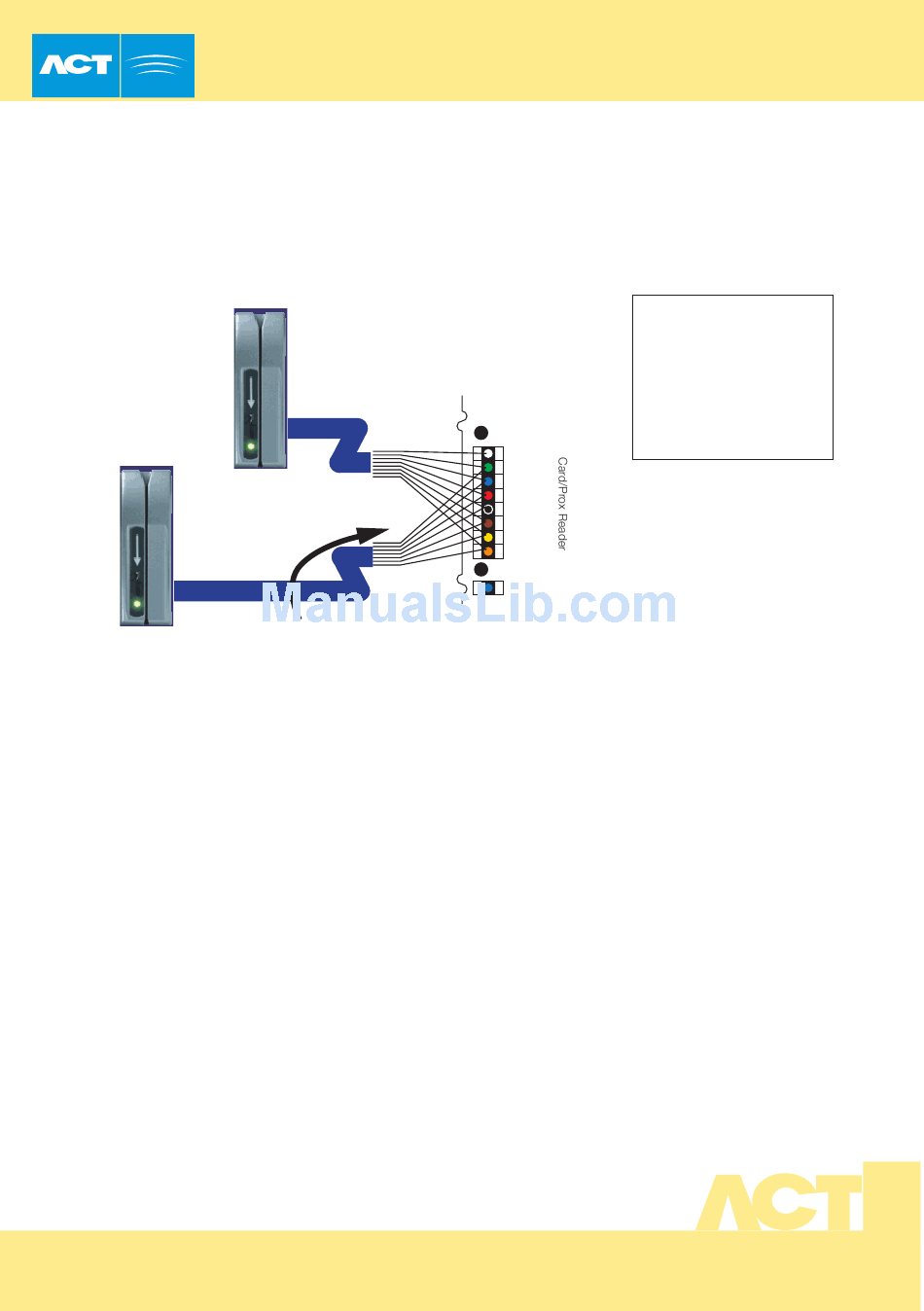

Wire both readers in parallel but leave
the SENSE line on the Exit reader unconnected.
Voltage:
Current:
Operating Temperature:
Media:
Speed:
Head Life
Cable:
Reader Distance:
18-0004 Issue 4
Unit C1, South City Business Centre, Tallaght, Dublin 24, Ireland.
Telephone: 353 1 466 2570. Telefax: 353 1 452 0427. E-mail: sales@accesscontrol.ie Web: www.accesscontrol.ie
ACTpro 1010 Wiring for Entry / Exit
Reader Specification
5-12V DC
15 mA standby, 20 mA maximum
-10 degrees C to +55 degrees C
ISO standard high or low coercivity magnetic card
12.7-172 cm/s
>1,000,000 passes
3m x 8-core screened
Max 30m from controller powered with 5V DC
Max 100m from controller powered with 12V DC

Wiring for Clock and Data

Controller
SENSE
CLOCK
The standard wiring colours for
DATA
+5v
ACTpro 1010 reader is shown above.
0v
Readers should be a maximum of 30m
RED
from the controller when powered
GREEN
from +5V and a maximum of 100m
when powered from +12V.
The +5V reader supply on ACT controllers is normally rated
at 100mA. Typically this is sufficient to power 2 ACT readers.
Note however that readers from other manufacturers may need
to be powered separately if their current requirements exceed
this or if they require 12V.
White SENSE
Green CLOCK
Blue DATA
Red +5V
Black 0V
Brown RED
Yellow GREEN
Orange Not Connected
