ACTpro 2000
Product Overview

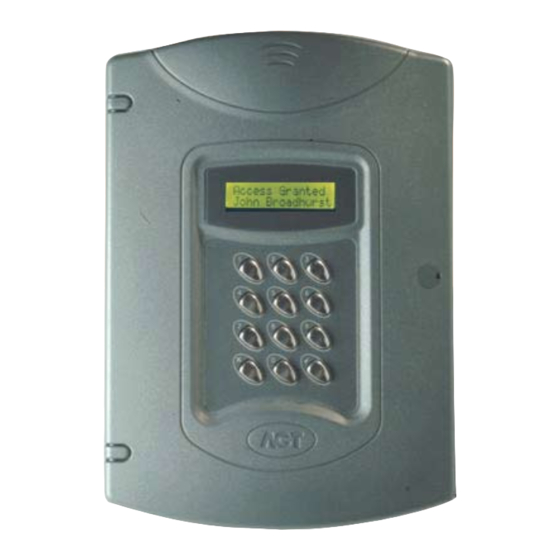

The ACTpro 2000 is a two door controller extending
to a total of sixteen doors via ACTpro 100/200 door
expanders. In turn up to 128 ACTpro 2000s may be
networked via a PC interface to facilitate up to
2000 doors. The ACTpro 2000 can be configured
and maintained standalone or through ACTWin
pro PC software. The ACTpro 2000 may be
networked via RS485 interface.
Main Features
2 door controller expandable to 16 doors
●
via a network of ACTpro 100/200 door expanders
The ACTpro 2000 may be in turn networked
●
with other ACTpro 2000s to create a network
of up to 2,000 doors
RS485 output to network
●
ACTpro 100/200 door expanders
20,000 users
●
1,000 user groups
●
128 time zones
●
Entry and exit reader support
●
DDA individual timer facility
●
Installation / Specification Guidelines
The ACTpro 2000 requires a 12 volt dc supply
●
The controller may not be installed outdoors
●
unless it is in a sealed and heated cabinet
The ACTpro 2000 is expanded from
●
2 to 16 doors via single door ACTpro
100 and 2 door ACTpro 200 expanders
The ACTpro 2000 controller may be networked
●
via RS485 to expand the system up to
2000 doors maximum
The maximum amount of ACTpro 2000s per
●
RS485 output is 32 (ACT supply a 4x485 or
1x485 interface for PC networks)
The ACTpro 2000 is compatible with ACTWin pro
●
and ACTWin pro Lite software packages
The ACTpro 2000 will operate standalone
●
or can be connected to a PC
For comparisons to our other controllers please
●
check the comparison chart on the back page
Card access door controller
LAN / WAN
A
TCP/IP
ACT IP LAN
Interface
2000
200
100
Remote Building
Shows ACTpro 2000 Controller
A
connected to a LAN or WAN
via an interface device
Shows a network of ACTpro 2000
B
Controllers connected to a LAN
or WAN via an ACTWin Pro workstation
ACTpro 2000
B
RS232
485
Interface
2000
200
100
2000
Max 32 Doors
100
ACTpro 1000/2000/3000 Controllers and ACTpro 100
expander require a 12 volts DC supply
ACTpro 2000 System Schematic
Database
Server
IOM
8
8
IOM
8
8
