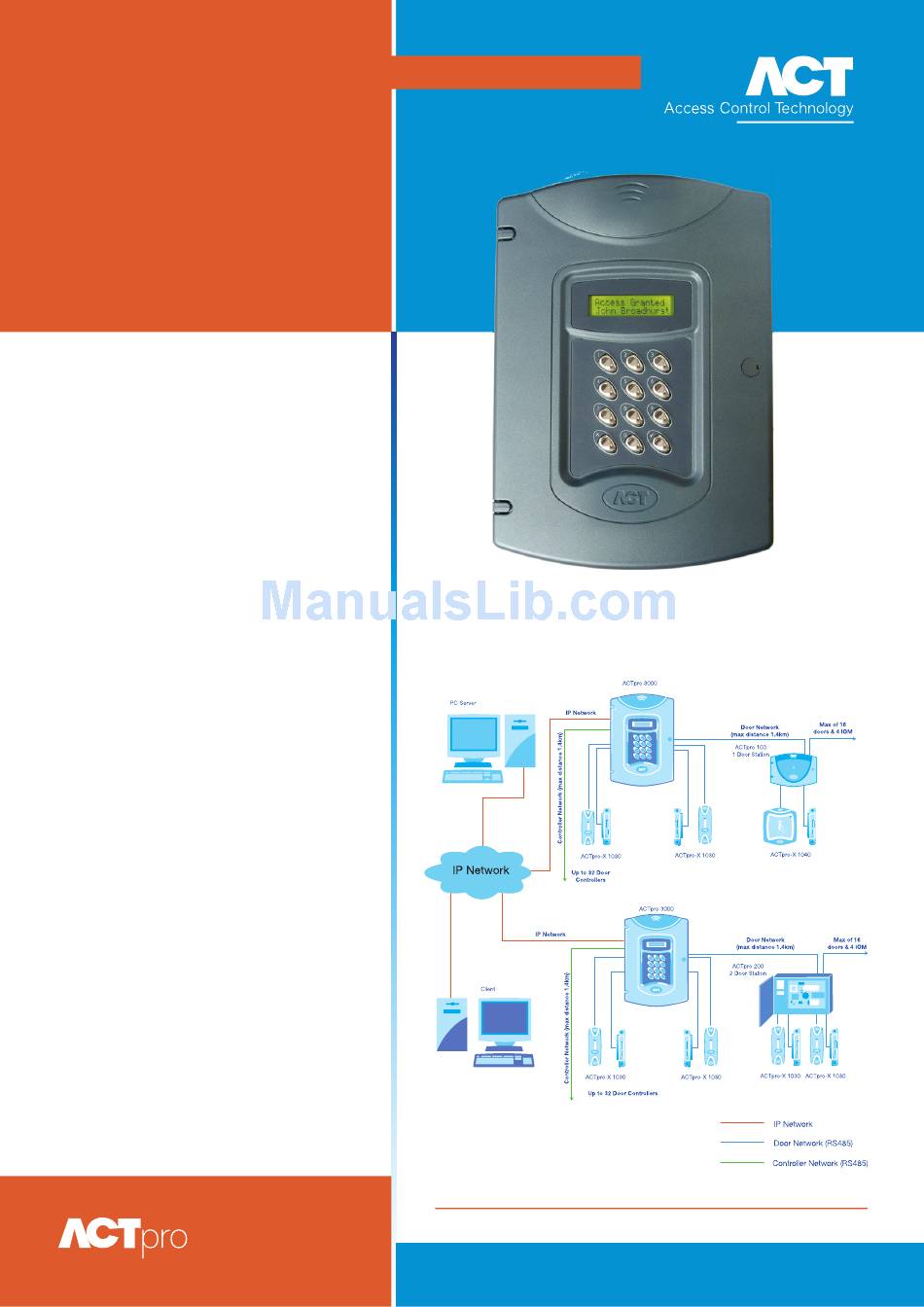

ACTpro 4000
The ACTpro 4000 is a two door controller that
can extend to a total of 16 doors via ACTpro door
stations. In turn up to 250 ACTpro 4000s may
be networked via a PC interface to facilitate up
to 4,000 doors. The ACTpro 4000 can support
60,000 users.
Main Features
•
60,000 users
•
1,024 user groups
•
256 time zones
•
TCP/IP Networking
•
10/100 Mbps Fast Ethernet
•
Flash upgradeable fi rmware
•
Timed anti passback
•
Entry and exit reader support
•
DDA individual timer facility
•
Voltage monitoring
•
Low bandwidth requirements
•
DHCP or Static IP address
•
Auto discovery simplifi es installation
•
Quick download speeds for large
databases
•
Monitor controller status via a web
page
Card access door controller
Readers to Controller
Distance:
from reader to controller up to 100 metres
Cable Type:
8 core screen
Power:
12 Volts DC (check manufacturers instructions)
ACTpro 4000
ACTpro 4000 Schematic
Advertisement
Related Manuals for ACT ACTPRO 4000
Summary of Contents for ACT ACTPRO 4000
- Page 1 ACTpro 4000 Card access door controller The ACTpro 4000 is a two door controller that can extend to a total of 16 doors via ACTpro door stations. In turn up to 250 ACTpro 4000s may be networked via a PC interface to facilitate up to 4,000 doors.
- Page 2 ACTpro IOM input / output module Auxiliary Relay Output 1 amp 1 amp 1 amp 1 amp Programmable Inputs ACT Net IF-1 single channel RS485 interface Programmable Outputs 2 (100mA) 2 (100mA) 2 (100mA) 2 (100mA) 2 (100mA) ACT Net IF-4...
