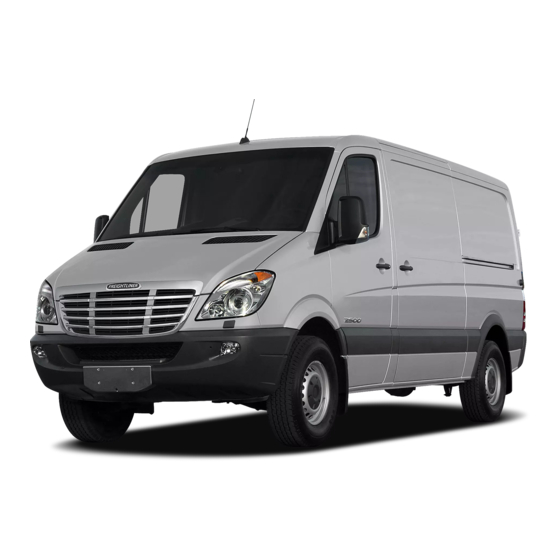

Dodge 2007 Sprinter Owner's Manual

Dodge 2007 sprinter van owner's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

2 0 0 7 O W N E R ' S M A N U A L

Advertisement

Table of Contents
loading

Related Manuals for Dodge 2007 Sprinter

Summary of Contents for Dodge 2007 Sprinter

  • Page 1 2 0 0 7 O W N E R ’ S M A N U A L...
  • Page 2 Thank you for choosing the new Sprinter. Before your first journey, please familiarize yourself with your vehicle and how it oper- ates, as well as its driving, control and con- venience functions. Before you drive off, read these Operating Instructions. This will help you get the most out of your vehicle and avoid endan- gering yourself and others.

  • Page 3: Table Of Contents

    Introduction....3 At a glance ....11 Safety ....23 Controls in detail .
  • Page 4 Environmental protection Environmental note DaimlerChrysler’s declared policy is one of comprehensive environmental protection. The objectives are for the natural resources which form the basis of our existence on this planet to be used sparingly and in a manner which takes the requirements of both nature and humanity into account.
  • Page 5 Operating safety Operating safety Warning Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of Cali- fornia to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehi- cles, and certain products of component wear, contain chemicals known to the State of California to cause cancer and birth de-...
  • Page 6 Warning A heavy impact to the underbody, tires or wheels, for example when bottoming out on rough terrain or driving over an obstacle at high speed, could damage your vehicle. This also applies to vehicles equipped with un- derbody protection. In this case, have your vehicle checked at an authorized Sprinter Dealer which has the necessary specialist knowledge and tools to...
  • Page 7 Operating safety Digital speedometer and total distance recorder Do not allow the electronically stored total distance covered by your vehicle to be modified as a result of tampering with the electronics system. This type of modification or failing to in- form the buyer when selling the vehicle could constitute an offense punishable by law, depending on the country concerned.
  • Page 8 Body builders and dealers who make any modifications which may affect the final certification of the engine, vehicle or equipment assume the sole responsibility for the vehicle, including labeling and doc- umentation, affected by their modifica- tions. It is their responsibility to certify that the altered vehicle conforms to all applicable standards and regulations affected by the vehicle alteration or continues to comply...
  • Page 9 Operating safety Warning Various warning labels are affixed to your vehicle. These warning labels are intended to make you and others aware of various risks. You should not remove any of these warning labels unless explicitly instructed to do so by information on the label itself. Re- moval of any of these labels may cause you and others to be unaware of certain risks which may result in an accident and/or per-...
  • Page 10 REPORTING SAFETY DEFECTS REPORTING SAFETY DEFECTS In the 50 United States and Washington D.C.: If you believe that your vehicle has a defect, which could cause a crash or cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying the man- ufacturer.
  • Page 11 Information regarding electronic recording devices Information regarding electronic recording devices (Including notice pursuant to California Code § 9951) Please note that your vehicle is equipped with devices that can record vehicle systems data. This information helps, for example, to diagnose vehicle systems after a collision and to continuously improve vehicle safety. DaimlerChrysler may access the information and share it with others for safety research or vehicle diagnosis purposes with the consent of the vehicle owner or lessee...
  • Page 12 Cockpit ...12 Instrument cluster ...14 Steering wheel with buttons* ...17 Center console ...18 Overhead control panel* ...19 Switch units ...20 Door control panel ...22...

  • Page 13: Cockpit

    Cockpit Cockpit N68.10-2287-31...
  • Page 14 Function Page 1 Door control panel 2 Light switch 3 Combination switch Turn signals High-beam headlamps Windshield wipers Rear window wiper* 4 Cruise control lever* 5 Horn 6 Steering wheel without/ with* buttons Function Page 7 Instrument cluster 14, 84 8 Storage compartment 9 Storage compartment with interior lamp...

  • Page 15: Instrument Cluster

    Instrument cluster Instrument cluster N54.32-2250-31...
  • Page 16 Function Page 1 Instrument cluster on vehi- cles without steering wheel buttons 2 Instrument cluster on vehi- cles with steering wheel buttons* On vehicles without steering wheel but- tons: Changes the stan- dard display Selects menus On vehicles with steering wheel but- tons*: Checks the engine oil level...
  • Page 17 Instrument cluster Indicator and warning lamps v ESP ® warning lamp ASR warning lamp / Coolant level too low D Coolant temperature too high 1 Restraint systems malfunction Brake fluid level too low EBV malfunction Malfunction in trailer's brake booster N Engine oil level warning ±...

  • Page 18: Steering Wheel With Buttons

    Steering wheel with buttons* N46.10-2074-31 Function Page 1 Display Controlling the operating system 2 To select a submenu or adjust the volume Up/increases the volume Down/decreases the volume 3 Telephone* functions s Accepts a call/ starts dialing t Ends a call/rejects an incoming call Steering wheel with buttons* Function...

  • Page 19: Center Console

    Center console Center console N68.10-2288-31 Function Page Storage compartment Radio* or COMAND*, see the separate operat- ing instructions Air-conditioning control panel Center console switch unit Function Page Storage compart- ment or CD changer*, see the separate op- erating instructions Cup holder with Ashtray Cigarette lighter 12 V socket...

  • Page 20: Overhead Control Panel

    Overhead control panel Function Page 1 Hands-free microphone for telephone* 2 Switches the right-hand reading lamp on/off 3 Switches the automatic interior lighting on/off Overhead control panel* Function Page Eyeglass compartment or Anti-theft alarm sys- tem (ATA)* 5 Switches the interior lighting on/off 6 Switches the left-hand...

  • Page 21: Switch Units

    Switch units Switch units Center console switch unit N54.25-2915-31 The number of switches may vary, depending on the vehicle’s equipment. Function Page Opens/closes the left- hand electric sliding door* Switches the left/right seat heating* & on/off Switches the rear window heating* on/off P Switches the windshield...
  • Page 22 Function Page ³ Switches the heater booster function* on/off Switches auxiliary heat- ö ing* ³ on/off Switches the heater booster function* on/off Adjusts the working en- gine speed* Switches the operating speed governor* on/off Ventilates the load compartment, air in/air out* The layout of the switches may vary, depending on the vehicle’s equipment.

  • Page 23: Door Control Panel

    Door control panel Door control panel N54.25-2914-31 Function Page 1 Adjusts the exterior mirrors* 2 Selects an exterior mirror* 3 Opens/closes the left- hand side window 4 Opens/closes the right- hand side window...
  • Page 24 Occupant safety ...24 Driving safety systems ...42 Anti-theft systems ...47...
  • Page 25 Occupant safety Occupant safety Restraint systems This section contains all the most impor- tant information about the restraint sys- tems in your vehicle. In an accident, your vehicle collides with another object, for ex- ample another vehicle. This may cause your vehicle to accelerate or decelerate ex- tremely quickly.
  • Page 26 In accidents in which an airbag is acti- vated, the airbag will therefore only of- fer an increase in the protection provided by the seat belt, i.e. additional protection, if the seat belt is worn cor- rectly. Warning Modifications to or work incorrectly carried out on a restraint system (seat belt and seat belt anchorages, emergency tensioning re- tractor, belt force limiter or airbag) or its wir-...

  • Page 27: Occupant Safety

    Occupant safety Do not secure any objects with a seat belt if it is being used by one of the vehicle’s occu- pants. Avoid wearing bulky clothing, for example a winter coat. Do not route the belt strap over sharp or fragile objects, especially if these are locat- ed in or on your clothing, for example eye- glasses, pens or keys.
  • Page 28 Always have seats belts that are damaged or have been subjected to a heavy load in an accident replaced, and their anchorages checked, at a qualified specialist workshop which has the necessary specialist knowl- edge and tools to carry out the work re- quired.
  • Page 29 Occupant safety Adjust the belt height in such a way that the shoulder belt is routed over the middle of the shoulder. Belt sash guide with height adjustment 5 Release button To raise the belt height: slide belt sash guide 1 upward. Belt sash guide 1 engages in various positions.
  • Page 30 In this case, have the SRS system checked and repaired immediately at a qualified spe- cialist workshop which has the necessary specialist knowledge and tools to carry out the work required. The manufacturer recommends that you use an authorized Sprinter Dealer for this pur- pose.
  • Page 31 Occupant safety Vehicle deceleration or acceleration and the direction of the force are essentially determined by: the distribution of the force during the impact the collision angle the deformation characteristics of the vehicle the composition of the object involved in the collision, for example the other vehicle Factors that cannot be seen or measured until after the collision are not used to de-...
  • Page 32 Warning If the emergency tensioning retractors have been triggered, have them replaced at a qualified specialist workshop which has the necessary specialist knowledge and tools to carry out the work required. The manufacturer recommends that you use an authorized Sprinter Dealer for this pur- pose.
  • Page 33 Occupant safety Do not put your feet on the dashboard. Do not lean on the doors from inside the vehicle. Make sure that no persons, animals or objects are present between the vehicle occupants and the deployment range of the airbags. Do not cover the padded boss of the steering wheel, the co-driver’s airbag cover, the windowbag cover or the...
  • Page 34 Warning After an airbag has been triggered: airbag parts are hot – do not touch them, otherwise you could be burnt the airbags must be replaced at a quali- fied specialist workshop which has the necessary specialist knowledge and tools to carry out the work required. The manufacturer recommends that you use an authorized Sprinter Dealer for this purpose.
  • Page 35 Occupant safety The driver’s front airbag and co-driver’s front airbag are triggered: in the initial stages of an accident with a high rate of vehicle acceleration or deceleration in a longitudinal direction if the system determines that airbag deployment can offer additional pro- tection to that provided by the seat belt independently of other airbags in the vehicle...
  • Page 36 1 Thorax sidebag The thorax sidebags are triggered: in the initial stages of an accident with a high rate of vehicle acceleration or deceleration in a lateral direction, for example in the event of a side impact on the side on which an impact occurs if the system determines that airbag deployment can offer additional pro- tection to that provided by the seat belt...
  • Page 37 Occupant safety 1 Windowbag The windowbags are triggered: in the initial stages of an accident with a high rate of vehicle acceleration or deceleration in a lateral direction on the side on which an impact occurs independently of the front airbags You will find additional information about airbag deployment on page 32).
  • Page 38 Do not carry heavy or hard objects inside the vehicle or load compartment unless they are secured. You will find further information under “Transporting156” ( page 156) and “Features164” ( page 164) in the “Con- trols in detail” section. An unsecured or incorrectly positioned load increases the risk of injury to occupants, particularly children, in the event of: sharp braking...
  • Page 39 Occupant safety Warning If the child restraint system is not installed correctly on a suitable vehicle seat, the child may not be restrained in the event of an ac- cident or sudden braking and may be seri- ously or fatally injured. For this reason, always observe the installation instructions issued by the child restraint system manu- facturer and the intended use for the child...
  • Page 40 A statement by the child restraint manu- facturer of compliance with this standard can be found on the instruction label on the restraint and in the instruction manual provided with the restraint. When using any infant or child restraint system, make sure to carefully read and follow all manufacturer’s instructions for installation and use.
  • Page 41 Occupant safety Warning If the child restraint system has not been in- stalled correctly on a suitable vehicle seat, the child cannot be restrained in the event of an accident or sudden braking and could be seriously or fatally injured. You must therefore observe the installation instruc- tions issued by the child restraint system manufacturer when installing a child re-...
  • Page 42 Warning Do not expose child restraint systems to di- rect sunlight. Metallic parts of the child re- straint system could heat up, for example, and the child could burn him/herself on the hot parts. If the children open a door, they could: cause injury to others as a result get out of the vehicle and could either injure themselves when doing so or they...
  • Page 43 Driving safety systems Driving safety systems In this section, you will find information about the following driving safety systems: ABS (Antilock Brake System) BAS (Brake Assist) ® (Electronic Stability Program) ASR (acceleration skid control) EBV (electronic brake force distribu- tion) The maximum effect of ABS, BAS, ®...
  • Page 44 Braking If ABS intervenes during braking, you will feel the steering wheel vibrate gently and the brake pedal pulsate. If ABS intervenes: Continue to depress the brake pedal firmly until the braking situation is over. For full brake application: Depress the brake pedal with maxi- mum force.
  • Page 45 Driving safety systems Warning Proceed as follows if the v warning lamp in the speedometer flashes: Do not deactivate ASR under any cir- cumstances. Only depress the accelerator pedal as far as necessary when pulling away. Adapt your driving style to suit the pre- vailing road and weather conditions.
  • Page 46 Activating/deactivating ASR ASR is automatically activated as soon as the engine is switched on. It may be best to deactivate ASR in the fol- lowing situations: if snow chains are being used in deep snow on sand or gravel If you deactivate ASR: the engine’s torque is then no longer limited and the drive wheels could spin;...
  • Page 47 Driving safety systems Electronic brake force distribution (EBV) EBV monitors and regulates the brake pressure at the rear wheels to improve driving stability during braking. Warning If EBV malfunctions, the brake system is still available with the full brake boosting effect. However, the rear wheels may lock, for ex- ample if the brakes are applied with maxi- mum force.
  • Page 48 Anti-theft systems Immobilizer The immobilizer prevents the vehicle from being started without the correct key. When leaving the vehicle, always take the key or remote keyless entry transmitter with you and lock the vehicle. The engine could be started by anyone with a valid key or remote keyless entry transmitter that is left inside the vehicle To switch on: remove the key from the...
  • Page 49 Anti-theft systems Tow-away protection* A visual and audible alarm is triggered if the inclination of the vehicle changes while tow-away protection is enabled. The tow-away protection alarm is trig- gered shortly before the wheel leaves the ground if the vehicle is being jacked up on one side, for example.
  • Page 50 Interior motion sensor* If the anti-theft alarm system is enabled and the vehicle is locked, a visual and au- dible alarm is triggered if one of the side windows or the rear window on your vehi- cle is smashed and someone reaches into the interior, for example.
  • Page 52 Controls in detail Opening and closing ...52 Key positions ...67 Seats ...68 Steering wheel adjustment ...76 Lighting ...77 Instrument cluster ...84 Operating system without steering wheel buttons ...87 Operating system with steering wheel buttons* ...89 Driving and parking ... 110 Automatic transmission ...

  • Page 53: Opening And Closing

    Opening and closing Opening and closing Remote control with key Included with your vehicle are 2 or 4* re- mote keyless entry transmitters with a folding mechanical key. USA only: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and...
  • Page 54 Warning Do not leave children unsupervised in the vehicle, even if they are secured by a child restraint system. The children could: injure themselves on parts of the vehicle unlock the door on vehicles with an elec- tric sliding door by pressing the central locking button, and then open the doors and thereby injure other persons get out of the vehicle and could either...
  • Page 55 Opening and closing Locking and unlocking the vehicle with the remote control Unlocking the driver's door Press the Œ button. The turn signals flash once. The anti-theft alarm system (ATA)* is deactivated. If you unlock the vehicle using the key and do not open a door within 40 sec- onds, the vehicle locks again automati- cally.
  • Page 56 N72.10-2147-31 Rear door 1 To lock 2 To unlock Insert the key all the way into the door lock and turn it in direction 2. The door is unlocked. The anti-theft alarm system (ATA) is triggered when you open the vehicle using the key.
  • Page 57 Opening and closing Sliding door Warning If the vehicle is parked on an incline, the slid- ing door may move of its own accord if it is open but not engaged. You or others could be trapped. Make sure that the sliding door is engaged in the active retainer.
  • Page 58 To close: press button 2 to release the sliding door from its detent and, holding door handle 3, pull the door firmly towards the front until it engag- To lock: press locking knob 4 down. Only this sliding door is locked. Electric closing aid* Your vehicle may be equipped with an elec- tric closing aid.
  • Page 59 Opening and closing N72.16-2119-31 Sliding door switch in the doorway 3 To open/close the sliding door On vehicles with a partition, the switch is located on the partition near the doorway level with the inside door han- dle. To open the sliding door: briefly press lower part 2 of the switch on the cen- ter console.
  • Page 60 Opening/closing using the inside and outside door handles Observe the notes on anti-trap protection page 60). N72.16-2118-31 1 Button 2 Outside door handle Briefly press button 1 or pull outside door handle 2. The sliding door opens or closes and a signal sounds.
  • Page 61 Opening and closing Anti-trap protection Warning The anti-trap protection function does not eliminate the possibility of fingers or other parts of the body being trapped against the door frame and therefore does not eliminate the risk of injury. Always make sure that nobody is within the operating range of the sliding door.
  • Page 62 Opening the left-hand rear door from the outside 1 Release lever Make sure that the right-hand rear door is open and engaged. Pull release lever 1 in the direction of the arrow. Swing the rear door out to the side until it engages.
  • Page 63 Opening and closing If you prefer to keep door retainer 1 page 61) out of the loading area when loading the vehicle, you can swiv- el it 180° against the spring pressure and onto the door, where it engages. The door retainer then remains in this position and no longer returns to its original position.
  • Page 64 Warning Make sure that nobody can become trapped as you close the rear door. To close: make sure that the left-hand rear door is closed. Pull the right-hand rear door firmly closed by the door handle. To lock: slide catch 2 to the right. Only the rear door is locked.
  • Page 65 Opening and closing The indicator lamp in the central locking switch indicates when the sliding doors and the rear door are locked. You can de- termine whether the driver's door or co- driver's door is locked or unlocked by the position of the locking knobs.
  • Page 66 CAUTION If your vehicle is centrally locked, this could hinder rescue operations from the outside in the event of an accident. When the automatic locking when driv- ing function is activated, there is a risk of being locked out if the vehicle is pushed or towed.
  • Page 67 Opening and closing Deactivating the automatic locking when driving function for the sliding doors and the rear door Close all the doors. Turn the key to position 1 or 2 in the ig- nition lock ( page 67). Press lower part 2 of the switch. Keep it pressed for approximately 5 seconds.

  • Page 68: Key Positions

    Key positions 0 To remove the key, to lock the steering wheel 1 To unlock the steering wheel (power supply for some consumers, e.g. radio) 2 To switch on the ignition (power supply for all consumers) Preglow and drive position 3 To start 1 Only vehicles with a diesel engine The key can only be removed from...

  • Page 69: Seats

    Seats Driver’s and co-driver’s seats Warning Only adjust the seats when the vehicle is stationary and the handbrake is applied. You could otherwise lose control of the vehicle as a result of the seat moving and cause an accident. Warning Make sure that nobody can become trapped as the seat is adjusted.
  • Page 70 Standard, comfort* and suspension seats* 1 Seat fore-and-aft adjustment 2 Lumbar support adjustment 3 Backrest adjustment 4 Seat height adjustment 5 Seat angle adjustment 6 Seat suspension adjustment 7 Vertical lock lever Different settings are possible, depend- ing on the seat version. Seat fore-and-aft adjustment Pull lever 1 up.
  • Page 71 Seats Seat suspension adjustment* The seat suspension must be adjusted to your body weight. Relieve the load on the seat. Select your body weight 88 to 165 lbs (40 to 120 kg) using thumbwheel 6 for optimal seat suspension. The seat suspension becomes harder as the load on the seat increases.
  • Page 72 The seat release lever is located behind the seat between the seat backrest and the seat base. Co-driver’s seat 1 Lever Press lever 1 on the back of the seat to the middle and turn the seat slightly inwards. The turning device is unlocked. Release lever 1 again.
  • Page 73 Seats Positioning the seat cushion Fold the seat cushion back. Slide the seat cushion under the back- rest and into rear anchorage 2. Fold the seat cushion down. Press the front of the seat cushion down until it engages in front anchorage 1.
  • Page 74 Removing the head restraints Pull the head restraint up as far as it will go. Press release button 1 and pull the head restraint out. Installing the head restraints CAUTION Make sure that the head restraint is re- installed in such a way that its front fac- es in the direction of travel (comfort head restraint).
  • Page 75 Seats Folding seat* The folding seat is on the co-driver’s side. Folding seat next to the partition sliding door 1 Key for partition sliding door 2 Seat cushion Warning When folding down the seat cushion, make sure that nobody can become trapped. The risk of injury to the co-driver is in- creased in the event of sudden steering movements or an accident if there is a key...
  • Page 76 Do not exceed the maximum permissi- ble number of seats for passenger vans. Removing the rear bench seat The locking lever is located underneath the bench seat, on the feet of the bench seat. 1 Lever Turn all levers 1 for the bench seat fully upward.

  • Page 77: Steering Wheel Adjustment

    Steering wheel adjustment Steering wheel adjustment Warning Only adjust the steering wheel when the ve- hicle is stationary. Only drive with the steer- ing wheel locked in position. An incorrectly secured steering wheel could make it more difficult to steer the vehicle safely, since the height and fore-and-aft ad- justment could move out of position when the steering wheel is turned.

  • Page 78: Lighting

    Legal requirements may impose variations in certain countries. If you are traveling in countries where vehicles are driven on the opposite side of the road to that in which the vehicle is registered, you must have the head- lamps: partially masked (halogen head- lamps) switched over (bi-xenon head- lamps)
  • Page 79 Lighting Turn key to position 1 in ignition lock page 67). Turn light switch to B. Press combination switch forward 1. The indicator lamp A in the instru- ment cluster lights up. Headlamp flasher Turn key to position 1 in ignition lock page 67).
  • Page 80 Front foglamps*/rear foglamp Foglamps will operate with the parking lamps and/or the low beam headlamps on. Foglamps should only be used in conjunction with low beam headlamps. Consult your State or Province Motor Vehicle Regulations regarding permis- sible lamp operation. When the light switch is set to U, you cannot switch on the front or rear foglamps.
  • Page 81 Lighting Push combination switch up 1 or down 2 until it engages. The combination switch moves back automatically if the steering wheel is turned sufficiently. To indicate minor directional changes such as changing lanes, press the com- bination switch only to point of resis- tance and release.
  • Page 82 Front interior lighting with overhead control panel* 1 To switch the left-hand reading lamp on/off 2 To switch the right-hand reading lamp on/off 3 Right-hand reading lamp 4 Interior lamp 5 To switch automatic control on/off 6 To switch the interior lighting on/off 7 Left-hand reading lamp Automatic control The front interior lighting (but not the rear...
  • Page 83 Lighting Rear interior lighting Switching the standard rear interior lighting on/off On panel vans/crewbuses equipped with the standard rear interior lighting, the switch for the rear interior lighting is on the rear lamp in the load/passenger compart- ment. Rear interior lamp with switch 1 To switch on the rear interior lighting 2 To switch off the rear interior lighting 3 Automatic control...
  • Page 84 The rear interior lamps switch off auto- matically after 20 minutes, even if the switches on the rear interior lamps page 82) are in the On position 1. If you wish to reactivate the rear interi- or lamps, you must: open a door switch on the ignition again set the rear interior lighting master...

  • Page 85: Instrument Cluster

    Lighting Instrument cluster Do not hang any objects (e.g. coats) in the load compartment. This will help to prevent the motion detector from inad- vertently switching on the rear interior lamps. You will find a full overview of the instru- ment cluster in the “At a glance”...

  • Page 86: Safety

    Warning No messages can be displayed if the instru- ment cluster and/or the display is malfunc- tioning. You will not then be able to see information about the vehicle status, such as speed and outside temperature, warning and indicator lamps, malfunction and warning messages or the malfunction of systems.
  • Page 87 Lighting Fuel gauge Fuel gauge 1 Vehicles without steering wheel buttons 2 Vehicles with steering wheel but- tons* 3 Fuel filler flap location indicator Ö: The fuel filler cap is on the left-hand side 4 Reserve fuel warning lamp page 276) Resetting the trip meter Vehicles with steering wheel buttons*: Make sure that the display is showing...

  • Page 88: Operating System Without Steering Wheel Buttons

    Operating system without steering wheel buttons The operating system is activated as soon as you switch on the ignition. You may per- form the following using the operating sys- tem: Call up vehicle information Make settings Warning Only use adjustment buttons when traffic conditions permit.
  • Page 89 Operating system without steering wheel buttons There may be a short delay before a lower outside temperature is displayed, for ex- ample after leaving a garage. There may also be a short delay before a rise in the outside temperature is displayed. This prevents you from seeing a temperature display influenced by heat from the engine when the vehicle is stationary or moving...

  • Page 90: Operating System With Steering Wheel Buttons

    Operating system with steering wheel buttons* The operating system is activated as soon as you switch on the ignition. You may per- form the following using the operating sys- tem: Call up vehicle information Make settings You can use this not only to find out when the next service is due, but also to set the language for messages in the instrument cluster, for example, and much more.
  • Page 91 Operating system with steering wheel buttons* Several functions are combined themati- cally in the menus. The display changes when you press one of the buttons on the steering wheel. For example, the menu contains AUDIO functions for controlling the radio* or CD player*.
  • Page 92 Menu overview The illustration is an example of the menus on a vehicle with COMAND APS*. Operating system with steering wheel buttons* This is what the display looks like when you scroll through the menus. N54.32-2282-31 The explanations for the individual menus are shown in the following table.

  • Page 93: Operation

    Operating system with steering wheel buttons* The table below shows the menus and the individual functions. Menu 1 Menu 2 Operation Audio* Standard display with Select a radio trip meter and odometer station Display coolant tempera- Operate the ture CD player/ CD changer Call up the service due date...
  • Page 94 The tabluar overview of the menus con- tains generic terms which are not al- ways shown in the operating system. The generic term concerned is intend- ed simply to make it easier for you to familiarize yourself with the menus. The operating system displays the new function range directly with the first menu function.
  • Page 95 Operating system with steering wheel buttons* N54.32-2251-31 The temperature displayed may climb to 250 °F (120 °C) when the vehicle is being driven in normal conditions and if the cool- ant contains the correct concentration of corrosion inhibitor and antifreeze. It is ac- ceptable for the coolant temperature to rise to the end of the scale at high outside temperatures and when driving in moun-...

  • Page 96: Practical Hints

    Press the è or ÿ button repeat- edly until the settings for the CD being played are displayed. 1 Current CD (with CD changer) 2 Current track Press the j or k button repeat- edly until you have set the desired track.
  • Page 97 Operating system with steering wheel buttons* Settings menu menu has two functions: Settings To reset: Press reset button for function, with which you can re- 3 sec. set all settings to the factory defaults a collection of submenus which you can use to make individual settings for your vehicle Press the è...
  • Page 98 Resetting the functions of a submenu You can reset the functions of an individual submenu to the factory defaults. Select a function in a submenu. Press reset button for approximate- ly 3 seconds. You will see the message in the display prompting you to press the reset button once more to confirm.
  • Page 99 Operating system with steering wheel buttons* Instrument cluster Clock/Date page 99) page 101) Select the unit for the Set the hours (clock) temperature Select the unit for the Set the minutes (clock) speedometer Select the unit for the Select the time format odometer Select the language Set the day (date)
  • Page 100 Instrument cluster submenu You can reach the submenu Inst. cluster via the menu ( page 96). Settings Function Page Select the unit for the tempera- ture Select the unit for the speedometer and odometer Select the language Select the display for the status line Selecting the unit for the temperature Select the...
  • Page 101 Operating system with steering wheel buttons* Selecting the language Select the submenu us- Inst. cluster ing the æ or ç button. Press the j or k button repeat- edly until you see the Language sage in the display. The current setting is highlighted. N54.32-2259-31 Use the æ...
  • Page 102 Clock/Date submenu You can reach the submenu via Clock/Date menu ( page 96). Settings submenu only appears Clock/Date if you do not have COMAND APS* in- stalled. With COMAND APS*, it is only possible to set the time using the audio system. See the separate operating instruc- tions.
  • Page 103 Operating system with steering wheel buttons* Setting the day Select the submenu using Clock/Date the æ or ç button. Press the j or k button repeat- edly until you see the Date Day sage in the display. N54.32-2265-31 Set the day by pressing the æ or ç...
  • Page 104 Press the æ or ç to select the submenu. Lighting Press the j or k button repeat- edly until you see the mes- Hdlmp. mode sage in the display. The current setting is highlighted. N54.32-2268-31 Press the æ or ç button to se- lect whether you wish to operate the lighting manually or whether you wish to set constant headlamp mode.
  • Page 105 Operating system with steering wheel buttons* Setting the exterior lighting delayed switch-off* (headlamps delayed switch- Headlamps off) function enables you to set whether or not the exterior lighting should remain on in the dark after the doors have been closed. When you have set the delayed switch-off and have switched off the engine, the fol- lowing light up:...
  • Page 106 N54.32-2271-31 Press the æ or ç button to se- lect how the radio should tune into a station. : The nearest station on Frequency the waveband is selected : The nearest saved station is Memory selected Setting the windshield wiper sensitivity You can use the function to Wipe sensor...
  • Page 107 Operating system with steering wheel buttons* Press the æ or ç button to switch key dependence For safety reasons, it is not possible to set the function while the vehicle is in motion. You will see the following message in the display: Setting only possible at standstill Trip computer menu...
  • Page 108 Consumption statistics after reset Press the è or ÿ button repeat- edly until you see the mes- After start sage in the display. Press the j or k button repeat- edly until you see the mes- After reset sage. N54.32-2275-31 1 Distance driven since last reset 2 Time elapsed since last reset 3 Average speed since last reset...
  • Page 109 Operating system with steering wheel buttons* Switch on the cell phone and audio sys- tem or COMAND APS*. See the separate operating instruc- tions. Press the è or ÿ button repeat- edly until you see the menu in the display. You will see different messages in the display, depending on the status of your cell phone:...
  • Page 110 Press the j or k button. The operating system reads the phone book stored on the SIM card or in the phone. This may take more than 1 minute. You will see the message Processing (Sound 20) or message Wait... (COMAND APS*) in the display.

  • Page 111: Driving And Parking

    Driving and parking Driving and parking Warning The movement of the pedals must not be ob- structed. The vehicle’s operating and road safety are otherwise jeopardized. Objects could fall and get caught between the pedals if you accelerate or brake sud- denly.
  • Page 112 Before starting the engine, make sure that all vehicle occupants are wearing their seat belt correctly ( page 27) and the handbrake ( page 115) is ap- plied. CAUTION Do not depress the accelerator pedal when starting the engine. If you depress the brake pedal when starting the engine, pedal travel may be short and the pedal resistance may be high.
  • Page 113 Driving and parking Pulling away Warning Do not downshift for additional engine brak- ing on a slippery surface. The drive wheels may lose their grip and the vehicle could skid. CAUTION Only drive at high speeds once the en- gine has warmed up. This protects the engine.
  • Page 114 Braking Warning There is no power assistance for the service brake when the engine is not running. You will need to use significantly more force to brake and could therefore lose control of the vehicle and cause an accident. Never switch off the engine while driving. Do not accelerate to prevent your vehicle from rolling backwards on an uphill gradi- ent.
  • Page 115 Driving and parking Parking Warning Only remove the key from the ignition lock when the vehicle is stationary, since it is not possible to steer the vehicle with the key re- moved. Always apply the handbrake after parking the vehicle. Never leave children unsupervised in the ve- hicle.
  • Page 116 Handbrake Warning Never leave children unsupervised in the ve- hicle. They could release the handbrake. This could lead to a serious or fatal accident. The handbrake is located between the driv- er’s seat and the co-driver’s seat. 1 Lever 2 Release knob CAUTION You must only apply the handbrake when the vehicle is stationary.
  • Page 117 Driving and parking Stopping the engine CAUTION If the coolant temperature is raised, e.g. following driving in mountainous terrain, run the engine at idling speed for a further 1 or 2 minutes before you switch off the engine. This allows the coolant temperature to return to nor- mal again.
  • Page 118 Overrun cut-off The gasoline/diesel supply is cut off if the driver's foot is completely removed from the accelerator pedal when the engine is overrunning at engine speeds outside of the idling control range. Driving in wet conditions Warning The vehicle may hydroplane despite having adequate tire tread depth and being driven at low speeds, depending on the depth of water on the road surface.
  • Page 119 Driving and parking Warning If you feel a sudden significant vibration or ride disturbance, or you suspect that possi- ble damage to your vehicle has occurred, you should turn on the hazard warning flash- ers, carefully slow down, and drive with cau- tion to an area which is a safe distance from the road.
  • Page 120 Tire traction Tire grip is greatly reduced on a wet, snow covered or icy road. Speed and driving style must therefore be adapted to suit road conditions. The safe speed on a wet, snow covered or icy road is always lower than on a dry road.
  • Page 121 Driving and parking Alignment and balance Poor suspension alignment may result in: Fast tire wear Uneven tire wear, such as feathering and one-sided wear Vehicle pulling to the left or right Tires may also cause the vehicle to pull to the left or right.

  • Page 122: Automatic Transmission

    Automatic transmission Gearshift pattern P Parking position (selector lever lock) R Reverse gear N Neutral D Drive position Gearshift procedure The automatic transmission adapts to your individual driving style by continuously ad- justing its shift points. These shift point ad- justments take into account the current operating and driving conditions.
  • Page 123 Automatic transmission ë Neutral No power is transmitted from the engine to the drive wheels. Releasing the brakes will allow you to move the vehicle freely, e.g. by pushing or towing. Do not move the selector lever to N while the vehicle is in mo- tion.
  • Page 124 Selecting the ideal shift range Press and hold the selector lever towards D–. The automatic transmission will shift to a range which allows easy acceleration and deceleration. To do this, the auto- matic transmission will shift down one or more gears. Shift ranges When the selector lever is in position D you can restrict or derestrict the shift range for...
  • Page 125 Automatic transmission Stopping If you are only stopping briefly: leave the selector lever in the drive po- sition secure the vehicle against rolling away using the brake pedal Maneuvering Maneuvering in a tight space: Control the speed by braking carefully. Accelerate only slightly and avoid jolt- ing.

  • Page 126: Good Visibility

    Good visibility Mirrors Before starting off, adjust the rear-view mirror and the exterior mirrors in such a way that you can get a good overview of road and traffic conditions. Rear-view mirror* Adjust the rear-view mirror manually. Setting the rear-view mirror to anti- dazzle mode 1 Anti-dazzle lever Flick anti-dazzle lever 1 to the rear.
  • Page 127 Good visibility Windshield wipers The combination switch is located on the left of the steering wheel. N54.25-2923-31 1 Single wipe 2 To switch the windshield wipers on Switching on the windshield wipers Turn key to position 1 in the ignition lock ( page 67).
  • Page 128 Wiping with washer fluid Press the combination switch beyond the pressure point in the direction of arrow 1. The windshield wiper will wipe with windshield washer fluid. Vehicles with headlamp cleaning sys- tem*: If the low-beam headlamps have been switched on, a high-pressure water jet also cleans the headlamps.
  • Page 129 Good visibility Warning Clear ice or snow from the windshield before commencing a journey. Iced-up windows re- strict your view. You could cause an acci- dent and endanger yourself and others. Do not start the vehicle if the windows are iced up, fogged up or covered in snow.

  • Page 130: Tempmatic

    Tempmatic Tempmatic N83.00-2126-31...
  • Page 131 Tempmatic Function 1 Side window defroster vents 2 Thumbwheel for air vents 3 Side air vents 4 Thumbwheel for side air vents and defroster vents 5 Swiveling center air vents 6 Thumbwheel for center air vents 7 Control panel Tempmatic Rear heating/rear cool- ing* 8 Switch...
  • Page 132 If the vehicle interior has been heated up, ventilate the vehicle before starting your journey or briefly switch to air-re- circulation mode for faster cooling. Keep the air inlet on the hood free from ice and snow. Position the sliders for the center air vents in the central position to provide practically draft-free ventilation.
  • Page 133 Tempmatic Basic setting N83.40-2060-31 Heating Set temperature selector control 1 page 131) as required, but do not turn the control below the middle posi- tion. Set airflow control 2 ( page 131) as required, but do not turn the control below the second speed.
  • Page 134 Setting the airflow N83.00-2125-31 1 Airflow control To increase: press the Q airflow control. To reduce: press the airflow control. The display next to the airflow controls indicates the speed of the airflow. The blower switches off if you press the ß...
  • Page 135 Tempmatic To switch off: press the Ä switch again. The indicator lamp in the switch goes out. Air-recirculation mode is automatically switched off after about 10 to 30 min- utes, depending on the outside temper- ature. Residual heat mode The engine stores residual heat after long periods of driving.
  • Page 136 The indicator lamp in the switch comes Turn airflow control 2 ( page 131) to a higher blower speed, but do not turn the control below second speed. Turn temperature selector control 1 page 131) to a higher temperature. Turn air distribution control 5 to ‚...
  • Page 137 Tempmatic Ventilated glove box* The glove box can be ventilated when Tempmatic is switched on, e.g. to cool its contents. 1 To switch the air supply on/off To switch on: press switch 1 to the left. To switch off: press switch 1 to the right.
  • Page 138 To reduce: turn the temperature selec- tor control counterclockwise. Air vents in the roof air duct Adjustable air vents are integrated in the roof air duct. 1 Air vents Adjust the airflow by opening/closing the air flaps. Alter the air distribution by turning the air vents.
  • Page 139 Tempmatic To switch on: press the switch ³. The indicator lamp in the switch comes If you switch off the engine without switching off the heater booster func- tion, the system will be switched on the next time the engine is started (memo- ry function).

  • Page 140: Auxiliary Heating/Ventilation

    Auxiliary heating/ventilation* The auxiliary heating heats or ventilates the interior to a temperature that you have set. The auxiliary heating can be operated with the engine switched on or off. The auxiliary heating is equipped with a water heater. Warning Exhaust fumes are produced while the auxilia- ry heating is in operation.
  • Page 141 Auxiliary heating/ventilation* You can switch the auxiliary heating/ ven- tilation on and off immediately using: the auxiliary heating/heater booster switch ( page 140) the auxiliary heating remote control* page 141) CAUTION Switch on the auxiliary heating at regu- lar intervals (at least once a month) for approximately 10 minutes.
  • Page 142 Operation using the remote control* The remote control has a maximum range of approximately 600 meters. The range may be reduced by: sources of interference solid objects between the remote con- trol and the vehicle the remote control being in an unfavor- able position transmitting from an enclosed space You can use up to 4 remote control units...
  • Page 143 Auxiliary heating/ventilation* Selecting a switch-on time You can use the operating system to define up to 3 switch-on times, one of which can be selected to switch on the auxiliary heating/ventilation. Operating system without steering wheel buttons Switch on the ignition ( page 67).
  • Page 144 Press the è button. The switch-on time is selected. The yellow indicator lamp in the ö switch comes on. If you turn the key to position 0 in the ignition lock, the yellow indicator lamp in the ö switch goes out after 30 minutes.

  • Page 145: Open Air

    Open air Open air Side windows You can open and close the side windows electrically. The switches for all side windows are locat- ed on the door control panel. Warning Make sure that nobody can become trapped as you close a side window. Remove the key from the ignition lock even if you are only leaving the vehicle for a short time.
  • Page 146 Sliding sunroof* Warning Make sure that nobody can become trapped as you close the sliding sunroof. The glass may shatter in the event of an ac- cident. If you or other occupants are not wearing your seat belt, there is a risk of being thrown out of the opening in the event of the vehicle overturning.
  • Page 147 Open air Resetting the sliding sunroof The sliding sunroof must be reset after: the sunroof has been closed manually using the emergency operation key page 304) the sunroof has opened with a jerk a malfunction Switch on the ignition ( page 67).

  • Page 148: Driving Systems

    Driving systems Driving systems which may form part of your vehicle are described on the following pages: Cruise control* ( page 147), which you can use to control the speed of your vehicle Parktronic system*, which is an aid for parking and maneuvering page 150) Reverse warning feature*, which helps...
  • Page 149 Driving systems Cruise control may be unable to main- tain the stored speed on uphill or down- hill gradients. The stored speed is resumed if the gradient evens out and the vehicle’s speed has not fallen below 20 mph (30 km/h). Cruise control lever The cruise control lever is the uppermost lever on the left of the steering column.
  • Page 150 Setting the speed Warning The rate at which you increase the speed in 1 mph increments (1 km/h increments) may be faster than your vehicle is able to accel- erate. Your vehicle may then continue to ac- celerate up to the newly set speed even after you have released the cruise control le- ver.
  • Page 151 Driving systems Parktronic system (PTS)* Warning Parktronic is only an aid and may not detect all obstacles. This system does not relieve you of the need to pay attention. You are always responsible for safety and must continue to pay attention to your im- mediate surroundings when parking and maneuvering.
  • Page 152 Front sensors Center about 39 in (100 cm) Corners about 26 in (65 cm) Rear sensors Center about 71 in (180 cm) Corners about 39 in (100 cm) Minimum distance Center about 12 in (30 cm) Corners, front about 10 in (25 cm) Corners, rear about 12 in (30 cm) If an obstacle is within this range, all seg-...
  • Page 153 Driving systems The warning displays for the rear left and right-hand sides are in the exterior mirror concerned. N54.65-2075-31 Warning display in the left-hand exterior mirror for the area to the rear left-hand side 4 Left-hand side of vehicle 5 Indicator segments The warning display is divided into 5 yellow and 2 red segments for each side of the ve- hicle.
  • Page 154 Switching Parktronic on/off You can switch Parktronic on and off man- ually. The switch is located on the center con- sole. N54.25-2922-31 1 To switch Parktronic on/off To switch off: press upper part 1 of the switch. The indicator lamp in the switch comes To switch on: press upper part 1 of the switch again.

  • Page 155: Operating The Vehicle

    Operating the vehicle Operating the vehicle Operating speed governor (ADR)* When activated, the operating speed gov- ernor (ADR) automatically increases the engine speed to a preset or adjustable operating speed ( page 155). The idle speed of the engine automati- cally increases after a cold start.
  • Page 156 Adjustable operating speed* Adjusting the operating speed N54.25-2933-31 1 To increase speed 2 To reduce speed Switch on ADR ( page 154). To increase: press upper part 1 of the switch. On vehicles with cruise control*, press the cruise control lever* up page 148).

  • Page 157: Transporting

    Transporting Transporting Loading guidelines Warning Secure and position a load as described in the loading guidelines. Otherwise, the load could slide or be thrown around in the event of strong braking maneuvers, sudden chang- es of direction or poor road conditions, thereby injuring you or others.
  • Page 158 Before loading Check the tire pressures and correct them if necessary ( page 213). Clean the load compartment floor. The load compartment floor must be dry, cleanly swept and free of oil and dust to reduce the risk of the load slip- ping.
  • Page 159 Transporting Load distribution The load's overall center of gravity should be as low and central as possible, between the axles near the rear axle. CAUTION Excessive loads on individual points of the load compartment floor or load sur- face have a negative effect on handling characteristics and could damage the floor covering.
  • Page 160 Secure tilt and tip-resistant loads in all directions by using the lashing points or lashing eyes and load rails in the load compartment or on the load sur- face, according to your vehicle's equip- ment. Only use lashing materials that have been tested according to valid stan- dards, such as lashing nets and straps.
  • Page 161 Transporting Warning Do not carry out any modifications or repairs to the lashing points, the lashing eyes or the lashing materials. The load or the lashing points could accidentally come loose and cause serious injury to you or others as well as damage to property.
  • Page 162 Securing loads to the load compart- ment floor is only recommended for lightweight loads and should be rein- forced by using anti-slip mats. Warning Before releasing lashing straps, make sure that the load is stable and would not tip over even without being lashed down.
  • Page 163 Transporting Carrier systems It is possible to mount a roof rack if your vehicle is equipped with securing rails on the roof. 1 Securing rails Special mountings (sliding blocks) are available as accessories. These are avail- able from any authorized Sprinter Dealer. Warning Handling and braking characteristics may change when you have mounted carrier sys-...
  • Page 164 CAUTION If you wish to retrofit securing rails, have them installed at a qualified spe- cialist workshop which has the neces- sary specialist knowledge and tools to carry out the work required. You could otherwise damage the vehicle. The manufacturer recommends that you use an authorized Sprinter Dealer for this purpose.

  • Page 165: Features

    Features Features Interior storage compartments Warning Only load the storage compartments in such a way that occupants cannot be injured by their contents in the event of an accident, braking or a sudden change in direction. For this reason, do not transport heavy, bulky, pointed or sharp-edged objects in the storage spaces or compartments.
  • Page 166 Glove box 1 Glove box handle 2 Locked* 3 Unlocked* You can lock and unlock the glove box using the key*. To open: pull glove box handle 1 in the direction of the arrow. 4 Cards holder 5 Pen holder To close: fold the cover upwards and push against it until it engages in place.
  • Page 167 Features Covered storage compartment above the center console* 1 Cover 2 Release handle Pull release handle 2. Cover 1 swings upwards. The cover on the storage compartment must remain closed while the vehicle is in motion. Close cover 1 and engage it. Eyeglasses compartment The eyeglasses compartment is located in the overhead control panel.
  • Page 168 Cup holders Warning Keep the closeable cup holders closed while the vehicle is in motion and do not leave drinks in the cup holders. You or others could otherwise be injured by objects in the cup holder being thrown around in the event sharp braking a sudden change of direction an accident...
  • Page 169 Features Place the container in cup holder 5. Press clamping arm 6 onto the con- tainer. Cup holders in the rear The cup holders in the rear are located un- der the seats. 1 Cup holder Pull out cup holder 1. Warning Slide the cup holders back underneath the seat before leaving the vehicle.
  • Page 170 Ashtray in the passenger compart- ment* The ashtrays are located on the right-hand and left-hand side in the side trims. 1 Retaining clip To open: open the ashtray. To remove the insert: press clip 1 down and remove the entire ashtray from the trim.
  • Page 171 Features Paper holder The paper holder is on the control panel for the air-conditioning system. N68.00-2425-31 1 Paper holder Press top of paper holder 1. 12 V socket The 12 V sockets for accessories are on the bottom of the center console (12 V, 25 A) on the inside of the driver's seat base (12 V, 15 A)
  • Page 172 Telephone* Telephones may only be used inside the vehicle if they are connected to a separate exterior antenna of a type tested and ap- proved by the manufacturer. Warning You must observe the legal requirements for the country in which you are driving when operating a cell phone in the vehicle.
  • Page 174 The first 1000 miles (1,500 km) ... 174 Driving tips ... 175 Electronic equipment ... 183 Refueling ... 184 Engine ... 185 Battery ... 195 Battery isolating switch* ... 197 Tires and wheels ... 199 Winter driving ... 234 Maintenance and servicing ... 237 Cleaning and care of the vehicle ...

  • Page 175: The First 1000 Miles (1,500 Km)

    The first 1000 miles (1,500 km) You will find detailed information about op- erating, maintaining and caring for your ve- hicle in the “Operation” section. If you treat the engine with sufficient care from the very start, it will reward you with excellent performance for a very long time afterward.

  • Page 176: Driving Tips

    Driving tips Information is available about driving in winter and with snow chains page 236). Rail transport Transporting your vehicle by rail may be subject to certain restrictions or require special measures to be taken in some countries due to varying tunnel heights and loading standards.
  • Page 177 Driving tips Trailer towing Vehicle and trailer weights and ratings Gross Vehicle Weight Rating (GVWR) is the maximum permissible vehicle weight: 8550 lbs (3880 kg) for vehicle model type 2500 9990 lbs (4530 kg), or 11030 lbs (5003 kg) for vehicle model type 3500 GVWR (Gross Vehicle Weight Rating) The total allowable weight of the vehicle.
  • Page 178 Sprinter type GVWR GAWR (FA) 8550 lbs (3878 kg) 3970 lbs (1801 kg) 2500 4080 lbs (1851 kg) 9990 lbs (4531 kg) 3500 4410 lbs (2000 kg)* 4080 lbs (1851 kg) 11030 lbs (5003 kg) 3500 4410 lbs (2000 kg)* Cargo vans with a long wheelbase of 170.3in (4325 mm) and an overall vehicle length of 289.1 in (7344 mm) only.
  • Page 179 Driving tips Attaching a trailer Please observe the maximum permitted trailer dimensions (width and length). Most states and all Canadian provinces re- quire safety chains between your tow vehi- cle and the trailer. The chains should be crisscrossed under the trailer tongue. They must be attached to the hitch receiver, and not to the vehicle’s bumper or axle.
  • Page 180 Always secure items in the trailer to pre- vent load shifts while driving. Take into consideration that when towing a trailer, the handling characteristics are dif- ferent and less stable from those when op- erating the vehicle without a trailer. It is important to avoid sudden maneuvers.
  • Page 181 Driving tips Operating the vehicle outside the USA or Canada If you plan to operate your vehicle in for- eign countries, please be aware that: service facilities or replacement parts may not be readily available, unleaded gasoline for vehicles with cat- alytic converters may not be available;...
  • Page 182 Regular checks Check regularly, e.g. weekly or when refu- eling: the vehicle lighting the condition of the tires ( page 201) and the tire pressures ( page 210) the engine oil level ( page 187) the brake fluid level ( page 192) the fluid level in the windshield washer system/headlamp cleaning system...
  • Page 183 Driving tips Emission control Certain systems of the engine serve to keep the toxic components of the exhaust gases within permissible limits required by law. These systems, of course, will function properly only when maintained strictly ac- cording to factory specifications. Any ad- justments to the engine should therefore be carried out only by an authorized Sprint- er Dealer.

  • Page 184: Electronic Equipment

    Electronic equipment Radio, telephone, two-way radio, fax machine and navigation system Warning Please do not forget that your primary respon- sibility is to drive the vehicle safely. Only operate the electronic equipment when road and traffic conditions permit. Keep in mind that at a speed of just 30 mph (about 50 km/h), your vehicle travels 44 feet (about 14 m) per second.

  • Page 185: Refueling

    Refueling Refueling Warning Fuel is highly flammable. Fire, naked flames and smoking as well as the use of auxiliary heaters (sparks) are therefore prohibited when handling fuel. For this reason, switch off the auxiliary heat- ing when refueling. Warning Do not allow fuel to come into contact with your skin or clothing.

  • Page 186: Engine

    Engine Hood Warning Do not pull the release lever while the vehi- cle is in motion. The hood could otherwise open, thereby impairing visibility and leading to loss of control of the vehicle. For this reason, only open the hood when the vehicle is parked.
  • Page 187 Engine Warning If the hood support strut is not engaged, the hood can fall shut. You could be injured. After opening the hood, you should there- fore check whether the support strut is en- gaged. Swing the hood upward until support strut 3 engages and the hood is sup- ported.
  • Page 188 If the hood can be raised slightly, it is not properly engaged. Open it again and allow it to drop from a slightly greater height. CAUTION Do not use your hands to push the hood down. Doing so could damage it. Service products Mechanical elements and the lubricants used for them must be carefully matched.
  • Page 189 Engine Checking the engine oil level in the dis- play In vehicles with diesel engines, you can view the engine oil level in the display. When the oil is being checked, the vehicle must be standing level be at normal operating temperature have been standing with the engine switched off for at least five minutes If no oil level reading is shown again,...
  • Page 190 The following message is displayed for the duration of the measurement pro- cess: Engine oil level Measuring in progress The following messages may be displayed: Do not add oil. Engine oil level OK Add the amount of oil Engine oil shown ( page 190).
  • Page 191 Engine Gasoline engine 1 Engine oil filler neck 2 Engine oil dipstick Pull out dipstick 2. Wipe it clean with a lint-free cloth. Insert it into the dipstick tube as far as the stop and pull it back out. The difference in the quantity of oil be- tween the upper and lower marks on the dipstick is approx.
  • Page 192 Environmental note When adding oil, take care not to spill any. No engine oil must be allowed to enter sew- age systems, surface water, ground water or soil. You would otherwise be damaging the envi- ronment. Dispose of engine oil in an environmentally responsible manner.
  • Page 193 Engine CAUTION Check the cooling and heating systems regularly for leaks. If a large quantity of coolant is lost, have the cause traced and rectified at an authorized Sprinter Dealer. Brake fluid The reservoir is in the engine compart- ment. Check the brake fluid level: regularly, e.g.
  • Page 194 You should always wear eye protection and gloves when you are adding brake fluid. Only store brake fluid in its closed original container and keep out of the reach of chil- dren. Comply with safety regulations when handling brake fluid. Warning If the boiling point of the brake fluid is too low, vapor pockets may form in the brake...
  • Page 195 Engine Vehicle assemblies Check assemblies regularly for leaks. In the event of fluid loss (e.g. spots of oil un- der the vehicle when it has been parked), have the cause traced and rectified imme- diately at an authorized Sprinter Dealer which has the necessary specialist knowl- edge and tools to carry out the work re- quired.

  • Page 196: Battery

    Battery Your vehicle may be equipped with two batteries, depending on the equipment version: Starter battery in the battery recess in the driver’s footwell Auxiliary battery in the engine compart- ment* Warning Risk of explosion When batteries are being charged, explosive detonating gas is emit- ted.
  • Page 197 Battery The batteries must always be sufficiently charged so that they achieve their intend- ed service life. Have the battery charge status checked more frequently if you use the vehicle mainly for short trips or if you leave it parked up for a long period. If you intend to leave your vehicle parked up for a long period, seek advice from an authorized Sprinter Dealer and switch off...

  • Page 198: Battery Isolating Switch

    You can disconnect the current to all your vehicle’s consumers using the battery isolating switch. This will prevent uncon- trolled battery discharge caused by quies- cent current consumption. Warning If the vehicle is equipped with an auxiliary battery in the engine compartment, it is nec- essary to disconnect both batteries when working on the vehicle electrical system.
  • Page 199 Battery isolating switch* Switching on the electrical system 1 Connector 2 Ground pin Insert the key into the ignition lock. Press connector 1 onto ground pin 2 until you feel it engage and the lock inhibitor is released. The connector must be in full contact with ground pin 2.

  • Page 200: Tires And Wheels

    Tires and wheels The tires on a new vehicle provide a bal- ance of many characteristics. They should be inspected regularly for wear and correct cold tire inflation pressure. The vehicle manufacturer strongly recommends using tires equivalent to the originals in size, quality and performance when a replace- ment becomes necessary.

  • Page 201: Index

    Tires and wheels Warning Do not use a tire, wheel size or rating other than that specified for your Sprinter vehicle. Some combinations of unapproved tires and wheels may change suspension dimensions and performance characteristics, resulting in changes to steering, handling, and brak- ing of your Sprinter vehicle.
  • Page 202 Radial-ply tires Warning Combining radial ply tires with other types of tires on your Sprinter vehicle will change the vehicle’s handling characteristics and may lead to an accident resulting in death, severe personal injuries and property dam- age. Always use radial ply tires in sets of 4 (or 6, in case of vehicles with dual rear wheels).
  • Page 203 Tires and wheels When replacing individual tires, you should mount new tires on the front wheels first. Tire care and maintenance Warning Regularly check the tires for damage. Dam- aged tires can cause tire inflation pressure loss. As a result, you could lose control of your vehicle.
  • Page 204 You could lose control of the vehicle as a re- sult, cause an accident and injure yourself or others. Avoid driving up against curbs or parking the vehicle with part of the tire tread surface on the curb. Life of tire The service life of a tire depends on varying factors including but not limited to: Driving style...
  • Page 205 Tires and wheels 1 Treadwear Indicator (TWI) The Treadwear Indicator appears as a solid band across the tread. Storing tires CAUTION Keep unmounted tires in a cool, dry place with as little exposure to light as possible. Protect tires from contact with oil, grease and gasoline/diesel.
  • Page 206 Loading the vehicle The following labels on the vehicle show how much weight it may properly carry. Only vehicles with a gross weight ca- pacity less than 10,000 lbs (4500 kg) The tire and loading information plac- ard can be found on the driver’s door B- pillar.
  • Page 207 Tires and wheels Placard For vehicles with a gross weight capacity less than 10,000 lbs (4500 kg) only. The tire and loading information placard is located on the driver’s door B-pillar. Tire and loading information placard 1 Seating capacity 2 Load limit information The data shown on this placard is for il- lustrative purposes only.
  • Page 208 Step 1 Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.” on your vehicle’s placard. Step 2 Determine the combined weight of the driver and passengers that will be riding in your vehicle. Step 3 Subtract the combined weight of the driver and passengers from...
  • Page 209 Tires and wheels Example Combined Number of weight limit occupants of occu- (driver and pants and passengers) cargo from placard 1500 lbs 1500 lbs 1500 lbs Seating Occupants' weight Combined configura- weight of all tion occupants Front: 2 Occupant 1: 150 lbs 750 lbs Occupant 2: 180 lbs Rear: 3...
  • Page 210 Certification label Even after careful determination of the combined weight of all occupants, cargo and the trailer tongue load (if applicable) as to not exceed the permissible load limit, you must make sure that your vehicle nev- er exceeds the Gross Vehicle Weight Rat- ing (GVWR) and the Gross Axle Weight Rating (GAWR) for either the front or rear axle and the Gross Combination Weights...
  • Page 211 Tires and wheels To assure that your vehicle does not ex- ceed the maximum permissible weight lim- its (GVWR and GAWR for front and rear axle), have the loaded vehicle (including driver, passengers and all cargo and, if ap- plicable, trailer fully loaded) weighed on a suitable commercial scale.
  • Page 212 Do not make a visual judgment when de- termining proper inflation. Radial tires may look properly inflated even when they are underinflated. The tire inflation pressure should be checked regularly, i.e. at least each time you refuel the vehicle, and should only be adjusted on cold tires.
  • Page 213 Tires and wheels The placard lists the recommended cold tire inflation pressures for all load conditi- ons up to the maximum permissible weight limits (GAWR). The tire inflation pressures listed apply to the tires installed as original equipment. Important notes on tire inflation pres- sure Warning If the tire inflation pressure repeatedly...
  • Page 214 Checking tire inflation pressure The tire inflation pressure should be checked regularly, i.e. at least each time you refuel the vehicle. The preferred inter- val for checking the tire inflation pressure, however, is before each trip. The inflation pressures specified either on the tire and loading information placard on the driver’s door B-pillar or on tire pressure label below the driver’s seat on an outward...
  • Page 215 Tires and wheels CAUTION After inspecting or adjusting the tire in- flation pressure, always reattach the valve cap if equipped. This will prevent moisture and dirt from entering the valve stem, which could damage the valve stem. Repeat this procedure for each tire. Checking tire pressure electronically with the Tire Pressure Monitoring Sys- tem (TPMS)* (vehicles without steering...
  • Page 216 pressure which was stored at the time of calibration of the TPMS after you inflated the tires. Always ensure that you re-calibrate the TPMS after you inflated the tires to the rec- ommended cold inflation pressure. Always adjust tire inflation pressure accord- ing to the tire and loading information plac- ard on the driver’s door B-pillar.
  • Page 217 Tires and wheels TPMS malfunctions may occur for a variety of reasons, including the installation of in- compatible replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to continue...
  • Page 218 Press the , menu button on the instru- ment cluster. The following message is displayed: OK TPMS The tire pressure monitor activation process has begun. The tire pressures of the individual wheels are stored as the new reference values if they are determined to be plausible for the tire pressure monitor.
  • Page 219 Tires and wheels Possible differences between the read- ings of a tire pressure gauge of an air hose, e.g. gas station equipment, and the vehicle’s control system can occur. Usually the readings issued by the con- trol system are more precise. Switch on the ignition ( page 67).
  • Page 220 Always adjust the tire inflation pressure ac- cording to the tire and loading information placard on the driver’s door B-pillar. Underinflated tires wear excessively and/or unevenly, adversely affect handling and fuel economy, and are more likely to fail from be- ing overheated.
  • Page 221 Tires and wheels TPMS malfunctions may occur for a variety of reasons, including the installation of in- compatible replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to continue...
  • Page 222 Press the j or k button repeat- edly until you see the current inflation pressures for each tire appear in the display or the following message ap- pears in the display Tire pres. displayed after driving for several minutes Press reset button 0 on the instrument cluster ( page 14).
  • Page 223 Tires and wheels 3. Ride comfort and vehicle stability Proper tire inflation contributes to a com- fortable ride. Overinflation produces a jar- ring and uncomfortable ride. Tire labeling Besides the tire name (sales designation) and manufacturer's name, a number of markings can be found on a tire.
  • Page 224 Tire sizes for Sprinter vehicles Sprinter type LT 245/75 R 16 120/116 L 2500 LT 245/75 R 16 120/116 N LT 215/85 R 16 115/112 N 3500 LT 215/85 R 16 115/112 Q Design standard Depending on the design standards used, the tire size molded into the side wall may have no letter or a letter 1 preceding the tire width or the tire load rating designa-...
  • Page 225 Tires and wheels Warning The tire load rating must always be at least half of the GAWR of your vehicle. Otherwise, tire failure may be the result which may cause an accident and/or serious personal injury to you or others. Always replace rims and tires with the same designation, manufacturer and type as shown on the original part.
  • Page 226 Index Speed rating up to 50 mph (80 km/h) up to 56 mph (90 km/h) up to 62 mph (100 km/h) up to 68 mph (110 km/h) up to 74 mph (120 km/h) up to 80 mph (130 km/h) up to 87 mph (140 km/h) up to 93 mph (150 km/h) up to 100 mph (160 km/h) up to 106 mph (170 km/h)
  • Page 227 Tires and wheels DOT (Department Of Transportation) A tire branding symbol 1 which denotes the tire meets requirements of the U.S. Department of Transportation. Manufacturer’s identification mark The manufacturer’s identification mark 2 denotes the tire manufacturer. New tires have a mark with two symbols. Retreaded tires have a mark with four sym- bols.
  • Page 228 Warning Do not overload the tires by exceeding the specified load limit as indicated on the tire and loading information placard on the driv- er’s door B-pillar. Overloading the tires can overheat them, possibly causing a blowout. Overloading the tires can also result in han- dling or steering problems, or brake failure.
  • Page 229 Tires and wheels Tire ply material 1 Plies in side wall 2 Plies under tread For illustrative purposes only. The actu- al data on tires is specific to each vehi- cle and may vary from the data shown in the above illustration. This marking tells you about the type of cord and number of plies in the side wall and under the tread.
  • Page 230 DOT (Department Of Transportation) A tire branding symbol which denotes that the tire meets the requirements of the U.S. Department of Transportation. GAWR (Gross Axle Weight Rating) The GAWR is the maximum permissible axle weight. The gross vehicle weight on each axle must never exceed the GAWR for the front and rear axle indicated on the certification label located on the driver’s...
  • Page 231 Tires and wheels Production options weight The combined weight of those installed regular production options weighing over 5 lbs (2.3 kilograms) in excess of those standard items which they replace, not previously considered in curb weight or ac- cessory weight, including heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special trim.
  • Page 232 TWR (Tongue Weight Rating) Maximum permissible weight on the trailer tongue. Uniform tire quality grading standards A tire information system that provides consumers with ratings for a tire’s traction, temperature and treadwear. Ratings are determined by tire manufacturers using government testing procedures. The rat- ings are molded into the side wall of the tire.
  • Page 233 Tires and wheels The reasons for any rapid or unusual wear should be corrected prior to rotation being performed. CAUTION If your vehicle is equipped with the tire pressure monitor*, each wheel has an electronic component. Tire mounting tools should not be ap- plied in the area of the valve, as this could damage the electronic compo- nents.
  • Page 234 Dual rear wheels: Rotate front tires by axle and the outer rear tire side to side if there is no ap- proved direction of rotation. The tires used on dual wheel assem- blies should be matched for wear to prevent overloading one tire in a set. To check if tires are even, lay a straight edge across all four tires.

  • Page 235: Winter Driving

    Winter driving Winter driving Have your vehicle winterproofed at the onset of winter at an authorized Sprinter Dealer. This service includes the following: Oil change, if the current engine oil used has not been approved for winter The antifreeze/anti-corrosion concen- tration in the coolant is checked The addition of a concentrated clean- ing agent to the water in the windshield...
  • Page 236 Warning If you use your spare tire when winter tires are fitted on the other wheels, be aware that the difference in tire characteristics may im- pair turning stability and overall driving sta- bility may be reduced. Adapt your driving style accordingly.
  • Page 237 Winter driving Snow chains Use "Class U" chains, or other traction aids that meet SAE Type "U" specifications. Snow chains must be the proper size for the vehicle, as recommended by the chain manufacturer. They should only be driven on snow-covered roads at speeds not to exceed 30 mph (50 km/h).

  • Page 238: Maintenance And Servicing

    Maintenance and servicing Warning Before carrying out maintenance operations and repairs, please make sure that you read the relevant sections of the technical docu- mentation, such as: Operating instructions and workshop in- formation Familiarize yourself in advance in particular with legal requirements, such as: Safety at work and accident prevention regulations.
  • Page 239 Maintenance and servicing Warning If handled incorrectly, service products can constitute a health risk for people and an en- vironmental hazard. Always observe relevant guidelines for han- dling, storing and disposing of service prod- ucts. Active Service System (ASSYST)* ASSYST, the Active Service System, in- forms you when the next service is due.
  • Page 240 Vehicles without steering wheel buttons The following messages may be displayed: 9 for service A ´ for service B The following are also shown, depending on the style of driving: the remaining distance in kilometers, e.g. 1900 miles 3000 km the remaining time in days, e.g.
  • Page 241 Maintenance and servicing Vehicles without steering wheel buttons Press the menu button on the in- strument cluster repeatedly until you see the following in the display: 9 for service A ´ for service B The following are also shown, depend- ing on the style of driving: the remaining distance in miles (kilo- meters)

  • Page 242: Cleaning And Care Of The Vehicle

    Cleaning and care of the vehicle Regular and proper care will help to main- tain the value of your vehicle. The best way to protect your vehicle from harmful envi- ronmental influences is to wash it and use protective treatments regularly. It is recommended that you use Mopar care products.
  • Page 243 Cleaning and care of the vehicle Care of the vehicle CAUTION After cleaning your vehicle, especially the wheel rims with rim cleaner, do not simply park the vehicle and leave it. Rim cleaners can promote corrosion of the brake discs and the brake pads/ linings.
  • Page 244 Steps Warning Dirty or iced-up steps and entrances create a risk of slipping or falling. Keep steps, entrances and footwear free from dirt (e.g. mud, clay, snow and ice). Engine cleaning CAUTION Do not allow water to enter the intake and ventilation openings.
  • Page 245 Cleaning and care of the vehicle Windows CAUTION Do not use a dry cloth, abrasive materi- al, solvent or solvent-based cleaning agent to clean the inside of the win- dows. Clean the inside of the windows with a damp cloth or a commercially available glass cleaner.
  • Page 246 Clean the camera lens 1 using water and a soft cloth only. Be careful not to apply wax to the camera lens 1 when waxing the vehicle. If neces- sary, remove the wax using shampoo with plenty of water. Do not use dry, coarse or hard cloths and aggressive cleaning agents.
  • Page 247 Cleaning and care of the vehicle Seat belts Remove stains or dirt immediately to pre- vent damage or the build-up of residues. CAUTION Clean the seat belts with a mild wash- ing solution. Do not dry the seat belts in direct sunlight or at temperatures above 176 °F (80 °C).
  • Page 248 Clean the vehicle, particularly the light- ing equipment, windows, exterior mir- rors, steps, entrances, grab handles, wheels, tires, wheel housings and li- cense plates. Observe the notes in this section. Remove any trapped foreign objects, e.g. stones. Warning Dirty brake discs and brake pads/linings can impair braking power (to the point of to- tal failure).
  • Page 250 What to do if ..250 Display messages ... 281 Where will I find...? ... 299 Changing bulbs ... 306 Changing the batteries ... 315 Fuel system ... 317 Replacing the wiper blades ... 319 Flat tire ... 320 Battery ...

  • Page 251: What To Do If

    What to do if ... Audible warning signals Warning Always have maintenance work carried out at an authorized Sprinter Dealer which has Problem The anti-theft alarm system is suddenly triggered. You hear a warning signal. the necessary specialist knowledge and tools to carry out the work required.
  • Page 252 Accident Warning Always have maintenance work carried out at an authorized Sprinter Dealer which has Problem Fuel is leaking from the vehicle. You are unable to determine the extent of the damage. You are unable to determine any damage the major components the fuel system the engine support the necessary specialist knowledge and...
  • Page 253 What to do if ... Fuel and fuel tank Warning Always have maintenance work carried out at an authorized Sprinter Dealer which has Problem The fuel tank has been run dry and the vehi- cle has a diesel engine. Fuel is leaking from the vehicle. the necessary specialist knowledge and tools to carry out the work required.
  • Page 254 Engine Warning Always have maintenance work carried out at an authorized Sprinter Dealer which has Problem The engine does not start. You can hear the starter motor working. Vehicles with a diesel engine: The engine does not start. You can hear the starter motor working. The reserve fuel warning lamp is lit and the fuel gauge is at 0.
  • Page 255 What to do if ... Problem The engine does not start. You cannot hear the starter motor working. Vehicles with a gasoline engine: The engine is not running smoothly and it is misfiring. Possible cause/result The on-board voltage is too low (the battery has too little charge or is discharged).
  • Page 256 Problem The coolant temperature gauge is above 250 °F (+120 °C). Possible cause/result The coolant is too hot and the engine is not being sufficiently cooled. What to do if ... Suggested solutions Park your vehicle in a safe location as quickly as possible and let the engine continue to run at idle speed for about 1 to 2 minutes before switching it off.
  • Page 257 What to do if ... Automatic transmission Warning Always have maintenance work carried out at an authorized Sprinter Dealer which has Problem The transmission no longer changes gear correctly. The acceleration ability is deteriorating. The transmission does not shift. the necessary specialist knowledge and tools to carry out the work required.
  • Page 258 Headlamps and turn signals Warning Always have maintenance work carried out at an authorized Sprinter Dealer which has Problem The headlamps are fogged up on the inside. Air humidity is very high. the necessary specialist knowledge and tools to carry out the work required. The manufacturer recommends that you use an authorized Sprinter Dealer for this pur- pose.
  • Page 259 What to do if ... Windshield wipers Warning Always have maintenance work carried out at an authorized Sprinter Dealer which has Problem The windshield wipers are jammed. The windshield wipers have stopped work- ing completely. the necessary specialist knowledge and tools to carry out the work required.
  • Page 260 Remote control Warning Always have maintenance work carried out at an authorized Sprinter Dealer which has Problem It is no longer possible to lock the vehicle using the remote control. The turn signals do not flash when the vehi- cle is locked. the necessary specialist knowledge and tools to carry out the work required.
  • Page 261 What to do if ... Problem It is no longer possible to lock or unlock the vehicle using the remote control. The battery check lamp on the remote con- trol does not light up briefly when a button is pressed. You have lost a remote control.
  • Page 262 Problem The key can no longer be turned in the igni- tion lock. Possible cause/result The on-board voltage is too low. What to do if ... Suggested solutions Remove the key and re-insert it into the ignition lock. Switch off all non-essential consum- ers, for example the seat heating, in- terior lighting, and try to turn the key again.
  • Page 263 What to do if ... Driving systems Warning Always have maintenance work carried out at an authorized Sprinter Dealer which has Problem Only the red segments in the Parktronic* warning displays are lit. A warning tone also sounds for approxi- mately 2 seconds.
  • Page 264 Problem The speed cannot be set with cruise con- trol* activated 1 Only on vehicles with steering wheel buttons. Possible cause/result The display is showing a message of high pri- ority and cannot therefore show a change in speed. What to do if ... Suggested solutions Proceed as instructed by the mes- sage in the display.
  • Page 265 What to do if ... Auxiliary heating* Warning Always have maintenance work carried out at an authorized Sprinter Dealer which has the necessary specialist knowledge and Problem The battery check lamp on the remote con- trol for the auxiliary heating does not light up briefly when a button is pressed.
  • Page 266 Problem The auxiliary heating does not switch on or the engine does not start The heater has overheated. Leaving the vehicle in storage Warning Always have maintenance work carried out at an authorized Sprinter Dealer which has Problem You wish to leave your vehicle in storage for a long period of time (longer than six weeks).
  • Page 267 What to do if ... Indicator and warning lamps in switches Warning Always have maintenance work carried out at an authorized Sprinter Dealer which has Problem One or both of the indicator lamps in the switch for the seat heating * are flash- ing.
  • Page 268 Problem The residual engine heat utilization func- tion switches off too soon or cannot be switched on. The indicator lamp in the ° switch does not light up. Possible cause/result There is insufficient voltage available as too many consumers are switched on. What to do if ...
  • Page 269 What to do if ... Indicator and warning lamps in the instrument cluster Warning Always have maintenance work carried out at an authorized Sprinter Dealer which has Problem The yellow ASR/ESP ® warning lamp flashes while the vehicle is in motion. The yellow ASR/ESP ®...
  • Page 270 Problem The yellow ESP ® , ABS, ASR/BAS indicator lamps and the red brake system indicator lamp are lit while the engine is running. The red brake system indicator lamp is lit while the engine is run- ning. A signal also sounds. When towing a trailer: The red brake system indicator lamp is lit while the engine is run-...
  • Page 271 What to do if ... Problem The yellow ASR/BAS indicator lamp is lit while the engine is run- ning. Possible cause/result WARNING ASR has been deactivated due to a malfunc- tion. The engine power output may then be low- WARNING BAS has been deactivated due to a malfunc- tion.
  • Page 272 Problem The yellow ABS indicator lamp is lit while the engine is running. Possible cause/result WARNING ABS has been deactivated due to a malfunc- tion. ESP ® , ASR and BAS as well as cruise control have also been deactivated as a re- sult.
  • Page 273 What to do if ... Problem The yellow ESP ® indicator lamp is lit while the engine is running. The red SRS warning lamp does not go out after approximately 4 seconds after the ignition system is switched on or lights up again. Possible cause/result WARNING ®...
  • Page 274 Problem The red battery charge warning lamp lights up while the engine is running. The yellow brake pad wear indica- tor lamp lights up after the engine is started or while the vehicle is in motion. Possible cause/result WARNING The battery is not being charged. Possible causes: malfunctioning alternator torn poly-V-belt...
  • Page 275 What to do if ... Problem The yellow engine oil level warning lamp flashes after the engine is started or while the vehicle is in motion. The yellow engine oil level warning lamp lights up, the -2.0 l oil level message appears in the display and the warning buzzer sounds after the engine is started or while the vehicle is in motion.
  • Page 276 Problem The yellow engine oil level warning lamp lights up, the engine oil level message appears in the dis- play and the warning buzzer sounds after the engine is started or while the vehicle is in motion. The yellow engine oil level warning lamp lights up repeatedly while the vehicle is in motion.
  • Page 277 What to do if ... Problem • The red coolant warning lamp lights up while the engine is run- ning. The yellow reserve fuel warning lamp lights up while the vehicle is in motion. The yellow reserve fuel warning lamp lights up while the engine is running and the gauge for the fuel tank shows zero although there is still fuel in the tank.
  • Page 278 Problem ± The yellow engine diagnostic in- dicator lamp lights up or flashes while the engine is running. 1 Only vehicles with a gasoline engine. Possible cause/result The fuel tank has run dry. The engine may be running in emergency mode.
  • Page 279 What to do if ... Problem USA only: Combination low tire pressure/ TPMS malfunction telltale for TPMS lights up continuously. Canada only: Low tire pressure telltale for TPMS lights up continuously. USA only: Combination low tire pressure/ TPMS malfunction telltale for TPMS flashes 60 seconds and then stays illuminated.
  • Page 280 Warning! Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recom- mended by the vehicle manufacturer on the vehicle placard or the tire inflation pressure label. (If your vehicle has tires of a different size than the size indicated on the vehicle placard or the tire inflation pressure label, you should determine the proper tire infla-...
  • Page 281 What to do if ... Problem The yellow water separator indi- cator lamp lights up while the ignition is on. The yellow washer fluid level in- dicator lamp for the windshield washer/headlamp cleaning sys- tem lights up after the engine is started or while the vehicle is in motion.

  • Page 282: Display Messages

    All warning/indicator lamps (except the turn signal indicator lamps) and the display are activated when the ignition is switched on. Please check that they are working properly before commencing a journey. Display messages on vehicles with- out steering wheel buttons Warnings, malfunctions or additional infor- mation may also be shown in the display.
  • Page 283 Display messages Display messages The message is displayed for 30 seconds. TPMS The message is also displayed after 30 seconds. Possible cause/result There is insufficient or no oil in the engine. There is a risk of engine damage. The TPMS is malfunctioning. The tire pressure monitor is not receiving signals from one or more wheels because: a wheel was replaced with the spare...
  • Page 284 Display messages — — The message is displayed for 30 seconds. TPMS The message is also displayed after 30 seconds. Possible cause/result The tire pressure monitor detects a moder- ate loss of pressure in at least one of the tires, or the difference in pressure on one axle is too great.
  • Page 285 Display messages Display messages on vehicles with steering wheel buttons The operating system shows warnings, malfunctions or additional information in the display. Certain messages are accompanied by a warning signal or a permanent tone. High-priority messages are highlighted in red in the display. Please respond in accordance with the messages and follow the additional notes in these Operating instructions.
  • Page 286 Text messages Display messages Visit workshop unavailable Possible cause/result WARNING ABS has been deactivated due to a malfunc- tion. ESP ® , ASR and BAS as well as cruise control have also been deactivated as a re- sult. The brake system is still available with the full brake boosting effect but without ABS.
  • Page 287 Display messages Display messages Visit workshop unavailable Tire pres. Adjust pres. Tire pres. monitor inoperative Tire pres. displayed after driving several minutes Possible cause/result WARNING ® has been deactivated due to a mal- function. Cruise control is also switched off as a result.
  • Page 288 Display messages Tire pres. monitor currently unavailable Tire pres. monitor inoperative No wheel sensors Wheel sens. missing Slid. sunroof open Cruise cont. Visit workshop Possible cause/result The TPMS or Advanced TPMS* is unable to monitor the tire pressure due to a nearby radio interference source.
  • Page 289 Display messages Display messages Restraint system Visit workshop Possible cause/result WARNING The restraint systems have malfunctioned. The airbags or emergency tensioning re- tractors could be triggered unintentionally, or not at all in the event of an accident. Possible solution Continue driving, but with even greater care.
  • Page 290 Symbol messages Display symbol Display message Battery/ Alternator Visit workshop Brake wear Visit workshop Brake force distribution Possible cause/result The battery is not being charged. Possible causes: malfunctioning alternator torn poly-V-belt WARNING The brake pads/linings have reached their wear limit. WARNING EBV has been deactivated due to under- voltage.
  • Page 291 Display messages Display symbol Display message Brake fluid Visit workshop Brake force distribution Visit workshop Parking brake Release brake A signal also sounds. Possible cause/result WARNING There is insufficient brake fluid in the fluid reservoir. WARNING EBV has malfunctioned. The rear wheels could lock up sooner than expected when you apply the brakes.
  • Page 292 Display symbol Display message Visit workshop unavailable ì Please enter PIN: < Seatbelt sys. Visit workshop Possible cause/result WARNING ASR has been deactivated due to a mal- function. Cruise control is also switched off as a result. The engine power output may then be lower.
  • Page 293 Display messages Display symbol Display message Coolant Stop, turn engine Coolant Check level Low beam left Low beam right Turn signal left Turn signal right Brake lamp left Possible cause/result The coolant temperature is too high. The coolant level is too low. Never run the engine if the coolant level is too low.
  • Page 294 Display symbol Display message Brake lamp right Third brake lamp High beam left High beam right License plate lamp Foglamp front left Foglamp front right Rear foglamp Parking lamp front left Parking lamp front right Reverse lamp Tail lamp left Tail lamp right Perim.
  • Page 295 Display messages Display symbol Display message Additional ind. lamps Cornering lamp left Cornering lamp right Trailer turn signal left Trailer turn signal right Trailer tail lamp Switch off lights Lights on automatic. Remove key Replace key Visit workshop Possible cause/result An additional turn signal is malfunction- ing.
  • Page 296 Display symbol Display message Warning Tire defect Check tire(s) Possible cause/result One or more tires are deflating. The respective tire is shown in the multi- function display. The tire pressure in one or more tires is already below the minimum value. The respective tire is shown in the multi- function display.
  • Page 297 Display messages Display symbol Display message Engine oil level Stop, turn engine Engine oil level Check oil level Engine oil 1.0 quart (Canada: liter Possible cause/result There is insufficient or no oil in the en- gine. There is a risk of engine damage. The engine oil level has dropped to a crit- ical level.
  • Page 298 Display symbol Display message Engine oil level Reduce oil level Oil sensor Visit workshop Engine oil level Not when eng. run- ning Reserve fuel Drive to a gas station Tank open Check filler cap Possible cause/result You have added too much engine oil. There is a risk of damage to the engine or the catalytic converter.
  • Page 299 Display messages Display symbol Display message Doors open Hood open Water in Fuel Visit workshop Washer fluid Check level Possible cause/result You are already driving at walking pace, even though not all the doors are closed. You are already driving at walking pace, even though the hood is not closed.

  • Page 300: Where Will I Find

    Warning triangle and warning lamp The warning triangles are behind the driv- er's seat. N72.10-2148-31 1 Warning triangles Remove warning triangles 1 from the brackets upward. Fire extinguisher The fire extinguisher is secured to the front of the co-driver’s seat base. 1 Fire extinguisher 2 Tabs Pull tabs 2 upward.
  • Page 301 Where will I find...? 3 First-aid kit Check the expiry dates of the first-aid kit materials every year, and replace them if necessary. Jack and vehicle tool kit The jack and the vehicle tool kit are locat- ed under the hatch in the co-driver’s foot- well.
  • Page 302 3 Tensioning lever 4 Jack 5 Vehicle tool kit Remove the vehicle tool kit. Pull tensioning lever 3 upward and unhook the retaining strap of jack 4. Remove jack 4 upward out of the re- tainer. Place the jack into the retainer as shown when storing it back into place.
  • Page 303 Where will I find...? 3 Securing hook 4 Sleeve 5 Spare wheel bracket Raise spare wheel bracket 5 slightly and release left securing hook 3. Slide the pump lever for the jack into sleeve 4 on spare wheel bracket 5. Raise spare wheel bracket 5 using the pump lever and release right securing hook 3.
  • Page 304 Raise spare wheel bracket 4 using the pump lever and release right secur- ing hook 1. Slowly lower spare wheel bracket 4 to the ground. Raise spare wheel bracket 4 slightly and pull the pump lever out of sleeve. Use the pump lever to raise the spare wheel beyond the rear end of the spare wheel bracket.
  • Page 305 Where will I find...? Chassis The wheel chock is on the left-hand side behind the rear axle. Example illustration of chassis Pull the retainer springs down and re- move the chock. CAUTION When storing it away, make sure that the chock is secured in the retainer by the retainer springs.
  • Page 306 With the ignition switched on page 67), press and hold the sliding sunroof switch ( page 145) forward or backward for 45 seconds to reset the electronics. Reset the sliding sunroof page 146). Releasing the parking lock manually In the event of a malfunction, it is possible to manually release the selector lever from the lock in parking position P, for example to have the vehicle towed away.

  • Page 307: Changing Bulbs

    Changing bulbs Changing bulbs Bulbs and lights are an important aspect of vehicle safety. For this reason, make sure that all bulbs are in working order at all times. Before changing bulbs Switch off the lights to avoid a short cir- cuit.
  • Page 308 Front bulbs Bulb Model 1 Additional turn signal PY 16 W 2 Turn signal PY 21 W 3 Halogen headlamp: H7 55 W low-beam headlamp Bi-xenon headlamp*: D1S-35 W low-beam headlamp/ high-beam headlamp 4 Halogen headlamp: H7 55 W high-beam headlamp Cornering lamp* H7 55 W (Canada only)
  • Page 309 Changing bulbs Press catches 1 down. Swing housing cover 2 in the direc- tion of the arrow and remove it. 3 Low-beam headlamps 4 Halogen high-beam headlamps/xenon headlamp cornering lamp* Pull the connector off the bulb holder. Unclip the retainer spring and remove the bulb.
  • Page 310 Rear bulbs N82.10-2529-31 Panel van/crewbus Bulb Model 1 Third brake lamp 2 Brake lamp P 21 W 3 Turn signal PY 21 W 4 Tail lamp/ R 5 W side marker/Standing lamp (Canada only) 5 License plate lamp W 5 W 6 Rear foglamp (driver’s P 21 W side)
  • Page 311 Changing bulbs Changing the rear bulbs (van/crewbus) Switch off the lighting. Rear lamp units 1 Securing screws Undo screws 1 and remove the rear lamp unit in the direction of the arrow. Remove the connector. 2 Retaining lugs 3 Brake lamp 4 Side marker, Standing lamp (Canada only), tail lamp 5 Reverse lamp...
  • Page 312 6 Tail lamp 7 Rear foglamp (driver’s side) 8 License plate lamp 9 Reverse lamp Switch off the lighting. Undo screws 1 and remove lens 2. Press the bulb into the bulb holder and screw it out in a counterclockwise di- rection.
  • Page 313 Changing bulbs License plate lamp W 5 W 1 Bulb holder with lens 2 Recess Insert a screwdriver or similar imple- ment into recess 2 and carefully pry off lens 1. Pull the bulb out of the bulb holder. Insert the new bulb. Align lens 1 and clip it in, making sure that it engages.
  • Page 314 Identification lamps 12V 4CP (cargo vans only) 1 Securing screw Remove screw 1 and remove the lamp housing. Press the bulb into the socket, turn it counterclockwise and remove it from the holder. Press the new bulb into the bulb holder and screw it in clockwise.
  • Page 315 Changing bulbs Interior lamp K 18 W N82.20-2079-31 Interior lamp 1 Lamp housing 2 Festoon lamp Switch off the lighting. Press in the latching springs of lamp housing 1 using a suitable tool, for ex- ample a screwdriver. Pry off lamp housing 1. Remove bulb 2 from the bulb holder.

  • Page 316: Changing The Batteries

    Changing the batteries If the remote control batteries (remote keyless entry) are discharged, you will only be able to lock and unlock the vehicle man- ually using the key. If the batteries in the auxiliary heating re- mote control are discharged, you will only be able to switch the auxiliary heating on or off using the auxiliary heating/heater booster switch inside the vehicle...
  • Page 317 Changing the batteries 1 Battery cover 2 Release button for mechaniocal key Release the mechanical key by press- ing the release button 2. Remove the battery cover 1. Remove the battery and install a new one (note correct polarity; positive ter- minal up).

  • Page 318: Fuel System

    Fuel system Draining the fuel filter On vehicles with a diesel engine, it is nec- essary to drain the fuel filter if the / in- dicator lamp lights up. CAUTION Drain the fuel filter with water separa- tor immediately if the / indicator lamp lights up.
  • Page 319 Fuel system Environmental note Have the drained liquid disposed of at an authorized Sprinter Dealer. Drain the fuel filter again if the / in- dicator lamp remains lit. CAUTION If the / indicator lamp remains lit even after draining for the second time, have the cause checked immediately at an authorized Sprinter Dealer.

  • Page 320: Replacing The Wiper Blades

    Replacing the wiper blades CAUTION Do not open the hood while the wiper arms are folded away from the wind- shield. You would damage the hood and the wiper arms. Do not fold the wiper arms onto the windshield without wiper blades being attached.

  • Page 321: Flat Tire

    Flat tire Flat tire The vehicle is either equipped with a spare wheel or the Premium tire sealant*. The spare wheel is located under the rear end of the vehicle if the vehicle is not equipped with Premium tire sealant* page 301).
  • Page 322 Before raising the vehicle, also secure it against rolling away, for example using chocks or similar. Never release the handbrake while the vehicle is raised. Make sure that the distance between the underside of the tires and the ground does not exceed 1.2 in (3 cm). The vehicle could slip or topple off the jack.
  • Page 323 Flat tire Hydraulic jack Assemble the three-part pump lever for the jack. P58.10-2053-31 1 Pressure release screw Close pressure release screw 1. To do this, turn the flattened section on the pump lever clockwise to the stop. Never turn pressure release screw 1 more than 1 or 2 full turns.
  • Page 324 CAUTION Do not apply the jack to the leaf spring or the differential housing. Removing a wheel Unscrew the wheel bolts or wheel nuts. CAUTION Do not place the wheel bolts or the wheel nuts in sand or dirt. The bolt and wheel hub threads could otherwise be damaged.
  • Page 325 Flat tire Wheels with centering by wheel bolts: Screw in the wheel bolts and tighten them finger-tight. N40.10-2175-31 1 Wheel bolt for light-alloy wheel 2 Wheel bolt for steel wheel or wheels with wheel nuts: On vehicles with light-alloy wheels, you will find short wheel bolts suitable for the steel spare wheel in the vehicle tool kit.
  • Page 326 For wheels with wheel bolts attach the wheel cover. Vehicles with wheel caps: Make sure that the opening in the wheel cap is positioned over the tire vent. Vehicles with center caps: Make sure that the retaining lugs of the hub cap are positioned over the bolts.
  • Page 327 Flat tire Using Premium tire sealant* You can use the Premium tire sealant to seal small punctures, particularly those in the tire tread. Tire sealants can be used at outside temperatures down to –22 °F (–30 °C). Prepare the vehicle as described page 320).
  • Page 328 Warning Comply with the manufacturer’s safety in- structions as seen on the sticker on the electric air pump and the tire sealant bottle. Warning Tire sealant must not come into contact with your skin, eyes or clothing. If tire sealant comes into contact with your eyes or skin, immediately rinse thoroughly with clean water.
  • Page 329 Flat tire Tire sealant bottle for twin tires 7 Valve 8 Tire sealant bottle with hook, hose and angle brackets Shake tire sealant bottle 8. Unscrew and remove the cap from valve 7 on tire sealant bottle 8. Press angle bracket 2 ( page 327) on hose 3 of the electric air pump all the way onto valve 7 of tire sealant...
  • Page 330 CAUTION Do not connect the electric air pump connector to the cigarette lighter sock- et or another 12 V socket. These are not designed for operating the electric air pump. Start the engine ( page 111). Press I on electric air pump switch 1. The electric air pump is switched on.
  • Page 331 Flat tire a Valve core extractor b Hook c Knob d Angle bracket e Tire valve Pull knob c out of valve core extractor a as far as the stop. Screw valve core extractor a clock- wise onto tire valve e. Press knob c into the valve core of tire valve e, turning it gently as you do so, until the shaft of valve core...
  • Page 332 Turn knob c clockwise until the valve core is firmly screwed into tire valve e. Do not unscrew the valve core extrac- tor from the tire valve while the valve core is unscrewed from the tire valve. Tire sealant could otherwise escape onto your hands.
  • Page 333 Flat tire b Tire valve c Angle bracket c Angle bracket d Hook Hook tire sealant valve 8 into the up- per vent hole in the wheel using hook Press angle bracket c on hose of tire sealant bottle 8 ( page 327) to the stop on tire valve b and clamp it into place.
  • Page 334 Then press 0 on electric air pump switch 1. The electric air pump is switched off. The tire sealant is water soluble. If tire sealant escapes, you can wash it away with water. Screw the valve cap onto tire valve b. After filling with tire sealant page 333).
  • Page 335 Flat tire Warning If the minimum tire pressure of 43.5 psi (3.0 bar) still cannot be achieved, the tire is too badly damaged. Do not drive any further. Consult an autho- rized Sprinter Dealer which has the neces- sary specialist knowledge and tools to carry out the work required.

  • Page 336: Battery

    Battery Your vehicle may be equipped with two batteries, depending on the equipment version: Starter battery in the battery recess in the driver’s footwell Auxiliary battery* in the engine com- partment The auxiliary battery* in the engine compartment is not suitable for jump- starting operations.
  • Page 337 Battery Disconnecting the starter battery The starter battery is in the battery recess in the driver’s footwell. Removing/installing the floor covering in the driver's footwell 1 Floor covering 2 Trim 3 Securing screws To remove: undo screws 3 and re- move trim 2.
  • Page 338 Remove cover 1 upward. Starter battery in the driver’s footwell Loosen the negative terminal of the battery first and remove it so that the negative terminal cannot come into contact with the pole terminal. Remove the cover from the positive ter- minal.
  • Page 339 Battery 3 Retainer Loosen the bolts of retainer 3 pre- venting the battery from moving around. Pull retainer 3 upward and slide the battery out of its anchorage in the di- rection of travel. Fold the clip upward and remove the battery from the battery recess.
  • Page 340 Recharging the battery Recharge the removed battery. Ob- serve the notes in the operating in- structions for your battery charger. Reinstall the battery in the reverse or- der. CAUTION Only charge the installed battery using a battery charger tested and approved by the manufacturer.

  • Page 341: Jump-Starting

    Jump-starting Jump-starting If the starter battery in the battery recess in the driver’s footwell is discharged, the engine can be jump-started from another vehicle using jump leads. For this purpose, the vehicle is equipped with a jump-starting connection point. The auxiliary battery* in the engine compartment is not suitable for jump- starting operations.
  • Page 342 Using red positive terminal clamp 1 of the jumper cable, slide the red protec- tive cap of the jump-starting connec- tion point back with a clockwise turn and connect the positive terminal clamp of the jumper cable to the posi- tive terminal of the jump-starting con- nection point.

  • Page 343: Towing

    Towing Towing Warning Tow the vehicle using a rigid towing bar if: the engine is not running, there is a malfunction in the power sup- ply or the vehicle’s electrical system. There is no power assistance for the steer- ing and braking when the engine is not run- ning.
  • Page 344 Return the towing eye and the wheel wrench to the vehicle tool kit. Deactivate the automatic locking while driving function when towing page 64). You could otherwise become locked out when pushing or towing the vehicle. Switch on the ignition ( page 67).
  • Page 345 Towing In the event of a malfunction in the electrical system If the battery is malfunctioning, the auto- matic transmission will be locked in position P. To shift the automatic trans- mission to position N, you must provide power to the vehicle’s electrical system in the same way as jump-starting page 340).

  • Page 346: Fuses

    Fuses Warning Only use fuses of the amperage recommend- ed by the manufacturer. Any authorized Sprinter Dealer will be happy to advise you. Do not attempt to repair or bridge blown fuses. Have the cause determined and rectified at a qualified specialist workshop, e.g. an au- thorized Sprinter Dealer.
  • Page 347 Fuses...
  • Page 348 Consumer Amp. Horn 15 A Electric steering lock ESTL 25 A (electronic ignition switch EIS) Terminal 30 Z, vehicles with 10 A gasoline engine/electronic ignition switch EIS/instru- ment cluster Light switch/center console switch unit Windshield wipers 30 A Fuel pump 15 A MRM (jacket tube module) Terminal 87 (2)
  • Page 349 Fuses Consumer Non MB-body electrics Heating, rear heating/ Tempmatic (air-conditioning system), front/CD-player* Motion detector*/con- venience interior lighting*/ satellite radio* Air conditioning in the rear* Preliminary fuse box in the battery recess in the driver’s footwell F59 Amp. Consumer 10 A Pre-glow relay/secondary air pump 10 A...
  • Page 350 Fuses...
  • Page 351 Fuses Consumer Amp. Mirror adjustment* Rear window wiper* Reversing camera*/ telephone* Operating speed governor (ADR)/PTO/trailer connection unit AAG Terminal 87 electronic transmission control ETC, control unit Unassigned Electronic selector level module ESM Terminal 15 body builder, drop side/3-way tipper Roof ventilator*/audio signal equipment* Terminal 30, tapping wire body builder...
  • Page 352 Genuine Sprinter parts ... 352 Vehicle electronics ... 354 Service products and capacities ... 355 Rims and tires ... 367 Tire inflation pressure ... 369 Lashing points and carrier systems ... 371 Vehicle identification labels ... 373...
  • Page 353 Genuine Sprinter parts Genuine Sprinter parts The “Technical data” section contains im- portant technical data regarding your vehi- cle. You will find other vehicle-specific and equipment-dependent technical data, such engine power output data speeds vehicle dimensions vehicle weights in your vehicle documents. Make sure that spare parts are suitable for your vehicle.
  • Page 354 Genuine sprinter parts are subjected to the most stringent quality inspections and will ensure that the vehicle is maintained at a high level of operating efficiency and safe- ty, and that it maintains its value. Each part has been specifically designed and manu- factured or selected and approved for use in Sprinter vehicles.

  • Page 355: Vehicle Electronics

    Vehicle electronics Vehicle electronics Tampering with the engine electron- Work on the engine electronics and all associated parts such as control units, sensors and connector leads should only be performed at an authorized Sprinter Dealer. Vehicle parts could otherwise wear more quickly and the vehicle’s warranty or general operating permit could be invalidated.

  • Page 356: Service Products And Capacities

    Service products and capacities Service products are: fuels lubricants (e.g. engine oils, transmis- sion oils, hydraulic fluids, greases) antifreeze additives, coolant brake fluid Service products are tested for suitability in our assemblies. Approved service prod- ucts meet the highest quality standards. For this reason, only use service products that have been approved for your vehicle.
  • Page 357 Service products and capacities Rinse thoroughly with plenty of water in case of contact with eyes. Consult a doctor immediately if a service product is swallowed. Change out of clothing soiled with ser- vice products immediately to avoid the risk of fire and other injuries. Fire, naked flames and smoking are therefore prohibited when handling ser- vice products due to their highly flam-...
  • Page 358 The following oils have been determined to meet the DaimlerChrysler requirements as shown below: MB approved engine MB sheet Castrol Syntec 5W-40 5W-40 229.3 Castrol Syntec 0W-30 0W-30 229.5 European Formula Chevron Supreme 5W-40 229.31 Synthetic Motor Oil SAE 5W-40 Fuchs Titan Cargo 10W-40 228.51...
  • Page 359 Service products and capacities Adding engine oil CAUTION Diesel engine: Never use any amount of engine oil for the diesel engine that does not con- form to MB 229.51 or MB 229.31 spec- ifications. Otherwise the diesel particle filter (DPF) could be damaged. If the above specified engine oils are not available, you may also use engine oils conforming to MB 228.5, 229.3...
  • Page 360 Fuel requirements Only use premium unleaded fuel: The octane number (posted at the pump) must be 91 min. It is an average of both the Research (R) octane num- ber and the Motor (M) octane number: (R+M)/2). This is also known as the ANTI-KNOCK INDEX.
  • Page 361 Service products and capacities Diesel fuels containing a higher percenta- ge of Bio diesel content will cause damage to your engine and are not approved. Damage or malfunctions resulting from poor fuel quality are not covered by the Sprinter Warranty. CAUTION The exhaust aftertreatment device (DPF) will be seriously damaged if you...
  • Page 362 At temperatures below 14 °F (–10 °C) a certain quantity of fuel flow improver may be added. These substances may only be mixed within the vehicle’s fuel tank. Engine power may drop according to the proportion of fuel flow improver. For this reason, keep the percentage of fuel flow improver to the minimum necessitated by the ambient temperature.
  • Page 363 Service products and capacities Coolants, lubricants, etc. Air conditioning The air conditioning system of your vehicle contains R-134a, a refrigerant that does not deplete the ozone layer in the upper atmo- sphere. Refrigerant R-134a Automatic transmission Automatic transmission fluid Brakes Use brake fluid approved for DaimlerChrysler standard MB 331.0 and/or DaimlerChrysler material standard MS-9971, brake fluid certified to DOT 4 Plus standards, that also maintains a minimum dry boiling point (ERBP) of 500 °F (260 °C), a minimum wet boiling point (WERBP) of 356 °F (180 °C) and a maximum viscosity of 1500 mm...
  • Page 364 Engine cooling system The use of aluminum components in Sprinter engines requires that anticorrosive/antifreeze specifically formulated to protect aluminum parts be used. The factory-approved service products are suitable for Sprinter engines and can be mixed with the original anticorrosion/ antifreeze filled at factory. The cooling system design and anticorrosion/antifreeze agent used stipulate the replacement interval for the coolant solution in your ve- hicle.
  • Page 365 Service products and capacities Power steering Power steering, no fluid service required. Power steering fluid Rear axle Gear oil 1 DaimlerChrysler Material Standard-No. 2 Follow the interval, time or mileage, that occurs first. 3 Synthetic automotive gear lubricant without fricition modifier. Service interval Product name/product number —...
  • Page 366 Capacities Vehicle 2500 CRD, 3500 CRD 2500, 3500 1 Do not exceed a proportion of 55% by volume (antifreeze protection down to about -45°C) as the heat dissipation properties deteriorate at higher concentrations. Observe the Mercedes-Benz Specifications for Service Products, Sheet 310. Engine with Tank oil filter...
  • Page 367 Service products and capacities Fuel consumption Environmental note A vehicle’s CO emissions and fuel con- sumption depend on: efficient use of fuel by the engine the style of driving adopted other non-technical factors such as en- vironmental influences or road condi- tions The vehicle will use more fuel than usual in the following conditions:...

  • Page 368: Rims And Tires

    Rims and tires CAUTION Only use tires which have been tested and approved for your Sprinter vehicle by the vehicle manufacturer. Tires ap- proved by the vehicle manufacturer are developed to provide the best possible performance in conjunction with the driving safety systems on your Sprinter vehicle such as ABS, BAS, ASR or ESP ®...
  • Page 369 Rims and tires Vehicle Model Type Rims (steel) Rims (light alloy) Wheel offset Half dual spacing Wheel fixture Tightening torque (steel wheel) Tightening torque (light-alloy wheel) Summer tires All-season tires Winter tires 1 Radial-ply tires 2 Radial-ply tires 2500 6.5 J x 16 6.5 J x 16 2.13 in (54 mm) Wheel bolts...

  • Page 370: Tire Inflation Pressure

    Tire inflation pressure For vehicles with a gross weight capacity above 10,000 lbs (4500 kg) only. For vehicles with a gross weight capacity less than 10,000 lbs (4500 kg) observe the recommended cold tire inflation pressures listed on the tire and loading information placard on the driver’s door B-pillar page 210).
  • Page 371 Tire inflation pressure For example: If the inside temperature is 68 °F (20 °C) and the outside temperature is 32 °F (0 °C) then the cold tire inflation pressure should be increased by 3 psi (0.2 bar), which equals 1.5 psi (0.1 bar) for every 18 °F (10 °C) for this outside temperature condition.

  • Page 372: Lashing Points And Carrier Systems

    Lashing points and carrier systems Lashing points CAUTION Observe the data on the maximum load-bearing capacity of the individual lashing points. During full-braking applications, for ex- ample, forces can be involved that are much greater than the weight force of the load.
  • Page 373 Lashing points and carrier systems Roof carrier systems Maximum roof load and minimum number of pairs of roof rack supports on vehicles with: Maxi- Minimum mum roof number of load pairs of supports Standard roof 660 lbs (300 kg) Raised roof 330 lbs (150 kg) The data is valid when the load is distribut-...

  • Page 374: Vehicle Identification Labels

    Vehicle identification labels For certain vehicles, vehicle data cards are delivered with the vehicle. These vehicle data cards contain all the im- portant details of your vehicle, e.g. ve- hicle identification number, engine number and subassembly numbers to- gether with the model and optional equipment codes.
  • Page 375 Vehicle identification labels Example vehicle safety certification label (Canada vehicles) Example incomplete vehicle safety certifi- cation label (Canada vehicles) 2 VIN Example Engine Compartment 3 VIN (embossed on the engine compart- ment rear bulk) 4 Engine number (engraved on gasoline engine) 5 Engine number (engraved on diesel en- gine)
  • Page 376 Example emission control information label for gasoline engines The data shown on the labels is for il- lustrative purposes only. The data is specific to each vehicle and may vary from the data shown in the illustration. Refer to the label on your vehicle for data specific to your vehicle.
  • Page 378 Numerics 12 V socket ....170 see Antilock Brake System Acceleration skid control (ASR) . . . 44 activating/deactivating ..45 display message .
  • Page 379 maneuvering ....124 one-touch gearshifting ..122 releasing the parking lock manually 305 selector lever positions ..121 shift ranges .
  • Page 380 Care of batteries ....196 Care of the vehicle ... . . 241 after driving off-road or on construction sites .
  • Page 381 temperature gauge (vehicle with steering wheel buttons) ..... 255 Cornering lamps changing bulbs ....307 Correct use .
  • Page 382 driving in wet conditions ..117 driving on flooded roads ..117 in winter ..... 235 overrun cut-off .
  • Page 383 Fastening seat belts see Wearing seat belts Fault memory see Malfunction memory Fax machine ....183 Fire extinguisher ....299 First-aid kit .
  • Page 384 seats ......73 windshield ....127 Heater booster function .
  • Page 385 battery check lamp ... . . 53 buttons ..... . . 53 changing the batteries .
  • Page 386 Messages bulbs ....292 coolant ..... . 292 doors .
  • Page 387 Parking lamps ....77 changing bulbs ....308 Parking lock see Automatic transmission Parktronic .
  • Page 388 Removing/installing the floor covering in the driver’s footwell ..336 Reserve warning indicator (fuel) . . 276 Residual heat mode ... . 134 problems .
  • Page 389 Side lamps ....307 Side marker lamps ... . . 307 changing bulbs .
  • Page 390 Tachometer ....85 Tail lamps ....309 changing bulbs .
  • Page 391 loading the vehicle ... . . 205 low tire pressure indicator ..278 maximum load ....231 messages in the multifunction display .
  • Page 392 closing ..... . . 52 correct use ....7 data cards .
