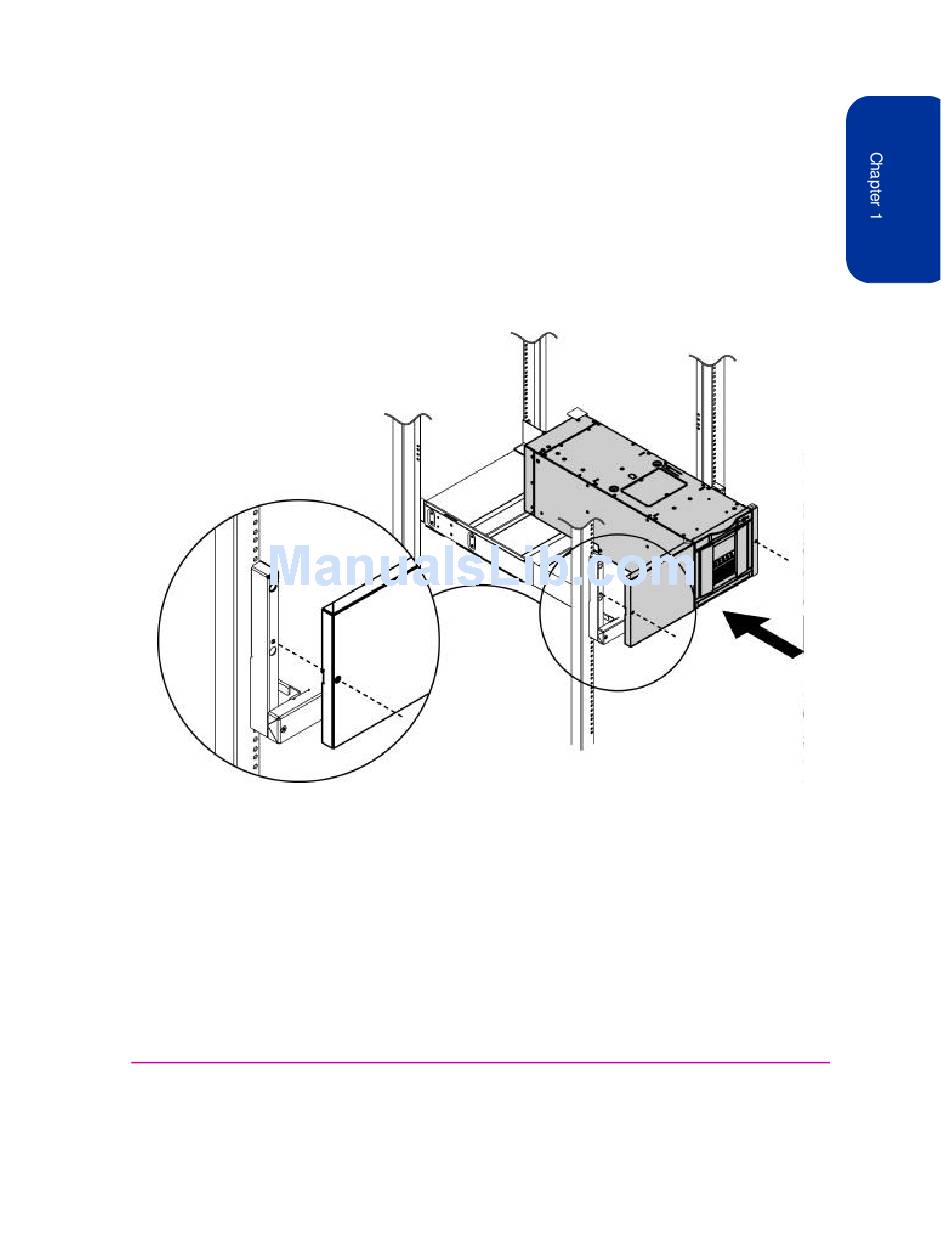

10. Check that the trim bracket (or filler panel) aligns with the 55-mm spacer
Figure 8
Chapter 1
bracket on the rack. Tighten the screw on the trim bracket and filler panel
to secure the parts together and secure the autoloader to the rack.
Installing the Autoloader
Installing the Autoloader into a Rack
27
