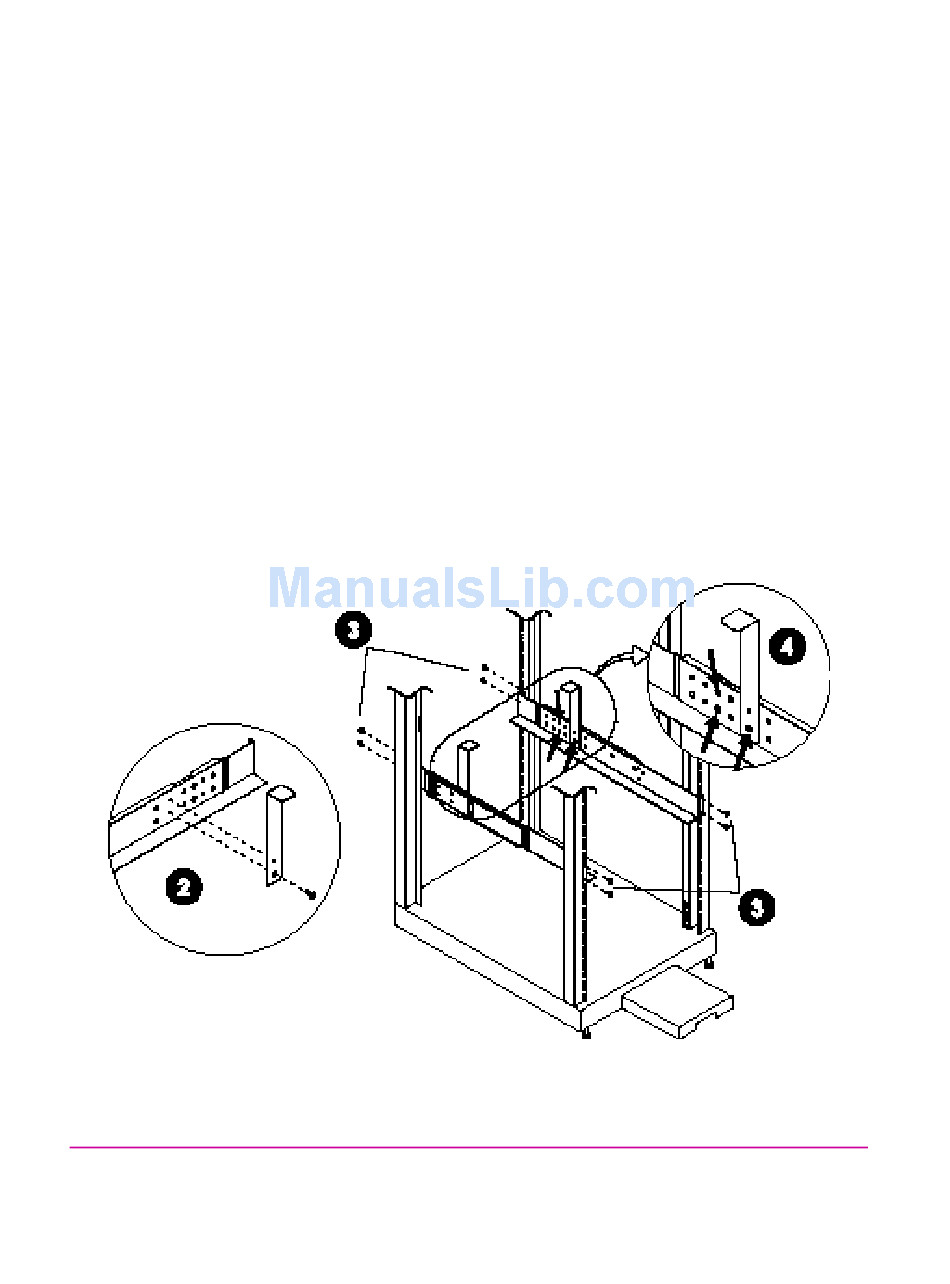

Figure 5
24 Installing the Autoloader into a Rack
2. Secure the hold-down bar to the inside of the mounting rail by following
the steps below (see
autoloader.
a. Align the guide pin on the hold-down bar with the top hole on the
inside edge of the mounting rail.
b. Loosely install one 10-32 flat-head screw below the guide pin.
3. Align the front of the mounting rail with the two bottom clip nuts, and
install the 10-32 machine screws (see
a. Slide the rail out so that it equals the rack depth, and attach it to the
back clip nuts using 10-32 machine screws.
b. Tighten the screws on the mounting rails.
4. Tighten the screws on the inside edge of the mounting rails and the
hold-down bars using a Phillips #2 screwdriver.
Securing the Mounting Rails and Hold-Down Bar
Figure 5). You will need one hold-down bar for each
Figure 5).
Chapter 1
