Installing the Autoloader into a Rack
The rackmount tray holds two autoloaders side-by-side and requires 6 EIA
(26.67cm or 10.5 inches) of clearance in the rack. For standalone
autoloaders, see
Tools and Parts
Ensure that you have the following:

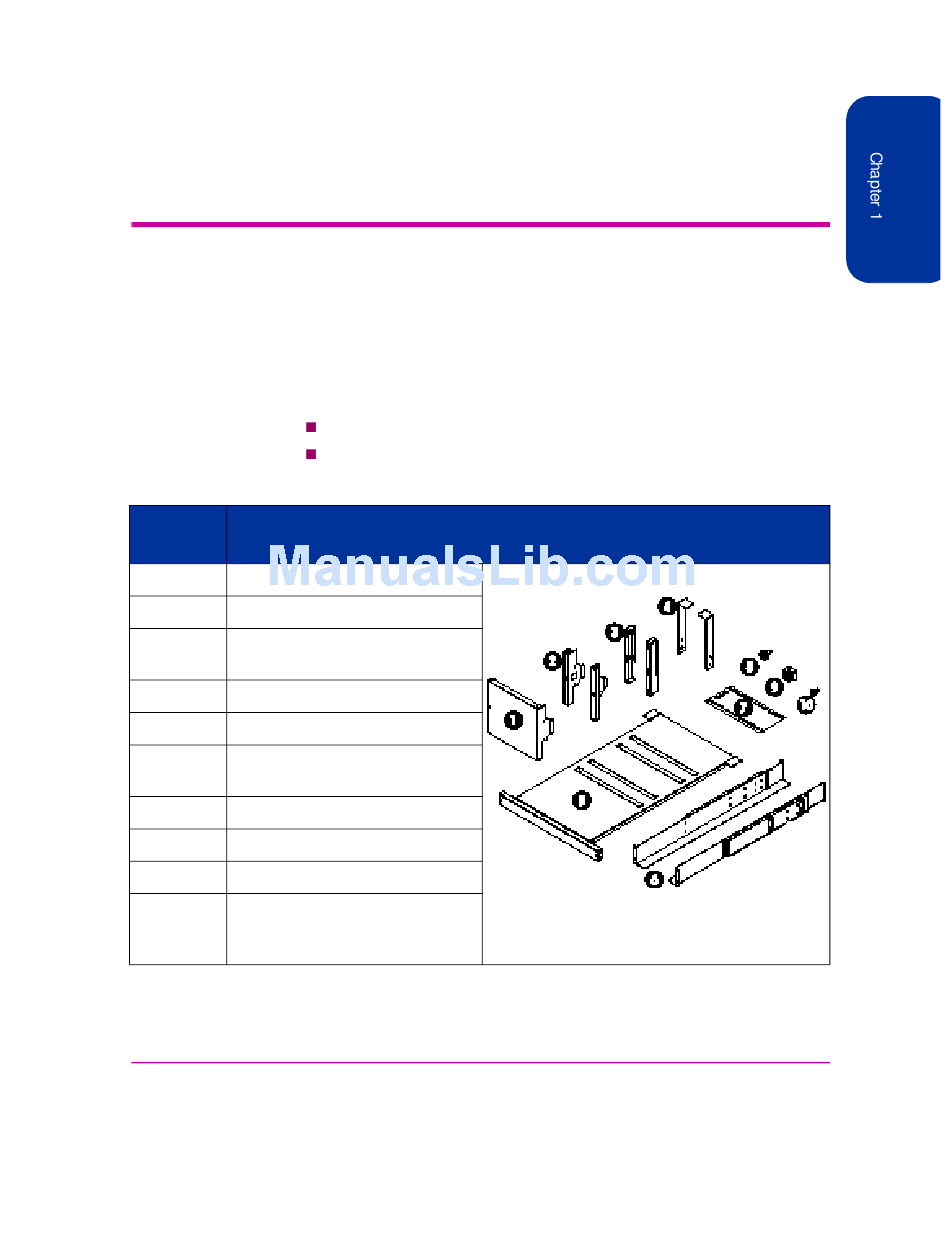

Table 4
Rack Kit Parts
Callout
Number
1
Filler panel (Qty 1)
2
Trim brackets (Qty 2)
3
55-mm Spacer brackets (Qty 2,
left and right)
4
Hold-down bars (Qty 2)
5
Tray (Qty 1)
6
Mounting rails (Qty 2, left and
right)
7
Clip nut template (Qty 1)
8
10-32 Machine screws (Qty 8)
9
10-32 Clip nuts (Qty 12)
10
10-32 Flat-head screws (Qty 2)
Chapter 1
Preparing the Host for Installation
Phillips #2 screwdriver
Torx screwdriver with T-15, T-20, and T-25 bits
Description and Quantity
on page 28.
Installing the Autoloader into a Rack
