Bender PEM575 Quick Start

Quick start: PEM575
Quick start
This short operating instruction does not replace the manual!
You will find the manual on the website
www.bender-de.com
Make sure that the personnel has read this manual and under-
stood all instructions relating to safety.
Intended use
The universal measuring device PEM575 is suitable for
the analysis of energy and power (Power Analyzer)
monitoring of the power supply quality (Power Quality)
data recording for energy management (Energy Manage-
ment).
As a compact device for front panel mounting, it is suitable to re-
place analogue indicating instruments. The PEM575 is suitable for
3 and 4-wire systems and can be used in TN, TT and IT systems.
The current measurement inputs of the PEM are connected via
external ../1 A or ../5 A measuring current transformers.
Measurement in medium and high-voltage systems are principal-
ly carried out using measuring current and voltage transformers.
The accuracy of the active energy metering corresponds to class
0.2 S in compliance with the DIN EN 62053-22 (VDE 0418 Part 3-
22):2003-11.
Installing the device

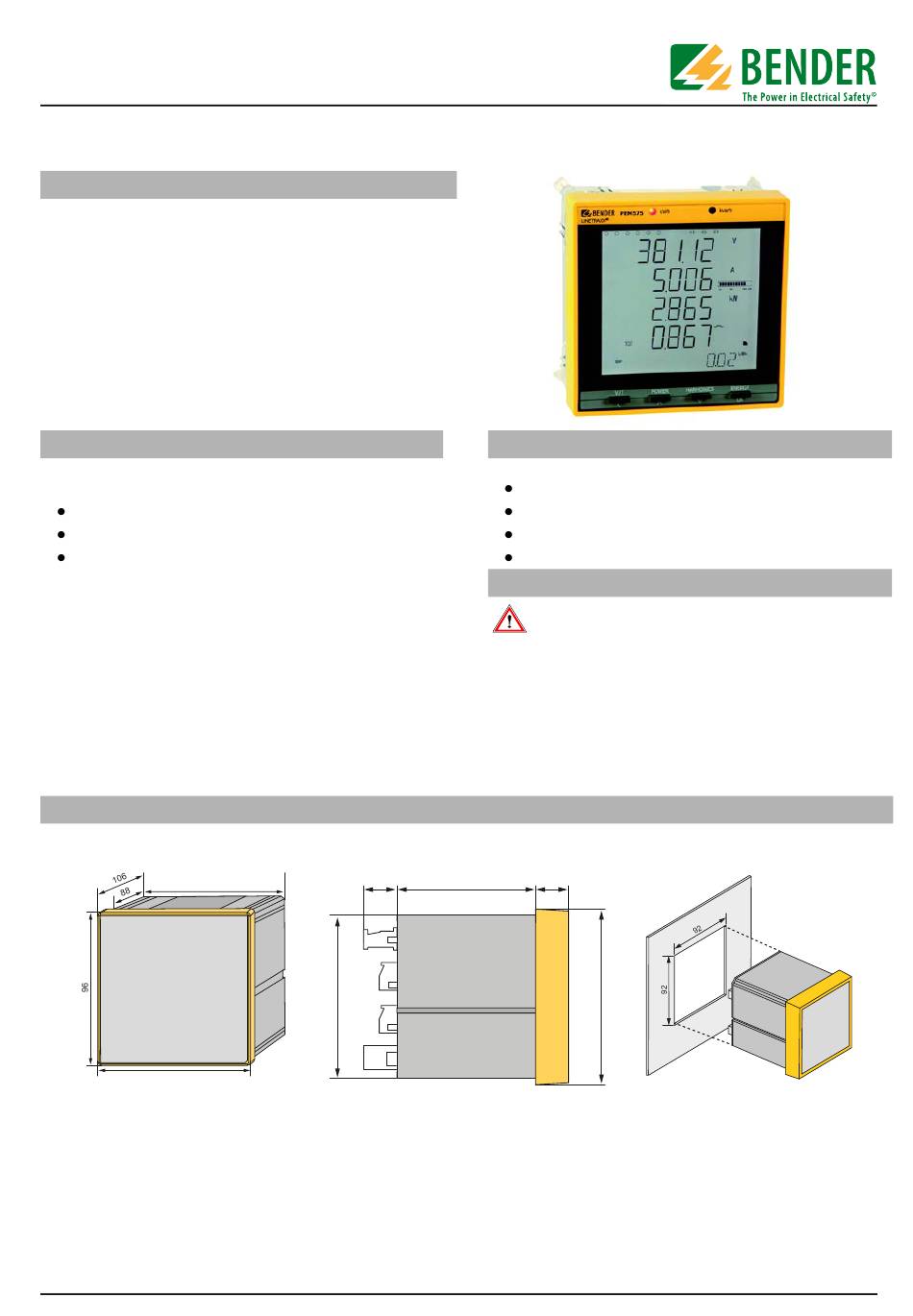

Front-panel mounting (front view, side view, panel cutout)
91
96
A front-panel cutout of 92 mm x 92 mm is required for the device.
1. Insert the device into the installation opening of the front panel.
2. Insert the two installation clips into the equipment rail from behind.
3. Push the installation clips towards the front panel and tighten the screws by hand.
4. Check the device to ensure that it is firmly mounted in the front panel.
PEM575_D00016_00_Q_XXEN/08.2013
Scope of delivery
Safety instruction
Follow the basic safety rules when working with electricity.
Consider the data on the rated voltage and supply voltage as
specified in the technical data!
18 88
91
1 PEM575
Safety instructions
This short operating instructions
1 sealing frame "IP54"
Danger of electric shock!
18
96
1
