Bender PEM330 Quick Start

Quick start

PEM330/PEM333

Short instructions

These short instructions do not replace the operating manu-
al. You will find the operating manual on
Make sure that the personnel has read this manual and under-
stood all instructions relating to safety.

Intended use

The digital universal measuring device PEM330/PEM333 is suitable
for measuring and displaying electrical parameters of electricity
networks. The device measures current, voltage, energy consumpti-
on and power as well as the total harmonic distortion for assess-
ment of the voltage and current quality.
The accuracy of the active energy metering corresponds to class
0.5 S in compliance with the DIN EN 62053-22 (VDE 0418 Part 3-
22):2003-11.

Scope of delivery

one PEM330 or PEM333
important safety instructions for Bender Products
these short instructions
one sealing frame "IP54"

Installing the device

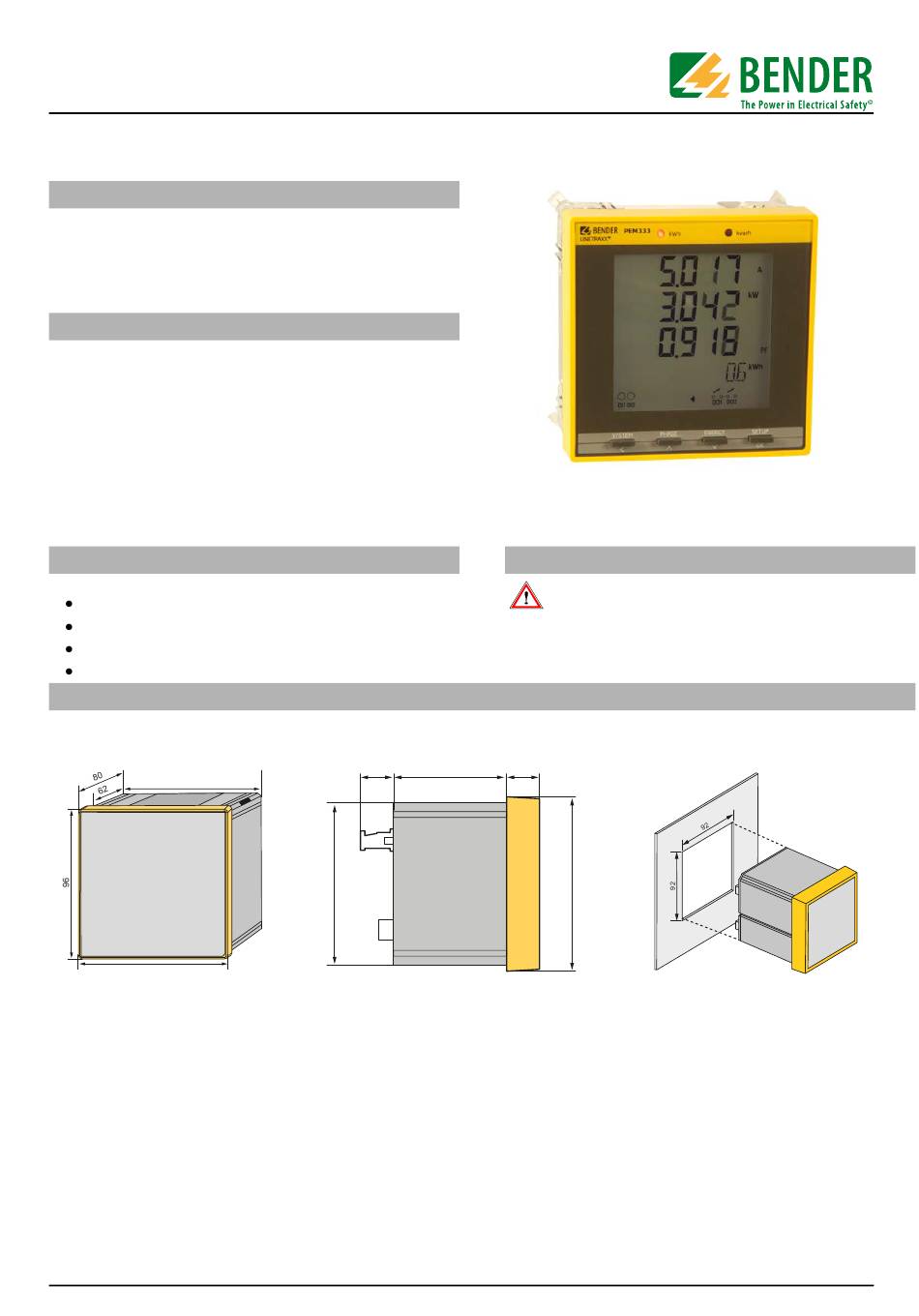

Front panel mounting (front view, side view, panel cut-out)
91
96
A front panel cutout of 92 mm x 92 mm is required for the device.
1. Fit the device through the cut-out in the front panel.
2. Put the 4 transparent mounting brackets from behind on the edges of the device.
3. Push the clips tightly against the panel to secure the device.
4. Check the device to ensure that it is firmly installed in the front panel.
PEM330-333_D00004_00_Q_XXEN/03.2013
www.bender-de.com
18 62
91

Safety instruction

Danger of electric shock!
Follow the basic safety rules when working with electricity.
Consider the data on the rated voltage and supply voltage as
specified in the technical data!
18
96
1
