Bender PEM330 Quick Start

Quick start
PEM330/PEM333/PEM333-P

1. Short instructions

These short instructions do not replace the operating manual.
You will find the operating manual on
Make sure that the personnel has read this manual and understood
all instructions relating to safety.

2. Intended use

The digital universal measuring device PEM330/PEM333(-P) is
suitable for measuring and displaying electrical parameters of elec-
tricity networks. The device measures current, voltage, energy con-
sumption and power as well as the total harmonic distortion for
assessment of the voltage and current quality.
The accuracy of the active energy metering corresponds to class
0,5 S in compliance with the DIN EN 62053-22 (VDE 0418 Part 3-
22):2003-11.

3. Scope of delivery

• one PEM330 or PEM333 or PEM333-P
• Safety instructions for Bender Products
• these short instructions
• one sealing frame "IP54"

5. Installing the device

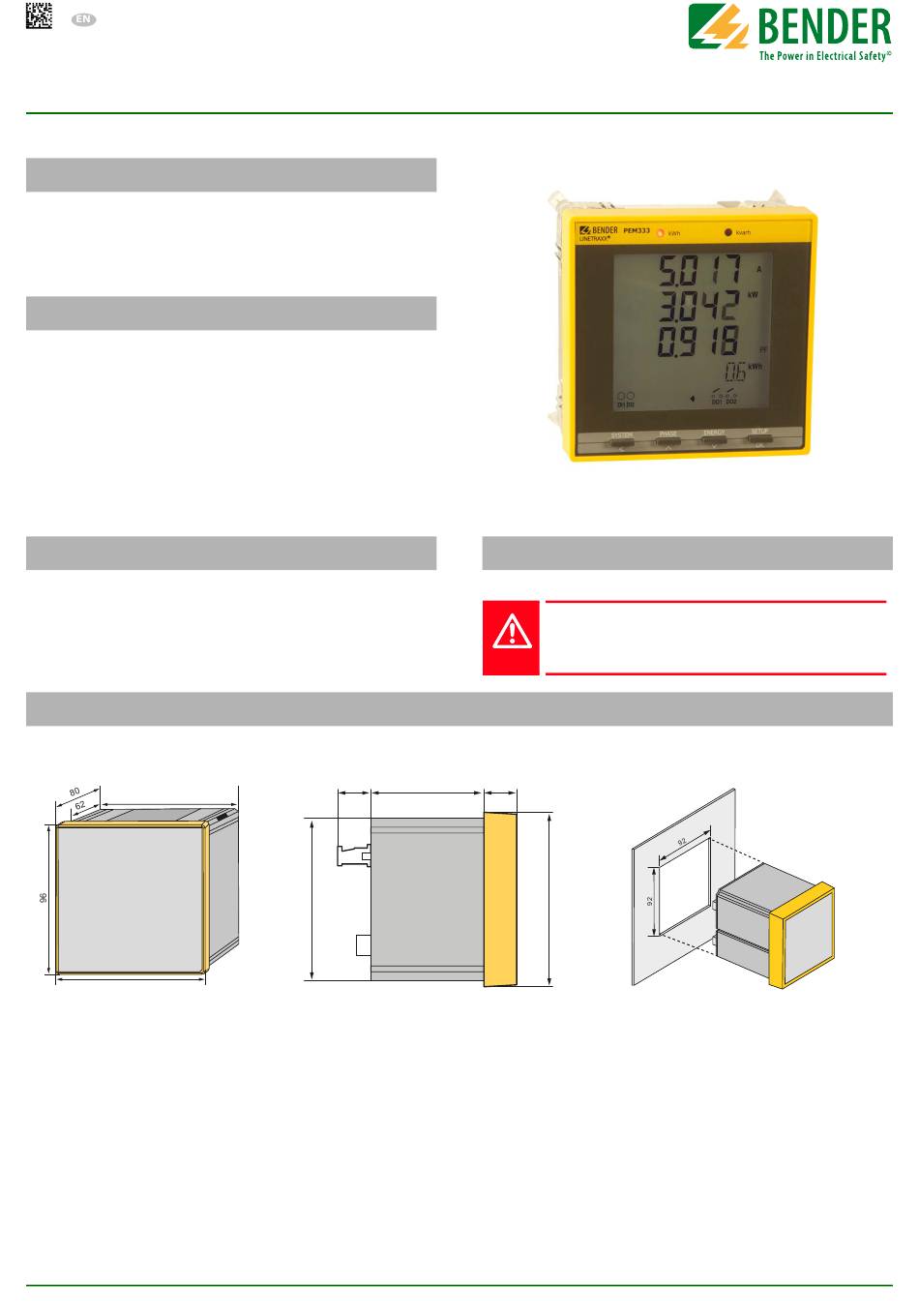

Front panel mounting (front view, side view, panel cut-out)
91
96
A front panel cutout of 92 mm x 92 mm is required for the device.
1. Fit the device through the cut-out in the front panel.
2. Put the 4 transparent mounting brackets from behind on the edges of the device.
3. Push the clips tightly against the panel to secure the device.
4. Check the device to ensure that it is firmly installed in the front panel.
PEM330-333_D00004_02_Q_XXEN/08.2015
www.bender.de
18 62
91

4. Safety instruction

Danger of electric shock!
Follow the basic safety rules when working with electricity.
Consider the data on the rated voltage and supply voltage as
DANGER specified in the technical data!
18
96
EN-1
