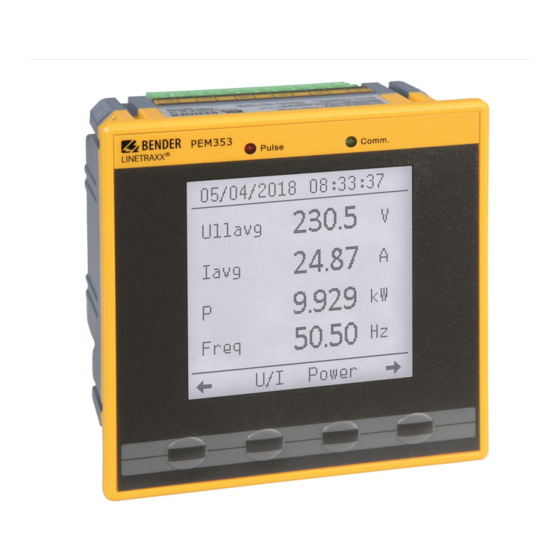

PEM353 - Universal measuring device
i
Part of the device documentation in addition to
this quickstart is the enclosed "Safety instructions
for Bender products" and the manual, downloada-
ble at https://www.bender.de/en/service-support/
download area. The quickstart guide does not re-
place the manual.
Quickstart guide for the following devices
Type
PEM353
PEM353-P
PEM353-N
Scope of delivery
PEM353, rubber seal, 4 x retaining clips, safety instructi-
ons for Bender products, quickstart guide
Safety instructions
I
of fatal injury due to electric shock! Touching
R
isk
live parts of the system carries the risk of an electric
shock, damage to the electrical installation or de-
struction of the device. Before installing and con-
necting the device, make sure that the installati-
on has been de-energised. Observe the rules for
working on electrical installations. Refer to the ra-
ted and supply voltage values as specified in the
Installation (mm)
Mounting in a front panel
Mounting opening 92 mm x 92 mm (max. 92.8 x 92.8 mm).
1. Mount the rubber seal on the back of the device.
2. Insert the device into the mounting opening of the
front panel.
PEM353_D00335_01_XXEN / 09.2022
Art.-No.
B93100355
B93100354
B93100353
Intended use
The PEM353 is suitable for use in 2-, 3- and 4-wire sys-
tems and in their respective versions as TN, TT and IT sys-
tems. The current measurement inputs of the PEM353 are
always connected via external .../1A or .../5A measuring
current transformers. In principle, measurements in medi-
um and high-voltage systems are carried out via voltage
transformers. Use for the intended purpose also includes:
Any other use than that described in this manual is regar-
ded as improper.
96
96
3. Place the four retaining clips over the device corners
4. Push the retaining clips tightly against the front plate.
5. Check the device to ensure that it is firmly installed.
The device is installed.

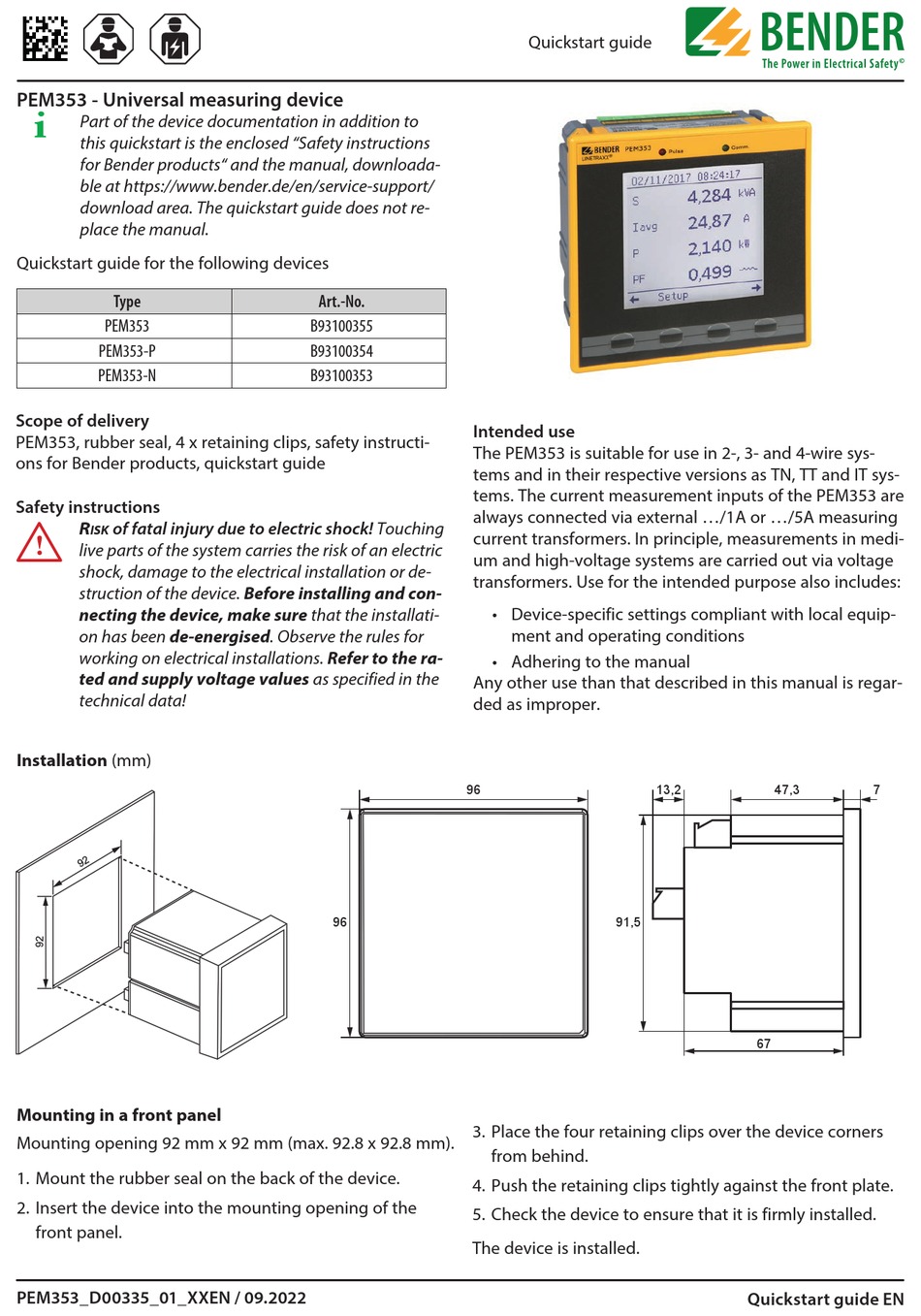

Quickstart guide
• Device-specific settings compliant with local equip-
ment and operating conditions
• Adhering to the manual
13,2
91,5
from behind.
47,3
7
67
Quickstart guide EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bender PEM353
Summary of Contents for Bender PEM353
- Page 1 Intended use PEM353, rubber seal, 4 x retaining clips, safety instructi- The PEM353 is suitable for use in 2-, 3- and 4-wire sys- ons for Bender products, quickstart guide tems and in their respective versions as TN, TT and IT sys- tems.
- Page 2 DIC DI1…4 of 1 mA is required for triggering the inputs. An external circuit providing at least a current I PEM353(-N) features 2 configurable outputs (N/O relay) PEM353-P features 2 pulse outputs ("Solid State Relay") DO13 DO14 Digital outputs E1+/E2+ DOa…d...
- Page 3 PEM353 Connection diagrams Connect the device according to the connection diagram. Please observe the technical data. 1P2W L-N 1P2W L-L 1P3W with 2 measuring current transformers Source Load Source Load Source Load 3P3W with 3 measuring current transformers 3P4W with 3 (4) measuring current transformers...
- Page 4 Outputs ..............2 N/O contacts Overvoltage category/Rated voltage .......... III/50 V Operating principle ............N/O operation Output circuit 2 (IC5) for PEM353-N and PEM353 ..(DO23, DO24) PEM353-N, PEM353 Overvoltage category/Rated voltage ........III/300 V Relay contacts, N/O operation, AC 250 V or DC 30 V ......5 A Output circuit 2 (IC5) for PEM353-P ........
