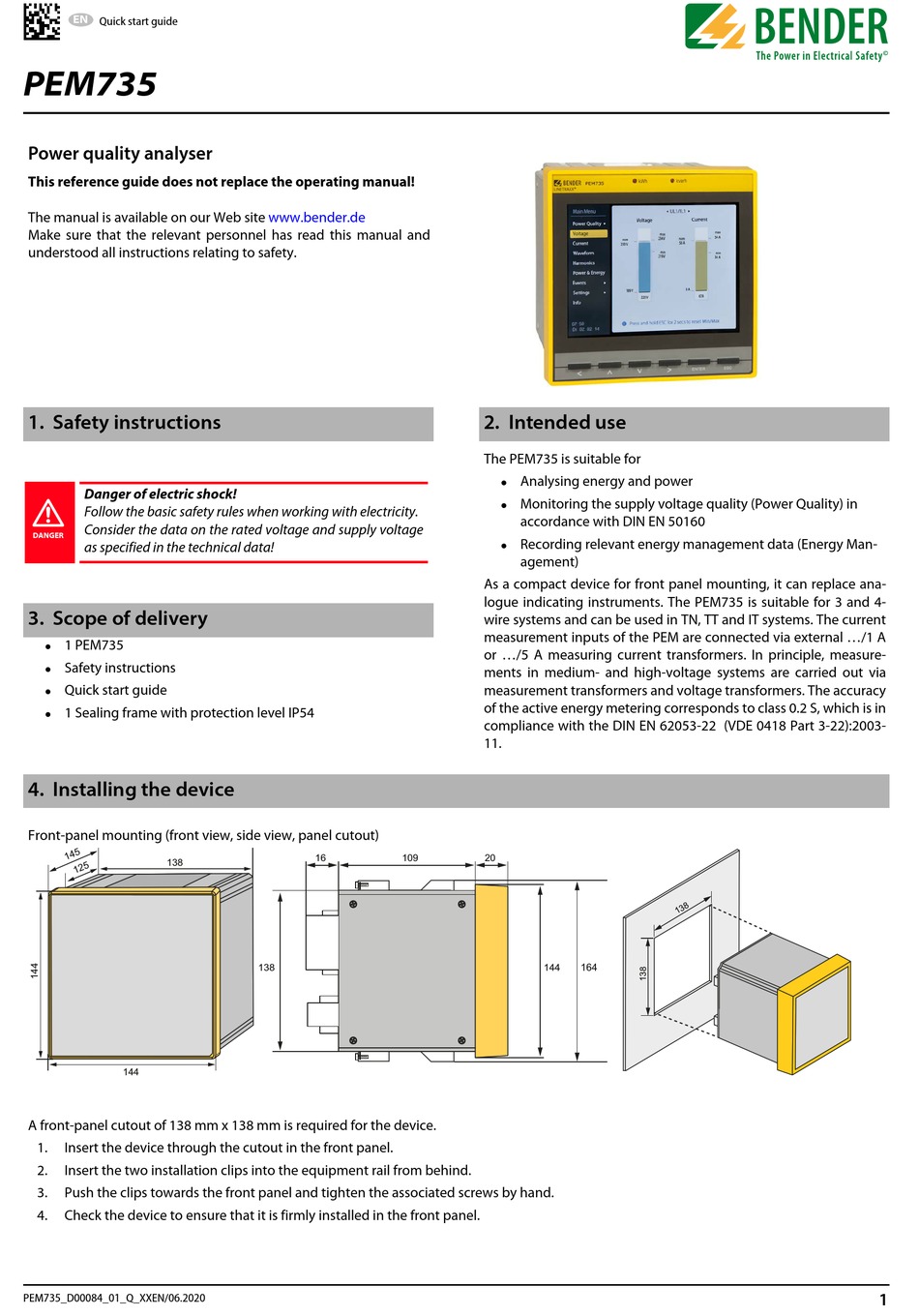

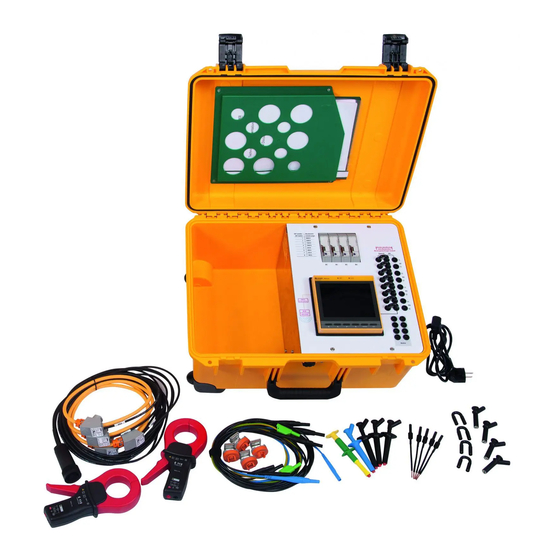

Quick start guide
Power quality analyser
This reference guide does not replace the operating manual!
The manual is available on our Web site
Make sure that the relevant personnel has read this manual and
understood all instructions relating to safety.

1. Safety instructions

Danger of electric shock!
Follow the basic safety rules when working with electricity.
Consider the data on the rated voltage and supply voltage
DANGER
as specified in the technical data!

3. Scope of delivery

1 PEM735
Safety instructions
Quick start guide
1 Sealing frame with protection level IP54

4. Installing the device

Front-panel mounting (front view, side view, panel cutout)
138
144
A front-panel cutout of 138 mm x 138 mm is required for the device.
1.
Insert the device through the cutout in the front panel.
2.
Insert the two installation clips into the equipment rail from behind.
3.
Push the clips towards the front panel and tighten the associated screws by hand.
4.
Check the device to ensure that it is firmly installed in the front panel.
PEM735_D00084_01_Q_XXEN/06.2020
www.bender.de
16
109
138

2. Intended use

The PEM735 is suitable for
Analysing energy and power
Monitoring the supply voltage quality (Power Quality) in
accordance with DIN EN 50160
Recording relevant energy management data (Energy Man-
agement)
As a compact device for front panel mounting, it can replace ana-
logue indicating instruments. The PEM735 is suitable for 3 and 4-
wire systems and can be used in TN, TT and IT systems. The current
measurement inputs of the PEM are connected via external .../1 A
or .../5 A measuring current transformers. In principle, measure-
ments in medium- and high-voltage systems are carried out via
measurement transformers and voltage transformers. The accuracy
of the active energy metering corresponds to class 0.2 S, which is in
compliance with the DIN EN 62053-22 (VDE 0418 Part 3-22):2003-
11.
20
144
164
1
