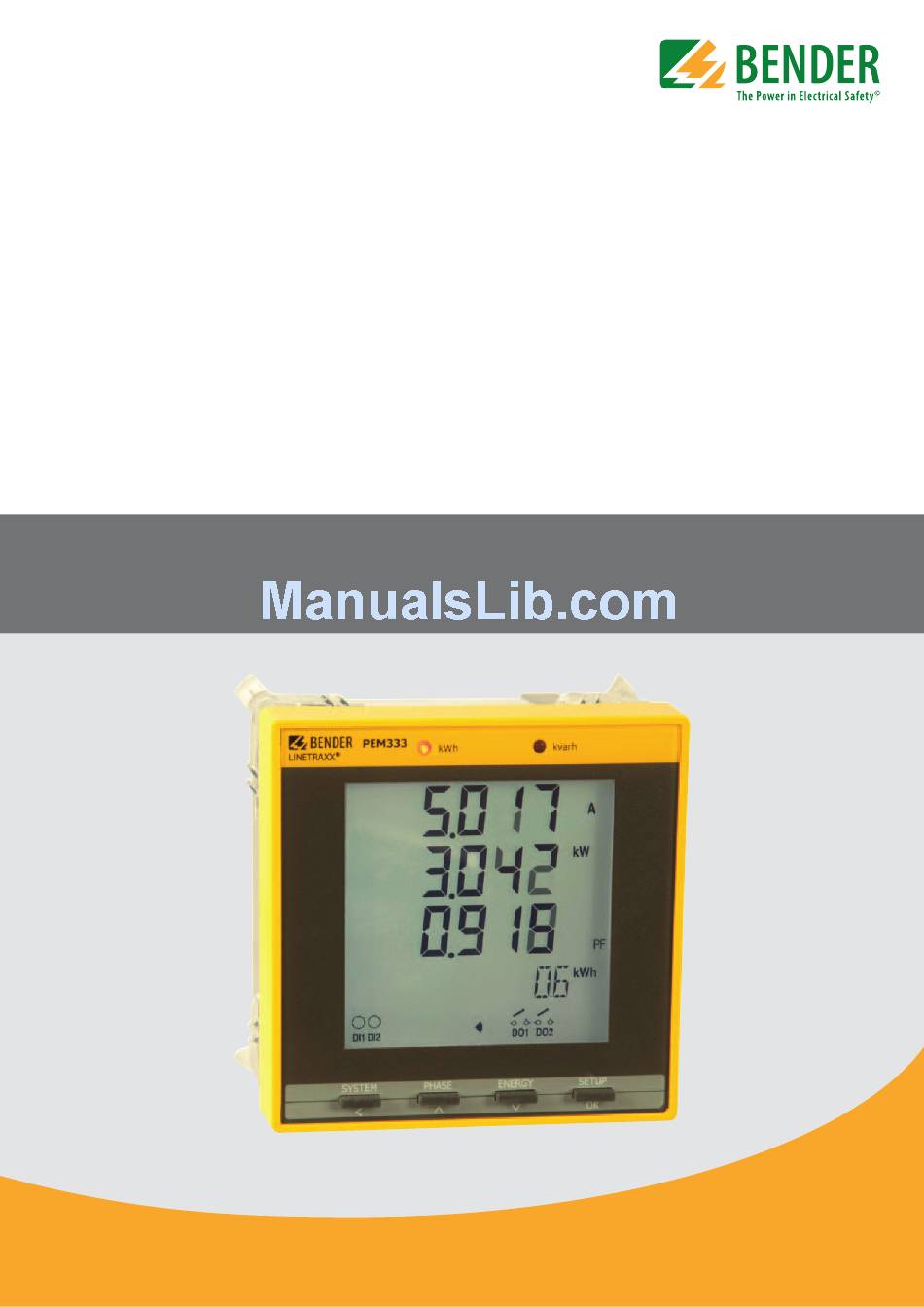

- Page 1 Power Quality and Energy Measurement PEM330/PEM333 PEM330-333_D00004_00_D_XXEN/06.2013...
-
Page 2: Product Description
DIN EN 62053-22 class 0.5 S accuracy standard.The current inputs are connected via external …/1 A or …/5 A measuring current transformers. Typical application • As a compact device for front panel mounting, the PEM330/333 is a replacement for analogue indicating instruments • Typical application in low and medium-voltage networks... -
Page 3: Operating Elements
Power Quality and Energy Measurement PEM330/PEM333 Operating elements Pulse LED: kWh Pulse LED: kvarh PEM333 kvarh Display “SYSTEM” button: Selection (in the menu) “PHASE” button: Up (in the menu) “ENERGY” button: Down (in the menu) “SETUP” button: OK (in the menu) Press the “SETUP”... -
Page 4: Wiring Diagram
Digital inputs The coupling via measuring voltage transformers allows the use Digital outputs (N/O contacts) of a measuring device in medium and high voltage systems. The transformation ratio in PEM330/PEM333 can be adjusted (1…2200). LV / MV / HV PEM330-333_D00004_00_D_XXEN/06.2013... -
Page 5: Technical Data
Power Quality and Energy Measurement PEM330/PEM333 Technical data Insulation co-ordination Interface* Interface/protocol RS-485/Modbus/RTU Measuring circuit Baud rate 1.2…19.2 kbits/s Rated insulation voltage 300 V Cable length 0…1200 m Overvoltage category Shielded cable recommended: J-Y(St)Y min. 2 x 0.8 Pollution degree... -
Page 6: Ordering Information
B 9310 0330 – – PEM330-251 B 9310 0331 PEM333 B 9310 0333 RS-485 PEM333-251 B 9310 0334 Dimension diagram Panel cut out Dimensions in mm Dimensions in mm Bender GmbH & Co. KG P.O.Box 1161 • 35301 Gruenberg • Germany Londorfer Straße 65 • 35305 Gruenberg • Germany Tel.: +49 6401 807-0 • Fax: +49 6401 807-259 BENDER Group E-mail: info@bender-de.com • www.bender-de.com...
