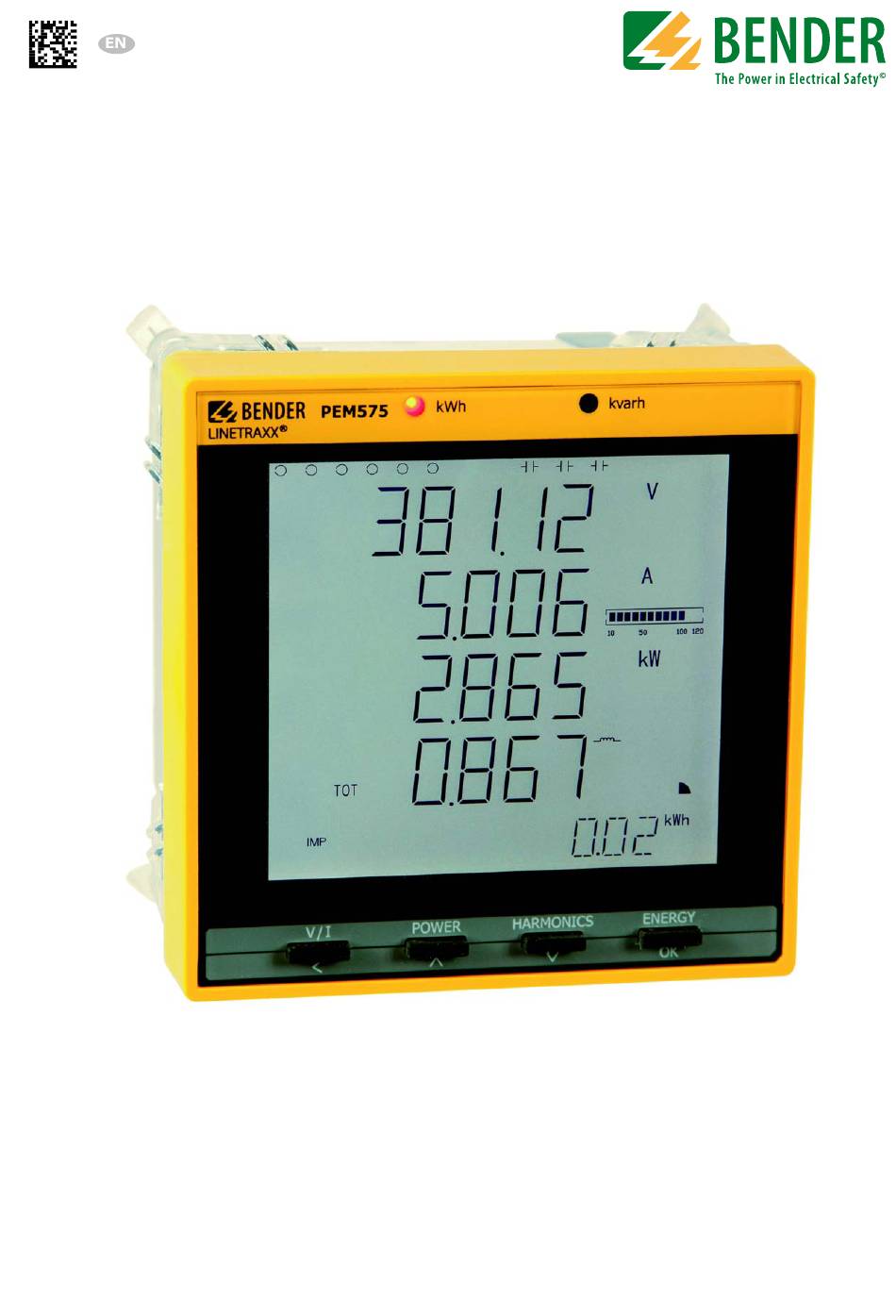

Manual
PEM575
Universal measuring device
Software version 2.00.xx
PEM575_D00016_00_M_XXEN/04.2015
B 9310 0575
B 9310 0576
B 9310 0577
B 9310 0578

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LINETRAXX PEM575 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bender LINETRAXX PEM575 Series

  • Page 1 Manual PEM575 B 9310 0575 Universal measuring device B 9310 0576 Software version 2.00.xx B 9310 0577 B 9310 0578 PEM575_D00016_00_M_XXEN/04.2015...
  • Page 2 Postfach 1161 • 35301 Gruenberg • Germany Bender GmbH & Co. KG Tel.: +49 6401 807-0 All rights reserved. Fax: +49 6401 807-259 Reprinting only with permission E-Mail: info@bender.de of the publisher. Subject to change! www.bender.de Photos: Bender and bender systembau archives.
  • Page 3: Table Of Contents

    Table of Contents 1. Making effective use of this document ..........9 How to use this manual ..................9 Technical support: Service and support ............10 Workshops ....................... 11 Delivery conditions, guarantee, warranty and liability ......11 2. Safety ...................... 13 Intended use ......................
  • Page 4 Table of Contents Instructions for connection ................21 Wiring diagram ....................... 22 Connection diagram voltage inputs ............... 23 4.7.1 Three-phase 4-wire system (TN, TT, IT system) ........23 4.7.2 Three-phase 3-wire system ............... 25 4.7.3 Connection via voltage transformers ........... 26 Digital inputs ......................
  • Page 5 Table of Contents 7. Application/inputs and outputs ............53 Digital inputs (DI) ....................53 Digital outputs (DO) ..................... 53 Energy pulsing output ..................54 Power and energy ....................54 7.4.1 Basic measurements ................... 54 7.4.2 High-speed measurements ..............55 7.4.3 Voltage and current phase angles ............
  • Page 6 Table of Contents 10. Modbus Register Map ................ 89 10.1 Basic measurements ..................... 91 10.2 Energy measurement ................... 96 10.3 Pulse counter ......................98 10.4 Fundamental measurements (Power quality) ..........98 10.5 Harmonic measurements (Power quality) ..........100 10.6 High-speed measurement ................102 10.7 Demand ........................
  • Page 7 Table of Contents 10.15 Energy log ......................144 10.16 PQ log ........................146 10.17 Event log (SOE log) ..................... 148 10.17.1 Energy log register ..................148 10.17.2 Event log data structure ................. 149 10.17.3 Event classification (SOE log) ............... 150 10.18 Time setting ......................
  • Page 9: Making Effective Use Of This Document

    Although great care has been taken in the drafting of this operating manual, it may nev- ertheless contain errors and mistakes. Bender cannot accept any liability for injury to persons or damage to property resulting from errors or mistakes in this manual.
  • Page 10: Technical Support: Service And Support

    Repair, calibration, testing and analysing Bender products   Hardware and software update for Bender devices   Delivery of replacement devices for faulty or incorrectly delivered Bender devices   Extended warranty for Bender devices with in-house repair service resp. replace-  ...
  • Page 11: Workshops

    **Mo-Thu 7.00 a.m. - 8.00 p.m., Fr 7.00 a.m. - 13.00 p.m. 1.3 Workshops Bender would be happy to provide training in respect of the use of the universal measuring device. Current dates of training courses and workshops can be found on the Internet at www.bender.de ->...
  • Page 12 Making effective use of this document PEM735_D00084_00_M_XXEN/02.2015...
  • Page 13: Safety

    2. Safety 2.1 Intended use The universal measuring device PEM575 is suitable for the analysis of energy and power   monitoring of the power supply quality   data recording for energy management.   As a compact device for front panel mounting, it is a replacement for analogue in- dicating instruments.
  • Page 14: General Safety Instructions

    Safety 2.3 General safety instructions Bender devices are designed and built in accordance with the state of the art and accepted rules in respect of technical safety. However, the use of such devices may introduce risks to the life and limb of the user or third parties and/or result in dama- ge to Bender equipment or other property.
  • Page 15: Device Description

    3. Device description 3.1 Area of application For humans, electric current is not immediately visible. Universal measuring de- vices for monitoring electrical parameters are used wherever energy consumption, performance measurements or the quality of the supply voltage are to be made vi- sible.
  • Page 16: Versions

    Device description – Galvanically isolated RS-485 interface (1,200 … 19,200 bit/s) – Modbus/RTU protocol – Modbus/TCP (10/100 Mbit/s) Measured quantities   – Phase voltages in V – Line-to-line voltages in V L1L2 L2L3 L3L1 – Phase currents in A –...
  • Page 17: Application Example

    3.4 Application example PEM7xx PEM7xx Ethernet Datenbank Modbus TCP Modbus TCP NSHV CP700 1…12 PEM5xx PEM5xx Modbus RCMS 1…12 Modbus TCP Modbus TCP Modbus RTU Modbus RTU RCMS PEM3xx PEM3xx Modbus RTU Modbus RTU Fig. 3.1: Application example 3.5 Description of function The digital universal measuring device PEM575 is suited for measuring and display- ing electrical quantities of a public electricity network.
  • Page 18: Front View And Rear View

    Device description The accuracy of the active energy metering corresponds to class 0.2 S in compli- ance with the DIN EN 62053-22 (VDE 0418 Part 3-22):2003-11. The large display of the panel mounting device makes the relevant measured quantities easily legible and enables fast configuration. In addition, the RS-485 in- terface allows a central evaluation and processing of data.
  • Page 19: Installation And Connection

    4. Installation and connection 4.1 Project planning For any questions associated with project planning, please contact Bender: Internet: www.bender.de Tel.: +49-6401-807-0 4.2 Safety instructions Only electrically skilled persons are allowed to connect and commission the device. Such persons must have read this manual and understood all instructions relating to safety.
  • Page 20: Front Panel Mounting

    Installation and connection Fig. 4.2: Dimension diagram PEM575 (side view) Fig. 4.3: Dimension diagram PEM575 (panel cutout) 4.3.2 Front panel mounting A front panel cutout of 92 mm x 92 mm is necessary for installation. 1. Insert the device through the cutout in the front panel. 2.
  • Page 21: Connection Of The Device

    Installation and connection 4.4 Connection of the device 4.4.1 Safety information Danger of electric shock! Follow the basic safety rules when working with electricity. Consider the data on the rated voltage and supply voltage as specified DANGER in the technical data! 4.4.2 Back-up fuses Back-up fuse supply voltage: 6 A...
  • Page 22: Wiring Diagram

    Installation and connection 4.6 Wiring diagram Connect the device according the wiring diagram. The connections are located at the rear of the device. DIC DI1 DI2 DI3 DI4 DI5 DI6 Power RS-485 DO34 DO33 DO24 DO23 DO14 DO13 D- SH •...
  • Page 23: Connection Diagram Voltage Inputs

    Installation and connection Legend to wiring diagram Connection RS-485 bus Supply voltage. Power protection by a 6 A fuse, quick response. If being supplied from an IT system, both lines have to be protected by a fuse. Digital inputs Digital outputs (N/O contacts) Measuring voltage inputs: The measuring leads should be protected with appropriate fuses.
  • Page 24 Installation and connection tems, independent of the type of distribution system (TN, TT, IT system). AC 400 V / 230 V Fig. 4.5: Connection diagram three-phase 4-wire system (e.g. TN-S system) PEM735_D00084_00_M_XXEN/02.2015...
  • Page 25: Three-Phase 3-Wire System

    Installation and connection 4.7.2 Three-phase 3-wire system The universal measuring device PEM575 can be used in three-phase-3-wire sys- tems. The line voltage must not exceed AC 400 V. When used in 3-wire systems, the connection type (TYPE) has to be set to DELTA (refer to page 46).
  • Page 26: Connection Via Voltage Transformers

    Installation and connection 4.7.3 Connection via voltage transformers The coupling via voltage transformers allows the use of the measuring device in medium and high voltage systems. The transformation ratio can be adjusted in the PEM575 (1…2200). LV / MV / HV Fig.
  • Page 27: Digital Outputs

    4.9 Digital outputs The universal measuring device PEM575 features 3 configurable outputs (N/O contact). Rated operational DO13 DO14 AC 230 V DC 24 V AC 110 V DC 12 V voltage DO23 DO24 Rated DO33 DO34 operational current 4.10 Modbus TCP (connector pin assignment) RJ45 assignment Transmit Data +...
  • Page 28 Installation and connection PEM735_D00084_00_M_XXEN/02.2015...
  • Page 29: Commissioning

    5. Commissioning 5.1 Check proper connection Observe the relevant standards and regulations that have to be observed for instal- lation and connection as well as the operating manual of the respective device. 5.2 Before switching on Before switching on think carefully about these questions: 1.
  • Page 30: System

    RTU. For details refer to „chapter 10. Modbus Register Map“ or the Internet www.modbus.org. In addition, it is possible to integrate the device into Bender's own BMS (Bender measuring device interface) bus protocol via additional communication modules. In this way, communication with (already existing) Bender devices for device para- meterisation and visualisation of measured values and alarms can be achieved.
  • Page 31: Operation

    Operation 6. Operation 6.1 Getting to know the operating elements PEM575 kvarh POWER HARMONICS ENERGY Fig. 6.1: Operating elements PEM735_D00084_00_M_XXEN/02.2015...
  • Page 32: Lcd Testing

    Operation Legend to operating elements Element Description LED kWh Pulse output, see page 37 LED kvarh LC display Display mean values and total values (current, voltage) "V/I" button in the menu: in case of numerical values: move the cursor one to the left by one posi- tion Display power-related measured quantities "POWER"...
  • Page 33: Getting To Know Standard Display Areas

    Operation During testing, all LCD segments are illuminated for one second and then turned off for 1 second. This cycle will be repeated 3 times. After completion of the test run, the device automatically returns to its normal display mode. Fig.
  • Page 34 Operation Legend to standard display areas No. Description Displays the indicators for DI status and DO status Measured values Harmonic Distortion HD, unbalance (unb), quadrant, measure- ment units Displays energy information such as active energy (import, export, net energy and total energy in kWh), reactive energy (import, export, energy net amount and total energy in kvar), apparent energy (S in kVAh)
  • Page 35 Operation Description of standard display indications (ranges 1, 3 and 4) Area Segments Symbol description DI open DI closed DO open DO closed kW, MW, kvar, kVA, V, kV, A, %, Hz Measurement units for Measurement units for U, I, THD, f P, Q, S Current value expressed inductive, capacitive...
  • Page 36: Power And Current Demands (Demand Display)

    Operation 6.4 Power and current demands (demand display) The demands are indicated on the display according to the following scheme: Fig. 6.5: Display: peak demand Legend to demand display No. Display Peak demand value Peak demand timestamp (date): JJJJ.MM.TT Peak demand timestamp (time): HH:MM:SS Demand displays: Active energy demand P Reactive energy demand Q...
  • Page 37: Led Indication

    Operation 6.5 LED indication The universal measuring device features two red LEDs on its front panel: kWh and kvarh. The two LED indicators are used for the indication of kWh and kvar, if the EN PULSE function is enabled. The setting can be carried out in the setup menu using the buttons on the front or via the communications interface..
  • Page 38: V/I" Button

    Operation 6.7.1 "V/I" button Left Right First line Second line Third line Fourth line column column Power factor Ø U Ø I λ *Ø U U1-2 Ø U L1L2 L2L3 L3L1 Ø I Neutral current (calculated) Ø U L1(f0) L2 (f0) L3 (f0) LN (f0) Ø...
  • Page 39 Operation Left Right First line Second line Third line Fourth line column column Demand I Demand I Demand I Ø Demand I DMD I Demand I4 Peak demand I JJJJ.MM.TT hh:mm:ss this month Peak demand I JJJJ.MM.TT hh:mm:ss this month Peak demand I JJJJ.MM.TT hh:mm:ss this month...
  • Page 40: Power"Button

    Operation 6.7.2 "POWER"button Left Right First line Second line Third line Fourth line column column λ λ λ λ L1 (f0) L2 (f0) L3 (f0) ges (f0) L1 (f0) L2 (f0) L3 (f0) ges (f0) L1 (f0) L2 (f0) L3 (f0) ges (f0) *dPF1 Displace-...
  • Page 41 Operation Left Right First line Second line Third line Fourth line column column λ ges (f0) ges (f0) ges (f0) ges (f0) Demand Demand P Demand Q Demand S λ Predicted Predicted demand Predicted demand Predicted demand demand λ Peak demand P YYYY.MM.DD hh:mm:ss this month Peak demand Q...
  • Page 42: Harmonics" Button

    Operation 6.7.3 "HARMONICS" button Left Right First line Second line Third line Fourth line column column THD U Ø THD Ø THD k-factor I k-factor I k-factor I TEHD TEHD TEHD Ø TEHD Even TEHD TEHD TEHD Ø TEHD Even TOHD TOHD TOHD...
  • Page 43: Energy" Button

    Operation Left Right First line Second line Third line Fourth line column column *HD31 harmonic I Ø 31 harmonic I Tab. 6.3: Display screens via the "HARMONICS" button Note table 6.3: * The harmonics 32…63 can only be queried via the communication interface. 6.7.4 "ENERGY"...
  • Page 44: Setup Configuration Via The Front Panel

    Operation 6.8 Setup configuration via the front panel Pressing the "ENERGY" button for more than 3 seconds enters the Setup configura- tion mode. Upon completion, pressing the "ENERGY" button for more than 3 seconds returns to the data display mode. A correct password must be entered before parameter changes are allowe (factory default password is 0).
  • Page 45: Setup: Overview Diagram Menu

    Operation 6.8.2 Setup: Overview diagram menu The following diagram will help you to familiarise yourself with the menu. Serial number Date update UPDAT Protocol version PROVER Info INFO Software version SW-VER Clear PQ memory CLR PQ Clear event memory CLR SOE Set time Clear pulse counter CLR DIC...
  • Page 46: Setup: Adjustment Possibilities

    Operation 6.9 Setup: adjustment possibilities The table illustrates the display screens, their meaning and the adjustment possibilities. Display screen Adjustment Default Level 1 Parameters Description possibilities setting Level 2 PROGRAMMING Setup mode PASWORD Password Enter password PAS SET Change password? YES/NO NEW PAS New password Enter new password...
  • Page 47 Operation Display screen Adjustment Default Level 1 Parameters Description possibilities setting Level 2 Reverse phase I I2 REV I YES/NO CT polarity Reverse phase I I3 REV I3 CT YES/NO CT polarity 0…60 BLTO SET Display backlight Backlight timeout (minutes) COM 1 SET Configure communications interface YES/NO...
  • Page 48 Operation Display screen Adjustment Default Level 1 Parameters Description possibilities setting Level 2 Sliding window Set sliding window inter- 1…99 (minu- PERIOD interval tes) Demand cycles Set the number of 1…15 (sliding windows) sliding windows SENS Predicted demand sensitivity 70…99 PULS SET Set pulse output YES/NO...
  • Page 49 Operation Display screen Adjustment Default Level 1 Parameters Description possibilities setting Level 2 Operating mode NORMAL/ON/ NOR- Set operating mode DO3 CLR SET Clear memory YES/NO Clear energy CLR ENGY Clear kWh, kvarh and kVAh YES/NO values CLR MXMN Clear Max and Min values of this month YES/NO CLR PDMD Clear peak demand values of this month YES/NO...
  • Page 50 Operation Explanatory notes table 6.5 *Power factor λ rules Reactive power import Reactive power import Quadrant 2 Quadrant 1 Quadrant 2 Quadrant 1 Power factor (-) Power factor (+) Power factor (+) Power factor (-) Active power export (-) Active power import (+) Active power export (-) Active power export (+) Reactive power import (+)
  • Page 51 Operation ***There are two ways to calculate the individual harmonic distortion: FUND "Fundamental": x 100 % THD U(k) = THD calculation of an individual harmonic (related to fundamental U resp. I x 100 % THD I(k) = x 100 % "Root Mean Square": U(k) ∞...
  • Page 52: Configuration Example

    Operation 6.10 Configuration example: Setting the measuring current transformer ratio to 200 Button Display text Description PROGRAMMING > 3 s PASWORD **** PASWORD 0 0 flashes PASWORD 0 0 = factory setting PAS SET NO SYS SET NO SYS SET NO NO flashes SYS SET YES YES flashes...
  • Page 53: Application/Inputs And Outputs

    Application/inputs and outputs 7. Application/inputs and outputs 7.1 Digital inputs (DI) The device features six digital inputs which are internally operated with DC 24 V. Digital inputs are typically used for monitoring external statuses. The real-time statuses of the digital inputs are available on the front panel LC display as well as through connected system components.
  • Page 54: Energy Pulsing Output

    Application/inputs and outputs 7.3 Energy pulsing output The two LED pulse outputs are used for kWh and kvarh indication, if the function EN PULSE is enabled. Energy pulsing can be enabled from the front panel through the EN Pulse setup parameter or via the communications interface. The LEDs flash each time a certain amount of energy is reached (1 kWh resp.
  • Page 55: High-Speed Measurements

    Application/inputs and outputs 7.4.2 High-speed measurements In addition to the basic measurements, the PEM575 provides the following high- speed measurements: three-phase voltages (10 ms)   three-phase currents (20 ms)   three-phase power (20 ms)   λ three-phase power factors (20 ms) ...
  • Page 56 Application/inputs and outputs Demand period (1…99 min)   Example of a total demand period: Demand cycles: 3 Demand period: 20 min Total demand period: 3 x 20 min = 60 min Predicted demand sensitivity SENS (70…99)   Values are determined for present demand and predicted demand Voltages (U , ØU , ØU...
  • Page 57: Max/Min Values Per Demand Period

    Application/inputs and outputs 7.5.1 Max/Min values per demand period The PEM575 records the min and max values of the following measurements for each demand period three-phase voltages   three-phase currents   three-phase frequencies   three-phase power   λ...
  • Page 58 Application/inputs and outputs Setpoints Key for setpoint Parameters Factor; Unit x 100; V x 100; V x 1000; A x 1000; A Δ f x 100, Hz kvar λ x1,000 Over setpoint active limit: DI= 1 (close) inactive limit: DI = 0 (open) Under setpoint active limit: DI= 0 (open) inactive limit: DI = 1 (close)
  • Page 59 Application/inputs and outputs Key for setpoint Parameters Factor; Unit TEHD x 100, % x 100, % TOHD x 100, % TEHD x 100, % Unbalance U x 10, % Unbalance I x 10, % Δ U x 100, % Over setpoint active limit: negative phase sequence inactive limit: positive phase sequence Phase sequence...
  • Page 60 Application/inputs and outputs 6. Delay on release: Specifies the minimum period that the setpoint return condition must have met before returning to normal condition. Each status change generates an event which is stored in the event log. The delay on release can be indicated for standard setpoints in the range of 0…9.999 seconds.
  • Page 61: Logic Modules

    Application/inputs and outputs 7.7 Logic modules The PEM575 provides six programmable logic modules which perform AND, NAND, OR or NOR logical operations. Each logic module is capable of linking four different setpoint conditions with each other. Logical expression = (source 1 [mode 1] source 2) [mode 2] source 3 [mode 3] source 4 The alarm symbol at the right side of the LC display appears when there are ac-...
  • Page 62 Application/inputs and outputs PEM735_D00084_00_M_XXEN/02.2015...
  • Page 63: Logging

    Logging 8. Logging 8.1 Peak demand log The PEM575 stores the demand data of the last month and this month with time- stamp for I and S . All values can be accessed through the front panel buttons as well as the communications interface. Data for this month can be deleted through the front panel buttons as well as the communications interface.
  • Page 64 Logging This month Last month Maximum Minimum Maximum Minimum values values values values ges max ges min ges max ges min ges max ges min ges max ges min ges max ges min ges max ges min λ λ λ λ...
  • Page 65: Data Recorder (Dr)

    Logging 8.3 Data recorder (DR) PEM575 has an internal memory of 4 MB and provides 4 high speed data recorders   12 standard recorders   Each of these recorders can record 16 parameters. The data recorders are program- med solely via the communications interface.
  • Page 66: Selectable Measured Quantities For Data Recorders Dr

    Logging Notes: table 8.2 The data recorder is only operational when the parameters 1…4 are all non-zero! "Recording delay": In Trigger mode 1, a fixed time can be set in seconds to delay the start of the measurement (triggered by timer). Example: "300" means that the recording will take place at 5 minutes after the DR is enabled.
  • Page 67 Logging Measured quantities (data recorder) Factor/unit λ x 1,000 λ x 1,000 λ x 1,000 λ x 1,000 x 100, Hz Counter DI1 Counter DI2 Counter DI3 Counter DI4 Counter DI5 Counter DI6 Voltage unbalance x 1000 Current unbalance x 1000 k-factor I x 10 k-factor I...
  • Page 68 Logging Measured quantities (data recorder) Factor/unit TEHD x 10,000 x 10,000 x 10,000 x 10,000 TOHD x 10,000 TOHD x 10,000 TOHD x 10,000 TEHD x 10,000 TEHD x 10,000 TEHD x 10,000 x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic...
  • Page 69 Logging Measured quantities (data recorder) Factor/unit x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic...
  • Page 70 Logging Measured quantities (data recorder) Factor/unit x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic...
  • Page 71 Logging Measured quantities (data recorder) Factor/unit x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic...
  • Page 72 Logging Measured quantities (data recorder) Factor/unit x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic...
  • Page 73 Logging Measured quantities (data recorder) Factor/unit x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic x 10,000 harmonic...
  • Page 74 Logging Measured quantities (data recorder) Factor/unit Ø Demand U x 100, V Demand U x 100, V L1L2 Demand U x 100, V L2L3 Demand U x 100, V L3L1 Ø Demand U x 100, V Demand I x 1000, A Demand I x 1000, A Demand I...
  • Page 75 Logging Measured quantities (data recorder) Factor/unit Demand THD x 10,000 Demand THD x 10,000 Demand THD x 10,000 Demand THD x 10,000 Demand THD x 10,000 (per demand period) x 100, V L1 max (per demand period) x 100, V (per demand period) x 100, V Ø...
  • Page 76 Logging Measured quantities (data recorder) Factor/unit λ (per demand period) x 1000 1 max λ (per demand period) x 1000 2 max λ (per demand period) x 1000 3 max λ (per demand period) x 1000 ges max (per demand period) x 100, Hz max.
  • Page 77 Logging Measured quantities (data recorder) Factor/unit (per demand period) ges min (per demand period) L1 min (per demand period) L2 min (per demand period) L3 min (per demand period) ges min (per demand period) L1 min (per demand period) L2 min (per demand period) L3 min (per demand period)
  • Page 78: Energy Log

    Logging Measured quantities (data recorder) Factor/unit Active energy export Active energy Reactive energy import kvarh Reactive energy export kvarh Reactive energy kvarh Tab. 8.3: Selectable measured quantities, data recorder 8.4 Energy log The energy log stores the interval energy consumption for Active energy import ...
  • Page 79: Waveform Recording (Wfr)

    Logging Parameters Setting Number of parame- 0…5 ters 0 = Import P 1 = Export P Parameters 1…5 2 = Import Q 3 = Export Q 4 = S Tab. 8.4: Setup energy log The energy log will only become active when the values of the Setup settings 1…5 are all non-zero.
  • Page 80 Logging The following set-up parameters are supported: No. Parameters Setting Number of measurements 0…32 (entries) Number of samples per cycle 16, 32, 64, 128, 256 samples Cycles per record 320, 160, 80, 40, 20 cycles Number of cycles before the event 0…10 cycles The total capacity of WFR1 and WFR 2 is 32 entries.
  • Page 81: Power Quality Log (Pq Log)

    Logging 8.6 Power Quality log (PQ log) The PQ log can store up to 1,000 events such as undervoltage/overvoltage and transients. The newest event will replace the oldest event on a first-in-first-out ba- sis: If there are more than 1000 entries, the 1001 entry will replace the first one, the 1002 will replace the second one etc.
  • Page 82 Logging PEM735_D00084_00_M_XXEN/02.2015...
  • Page 83: Power Quality

    Power Quality 9. Power Quality 9.1 Fundamentals PEM575 also provides the fundamental components (related to f ) for the measu- red quantities listed in the following table. Fundamental components Ø U L1(f0) L2(f0) L3(f0) LN (f0) Ø U L1L2(f0) L3L1(f0) L2L3(f0) LL(f0) Ø...
  • Page 84: Front Panel

    Power Quality Harmonic distortion (THD) Distortion factor (THF) x 100 % U(k) ∞ Σ x 100 % THD U(k) = k = 1 x 100 % I(k) ∞ Σ x 100 % THD I(k) = k = 1 k-factor calculation Σ...
  • Page 85: Undervoltage/Overvoltage Setpoint (Sag/Swell Setpoint)

    Power Quality TEHD TEHD TEHD TOHD TOHD TOHD Harmonics, k-factor k-factor k-factor current harmonic harmonic harmonic … … … harmonic harmonic harmonic Tab. 9.2: Parameters, harmonic distortion Δ , Δ 9.3 Deviation from the pre-set nominal value ( The universal measuring device can measure voltage deviations U and U well as the frequency deviation f from the pre-set nominal values U resp.
  • Page 86: Transient Events Setpoint

    Power Quality The following set-up parameters are supported: 1. Enable undervoltage/overvoltage disabled/enabled 2. Overvoltage limit 1.05…2 x U 3. Undervoltage limit 0.11…0.95 U 4. Trigger 1/Trigger 2 for undervoltage/overvoltageDO1…3 /DR 1…16/ WFR1…2/alarm e-mail 9.5 Transient events setpoint The universal measuring device can detect transient events in the event of voltage disturbances.
  • Page 87: E-Mail Notification

    Power Quality 9.7 E-mail notification The universal measuring device supports the SMTP and ESMTP protocol and can be configured to send alarm messages via e-mail. Alarm messages includes events for setpoints, undervoltages/overvoltages and transients. The e-mail shows the fol- lowing information in text format: PEM575's serial number ...
  • Page 88 Power Quality PEM735_D00084_00_M_XXEN/02.2015...
  • Page 89: Modbus Register Map

    Modbus Register Map 10. Modbus Register Map This chapter provides a complete description of the Modbus register (protocol ver- sion 6.0) for the PEM575 series to facilitate access to information. In general, the re- gisters are implemented as Modbus Read Only Registers (RO = read only). with the exception of the DO control registers, which are implemented as Write Only Regis- ters (WO = write only).
  • Page 90 Modbus Register Map Structure of data packet (function code 0x14) Read reference response Read reference request packet packet (master to PEM) (PEM to master) Slave address 1 byte Slave address 1 byte Function code (0x 14) 1 byte Function code (0x 14) 1 byte Byte count 1 byte Byte count...
  • Page 91: Basic Measurements

    Modbus Register Map 10.1 Basic measurements Register Property Description Format Scale/unit 0000 Float 0002 Float 0004 Float Ø U 0006 Float 0008 Float L1L2 0010 Float L2L3 0012 Float L3L1 Ø U 0014 Float 0016 Float 0018 Float 0020 Float 0022 Ø...
  • Page 92 Modbus Register Map Register Property Description Format Scale/unit λ 0050 Float λ 0052 Float λ 0054 Float 0056 Float (measured) 0058 Float (= I calculated) 0060 Float 0062…0069 Reserved 0070 Voltage unbalance UINT16 x 1000 0071 Current unbalance UINT16 x 1000 Δ...
  • Page 93 Modbus Register Map Register Property Description Format Scale/unit 0099 UINT32 DR1 Pointer (highspeed) 0101 UINT32 DR2 Pointer (highspeed) 0103 UINT32 DR3 Pointer (highspeed) 0105 UINT32 DR4 Pointer (highspeed) 0107 UINT32 DR5 pointer (standard) … 0129 UINT32 DR16 pointer (standard) 0131 UINT32 Total memory 0133...
  • Page 94 Modbus Register Map The alarm register 0087 indicates the various alarm statuses (1 = active, 0 = inactive). Details of the alarm register are shown in the following table: Alarm event Alarm event Alarm event Setpoint 23 (high- Setpoint 1 (standard) Setpoint 12 (standard) speed) Setpoint 24 (high-...
  • Page 95 Modbus Register Map The range of the Energy Log Pointer can be between 0 and 0xFFFFFFFF. As soon as the maximum value is reached, it starts again with 0. The Energy Log can always be reset via the communications interface. The PEM575 provides 16 data recorders (DR1…DR16).
  • Page 96: Energy Measurement

    Modbus Register Map 10.2 Energy measurement Register Property Description Format Unit 0200 Active energy import UINT32 kWh 0202 Active energy export UINT32 kWh 0204 Active energy net amount INT32 0206 Total active energy UINT32 kWh 0208 Reactive energy import UINT32 kvarh 0210 Reactive energy export UINT32 kvarh...
  • Page 97 Modbus Register Map Register Property Description Format Unit Reactive energy 1 quadrant, 0244 Float vars fractional value Reactive energy 2 quadrant, 0246 Float vars fractional value Reactive energy 3 quadrant, 0248 Float vars fractional value Reactive energy 4 quadrant, 0250 Float vars fractional value...
  • Page 98: Pulse Counter

    Modbus Register Map 10.3 Pulse counter The value stored in the registers 0350…0360 is 1000 times the actual value, i.e. the register value must be divided by 1000 for an accurate measuring value. Register Property Description Format 0350 Pulse counter DI1 UINT32 0352 Pulse counter DI2...
  • Page 99 Modbus Register Map Register Property Description Format Unit 0424 Float or reserved 4 (f0) 0426 Float L1(f0) 0428 Float L2(f0) 0430 Float L3 (f0) 0432 Float ges (f0) 0434 Float L1 (f0) 0436 Float L2 (f0) 0438 Float L3 (f0) 0440 Float ges (f0)
  • Page 100: Harmonic Measurements (Power Quality)

    Modbus Register Map 10.5 Harmonic measurements (Power quality) Register Property Description Format Unit k-factor I 0458 UINT16 x10 k-factor I 0459 UINT16 x10 k-factor I 0460 UINT16 x10 0461 UINT16 x 10,000 0462 UINT16 x 10,000 0463 UINT16 x 10,000 0464 UINT16 x 10,000 0465...
  • Page 101 Modbus Register Map Register Property Description Format Unit 0481 UINT16 x 10,000 TEHD or reserved 0482 UINT16 x 10,000 harmonic 0483 UINT16 x 10,000 harmonic 0484 UINT16 x 10,000 harmonic 0485 UINT16 x 10,000 harmonic 0486 UINT16 x 10,000 harmonic 0487 UINT16 x 10,000 harmonic...
  • Page 102: High-Speed Measurement

    Modbus Register Map 10.6 High-speed measurement Register Property Description Format Unit 0930 Float 0932 Float 0934 Float 0936 Float Ø U 0938 Float L1L2 0940 Float L2L3 0942 Float L3L1 Ø U 0944 Float 0946 Float 0948 Float 0950 Float 0952 Ø...
  • Page 103 Modbus Register Map Register Property Description Format Unit 0980 λ Float 0982 λ Float λ 0984 Float λ 0986 Float Tab. 10.8: Register high-speed measurement Note table 10.8: Only when the wiring mode is WYE. Only if the device is equipped with the I input, otherwise it is reserved PEM735_D00084_00_M_XXEN/02.2015...
  • Page 104: Demand

    Modbus Register Map 10.7 Demand 10.7.1 Present demand Register Property Description Format Unit Demand U 1000 INT32 x 100, V Demand U 1002 INT32 x 100, V Demand U 1004 INT32 x 100, V Ø Demand U 1006 INT32 x 100, V Demand U 1008 INT32...
  • Page 105 Modbus Register Map Register Property Description Format Unit Demand λ 1050 INT32 x 1,000 Demand λ 1052 INT32 x 1,000 Demand λ 1054 INT32 x 1,000 Demand λ 1056 INT32 x 1,000 1058 Demand f INT32 x 100, Hz 1060 Demand voltage unbalance INT32 x 1,000...
  • Page 106: Predicted Demand

    Modbus Register Map 10.7.2 Predicted demand Register Property Description Format Unit Predicted demand U 1200 INT32 x 100, V Predicted demand U 1202 INT32 x 100, V Predicted demand U 1204 INT32 x 100, V Ø Predicted demand U 1206 INT32 x 100, V Predicted demand U...
  • Page 107 Modbus Register Map Register Property Description Format Unit Predicted demandλ 1250 INT32 x 1,000 Predicted demand λ 1252 INT32 x 1,000 Predicted demand λ 1254 INT32 x 1,000 Predicted demand λ 1256 INT32 x 1,000 1258 Predicted demand f INT32 x 100, Hz Predicted demand, voltage 1260...
  • Page 108: Maximum Values Per Demand Period

    Modbus Register Map 10.7.3 Maximum values per demand period Register Property Description Format Unit 1400 INT32 x 100, V L1 max 1402 INT32 x 100, V L2 max 1404 INT32 x 100, V L3 max Ø U 1406 INT32 x 100, V LN max 1408 INT32...
  • Page 109 Modbus Register Map Register Property Description Format Unit λ 1450 INT32 x 1,000 1 max λ 1452 INT32 x 1,000 2 max λ 1454 INT32 x 1,000 3 max λ 1456 INT32 x 1,000 ges max 1458 INT32 x 100, Hz 1460 max.
  • Page 110: Minimum Values Per Demand Period

    Modbus Register Map 10.7.4 Minimum values per demand period Register Property Description Format Unit 1600 INT32 x 100, V L1 min 1602 INT32 x 100, V L2 min 1604 INT32 x 100, V L3 min Ø U 1606 INT32 x 100, V LN min 1608 INT32...
  • Page 111 Modbus Register Map Register Property Description Format Unit λ 1650 INT32 x 1,000 1 min λ 1652 INT32 x 1,000 2 min λ 1654 INT32 x 1,000 3 min λ 1656 INT32 x 1,000 ges min 1658 INT32 x 100, Hz 1660 min.
  • Page 112: Peak Demand Of This Month

    Modbus Register Map 10.7.5 Peak demand of this month The value of the peak demand register is 1,000 times the actual value. To obtain a value in kW, kVA or kvar, the value of the register has to be divided by 1,000. Register Property Description...
  • Page 113: Peak Demand Data Structure

    Modbus Register Map 10.7.7 Peak demand data structure Offset Property Description Format Note Peak demand value INT32 HiWord: Year 1…99 (year-2000) UINT16 LoWord: Month 1…12 HiWord: Date: Day 1…28/29/30/31 UINT16 LoWord: Hour 0…23 HiWord: Minute 0…59 UINT16 LoWord: Second 0…59 Milliseconds UINT16 1…999...
  • Page 114: Max/Min Log

    Modbus Register Map 10.8 Max/Min log 10.8.1 Maximum values of this month Register Property Description Format Factor/unit 2000…2005 x 100, V L1 max 2006…2011 x 100, V L2 max 2012…2017 x 100, V L3 max Ø U 2018…2023 x 100, V LN max 2024…2029 x 100, V...
  • Page 115 Modbus Register Map Register Property Description Format Factor/unit k-factor I 2144…2149 k-factor I 2150…2155 see table k-factor I 2156…2161 10.20 2162…2167 max. voltage unbalance x1,000 2168…2173 max. current unbalance x1,000 Tab. 10.16: Max log of this month Register 2072…2077 are valid only if the device is equipped with the I input, otherwise it is reserved PEM735_D00084_00_M_XXEN/02.2015...
  • Page 116: Min Log Of This Month

    Modbus Register Map 10.8.2 Min log of this month Register Property Description Format Factor/unit 2300…2305 x 100, V L1 min 2306…2311 x 100, V L2 min 2312…2317 x 100, V L3 min Ø U 2318…2323 x 100, V LN min 2324…2329 x 100, V L1L2 min...
  • Page 117 Modbus Register Map Register Property Description Format Factor/unit 2384…2389 ges min 2390…2395 ges min λ 2396…2401 x 1,000 ges min 2402…2407 x 100, Hz 2408…2413 x 10,000 UL1 min 2414…2419 x 10,000 UL2 min 2420…2425 x 10,000 UL3 min see table 2426…2431 x 10,000 I1 min...
  • Page 118: Max Log Of Last Month

    Modbus Register Map 10.8.3 Max log of last month Register Property Description Format Factor/unit 2600…2605 x 100, V L1 max 2606…2611 x 100, V L2 max 2612…2617 x 100, V L3 max Ø U 2618…2623 x 100, V LN max 2624…2629 x 100, V L1L2 max...
  • Page 119 Modbus Register Map Register Property Description Format Factor/unit 2726…2731 x 10,000 I1 max 2732…2737 x 10,000 I2 max 2738…2743 x 10,000 I3 max k-factor I 2744…2749 see table 10.20 k-factor I 2750…2755 k-factor I 2756…2761 2762…2767 max. voltage unbalance x1,000 2768…2773 max.
  • Page 120: Min Log Last Month

    Modbus Register Map 10.8.4 Min log last month Register Property Description Format Factor/unit 2900…2905 x 100, V L1 min 2906…2911 x 100, V L2 min 2912…2917 x 100, V L3 min Ø U 2918…2923 x 100, V LN min 2924…2929 x 100, V L1L2 min 2930…2935...
  • Page 121: Max/Min Log Data Structure

    Modbus Register Map Register Property Description Format Factor/unit 3026…3031 x 10,000 I1 min 3032…3037 x 10,000 I2 min 3038…3043 x 10,000 I3 min k-factor I 3044…3049 see table 10.20 k-factor I 3050…3055 k-factor I 3056…3061 3062…3067 min. voltage unbalance x1,000 3068…3073 min.
  • Page 122: Setup Parameters

    Modbus Register Map 10.9 Setup parameters Register Property Description Format Range/unit 1*…10,000 6000 Voltage transformation ratio UINT16 1*…6,000 Measuring current transformer (current input 5 A) 6001 UINT16 transformation ratio 1*…30,000 (current input 1 A) Measuring current transformer 1…10,000 6002 UINT16 transformation ratio I (2*) 0 = WYE*...
  • Page 123 Modbus Register Map Register Property Description Format Range/unit 288.255.255.0* Contents of register 6015 Subnet mask UINT32 for factory setting: 0xFFFFFF00 192.168.8.1* Con- tents of register for 6017 Gateway address UINT32 factory setting: 0x0A80801 0* = IEC Power factor λ rule 6019 UINT16 1 = IEEE...
  • Page 124 Modbus Register Map Register Property Description Format Range/unit 6037 Resolution of setting DI1 UINT32 6039 Resolution of setting DI2 UINT32 6041 Resolution of setting DI3 UINT32 1*…1.000.000 6043 Resolution of setting DI4 UINT32 6045 Resolution of setting DI5 UINT32 6047 Resolution of setting DI6 UINT32 6049...
  • Page 125 Modbus Register Map Register Property Description Format Range/unit 11…95 (x 0.01 U 6075 Undervoltage limit UINT16 (70*) Trigger 1 undervoltage/overvol- 0*= none 6076 UINT16 tage 3 = DO1…DO … 19=DR1…DR16 … 20 = WFR1 Trigger 2 undervoltage/overvol- 6077 UINT16 21 = WFR2 tage 22 = Alarm e-mail 0*= disable...
  • Page 126 Modbus Register Map Register Property Description Format Range/unit 6180 Trigger 1 for transient events UINT16 0*= none 3 = DO1…DO … 19 = DR1…DR16 … 20 = WFR1 6181 Trigger 2 for transient events UINT16 21 = WFR2 22 = Alarm e-mail 6182 Language e-mail UINT16 0* = English...
  • Page 127 35 characters long. Add the value "0000" at the end of the string as the string terminator of the source address. Example: If the e-mail address is "PEM575@bender.de", set the registers in hexadecimal form as 0050 0045 004D 0035 0037 0035 0040 0062 0065 006E 0064 0065 0072 002E 0064 0065 0000.
  • Page 128: Clear/Reset Register

    35 characters long. Add the value "0000" at the end of the string as the string terminator for the destination address. Example: The e-mail address "PEM575@bender.de" is coded in hexadecimal form as 0050 0045 004D 0035 0037 0035 0040 0062 0065 006E 0064 0065 0072 002E 0064 0065 0000.
  • Page 129 Modbus Register Map Register Property Description Format Unit 6426 UINT16 Clear counter DI1 6427 UINT16 Writing 0xFF00 to Clear counter DI2 the register clears UINT16 … the respective 6430 UINT16 Clear counter DI5 counter 6431 UINT16 Clear counter DI6 6432…6436 Reserved Writing 0xFF00 to Clear all logs...
  • Page 130: Setpoint Setup Parameters

    Modbus Register Map 10.11 Setpoint setup parameters Register Property Description Format 6600…6609 Setpoint 1 (standard) 6610…6619 Setpoint 2 (standard) 6620…6629 Setpoint 3 (standard) 6630…6639 Setpoint 4 (standard) 6640…6649 Setpoint 5 (standard) 6650…6659 Setpoint 6 (standard) 6660…6669 Setpoint 7 (standard) Chapter 10.11.1 6670…6679 Setpoint 8 (standard) Structure of the...
  • Page 131: Structure Of The Setpoint Register (Standard)

    Modbus Register Map 10.11.1 Structure of the setpoint register (standard) Offset Property Description Format Unit 0 = disabled Type UINT16 1 = over setpoint 2 = under setpoint UINT16 1*…31 Measured quantity Active limit INT32 5000* Inactive limit INT32 1,000* 0…9,999 s Active delay UINT16...
  • Page 132 Modbus Register Map Notes table 10.24 and table 10.25: Measured quantity: "Measured quantity" specifies the parameter to be monitored. The following measured quantities can be set: Setpoint parameter "Measured quantity" Measured quantity Scale/unit x 100, V x 100, V x 1,000, A x 1,000, A x 100, Hz Δn...
  • Page 133 Modbus Register Map Measured quantity Scale/unit x 10,000 TOHD x 10,000 TEHD x 10,000 Unbalance U x1,000 Unbalance I x1,000 Deviation U x 10,000 Over setpoint: active limit at negative phase sequence; inactive limit at positive phase sequence Phase reversal Under setpoint: active limit at positive phase sequence;...
  • Page 134: Logic Module

    Modbus Register Map 10.12 Logic module 10.12.1 Logic module registers Register Property Description Format 6840…6849 Logic module 1 6850…6859 Logic module 2 6860…6869 Logic module 3 table 10.29 6870…6879 Logic module 4 6880…6889 Logic module 5 6890…6899 Logic module 6 Tab.
  • Page 135 Modbus Register Map 1) A logic module can have up to four source inputs. The following table provides a list of logic mod- ule sources: Source Source — Setpoint 13 (standard) Setpoint 1 (standard) Setpoint 14 (standard) Setpoint 2 (standard) Setpoint 15 (standard) Setpoint 3 (standard) Setpoint 16 (standard)
  • Page 136: Data Recorder (Dr)

    Modbus Register Map 10.13 Data recorder (DR) 10.13.1 Data recorder register Register Property Description Format 7000…7022 Data recorder 1 (DR1, high speed) 7023…7045 Data recorder 2 (DR2, high speed) table 10.33 7046…7068 Data recorder 3 (DR3, high speed) 7069…7091 Data recorder 4 (DR4, high speed) 7092…7114 Data recorder 5 (DR5, standard) 7115…7137...
  • Page 137 Modbus Register Map Register Property Description Format 7379 UINT16 DR12 record size (bytes) 7380 UINT16 DR13 record size (bytes) 7381 UINT16 DR14 record size (bytes) 7382 UINT16 DR15 record size (bytes) 7383 UINT16 DR16 record size (bytes) Tab. 10.32: Data recorder registers PEM735_D00084_00_M_XXEN/02.2015...
  • Page 138: High-Speed Data Recorder Register Structure

    Modbus Register Map 10.13.2 High-speed data recorder register structure Offset Property Description Format Range/options 0* = disabled UINT16 1 = triggered by timer Trigger mode 2 = triggered by setpoint UINT16 0*= stop-when-full Recording mode Recording depth UINT16 0*…65535 Recording interval UINT32 1…60 (2*) cycles UINT16...
  • Page 139 Modbus Register Map Notes: table 10.33 The data recorder only becomes active if the offset entries +1, +2, +3 and +6 marked in the table are non-zero! High-speed data recorders can be triggered by a timer (the internal clock) or a setpoint. In trigger mode 2 when the setpoint goes active, the recorder starts to record, and when the setpoint becomes inactive, the data recorder stops.
  • Page 140: Standard Data Recorder Register Structure

    Modbus Register Map 10.13.3 Standard data recorder register structure Offset Property Description Format Range/options 0* = disabled UINT16 1 = triggered by timer Trigger mode 2 = triggered by setpoint 0*= stop-when-full Recording mode UINT16 1 = FIFO (First-In-First-Out) Recording depth UINT16 0…65,535 (5,760*) Recording interval UINT32 1…3,456,000 s (900*)
  • Page 141: Waveform Recording (Wfr)

    Modbus Register Map Notes: table 10.34 The data recorder is only operational when the offset entries +1, +2, +3 and +6 are all non-zero! The standard data recorder can be triggered by a Timer (the internal clock) or by Setpoint. In trigger mode 2 when the setpoint goes active, the recorder starts to record, and when the setpoint becomes inactive, the data recorder stops.
  • Page 142 Modbus Register Map Register Property Description Format 7600 0*…32 Number of measurements 0 = 16 1 = 32 7601 2 = 64 Number of samples 3 = 128 4*= 256 WFR 1 320 / 160 / 7602 80 / 40 / 20 / Number of cycles Number of cycles before the 7603...
  • Page 143 Modbus Register Map Waveform recorder data structure (WFR log) The waveform recorder data contains the values of the secondary side. The voltage data returned is 10 times of the actual secondary voltage and the current data is 1,000 times of the actual secondary current. The voltage and current values of the primary side are calculated as follows: x voltage transformer transformation ratio/10 primary...
  • Page 144: Energy Log

    Modbus Register Map 10.15 Energy log Register Property Description Format Range/options 0*= disabled 7700 Recording mode UINT16 1 = stop-when-full 2 = FIFO Number of 7701 UINT16 0…65535 (5760*) measurements 0 = 5 min 1 = 10 min 7702 Recording interval UINT16 2*= 15 min 3 = 30 min...
  • Page 145 Modbus Register Map When the current time meets or exceeds the start-up time, the energy log starts to record. Modifying any of the registers 7701…7711 will clear the WFR log and reset the pointer to 0. Energy log data structure Offset Property Description...
  • Page 146: Pq Log

    Modbus Register Map 10.16 PQ log Offset Property Description Format 0…7 PQ log 1 8…15 PQ log 2 16…23 PQ log 3 see table 10.39 … … 7992…7999 PQ log 1,000 PQ log data structure Range/ Offset Property Description Format options Reserved UINT16...
  • Page 147 Modbus Register Map table 10.39: Notes: The PQ log classification is "7". The following sub classifications are used: Sub classification Description Start: sag/swell event End: sag/swell event Transient event Sag/swell inactive value: max. value of disturbance U = ((U ) / U ) x 100 % (with L …L Lx max...
  • Page 148: Event Log (Soe Log)

    Modbus Register Map 10.17 Event log (SOE log) Each SOE event occupies 8 registers, as shown in the following table. The internal data structure of the event log is listed in table 10.41. 10.17.1 Energy log register Register Property Description Format 10000…10007 Event 1...
  • Page 149: Event Log Data Structure

    Modbus Register Map 10.17.2 Event log data structure The following table describes the internal data structure of the 8 registers which belong to each event in the SOE log. Offset Property Description Format Reserved UINT16 HiWord: Event classification LoWord: Sub classification (refer to UINT16 page 150) HiWord: Year-2000...
  • Page 150: Event Classification (Soe Log)

    Modbus Register Map 10.17.3 Event classification (SOE log) Event value Event Event sub Unit Description classification classification Option DI1 close/open DI2 close/open DI3 close/open DI4 close/open DI5 close/open DI6 close/open DO 1 close/open by communica- tions interface DO2 close/open by communica- tions interface DO3 close/open by communica- tions interface...
  • Page 151 Modbus Register Map Event value Event Event sub Unit Description classification classification Option >-Setpoint U exceeded Trigger value x 100 >-Setpoint U exceeded Trigger value x 100 Trigger value x 1000 >-Setpoint I exceeded Trigger value x 1000 >-Setpoint I exceeded Δ...
  • Page 152 Modbus Register Map Event value Event Event sub Unit Description classification classification Option >-Setpoint TEHD exceeded Trigger value x 100 >Voltage unbalance setpoint excee- Trigger value x 10 >Current unbalance setpoint excee- Trigger value x 10 >-Voltage deviation setpoint excee- Trigger value x 100 >-Phase reversal setpoint exceeded Reserved...
  • Page 153 Modbus Register Map Event value Event Event sub Unit Description classification classification Option >-Setpoint demand Q return Return value λ Return value x 1000 >-Demand setpoint return >-Predicted setpoint P return Return value >-Predicted setpoint Q return Return value λ Return value x 1000 >-Predicted setpoint return >-Setpoint THD...
  • Page 154 Modbus Register Map Event value Event Event sub Unit Description classification classification Option λ Trigger value x 1000 Under <-Setpoint DI1 open setpoint active DI2 open setpoint active DI3 open setpoint active DI4 open setpoint active DI5 open setpoint active DI6 open setpoint active Reserved Under <-Setpoint demand P...
  • Page 155 Modbus Register Map Event value Event Event sub Unit Description classification classification Option <-Setpoint U return Return value x 100 <-Setpoint U return Return value x 100 Return value x 1000 <-Setpoint I return Return value x 1000 <- I setpoint return Δ...
  • Page 156 Modbus Register Map Event value Event Event sub Unit Description classification classification Option <-Setpoint TEHD return Return value x 100 <-Setpoint THD return Return value x 100 <-Setpoint TOHD return Return value x 100 <-Setpoint TEHD return Return value x 100 <-Voltage unbalance setpoint return Return value x 10 Return value x 10...
  • Page 157 Modbus Register Map Event value Event Event sub Unit Description classification classification Option Energy values cleared via device but- tons Data recorder cleared via front panel Waveform recording cleared via front panel Energy log cleared via front panel Max/Min value log of this month cle- ared via device buttons Peak demand of this month cleared via device buttons...
  • Page 158 Modbus Register Map Event value Event Event sub Unit Description classification classification Option Waveform recording triggered by communications interface Waveform recording triggered by Setpoint 1…24 setpoint Waveform recording triggered by undervoltage/overvoltage Data recorder (standard) triggered Setpoint 1…24 by setpoint Data recorder (highspeed) triggered Setpoint 1…24 by setpoint Data recorder (standard) triggered...
  • Page 159: Time Setting

    Modbus Register Map 10.18 Time setting There are two time register formats supported by PEM575: 1. Year/Month/Day/Hour/Minute/Second register 9000…9002 2. UNIX-time register 9004 When sending the time via Modbus communications, care should be taken to only write one of the two time register sets. All registers within a time register set must be written in a single transaction.
  • Page 160 Modbus Register Map PEM575 supports the execution of commands to the outputs in two steps (ARM before EXECUTING): Before sending an open or close command to one of the out- puts, it must be activated first. This is achieved by writing 0xFF00 to the appropriate DO register.
  • Page 161: Universal Measuring Device Information

    Modbus Register Map 10.20 Universal measuring device information Register Property Description Format Note 9800… 9819 UINT16 see table 10.46 Model 9820 Software version UINT16 e.g.: 10000 = V1.00.00 9821 Protocol version UINT16 e.g.: 40 = V4.0 Software update date 9822 UINT16 (year-2000) Software update...
  • Page 162 Modbus Register Map PEM735_D00084_00_M_XXEN/02.2015...
  • Page 163: Technical Data

    Technical data 11. Technical data Insulation co-ordination Measuring circuit Rated insulation voltage..............................300 V Overvoltage category................................. III Pollution degree..................................2 Supply circuit Rated insulation voltage..............................300 V Overvoltage category.................................. II Pollution degree..................................2 Supply voltage Rated supply voltage ............................95…250 V Frequency range of .............................
  • Page 164 Technical data Accuracies (v.M. = of measured value/v.S. = of full scale value) Phase voltage ....................± 0.1 % of measured value. L1-N L2-N L3-N Current ............................. ±0.1 % v.M./ +0.05% v.S. Neutral current ................................ 0.5 % v. S. Frequency ..................................± 0.01 Hz Phasing ....................................±...
  • Page 165: Standards And Certifications

    Technical data 11.1 Standards and certifications PEM575 was designed in accordance with the following standards: DIN EN 62053-22 (VDE 0418 Part 3-22) Electricity meter equipment (AC) - Particular requirements - Part 22: Static meters for active energy (classes 0.2 S and 0.5 S (IEC 62053)); DIN EN 61557-12 (VDE 0413-12) Elektrische Sicherheit in Niederspannungsnetzen bis AC 1000 V und DC 1500 V –...
  • Page 166 Technical data PEM735_D00084_00_M_XXEN/02.2015...
  • Page 167: Index

    INDEX Description of function 17 Device features 15 Apparent power, calculation 50 Digital inputs 26 Application example 17 Digital output 27 Area of application 15 - Modbus control 159 Digital outputs 53 Dimension diagram 19 Back-up fuses 21 Display 33 Button Display mode - "ENERGY"...
  • Page 168 INDEX Installation 19 - SOE log 148 Intended use 13 - TCP (connector pin assignment) 27 k-factor 42 Operating elements 32 Output, digital 27 LC display - Power and current demands 36 Phase angle – - Standard display areas 33 - Current 55 - testing 32 - Voltage 55...
  • Page 169 INDEX TEHD 42 Testing LCD 32 THD 42 Time setting 159 Time zones 127 TOHD 42 Total harmonic distortion 42 Unbalance 85 Versions 16 Wiring diagram 22 Work activities on electrical installations 13 Workshops 11 PEM575_D00016_00_M_XXEN/04.2015...
  • Page 170 INDEX PEM575_D00016_00_M_XXEN/04.2015...
