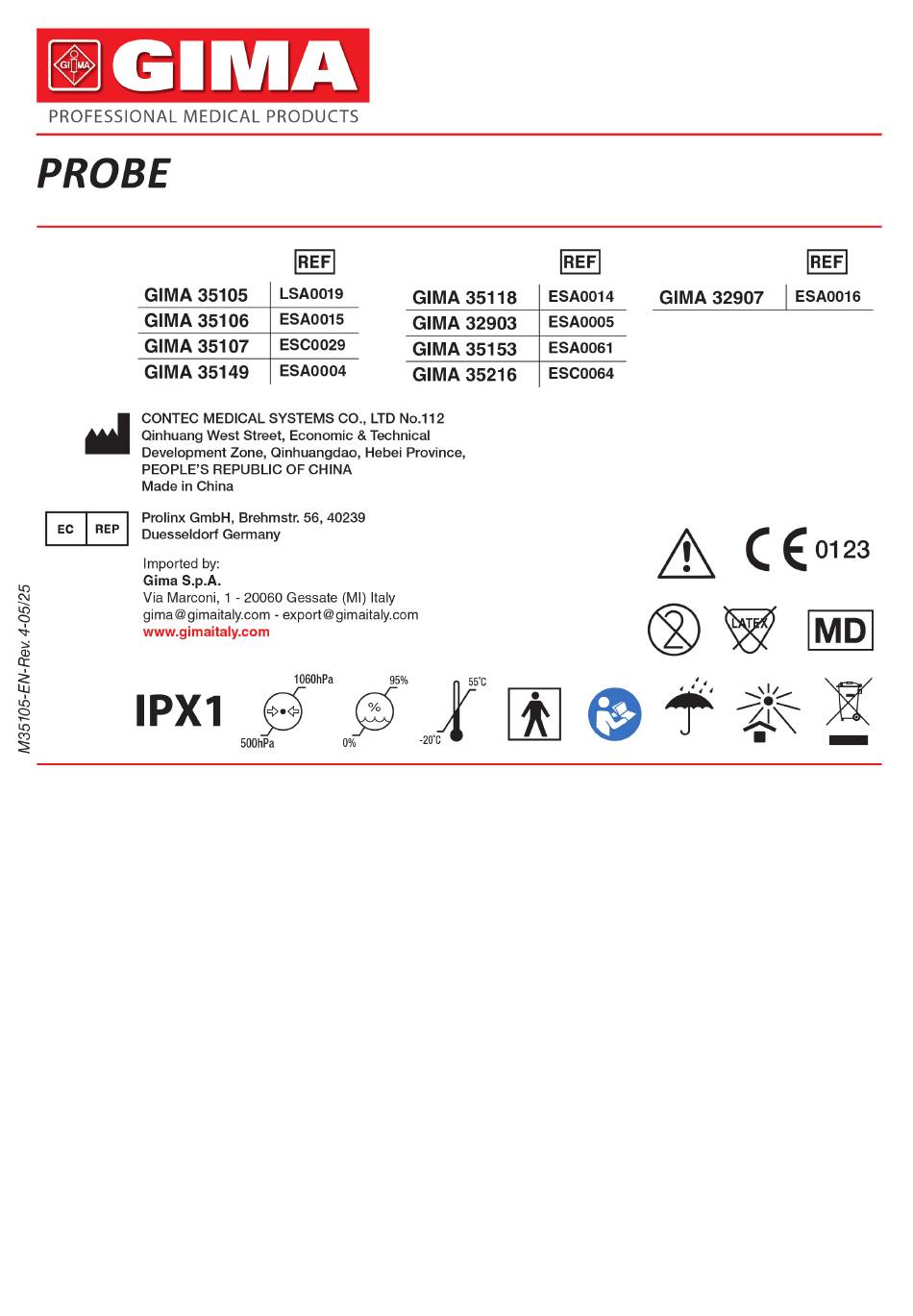

Gima 35105 User Manual

Pulse Oximeter Probe user manual
Product name:
Pulse Oximeter Probe
Product model:
ESA0015 (GIMA 35106), ESC0029 (GIMA 35107), ESA0004 (GIMA 35149), ESA0014 (GIMA 35118), ESA0005
(GIMA 32903), LSA0019 (GIMA 35105) , ESA0061 (GIMA 35153) , ESC0064 (GIMA 35216)
Scope of application:
This product is used to match CONTEC Patient Monitor 、Pulse Oximeter and Electronic sphygmomanometer, collect and transmit the
SpO signal from patient with continuance and no trauma. It is inapplicable to monitor the weak perfusion moving state and monitor for
2
long, so check the measuring position or change for another position per 4 hours.
Taboo disease:
Don't fix the product on the position with tissue injury. It is inapplicable for the patient or users allergic to PVC、TPU、TPE、ABS plastic.
Product performance:
1) The range of SpO measurement: 70%～100%;
2
Accuracy: 70~100%:±2%; Below 70%: unspecified.
2) The range of pulse measurement: 30～250bpm;
Accuracy: ±2bpm or ±2%(select larger).
3) Optical Sensor:
Red light (wavelength is 650~670nm, 6.65mW)
Infrared (wavelength is 880~910nm, 6.75mW)
1
