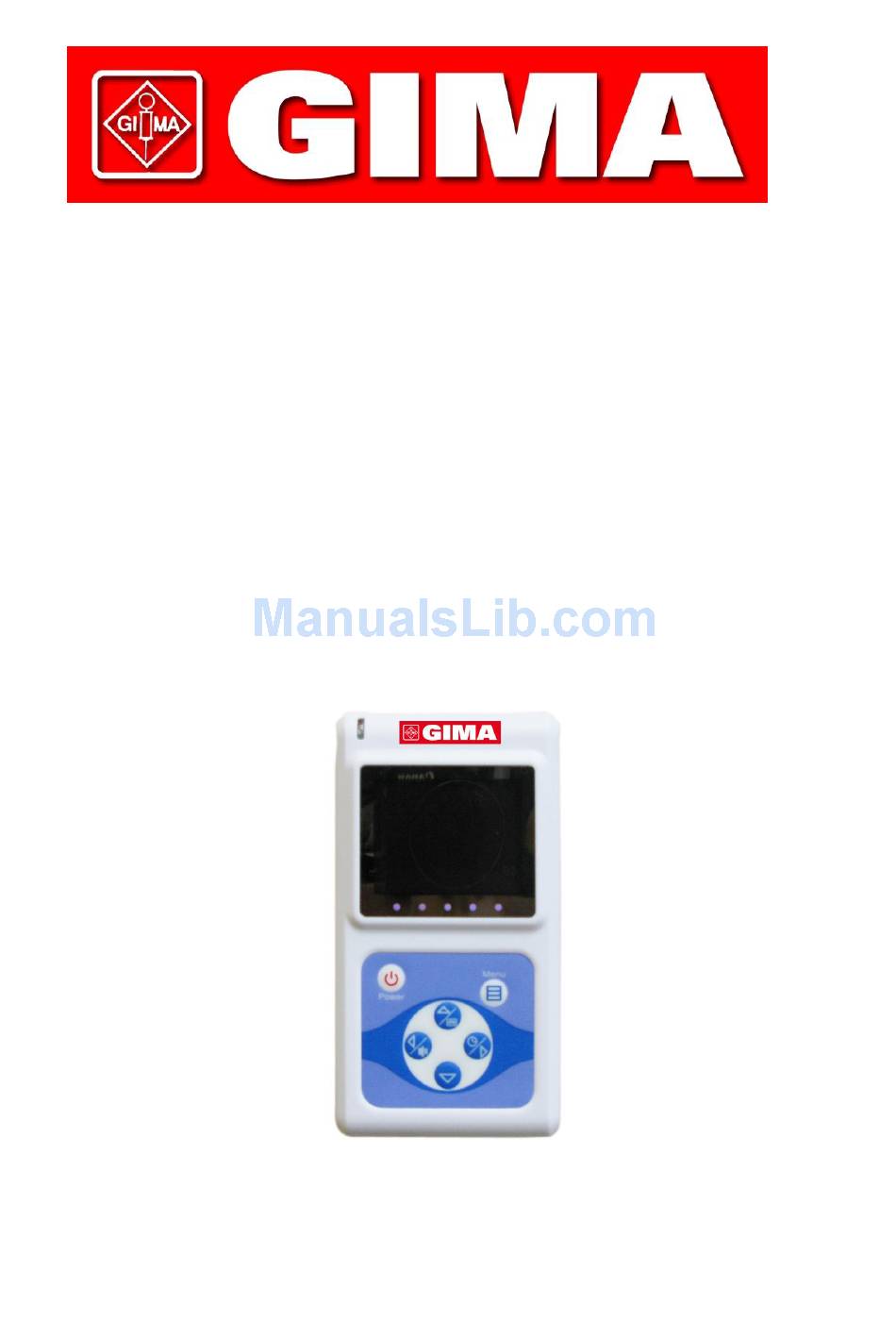

- Page 1 Cod. 35100 OXY-50 Pulse Oximeter User manual...
- Page 2 This Manual is written and compiled in accordance with the council directive MDD93/42/EEC for medical devices and harmonized standards. In case of modifications and software upgrades, the information contained in this document is subject to change without notice. The Manual describes, in accordance with the Pulse Oximeter’s features and requirements, main structure, functions, specifications, correct methods for transportation, installation, usage, operation, repair, maintenance and storage, etc.
-
Page 3: Table Of Contents
6.3.Clinical restrictions .......................... 11 7.Maintain、transportation and storage ....................11 7.1.Cleaning and Disinfecting ........................ 11 7.2.Maintain ............................11 7.3.Transportation and storage ....................... 12 8.Troubleshooting ............................. 12 9.Key of Symbols ............................ 12 10.Function Specification ........................14 Appendix 1 ............................... 15 11.Disposal............................16 12.GIMA Waranty Conditions......................16... -
Page 4: Safety
1. Safety 1.1. Instructions for safe operations Check the main unit and all accessories periodically to make sure that there is no visible damage that may affect patient’s safety and monitoring performance about cables and transducers. It is recommended that the device should be inspected once a week at least. When there is obvious damage, stop using the device. -
Page 5: Overview
The update period of data is less than 5 seconds, which is changeable according to different individual pulse rate. Please read the measured value when the waveform on screen is equably and steady-going, This measured value is optimal value. And the waveform at the moment is the standard one. ... -
Page 6: Environment Requirements
2.3. Environment requirements Storage Environment a) Temperature: -40°C～+60°C b) Relative humidity: 5%～95% c) Atmospheric pressure: 500hPa～1060hPa Operating Environment a) Temperature: 10°C～40°C b) Relative Humidity: 30%～75% c) Atmospheric pressure: 700hPa～1060hPa 3. Principle Principle of the Oximeter is as follows: An experience formula of data process is established taking use of Lambert Beer Law according to Spectrum Absorption Characteristics of Reductive Hemoglobin (Hb) and Oxyhemoglobin (HbO ) in glow &... -
Page 7: Main Parameters
4.2. Main Parameters A. Measurement of SpO Measuring range: 0%～100％ Accuracy: When the SpO measuring range is 70%～100％,the permission of absolute error is ±2％； below 70% unspecified B. Measurement of pulse rate Measuring range: 30bpm～250bpm Accuracy: ±2 bpm or ±2% (select larger) C. -
Page 8: Underside View And Left View
5.2. Underside View and Left View Figure 3. Underside View and Left View 1、Probe jack : It is used to connect a SpO sensor to measure the oxygen saturation and pulse rate. 2、USB port :It is used to connect a personal computer to export the trend data via a data line. 5.3. -
Page 9: Accessories
battery is in low power status. Intermittent alarm will occur and the battery icon turns red in the state of flashing. High priority indicating that immediate operator response is required. 5.3. Accessories A. Dry battery(2AA) B. A User Manual C. A data line D. - Page 10 Figure 5. Review Interface 1 b) In review interface, press "menu button" to switch between Review Interface 1 and Review Interface 2; press "Down button" to enter the review interface for next hour or last hour; In Review Interface 1, press "left button" or "right button" can move the trend graph for storage data, When the trend graph cannot be moved any more, the sign——"<-"or"->"...
- Page 11 E. Menu operations: On the measuring interface, press the "menu button" can enter the menu of figure 8. Users can adjust the settings through the main menu, such as alarm, pulse sound indication, backlight, data storage, data transmission (with the use of data line), the specific method is as follows: Figure 8.
- Page 12 On the main menu interface ,press the "up button" or "down button" to select ―Pulse Sound‖, then Press the "left button" Or "right button" to choose to have the Pulse Sound (heart beat) "on" or "off ". c) Backlight adjustment On the main menu interface, press the "up button"...
-
Page 13: Attention For Operation
if pressing the "power on/off button", the device would return to the former interface. f. If turning on the data storage function, the former data storage will be automatically removed. g. In the state of data storing, after the screen is automatically shut down, the pulse sound indication would be off for saving power. -
Page 14: Clinical Restrictions
6.2. Attention for operation A. Please check the device before using, and confirm that it can work normally. B. The finger should be in a proper position (see the attached illustration of figure 4 for reference), or else it may result in inaccurate measure. sensor and photoelectric receiving tube should be arranged in a way with the subject’s C. -
Page 15: Transportation And Storage
7.3. Transportation and storage A. The packed device can be transported by ordinary conveyance or according to transport contract. The device can not be transported mixed with toxic, harmful, corrosive material. B. The packed device should be stored in room with no corrosive gases and good ventilation. Temperature: -40°C~60°C;... - Page 16 Open the alarm sound indication Close the pulse sound indication Open the pulse sound indication Fully charged battery Low battery Power on/off button Left button/Alarm pause button Menu button Right button Down button Up button Type BF Serial number 1. The finger clip falls off ( no finger inserted) 2.
-
Page 17: Function Specification
10. Function Specification Information Display Mode ） The Pulse Oxygen Saturation（SpO 2-digit digital OLED display Pulse Rate（PR） 3-digit digital OLED display Pulse Intensity (bar-graph) bar-graph OLED display Parameter Specification Measuring range 0%～100%, (the resolution is 1%). Accuracy 70%～100%：±2% ,Below 70% unspecified. Calculate the Average value in every 4 measure value. -
Page 18: Appendix 1
Weight About 180g (with Dry battery(2AA)) Appendix 1 State Alarm condition delay Alarm signal generation delay Low voltage alarm 20ms alarm 330ms 20ms Pulse rate alarm 330ms 20ms Probe error alarm 16ms 20ms... -
Page 19: Disposal
The warranty is valid for 12 months from the date of supply of GIMA. During the period of validity of the warranty, GIMA will repair and/or replace free of charge all the defected parts due to production reasons. Labor costs and personnel traveling expenses and packaging not included.
