Viewing the LLDP Neighbor Information
The Neighbors Information page contains information received from neighboring device LLDP advertisements.
To open the Neighbor Information page, click Security

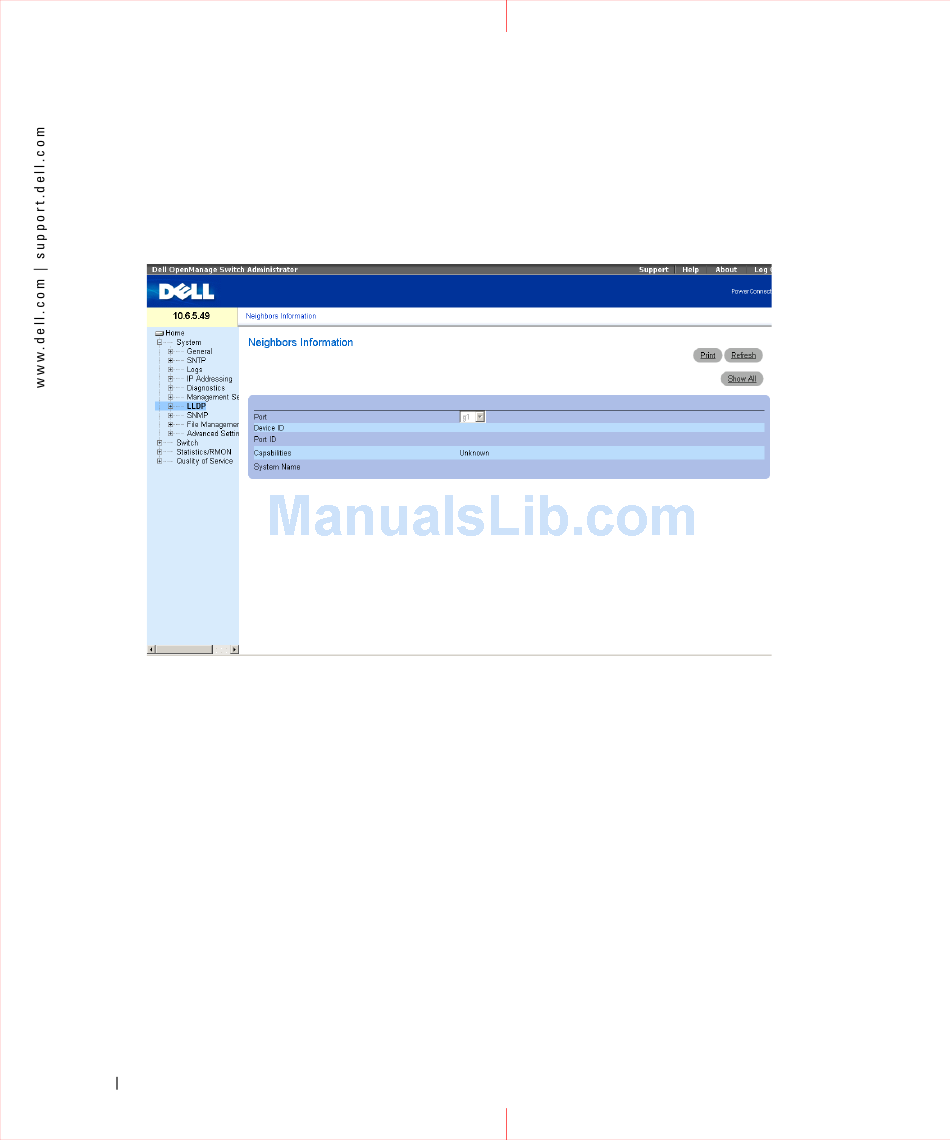

Figure 1-6. Neighbors Information
Port — Displays the neighboring port number.
Device ID — Displays the neighboring device ID.
Port ID — Displays the neighboring port ID
Capabilities — Displays the neighboring device capabilities.
System Name — Displays the neighboring system time.
1
Select a port.
2
Click Apply Changes. The port advertisement information is displayed.
Displaying the Neighbor Information Table
1 →
Click Security LLDP
2
Click Show All. The Neighbor Table opens:
12
→
Neighbors Information in the tree view.
→ →
LLDP Neighbors Information in the tree view.
