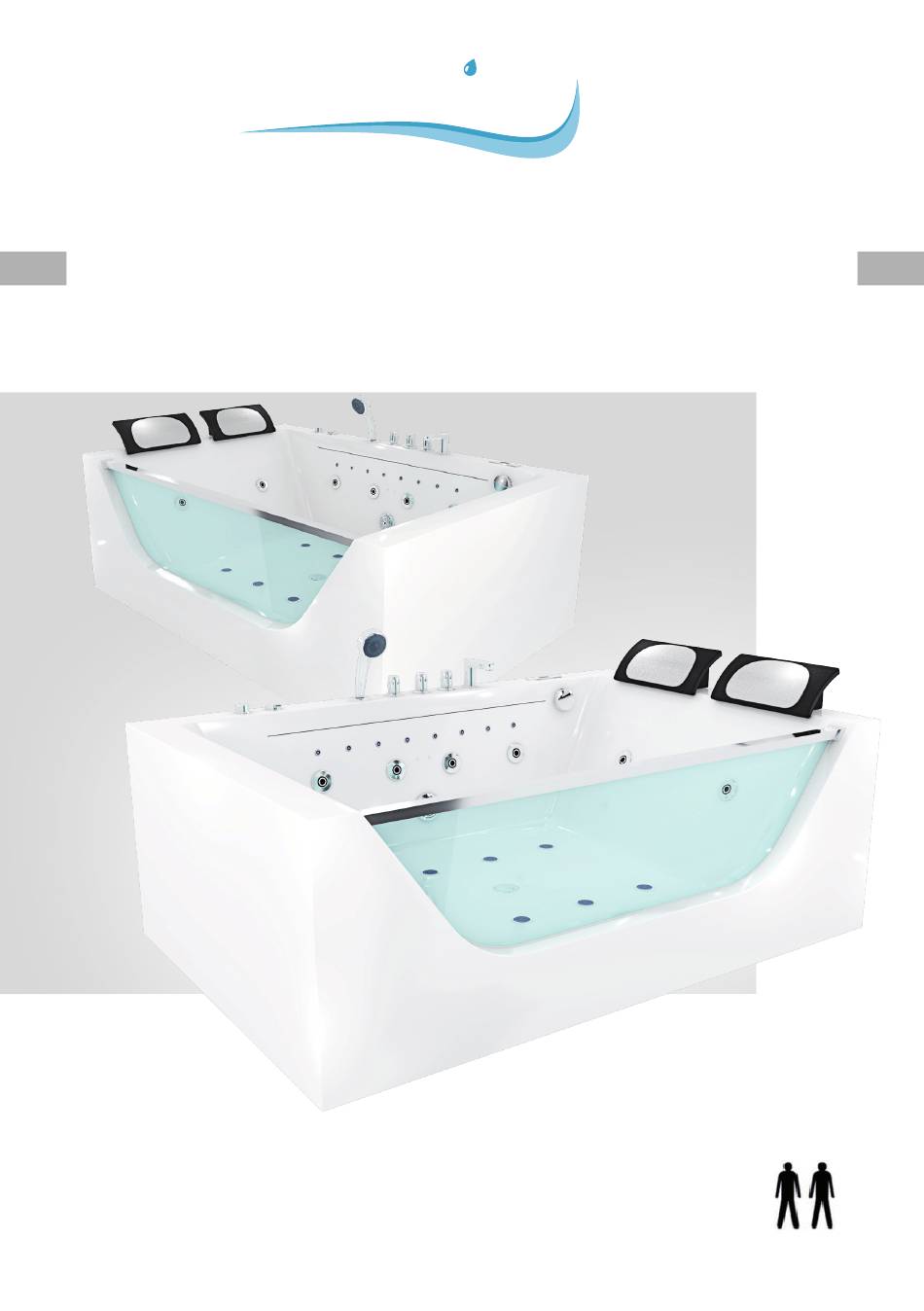

- Page 1 Senior GmbH Whirlpool bath assembly instructions (04v25) Attention: The structure of this pool should be done by two people!
- Page 2 Foreword Dear customer, we are pleased that you have chosen this product. Please observe all instructions before assembly and use and strictly follow the procedure below! Please check the product for completeness first. If there is any damage, please send us a message with a short description and photos of the affected area.
- Page 3 Sealing areas under/behind the bathtub Sealing is compulsory - silicone is not enough! The areas behind and under the bathtub must be tiled. Sealant joints - like silicone joints - are not waterproofing, but only maintenance and beauty joints! Only the use of bathtub sealing tapes or e.g.
- Page 4 Technische Daten External dimensions of the pool 180 cm length 120 cm width 64 cm high Hot and cold water connection ½ inch max. 4 bar Waste water HT50/40 Power connection 220-240 V 50 Hz max. 12 A Air massage pump 350 W Water massage pump 900 W...
- Page 5 Dimensioning There is enough space for up to two people in this pool.
- Page 6 Designations 11 11 Cold water Water intake Changeover switch Headrests Hot water Drain Hand shower Drain opener Water inlet Display Waterfall Massage setting Large air jets with light Massage setting Large massage jets LED lights...
- Page 7 Preparing the connections Variant left 93 cm 87 cm 40 cm 60 cm 90 cm Hot water 1/2 inch ATTENTION: leave 15 cm Ø free around the white siphon Cold water 1/2 inch (dark grey area) under the drain. Grey area = possible area for Socket 230V 16A the drain pipes;...
- Page 8 Variant right 93 cm 87 cm 40 cm 60 cm 90 cm Hot water 1/2 inch ATTENTION: leave 15 cm Ø free around the white siphon Cold water 1/2 inch (dark grey area) under the drain. Grey area = possible area for Socket 230V 16A the drain pipes;...
- Page 9 Align To ensure that the pool is level, it is necessary to level the pool precisely using a spirit level. Each foot is individually adjustable, so you can level out small unevennesses in the ground. Please ensure that all feet are in contact with the ground and that the weight is evenly distributed on the ground.
- Page 10 Connecting cold and hot water Once the drain has been installed, the water is now connected. The cold water connection is on the right and the hot water connection is on the right. Wall Cold water Hot water It is essential to attach the potential equalisation in the bathroom (if present) to the stainless steel frame of the pool.
- Page 11 Pool control panel On/off switch Confirmation switch left right Press for 2 seconds to start the control unit, press again to switch the control unit off again. Press the left and right buttons to select the respective function and confirm with Light Bluetooth...
- Page 12 Confirm Bluetooth selection with (2s) The display shows „PAIR“. Switch on the Bluetooth function on your mobile phone. The pool appears on your display under the name JOYONWAY. The password is 2288. Now connect both devices. Now you can play music stored on your mobile phone or content from streaming services (extra charge, not included in the scope of delivery) via the speakers of the pool.
- Page 13 Fax: Defects that can be traced back to calciferous or iron-rich water are excluded from the warranty. Please describe the spare part exactly and state the exact pool type (e.g. W42). We are always open to your comments and suggestions.
- Page 16 Senior GmbH...
