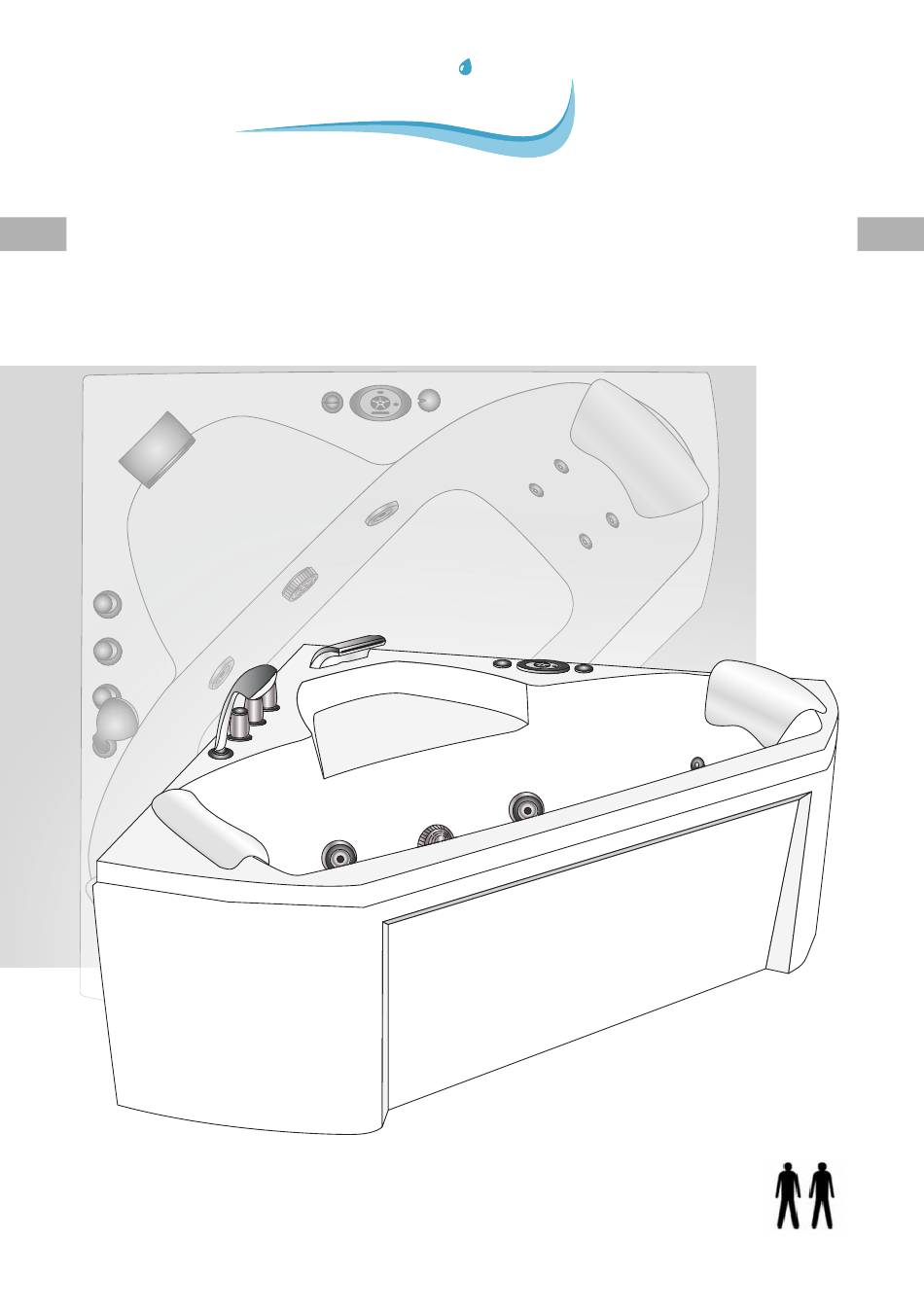

- Page 1 Senior GmbH Assembly Instructions Whirlpool Bath (10v19) eng Attention: The pool should always be be done by two people!
- Page 2 Foreword Dear customer, we are pleased that you have chosen this product. Please observe all instructions before assembly and use and strictly follow the procedure below! Please check the product for completeness first. If there is any damage, please send us a message with a short description and photos of the affected area.
- Page 3 Sealing areas under/behind the bathtub Sealing is compulsory - silicone is not enough! The areas behind and under the bathtub must be tiled. Sealant joints - like silicone joints - are not waterproofing, but only maintenance and beauty joints! Only the use of bathtub sealing tapes or e.g.
- Page 4 Technical data Outside dimensions of the pool 135 cm Length 135 cm Wide 62 cm High Hot and cold water connection ½ Inch max. 4 Bar Waist water HT 40mm Power connection 220-240 V 50 Hz max. 4 A Massage pump water 600 W Max.
- Page 5 Preparing the connections 2a 3a 40 cm 40 cm 80 cm 80 cm Socket 230V 16A (or fixed socket) 2. ATTENTION: leave the 15 cm Ø socket for R-variant around the white siphon (dark grey area) under the drain free. Grey area = possible area for the Hot water 1/2 inch drain pipes, in the wall area the drain...
- Page 6 Alignment In order for the pool to stand straight, it is necessary to align the pool exactly with the help of a spirit level. Each foot is individually adjustable, so you can compensate for small irregularities in the floor. Please make sure that all feet are touching the ground and that the weight is evenly distributed on the ground.
- Page 7 Commissioning/leak test For the leak test, please now connect the water and waste water with the hose connections. It is important that the tub continues to stand away from the wall so that you can still operate behind it. Before you put the pipe under water pressure, please note that it has only been pre-assembled by the factory to make it easier for you to set it up.
- Page 8 +49 35795 - 179 699 Defects that can be traced back to calciferous or iron-rich water are excluded from the warranty. Please describe the spare part exactly and state the exact pool type (e.g. W02). We are always open to your comments and suggestions.
