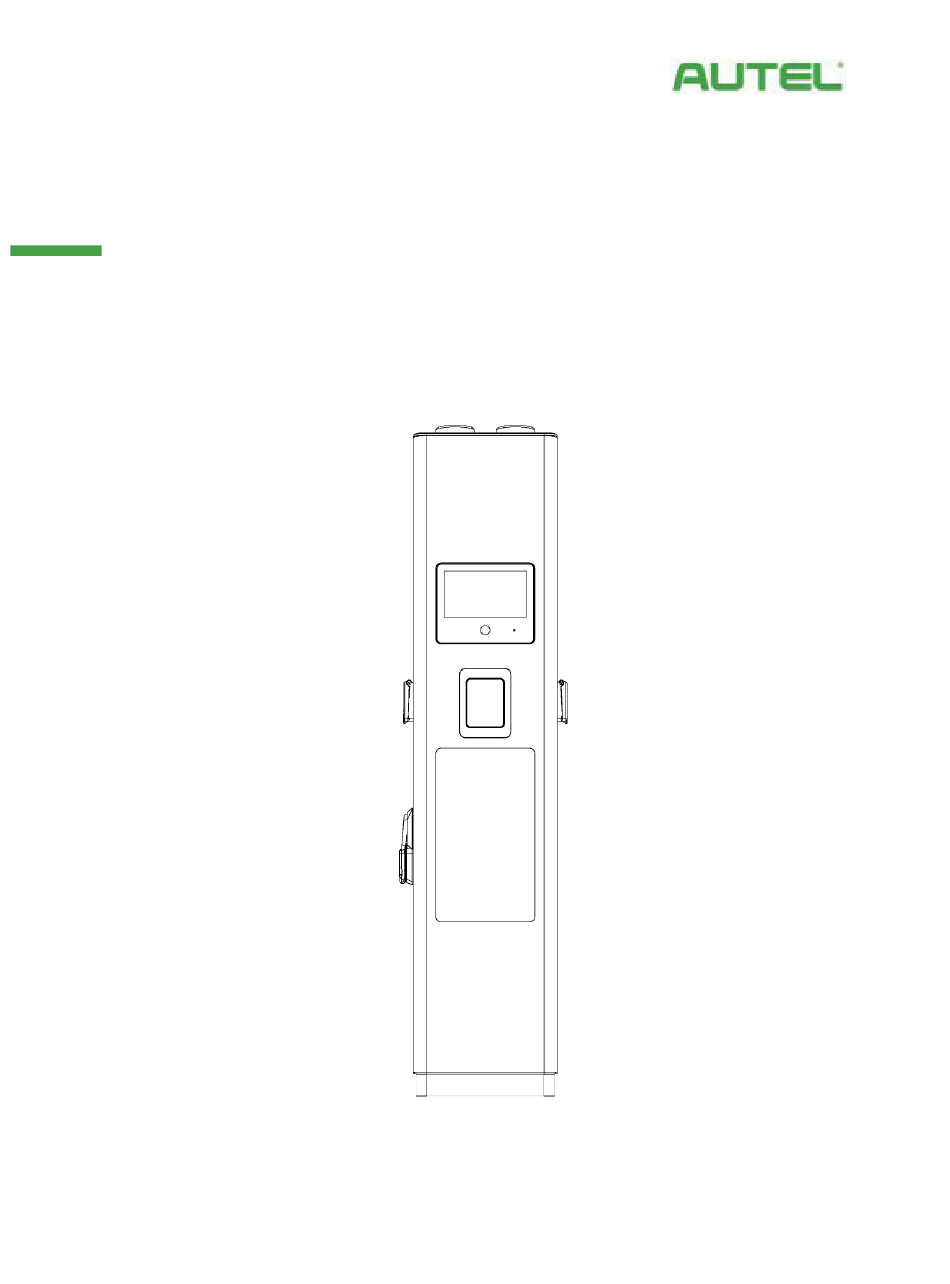

- Page 1 MaxiCharger AC Ultra (Street) Preventive Maintenance Guide Technical Service Department...
- Page 2 Date Version Editor Revisions 2024-08-13 Phoebe Liu Initiate document. 2024-09-11 Phoebe Liu Contents updated. 2024-11-29 Victoria Jiang Contents updated. 2024-12-16 Victoria Jiang Contents updated. 2025-1-22 Victoria Jiang Contents updated. Preventive Maintenance Guide 1 / 19...
-
Page 3: Safety And Usage Instructions
1. Safety and Usage Instructions DANGER, WARNING, CAUTION, and NOTICE statements DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. NOTICE NOTICE provides helpful information such as additional explanations, tips, and comments. -
Page 4: Purpose And Intended Audience
Although Autel has made its best efforts to keep the document as precise and up-to-date as possible, Autel does not assume any liability for defects and damage which results from the use of the information contained herein. -
Page 5: Safety Warnings
These custom modifications (customization) include but are not limited to the placement of stickers and SIM cards or the usage of different colors. Autel is not liable for any damage to, or caused by the customized product if the damage is caused by this applied customization. - Page 6 Handling and usage Do not operate the charging station if the charging cable is frayed, broken, damaged, or cannot work properly. Do not use the charging station if the cabinet or the connector is frayed, broken, or otherwise damaged, or cannot work properly.
-
Page 7: Disposal Instructions
Complete relevant training courses before you engage in electrical work. The training content includes: basic knowledge of electrical safety, practical operation skills, response procedures in emergency situations. Disposal Instructions Handling waste incorrectly can have a negative impact on the environment and human health due to potentially toxic substances. -
Page 8: Basic Information
Confirm that all parts are already installed. Confirm that no extreme weather condition is expected to occur during commissioning, such as rainstorm, thunderstorm, or strong wind. Basic information Autel AC Ultra (Street) Preventive Maintenance Guide Charging station SN Date Charger model... - Page 9 Appearance Antenna Meter Display Socket RFID Reader Door Handle POS Terminal (Optional) Cylinder for End Customer (I) Cylinder for Distribution Plastic Plate System Operator (II) Ambient Light Sensor — Product Label detects ambient brightness Preventive Maintenance Guide 8 / 19...
- Page 10 Auxiliary Power GPS Antenna Cooling Fan Power Board (Bottom) 10Ethernet Port & RS-485 Port Meter RCBO Switch-disconnector SIM Card Socket Mounting Plate POS Terminal (Optional) Power Control Board Preventive Maintenance Guide 9 / 19...
- Page 11 Procedure DANGER The following procedure introduces you to an imminently hazardous situation which, if not avoided, will result in death or serious injury. Power on the charger before you perform the following operations. Check item Example Check result Cabinet appearance Cabinet door：...
- Page 12 (Optional) POS: 1. The POS is well installed without looseness. 2. The POS screen displays properly without any flaw. 3. The POS is working normally Door lock: 1. The door handle is free from deformation and rotates smoothly. 2. The lock hole is unobstructed, the key inserts and removes smoothly, and it unlocks the door.
- Page 13 Meter panel: Check whether the meter panel is intact. Antenna cover: Check whether the antenna covers are securely fastened to the top of the pole. Inside the cabinet Switch disconnector: 1. Check whether the entire charging station loses power after you turn off the disconnector.
- Page 14 Auxiliary power: 1. Check whether the auxiliary power is well installed. 2. Check whether all cables connecting to the auxiliary power are well arranged and secured. Preventive Maintenance Guide 13 / 19...
- Page 15 AD board: PLC: PCBA: PCBA in AC Ultra (Street) includes AD board, TCU, power board, power control board, PLC, NFC board, 4G module TCU: board and SIM card board. 1. No signs of burning. 2. No water droplets, water marks (traces left after water droplets dry up) 3.
- Page 16 SIM card slot: Power control board: 4G module: Power board: Meter: 1. Check whether the meter is well installed without looseness. 2. Check whether the meter screen displays normally after power on. 3. Check whether alarms are displayed on the charging station screen. Preventive Maintenance Guide 15 / 19...
- Page 17 Door sensor（Optional）: 1. Check whether the door sensor is well installed. 2. Check whether the system reports a fault when you open the door during a charging session. Vulnerable parts Touchscreen: 1. Check whether the touchscreen is complete without any damage or flaw.
- Page 18 Checklist The following table describes the onsite maintenance schedule. Perform maintenance operations based on the environment and site-specific conditions. AC Ultra (Street) Onsite Preventive Maintenance Schedule Estimated downtime of this part: 30 min I: Inspection (Visual inspection and required maintenance if needed). P: Performance of onsite operations (commissioning, tests, measurements, and other operations).
- Page 19 www.autelenergy.com Preventive Maintenance Guide 18 / 18...
