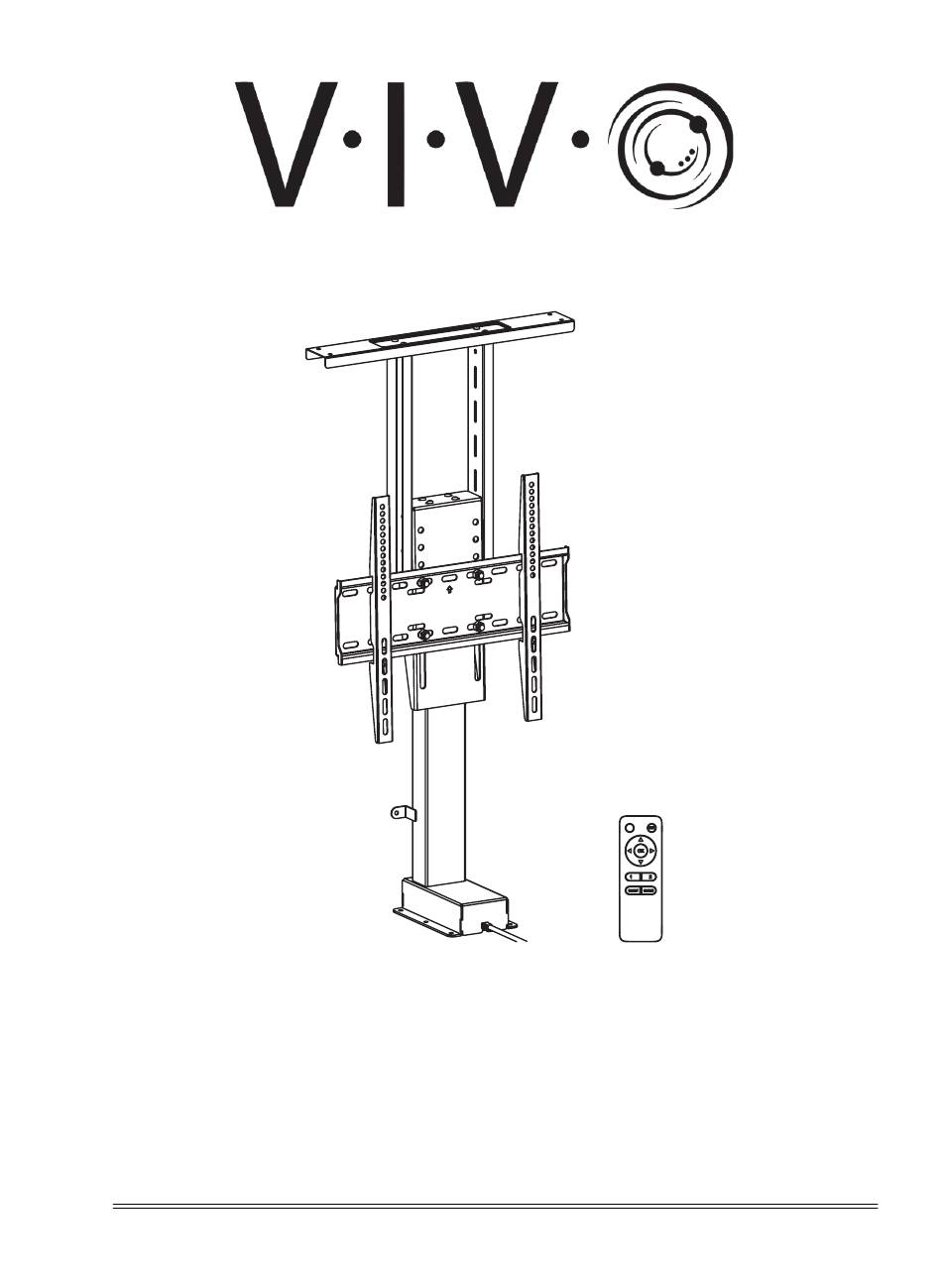

- Page 1 Motorized TV Stand with Remote Control MOUNT-E-UP55P Assembly Manual...
-
Page 2: We're Here For You
Saturday 8am-4pm CST US-Based Customer Support from Trained Professionals Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 Assembly Video Available Navigate to the middle of the product page to watch as our product specialists walk you through the assembly process. -
Page 3: Please Read
Returns: We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense. Product Specific Warnings: WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. -
Page 4: Package Contents
Package Contents A (x1) B (x1) C (x2) D (x1) Side Bracket Motorized Lift Mounting Plate Lifting Bracket E (x1) F (x2) G (x1) H (x1) TV Bracket VESA Bracket Control Unit AC Adapter I (x1) J (x1) K (x1) Adapter Cover Power Cable Remote... -
Page 5: Assembly And Installation
User Guide Assembly & Installation Remote | Setup & Use pg. 14-16 pg. 6-13 Troubleshooting Tuya App | Setup & Use pg. 17-18 pg. 19-26 Voice Control | Setup & Use Amazon Alexa & Google Home pg. 27-30... -
Page 6: Pre-Assembly
Preassembly Building or Selecting a Custom Cabinet PLEASE NOTE: NOT DESIGNED FOR CEILING MOUNT USE This product is designed for CABINETS ONLY and can NOT be installed as a ceiling mount. Doing so will damage the motor and void the warranty. When building or selecting cabinetry for your Motorized TV Stand, ensure there will be at least 2”(50mm) of clearance on the sides of the TV, along with at least 0.4”(10mm) of clearance on the top. -
Page 7: Assembly Steps
Assembly Steps STEP 1 Plug the cable on Lifting Column (A) into Control Unit (G). Place Adapter Cover (I) over AC Adapter (H) and connect to Control Unit. Connect Power Cable (J) to AC Adapter. ** WARNING ** To prevent product damage, keep electrical components away from Lifting Column. - Page 8 STEP 3 Place the lift assembly inside of your cabinet and plug it into a nearby outlet. Remove the cutout from the top panel of your cabinet. STEP 4 Press the side button on the Control Unit (G) using a pencil or a small tool. The lift will beep once, indicating the lift is ready to be paired with the Remote (K).
- Page 9 STEP 5 With the Mount fully raised, secure the lift assembly to the inside of the cabinet with ST5.5x16mm Screws (S-A) using a drill. Use the Down Arrow on the Remote (K) to fully lower the Mount. Secure the Control Unit (G) with ST4.2x20mm Screws (S-B) and the AC Adapter with the Adapter Cover (H,I) with ST5.5x16mm Screws (S-A) and a drill.
- Page 10 STEP 6 Connect the Shelf Supports (C) to the sides of the Motorized Lift (A) using the M6x12mm Screws (S-C) and 4mm Allen Wrench (T-A). The top of the Shelf Supports (C) should be 5mm below the bottom of the cabinet’s top panel.
- Page 11 STEP 7 Use the Remote (K) to fully raise the Mount. Attach the TV Bracket (E) to the Mounting Plate (B) using the M10x20mm Screws (S-D), M10 Nuts (S-E), 6mm Allen Wrench (T-B), and Wrench (T-C). Mount offers 4 height options. Secure the cabinet top panel cutout to the Shelf (D) using ST5.5x16mm Screws (S-A) and a drill.
- Page 12 STEP 8 Install the VESA Brackets (F) to the TV using the appropriate Screws (M-A~M-D), M8 Washers (M-E), Spacers (M-F, M-G), and Phillips screwdriver. Loosen both Security Screws using a Phillips screwdriver. Flat Recessed Too Long Too Short Ensure Security Screws face the bottom.
- Page 13 STEP 9 Place the TV Assembly onto the TV Bracket (E). Tighten the Security Screws on the VESA Brackets (F) with a Phillips screwdriver to secure it. 2 Person Mounting Recommended Security Screw Motorized TV Mount is now ready for use. Refer to the “Remote Setup & Use” guide on Pages 14-16 for Remote (K) instructions.
- Page 14 Remote Setup & Use...
-
Page 15: Remote Operation
Remote Operation Short press to stop Pairing movement, or fully retract the mount. Press and hold to Press and hold to move the mount move the mount upward downward Return to the position Return to the position stored in mem1 stored in mem2 mem1 mem2... -
Page 16: Clearing The Memory
Functions PAIRING A REMOTE Use a thin tool to short press the small button on the Control Unit. The mount will emit a beep, indicating readiness. Then press the SET button on the Remote. The mount will beep 10 times indicating pairing success. -
Page 17: Troubleshooting
Troubleshooting... - Page 18 Remote Doesn’t Work Press any button on the remote and see if the LED flashes. If not, please contact us at 309-278-5303 or help@vivo-us.com for a replacement. Abnormal Operation or Noise Check all power connections and follow instructions on Page 16.
-
Page 19: Setup And Use
TUYA® Smart | Mobile App Setup & Use DOWNLOAD TUYA SMART APP IN YOUR APP STORE... -
Page 20: Standard Operation
Tuya App | Basic Functions UPWARD MOVEMENT STOP DOWNWARD MOVEMENT MEMORY MEMORY SET 1 RECALL 1 MEMORY MEMORY SET 2 RECALL 2 MEMORY MEMORY SET 3 RECALL 3 Standard Operation Using Arrow Keys UP: Press and hold the button to move the TV upward. Release to stop the motion. DOWN: Press and hold the button to move the TV downwards. - Page 21 Setting Up & Creating an Account TURN ON WIFI CREATE ACCOUNT Before you begin, ensure that Wifi is Open Tuya Smart App and select Sign-Up from enabled on your phone. start screen. Follow on-screen prompts. Pairing to Mount MOTORIZED TV SOLUTION ADD DEVICE Tap Motorized TV Solution in the Auto Tap Add Device or the + icon in upper...
-
Page 22: Connection Screen
Pairing to Mount - Cont’ d CONNECT TO WIFI CONNECTION SCREEN If Wifi connection was successful, Select your Wifi from available list connection to your TV mount will and enter password to enable mount begin. Please allow 10-60 seconds for access. -
Page 23: Reset Mode
Unpairing Mount from App From the Home screen, locate your TV mount, then long press to open device options. Option 1: Select Remove Device at the bottom of the screen to unpair the mount from your app. Option 2: Short press the mem2 button on the remote 5 times. A beep is emitted signaling the mount is disconnected from the App. -
Page 24: Set Up Home
Syncing Other Mobile Devices To allow other mobile devices to control the TV mount, you will need to first create in the Home app and then invite other users to your Home. HOME MANGEMENT CREATE A HOME Select the ME ( ) icon to navigate to the Tap Create A Home to proceed. - Page 25 Syncing Other Mobile Devices - Cont’ d INVITE OTHER MEMBERS JOINING A HOME Tap Add Member and choose an Once app is installed and registered, invitation method. New users will new user will tap the ME ( ) icon on receive link to download Tuya Smart the bottom right.
- Page 26 Syncing Other Mobile Devices - Cont’ d My Home... My Home... New Home Name Home Management No devices No devices Add Device Add Device Add Device CHANGING HOME SCREEN SELECT NEW HOME Select the icon to navigate to the From dropdown, select the name of the Home screen.
-
Page 27: Voice Control
Voice Control Amazon Alexa® & Google Home® Setup & Use... - Page 28 Setting Up Amazon Alexa DOWNLOAD AMAZON ALEXA APP SIGN IN Download the Amazon Alexa app from Click "Sign in with Amazon". the App Store or Google Play. Once installed, return to the Tuya app and tap on "me" in the bottom right corner, and tap "Alexa".
- Page 29 Setting Up Google Home DOWNLOAD GOOGLE HOME APP LINK Download the Google Home app from the Tap "Link with Google Assistant" to App Store or Google Play. Once installed, launch the Google Home app. return to the Tuya app and tap on "me" in the bottom right corner, and tap on "Google Assistant ".
-
Page 30: Voice Commands
Voice Commands Action Amazon Alexa® Google Home® Alexa, set <devicename> to up OK Google, set <deviceName> to up Upward Movement Downward Movement Alexa, set <devicename> to down OK Google, set <deviceName> to down Stop Alexa, set <devicename> to stop OK Google, set <deviceName> to stop Save Current Position as Alexa, set <devicename>... - Page 31 Securely store your PC in Clamp on & under desk and more with our clamp-on an under desk mount or keyboard tray options for and wall mount solutions. cart for easy access. all setup types. Explore Endless Workspace Solutions www.vivo-us.com...
