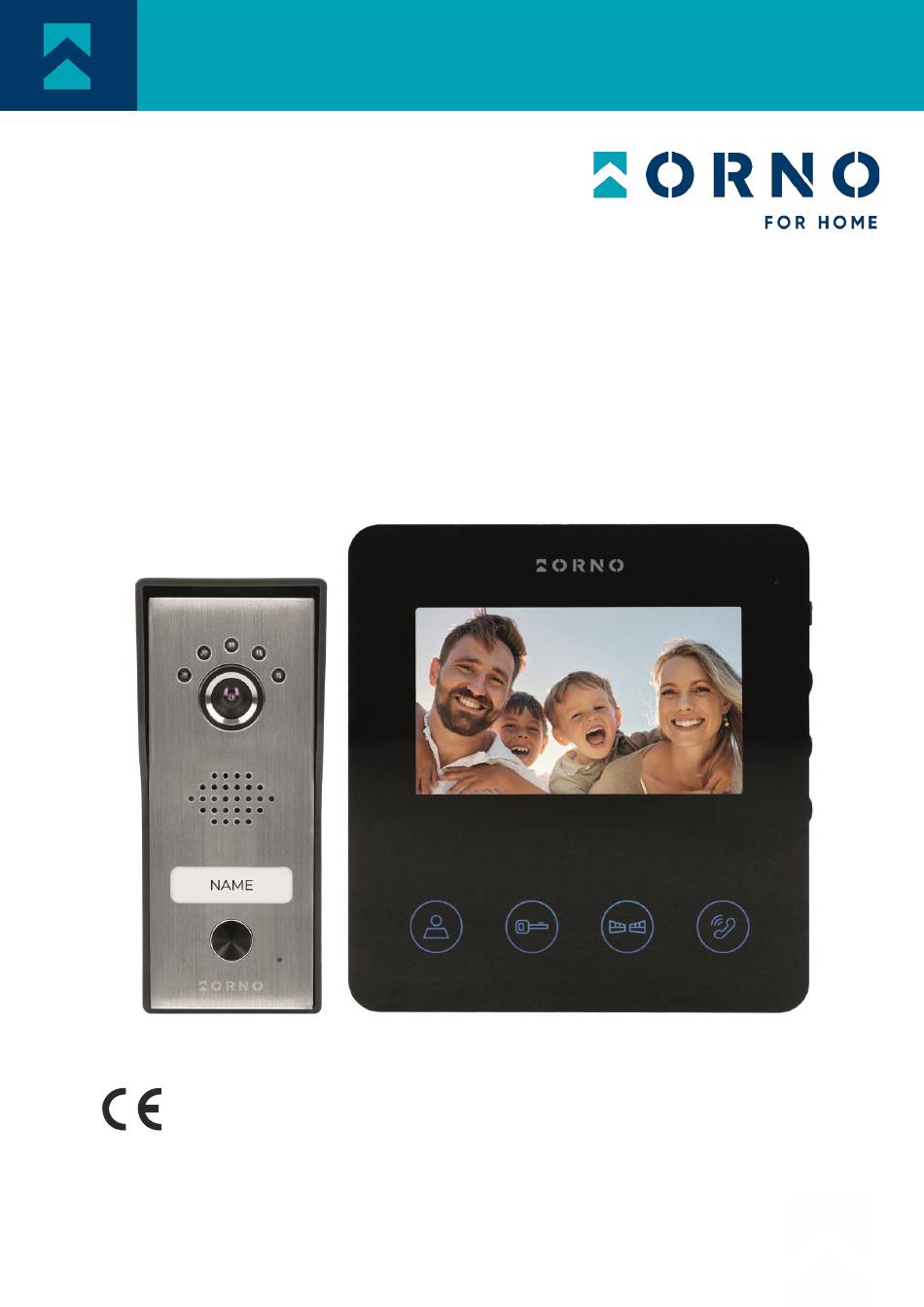

- Page 1 Installation and operation manual Video doorphone DUX OR-VID-MT-1050 Be sure to read the operating manual before installation! STOP! Damage resulting from incorrect installation ARE NOT SUBJECT TO WARRANTY REPAIRS!
- Page 2 Due to the fact that the technical data are constantly being modified, the manufacturer reserves the right to make changes without notice. Orno Logistic Sp. z o.o. reserves the right to make changes to the Manual - the latest version of the Manual can be downloaded from www.orno.pl.
- Page 3 2. CHARACTERISTICS The video doorphone is designed for installation in 1-family buildings. Functions: - the possibility to talk to the person at the entrance and observe at the same time on the monitor screen; - directly control the electric strike; - gate control;...
- Page 4 4. SET CONSTRUCTION fig. 1 Construction of the video monitor fig. 2 Construction of the outdoor unit MONITOR 6. Ringtone selection OUTDOOR UNIT 1. Monitoring 7. Image brightness adjustment 1. Rain shield 2. Wicket opening 8. Colour intensity adjustment 2. LED diodes 3.
- Page 5 OUTDOOR UNIT INSTALLATION fig.4 Outdoor unit placement Recommended installation height of the outdoor unit is 140-170 cm. The correct location of the outdoor unit determines the comfort of working with the device. It is recommended to test the device before making mounting holes. Do not place the outdoor unit and monitor in the same room as feedback may occur.
- Page 6 6. WIRING SCHEME The video doorphone cables should not be routed in one cable with the cables of other installations such as bell, alarm, etc. Any power and telecommunication cables emitting strong magnetic fields (e.g. loudspeaker columns, TV set) in direct contact with the cables connecting the outdoor unit to the monitor may adversely affect the operation of the set.
- Page 7 6. Scratched monitor a) check that the protective film is removed from the screen. ORNO-LOGISTIC Sp. z o.o. ul. Rolników 437, 44-141 Gliwice, Poland tel. (+48) 32 43 43 110, www.orno.pl NIP: 6351831853, REGON: 243244254...
