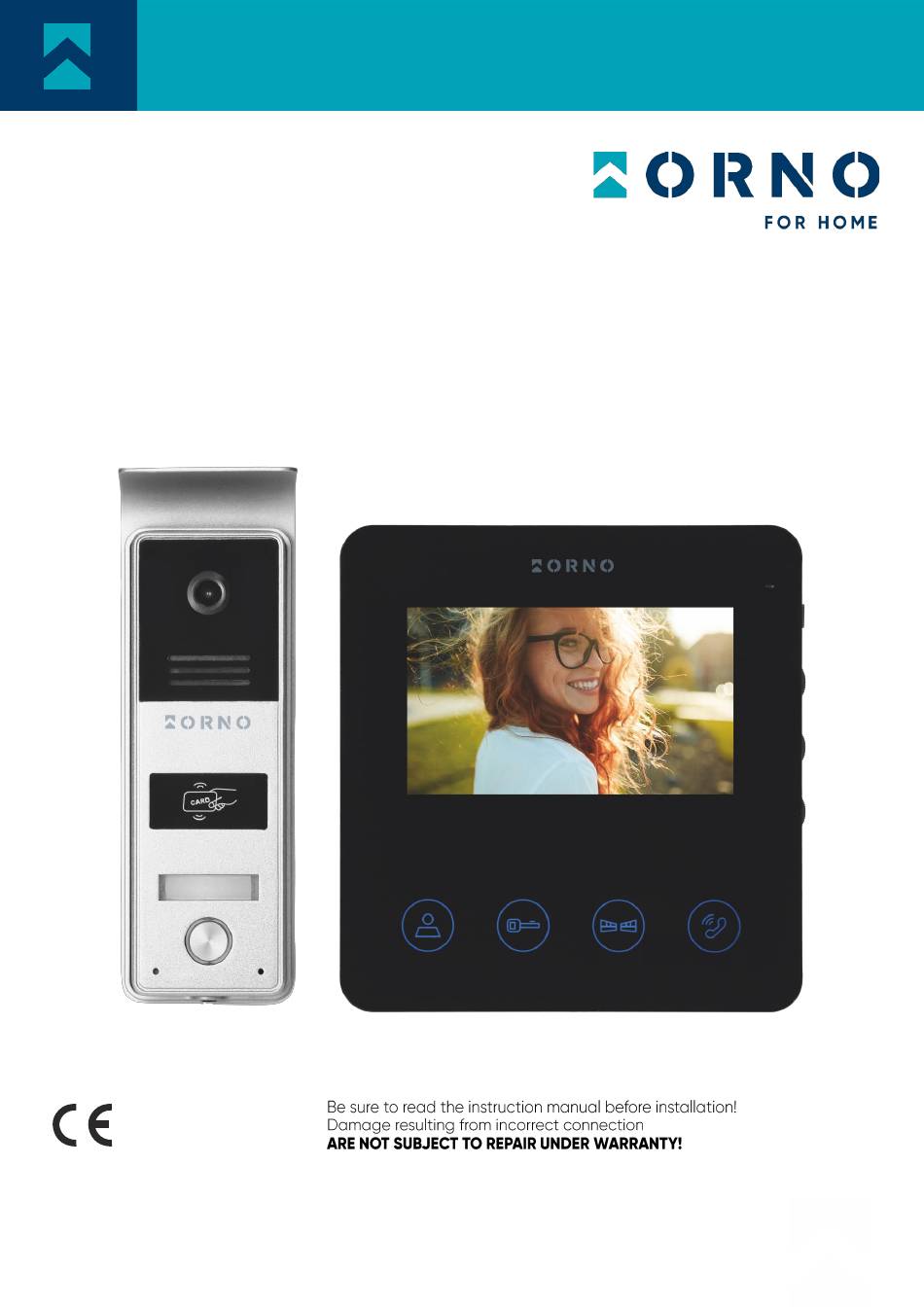

- Page 1 Operating and installation instructions Video doorphone set Pacto OR-VID-MB-1083/B STOP!
-
Page 2: Table Of Contents
Additional information about ORNO products is available at www.orno.pl. Orno-Logistic Sp. z o.o. holds no responsibility for the results of non-compliance with the provisions of the present Manual Orno-Logistic Sp. z o.o. reserves the right to make changes to the Manual - the latest version of the Manual can be downloaded from www.orno.pl Any translation/ interpretation rights and copyright in relation to this Manual are reserved. -
Page 3: Characteristics Of The Set
2. CHARACTERISTICS OF THE SET The videodoorphone is designed for installation in 1-family buildings. Functions: - simultaneous view and hold of a conversation with a person in front of an entrance; - direct control of an electric door strike; - gate control; - built-in RFID reader allows access with proximity cards and tags;... -
Page 4: Set Construction
OUTDOOR UNIT SENSOR TYPE: CMOS 1/2.9’ RESOLUTION: 700 TVL VIEWING ANGLE (VERTICAL/HORIZONTAL): 51° / 104° NIGHT LIGHTING: NUMBER OF DIODES: NIGHT VISION RANGE: approx. 1m RFID READER: 125kHz RFID-tags/cards (max. 24 users) MAXIMUM TRANSMITTING POWER: <66 dBμA/m at 10m INGRESS PROTECTION: IP65 POWER SUPPLY: 15V DC from monitor... -
Page 5: Installation
5. INSTALLATION MONITOR INSTALLATION fig.2 Monitor installation 1. Drill holes in the wall and insert wall anchors into them. 2. Screw the monitor mounting bracket to the wall with screws. 3. Connect the wires to the monitor and hang it on the mounting bracket. 4. -
Page 6: Wiring Diagrams
1. Drill holes in the wall and insert the wall anchors into them. Pull through the wires and screw the rainshield to the desired location with screws. To put your name on the outdoor unit, press the nameplate on the right side and slide it to the right. When the plate pops off, remove the namecard and sign your name. -
Page 7: Set Operation
It is forbidden to make connections to live equipment! Failure to adhere to this recommendation may result in permanent damage to the device and loss of health. The set does not include an electric door strike and automatic gate control unit! The video doorphone cables should not be routed in one cable with the cables of other installations such as bell, alarm, etc. -
Page 8: Rfid Reader
8. RFID READER Set contains 7 RFID tags (if a tag is lost, it is possible to configure additional cards/tags): 5 blue users tags, 1 yellow tag used for adding new users, 1 red tag (used to delete all saved users). The tags are pre-configured and do not need to be programmed when the device is installed. - Page 9 Simplified declaration of conformity Orno-Logistic Sp. z o.o. declares that the type of radio device OR-VID-MB-1083/B Video doorphone set Pacto is compliant with the Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following web address: www.orno.pl...
