Summary of Contents for Orno OR-VID-IP-1045

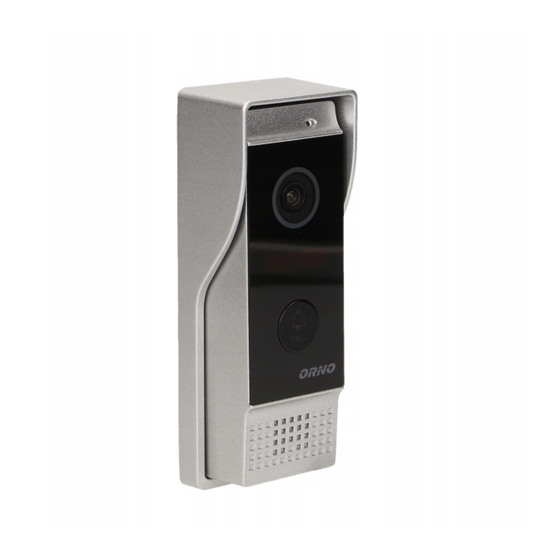

- Page 1 Mobile Video Door Phone & Chime Statement * If there is any doubt or disputable regarding information in this manual, you can call our company for clarification. * In all cases, for more details, please refer to the electronic user’s manual on the included.
- Page 2 Outdoor camera 1pcs Safety Instructions Plastic anchor 2pcs ※ Read these instructions and keep them in a safe place for future reference. Installation screws 2pcs ※ Please refer all work related to the installation of this product to qualified Affixation screws 3pcs service personnel or system technician.
- Page 3 Camera 1/4 CMOS Built-in power supply (AC 100V~240V) Chime Antenna(optional) View angle view angle of the model including character “R” can be up to 110 IP Doorbell Definition(Hor.) 1.0M To Internet LEDs for night IR LEDs(60 ) Network Cable 400mA max. Power consumption Crystal head External switching power supply DC12V.
- Page 4 You can install the chime according to the following method as below. * Avoid installation of the device near strong radiation e.g. AC motor and lift. Screws Plastic anchors * Maintenance should be complied with qualified technician. * Avoid hard shake, beating and collision, otherwise the internal exact components maybe be damaged.
- Page 5 3G/WIFI Internet To WAN Modem Stop Router Music IOS/Android Play Reset AC/DC power lock To LAN To LAN (not Included) (not Included) Stop Name Descriptions Musi c Play Stop Press the button to stop the ringer of the device. Press the button to adjust the ringtone of the device when Music Chime IP Doorbell...
- Page 6 Mobile Phone Software Visit This IP doorbell can transmit live feed to your smart-phones and pads with IOS or android system via a program “MobileEyeDoor+”, and support P2P technology. Calling on the outdoor camera, notification will be pushed onto master’s phone immediately, ringtone ringing on the phone, confirm and access to the video live view directly.
- Page 7 3). When the device went into AP mode, long-press the “Call” button again, don’t B. Wireless network loosen the button until hearing a beep, this means the device will reboot Step 1. Please download a program “MobileEyeDoor+” via “Play Store” on a automatically and will return to the previous connection mode.
- Page 8 C. Alarm push function To access the interface about the parameters of one device, there is an option “Notification” for alarm push function. When select “On” , it indicates that the UID: zz02502f58 alarm push function of the current device is enabled. To enable alarm push function, users need to make sure the outdoor camera and the mobile phone are both connected to internet.
