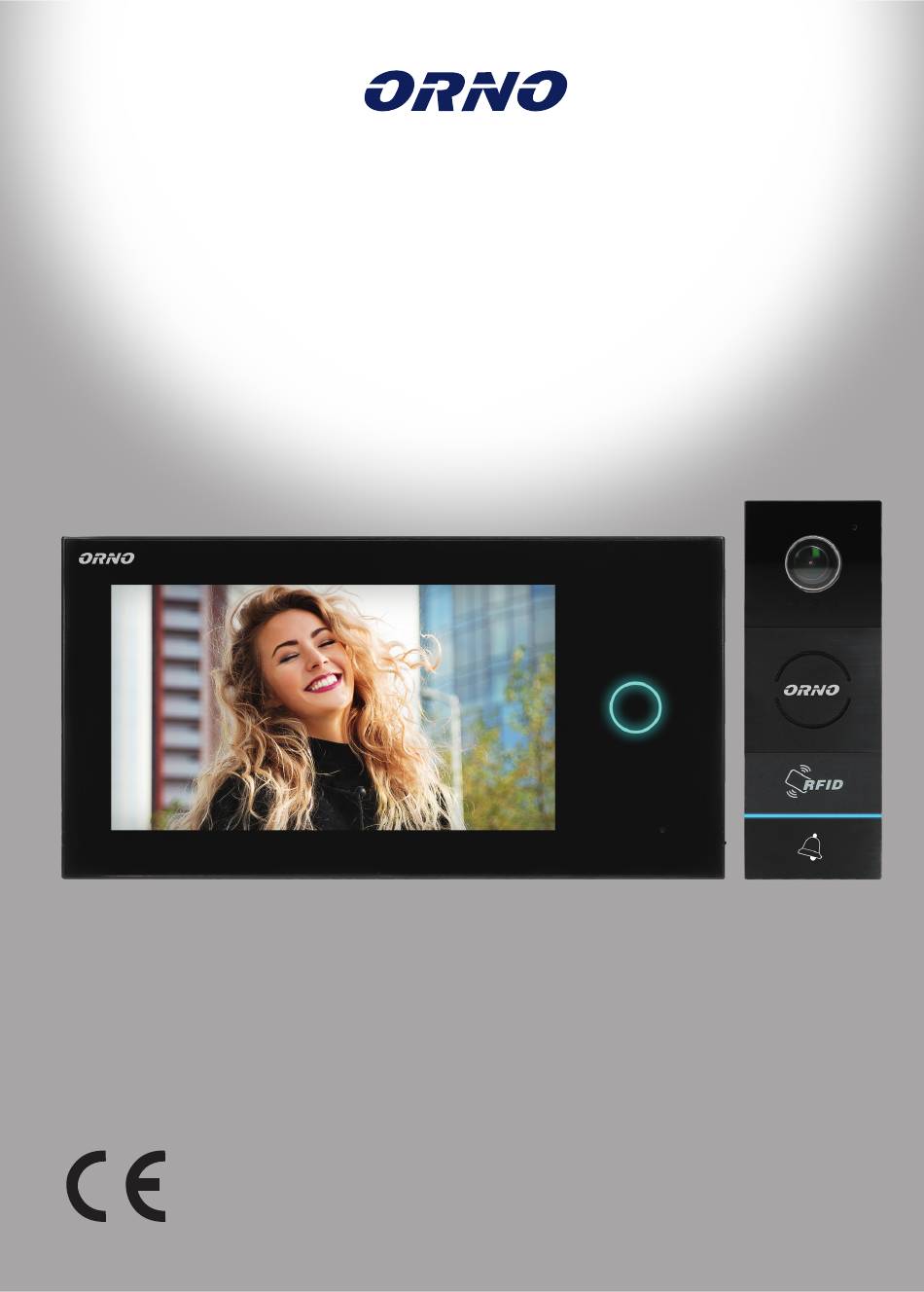

- Page 1 OPERATING AND INSTALLATION INSTRUCTIONS APPOS VIDEO DOORPHONE SET OR-VID-WI-1068/B...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Table of contents ..................2. Introduction ....................3. Characteristics ................... 4. Set construction ..................5. Installation ....................a) External panel installation ................b) Monitor installation ..................6. Installation of applications ................ WiFi network connection .................. 7. Adding device .................... 8. -
Page 3: Introduction
Additional information about ORNO products are available at www.support.orno.pl. Orno-Logistic Sp. z o.o. holds no responsibility for the results of non-compliance with the provisions of the present Manual. Orno Logistic Sp. z o.o. reserves the right to make changes to the Manual - the latest version of the Manual can be downloaded from www.orno.pl. -
Page 4: Set Construction
SET CONSTRUCTION 12VDC max 500mA 01. Indicator light 02. Microphone 03. TF card slot (for storing photo and video files) 04. TF card slot (expansion of the list of available ringtones) 05. Reset button (used to restore factory settings; password:admin) 06. -
Page 5: Installation
INSTALLATION Before installing the device on a permanent basis, connect its cables to check that it is working properly. Power supply 15V DC 1A Black Electric strike (not included) 12VDC max 500mA Gate External panel The video doorphone cables should not be routed in one cable with the cables of other installations such as bell, alarm, etc. -
Page 6: A) External Panel Installation
While designing the wiring system, take into account the suitable cross-section of cables: up to 30 m - recommended cable XzTKMXpw 2 x 2 x 0.5 mm from 30 m to 100 m - recommended cable XzTKMXpw 2 x 2 x 0.8 mm The connection to the electromagnetic lock should be made with 2 x 1mm . - Page 7 Description Type of adjustment ID = (00) 1 sec. Door release time ID = (01) 4-7 sec. ID = 1(00), setting for the first external panel ID selection of external panel ID = 2(01), setting for the second external panel Internal monitor Electric strike (12VDC max.
-
Page 8: Monitor Installation
b) Monitor installation External panel Power adaptor Black Red... -
Page 9: Installation Of Applications
INSTALLATION OF APPLICATIONS 1. Open the App Store (iOS) or Google Play (Android) on your phone. Search for the "aivisi" app and install it or 2. Scan one of the QR codes below, depending on your operating system. After the installation is complete, the system will ask for application permissions. Granting permission is necessary for the proper operation of this application. - Page 10 2. Select your country and press "Next” 3. Create an account: set up a username and password. Press "Sign Up". 4. A message will appear on the screen, click 5. An activation e-mail has been sent to the "Activate my account” address you provided.
-
Page 11: Wifi Network Connection
WiFi network connection 1. Exit sleep mode, press the SETTINGS icon 2. Select the WIFI icon 3. Select the WIFI network to which you want to 4. Enter the WIFI password and press the icon connect the monitor to confirm. 5. -
Page 12: Adding Device
ADDING DEVICE 2. Choose WIFI VIDEO DOOR PHONE 1. Press in the aivisi application, the icon „+” 3. Press „Next” 4. Select the device found. -12-... - Page 13 6. Press to view the monitoring area 5. Select the device name and press "Save" 7. Device login: For security 8. The device has been successfully purposes, set a new name and added. a new password for the camera. -13-...
-
Page 14: Application Settings
APPLICATION SETTINGS Browse album Ringtone settings Application settings Logout 1. Press in the aivisi application, the icon Application settings Wi-Fi (ON/OFF) Do not disturb mode List of devices -14-... -
Page 15: Operation
OPERATION 1. Calling When the visitor presses the call button on the external panel, the LEDs will start flashing and you will hear an alarm indicating the call. The following message will appear on the mobile device: Press to decline Press to accept 2. - Page 16 3. Monitoring function The monitoring function is only possible when the device is online. The preview time is 60 seconds. Press 4. Browsing the album Video Photo Press -16-...
-
Page 17: Reading The Message
5. Reading the message Device name Notification time Notification list Press 6. Device settings 7. Resetting Press this button to return to the factory password: admin The device must be connected to a Wi-Fi network -17-... -
Page 18: Use Of Card And Proximity Tag Reader
USE OF CARD AND PROXIMITY TAG READER Main tag registration (Note: as a rule, there is no need for the user to register the proximity tags separately, as they are already registered at the production stage) Blue: main tag (2pcs.) Black: user tag (4pcs.) 1. - Page 19 Deleting user tag 2. Press and hold the call button 1. In standby mode, read the main tag. The for approx. 3s, you will hear the LED will light up white. "DI" tone and the red LED will flash 3. Read the main tag again. The white 4.
-
Page 20: Operation
OPERATION 1. System date and time 2. Preview 3. Intercom 4. Gallery 5. Settings 6. Off button Receiving a call pick up decline When the call button on the external panel is pressed, the call is signalled by a ringing tone and the monitor displays information about the incoming call. - Page 21 Internal (intercom) call Press the icon on one of the monitors, then the other monitor will start ringing. Once the call is answered, the conversation will begin. Door/gate opening It is possible to open the door/gate during a conversation or while monitoring the entrance. Gate opening Door opening (electric strike)
- Page 22 Browse files (stored on SD card) Saved pictures/recordings can be played back on the monitor screen. In the main menu, press the icon on the monitor screen. Press „<” or „>”, to select a date, Press the icon , to select a photo file, Press the icon , to select a video file.
- Page 23 2. Setting image parameters Press „<” or „>” , to change settings. Press the icon , to return to the main menu Press the icon , to return to the previous page. Brightness setting Contrast setting Color setting 3. Setting ringtone and volume Press „<”...
- Page 24 5. Network setting successful 5. Monitor settings A maximum of 2 monitors (main monitor and additional monitor) can be connected. Important: One monitor required as the main monitor. Press the icon , to rename a device Press the icon , to return to the main menu Press the icon , to return to the previous page.
-
Page 25: Technical Data
TECHNICAL DATA Monitor Wi-fi frequency 2.4GHz Standard 802.11b/g/n, 802.3, 802.3u Power output Power supply Screen size Video system Resolution 1024x600 Power consumption Working temperature Working humidity Card type Micro SD TF Photos file type Video file type External panel Camera type Viewing angle 115 (horizontal), 60 (vertical) Power supply... - Page 28 PRODUCER ORNO-LOGISTIC Sp. z o.o. ul. Rolników 437, 44-141 Gliwice tel. 32 43 43 110, www.orno.pl ver. (07/2021)
