Mercia Garden Products 01DTOVRA0604SDFW-V2 Manual

6x4 overlap reverse apex shed
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTOVRA0604SDFW-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTOVRA0604SDFW-V2

Summary of Contents for Mercia Garden Products 01DTOVRA0604SDFW-V2

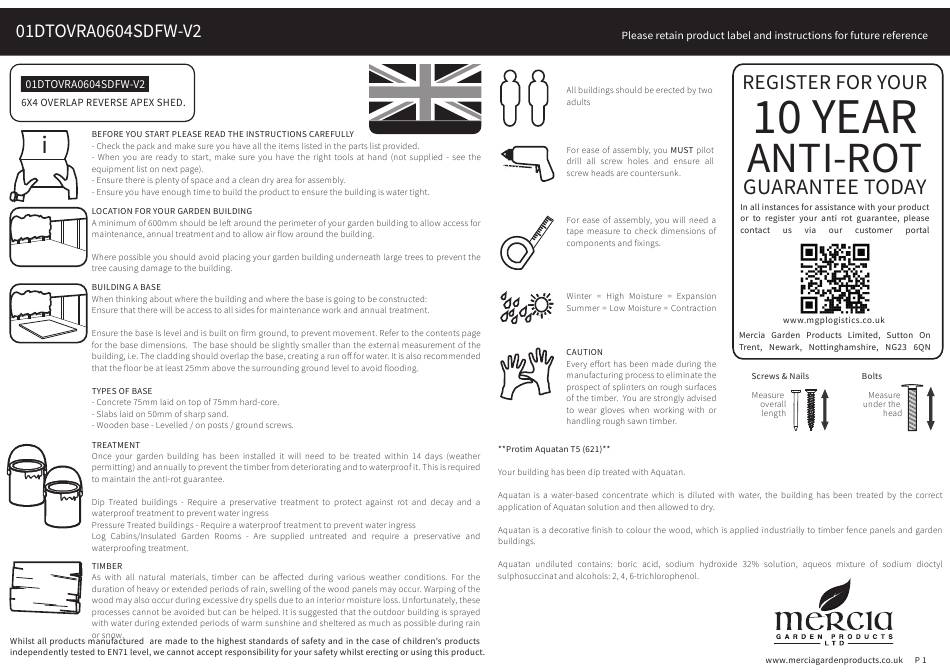

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...
  • Page 2 ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 01DTOVRA0604SDFW-V2 End View Overall Dimensions: Door Block - 150x28x28mm QTY 1 Width = 1842mm F2828-150mm Depth = 1313mm End View Height = 2083mm Ridge Bar - 1707x28x28mm QTY 1 Base Dimensions: F2828-1707mm Width = 1753mm End View Depth = 1175mm...
  • Page 5 Screw Pack Before assembly, please make sure you have a suitable There may be extra screws in the pack: base ready to install your building onto. 50mm Screw x 20 20mm Screw x 10 Step 1 40mm Screw x 20 Felt Tacks x 85 Parts Needed - No.
  • Page 6 Step 2 Step 3 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 3 QTY 1 Parts needed - No. 1 QTY 1 No. 4 QTY 1 No. 8 QTY 1 No. 20 QTY 3 **Please note: the front and back panels interchangeable Place the door (No.
  • Page 7 Step 5 Step 6 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 1 QTY 1 Parts Needed - No. 10 QTY 1 No. 3 QTY 1 No. 19 QTY 2 **Please note: the front and back panels Fix the Corner Braces (No.
  • Page 8 Step 8 Step 9 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 6 QTY 2 Fix the building to the oor using Place the Roof Panels (No. 6) on top of the 20x40mm screws, ensuring to go through building, ensuring equal spacing either side of the panel framing and into the oor.
  • Page 9 Step 10 Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 13 QTY 2 Parts Needed - No. 17 QTY 1 No. 14 QTY 1 No. 18 QTY 1 Cut the felt (No. 17) into two sheets No.
  • Page 10 Step 12 Step 14 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 15 QTY 6 Parts Needed - No. 9 QTY 1 No. 12 QTY 2 Fix the cover trims (No. 15) to the corners and the joins of the building, Fix the Door Beading strips (No.
  • Page 11 Step 16 Once constructed, apply a preserving treatment and a waterproo ng treatment to your garden building as soon as possible. This will help to protect your building and prevent decay. See page 12 for a full guide and instructions. Once fully treated, score around the protective covers on the glazing and carefully peel the coverings back.
