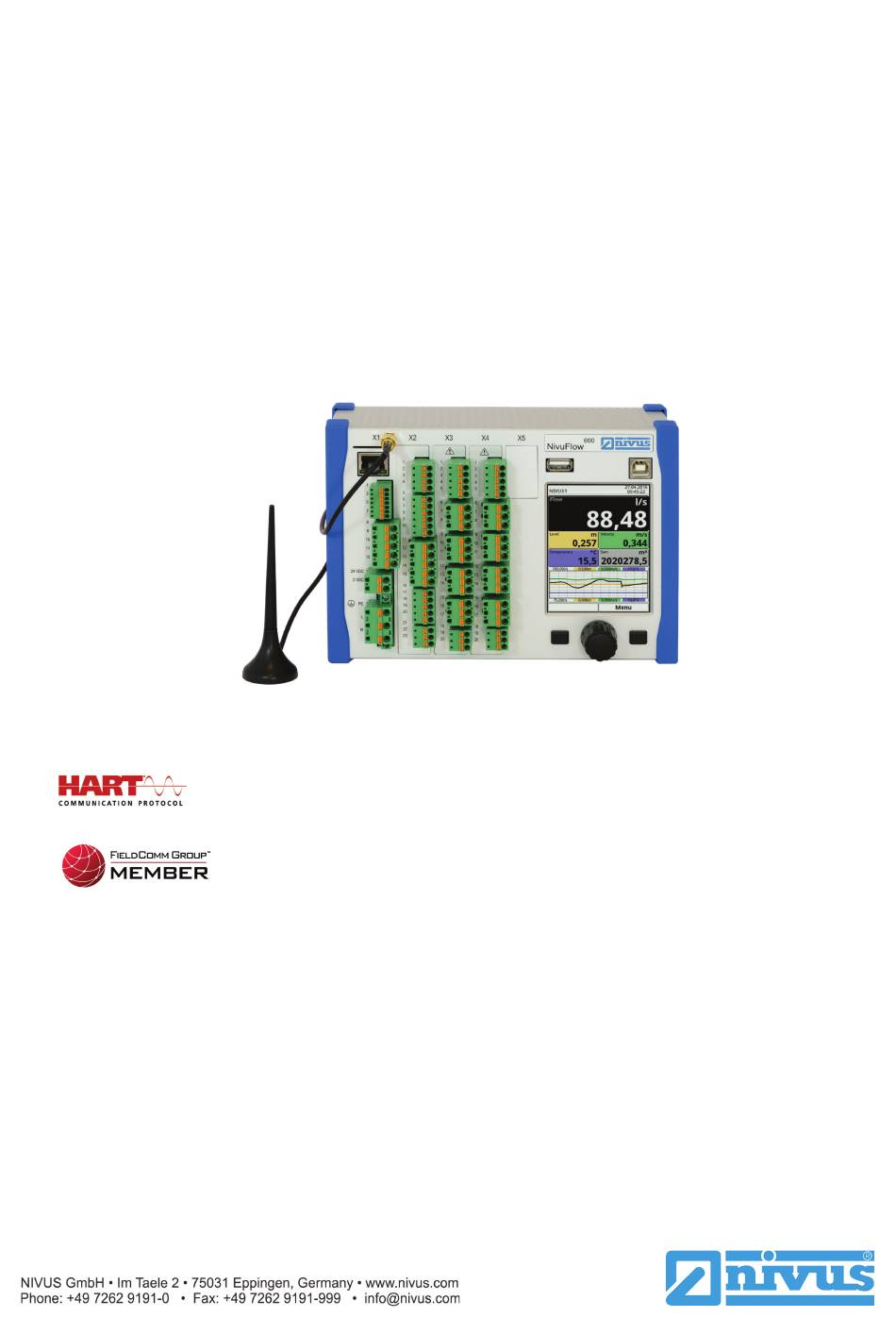

Instruction Manual
NIVUS Data Transmission of Devices
NivuFlow 550, 600, 650, 7550, Energy Saver and NivuParQ 850
Supplement to the respective Instruction Manual
Starting with Firmware-Version: 3.1.x
Revised Manual
Document Revision: 01 / 25.06.2021
Original Instruction Manual: German / Rev. 01 as of 25.06.2021
measure analyse optimise

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NivuFlow 550 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nivus NivuFlow 550

  • Page 1 Instruction Manual NIVUS Data Transmission of Devices NivuFlow 550, 600, 650, 7550, Energy Saver and NivuParQ 850 Supplement to the respective Instruction Manual Starting with Firmware-Version: 3.1.x Revised Manual Document Revision: 01 / 25.06.2021 Original Instruction Manual: German / Rev. 01 as of 25.06.2021...
  • Page 2 Instruction Manual NIVUS Data Transmission NivuFlow/NivuParQ NIVUS AG NIVUS Middle East (FZE) Burgstrasse 28 Building Q 1-1 ap. 055 8750 Glarus, Switzerland P.O. Box: 9217 Phone +41 55 6452066 Sharjah Airport International Fax +41 55 6452014 Free Zone swiss@nivus.com Phone +971 6 5578224 www.nivus.de...
  • Page 3: Copyrights And Property Rights

    Copyrights and Property Rights Copyrights and Property Rights The contents of this document including tables and drawings are proprietary to NIVUS GmbH and are not to be reproduced or copied without express written permission. Violations oblige to compensation. Important This instruction manual - even in parts - may exclusively be copied or translated in any other way with the express written consent of NIVUS GmbH.
  • Page 4: Revision History

    Instruction Manual NIVUS Data Transmission NivuFlow/NivuParQ Revision History Rev. Modifications Responsible Date Editor New creation on the basis of the German-language instruction manual 25.06.2021 Revison was skipped Page 4 Data Transmission NF/NR/NP - BA - Rev. 01 / 25.06.2021...
  • Page 5: Table Of Contents

    Ethernet ..................13 9.3.3 RS232/RS485 ................14 9.3.4 2G/3G/4G Mobile Communications Modem ........ 14 9.3.5 NIVUS SIM Chip / SIM Card ............14 9.3.6 Customer SIM Card ..............14 9.3.7 Antennas ..................14 Communication Options / Applications ..........15 9.4.1 Local analogue and digital data transmission (via AI, AO, DI and DO) ..................
  • Page 6 Instruction Manual NIVUS Data Transmission NivuFlow/NivuParQ 10.4 Alert....................25 10.5 HART (function can be added via licence) ........26 10.6 Modbus ................... 27 Page 6 Data Transmission NF/NR/NP - BA - Rev. 01 / 25.06.2021...
  • Page 7: General

    If you should have problems to understand information contained within this instruction man- ual either contact a member company of the NIVUS group or one of the distributors for further support. The member companies of the NIVUS group cannot be held responsible for damage to persons or material due to incorrectly understood information in this instruction.
  • Page 8: Signs And Definitions Used

    Instruction Manual NIVUS Data Transmission NivuFlow/NivuParQ Signs and Definitions used Representation Meaning Remarks (Action) Step Execute action steps.  Should action steps be numbered observe the specified order of the steps. Cross-Reference Refers to further or more detailed information ...
  • Page 9: Safety Instructions

    The companies • of the NIVUS-Group reserve the right to change the contents of the document including this disclaimer without prior notice. for personal injury or damage to property resulting from failure to comply with the ap- •...
  • Page 10: Intended Use

    NIVUS-Group is considered improper use. The companies of the NIVUS-Group are not liable for any damage resulting from this. The operator alone bears the risk.
  • Page 11: Requirements For The Personnel

    Safety Instructions Requirements for the Personnel Installation, commissioning and maintenance may only be carried out by personnel who fulfil the following conditions: • Qualified personnel with appropriate training • Authorisation by plant operator Qualified Personnel in the sense of these instructions or the warnings on the product itself are persons who are familiar with the installation, assembly, commissioning and operation of the product and who have the qualifications appropriate to their job, such as training and instruction or authorisation to switch circuits and devices/systems on...
  • Page 12: Description

    These options are used for direct communication with devices connected on site or for re- mote data transmission to the NIVUS WebPortal and optionally other interfaces. These currently available communication options are part of the >Communication< menu and are described below.
  • Page 13: Locating The External Interfaces On The Transmitter

    Description Locating the external interfaces on the transmitter The transmitter has the following designated interfaces on the front of the device. Slot for SIM card (customer-based data transmission via internal 2G/3G/4G modem) Antenna socket (for internal 2G/3G/4G modem) Network Interface (LAN) BUS Interface (RS485/RS232) Hart Interface USB-A Interface (data transfer, parameter backup, device update)
  • Page 14: Rs232/Rs485

    SIM chip / SIM card both, but only alternately, not simultaneously. The integrated NIVUS SIM chip is not active in the factory setting and must be activated for use by the optionally available device licence and its activation (see Chapter “Add-on Func- tion Licences”...
  • Page 15: Communication Options / Applications

    Remote access to data available in the transmitter via FTP • • Remote data transmission via MQTT to the NIVUS WebPortal It should be noted that not every one of these communication options is possible via every in- terface. Details on this in the following chapter.
  • Page 16: Device Remote Control Via Integrated Http(S) Web Server (Via Tcp/Ip)

    Instruction Manual NIVUS Data Transmission NivuFlow/NivuParQ Fig. 9-3 Local Bus Data Transmission (via Modbus) 9.4.3 Device Remote Control via integrated HTTP(S) Web Server (via TCP/IP) Based on the integrated Ethernet interface, direct access to the NivuFlow/NivuParQ trans- mitter is also possible with access to the local LAN network.
  • Page 17: File-Based Data Transmission Via Integrated Ftp Web Server (Via Tcp/Ip)

    The NivuFlow/NivuParQ transmitter has the option of automated cyclical data transmission via the MQTT network protocol. The NIVUS WebPortal is pre-configured and available to the user with a chargeable booking. It offers a wide range of options for data display, measurement place visualisation, reporting and analyses.
  • Page 18: Parameter Menu Communication

    Instruction Manual NIVUS Data Transmission NivuFlow/NivuParQ 10 Parameter Menu Communication Important Note on the Contents of this Chapter This chapter replaces (at least partially) the chapter of the same name in the respective valid instruction manual for the NivuFlow/NivuParQ transmitter.
  • Page 19 The information on the current status of the modem is displayed here. >SIM Card<: Display of information on the customer's SIM card (not with selection NIVUS (Chip)). >Default Gateway<: Choice of preferred path of data communication: Ethernet interface or 2G/3G/4G modem.
  • Page 20: Web Server

    Instruction Manual NIVUS Data Transmission NivuFlow/NivuParQ 10.2 Web Server The settings required for remote operation of the NivuFlow/ NivuParQ transmitter are made here. The web server makes all (operating) functions available via the Internet as an alterna- tive to on-site operation.
  • Page 21: Data Transmission

    USB port if required. 10.3 Data Transmission The automated cyclical data transmission to the NIVUS WebPortal is defined here. This can be done via the network protocol MQTT, via FTP server or via e-mail. Fig. 10-4...
  • Page 22 Instruction Manual NIVUS Data Transmission NivuFlow/NivuParQ >Broker<: The Internet address of the server is entered either as a host name or IP ad- dress. >Port<: Associated port >Encryption<: Activation of secure (SSL/TLS) communication between client and server and use of the port.
  • Page 23 Description >Activ<: • Check the box to activate. >Modem<: • Check box to activate (online) the internal modem before the actual transmission. >Server<: • Specify server name or IP address. >Port<: • Associated port >Encryption<: • Activation of secure (SSL/TLS) communication between client and server and use of the port.
  • Page 24 Instruction Manual NIVUS Data Transmission NivuFlow/NivuParQ E-Mail: Transmission to an e-mail address. Available as additional function licence (see Chap. “Additional Function Licences” and “Func- tion Unlocking” in the respective instruction manual). Option is available only when MQTT is inactive. Fig. 10-6 Data Transmission via E-Mail >Activ<:...
  • Page 25 For all sub-items (except >Digital input<), up to five different threshold values can be entered via the rotary pushbutton for >Upper Thresholds Entries< and for >Lower Thresholds En- tries<. When these are reached, an alarm e-mail (only in connection with the NIVUS WebPortal) is to be issued.
  • Page 26 The functionality of the communication via HART must be purchased via the additional func- tion licence and this function licence must then be activated. If the transmitter is ordered with a licence (ex works), it will be activated by NIVUS before de- livery.
  • Page 27 If required, the Modbus protocol can be sent to you on request. For this purpose, please con- tact the technical office staff at the head office of NIVUS GmbH in Eppingen. Alternatively, the document is available for download in the download centre on our homep- age.
  • Page 28 Instruction Manual NIVUS Data Transmission NivuFlow/NivuParQ Expert knowledge required These settings require extensive expert knowledge and require the use of NIVUS commis- sioning personnel or an authorised specialist company. Fig. 10-10 Programming Scaling / Diagnostics / Serial Stats Under >Diagnostics< the individual registers (flow reference, total reference, flow, level, ve- locity, concentration, water temperature and air temperature) can be viewed in more detail.
