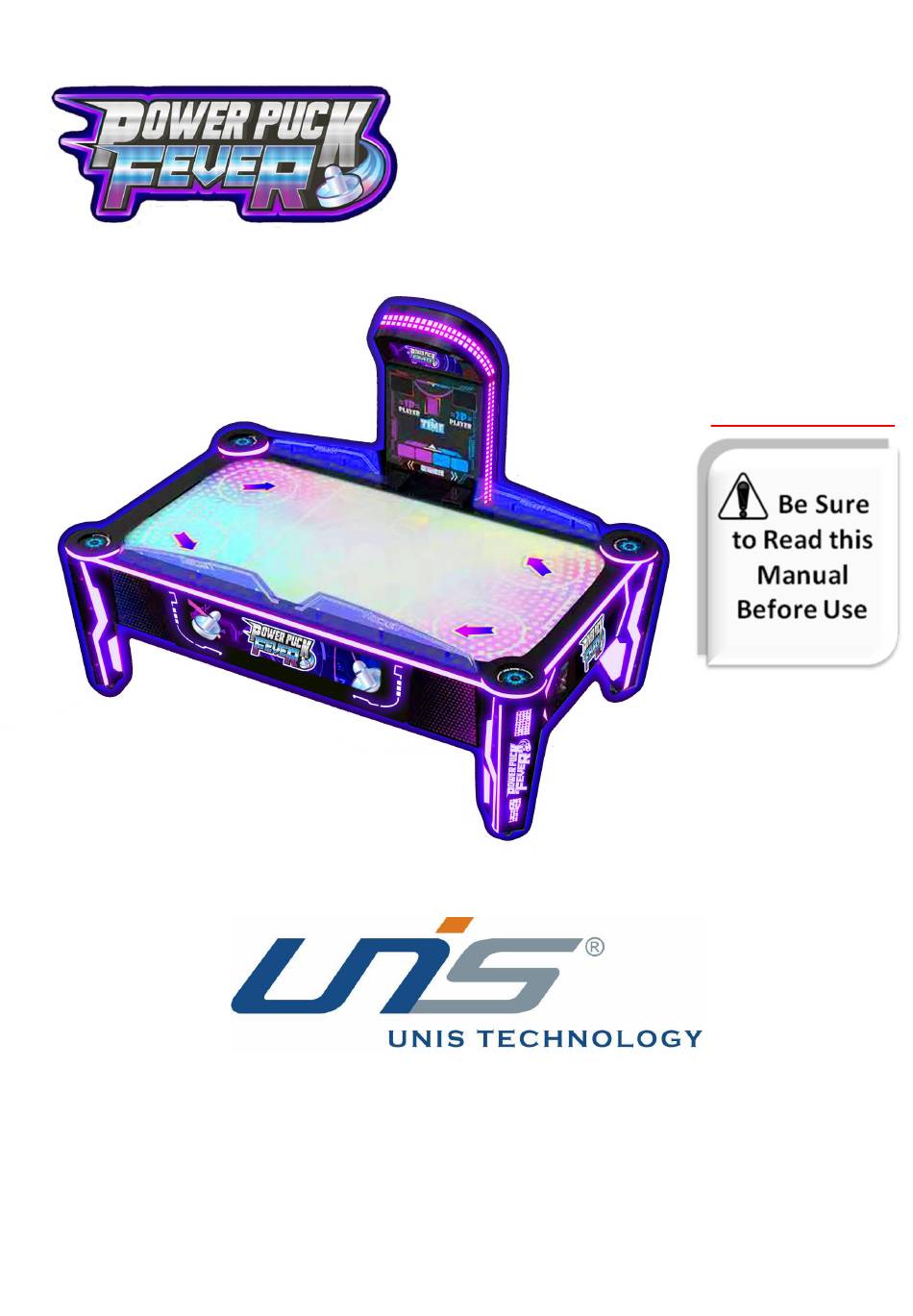

  • Page 1 110V Version IMPORTANT Operation Manual...
  • Page 2 Power Puck Fever GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.
  • Page 3 Power Puck Fever GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. LOCATION OPERATION INSTRUCTIONS ............14 6.
  • Page 4 Power Puck Fever GMP Manual Thank you for purchasing Power Puck Fever GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Power Puck Fever GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.
  • Page 6 Power Puck Fever GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; Min. Power consumption: 335W Max. Power consumption: 590W Dimension: H67.32×W93.11×D60.78 in H1710×W2365 ×D1544 mm Weight：Approximately 632.72 lb/287 kg Model No.: A-483 Part NO.: P167 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Power Puck Fever GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Part No. Name/SPEC Picture P167-0539-00 Manual Power cord P167-0540-00 3×16AWG 3M P167-0545-00 MLF168 key 3 Set P167-0542-00 Puck...
  • Page 8 Power Puck Fever GMP Manual 3. PART NAME Key Components Mallet Placed Position Display Play area Middle barrier 03/15/2023...
  • Page 9 Power Puck Fever GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Power Puck Fever GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Play area: 500 mm/20in NOTICE Your unit must be leveled to operate properly.
  • Page 11 Power Puck Fever GMP Manual Step 3 Installation of legs assembly. Utilize screws to secure. Black 6X12 screws Fasten 1 leg with 8 pcs black 6X12 screws. Step 4 Install 4 round acrylics, below is the installation steps. 5X45 screws...
  • Page 12 Power Puck Fever GMP Manual Step 5 Put 4 round stickers on the round acrylic. Step 6 Take away the stools after fasten 4 legs same as below pictures. Step 7 Install 4 table barrier acrylics same as below pictures. Utilize M4*12 screws to secure.
  • Page 13 Power Puck Fever GMP Manual Step 8 Install middle barrier and fixing plate on the middle of the table. Utilize M4*8 screws to secure. Middle barrier Step 9 Align 2 assemblies. Connection of side cabinet and table as below pictures.
  • Page 14 Power Puck Fever GMP Manual Step 11 Open the Table door as shown below. Fix the mallet ring to the door. Mallet ring Mallet ring fixing position Finish! 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader.
  • Page 15 Power Puck Fever GMP Manual 5. LOCATION OPERATION INSTRUCTIONS 5.1. First Power On Operation Step 1. The first time when you power on the machine, please put in 31pcs of pucks, long press the forward turn button on the drive board, so that the pucks can move to the top of the track as below pictures.
  • Page 16 Power Puck Fever GMP Manual 6. HOW TO PLAY Step 1 Insert coins or Tap/Swipe card to play. Game start, machine will release the pucks automatically. Step 2 Count down,goal detection, display the scores of both sides with the sound of goal and crashing.
  • Page 17 Power Puck Fever GMP Manual 7.GAME OPTION 7.1 IO Settings SW1 (Note:○=OFF,●=ON) COIN1 ROUND1 ● ● ● ○ ● ● ● ○ ● ○ ○ ● ● ● ○ ○ ● ○ ● ○ ○ ○ ○ ○ LOSE NONE TICKET ○...
  • Page 18 Power Puck Fever GMP Manual SW2 (Note:○=OFF,●=ON) No Limit ○ ○ ○ ● ○ ○ ○ ● ○ ● ● ○ Goal ○ ○ ● ● ○ ● ○ ● ● ● ● ● ○ ○ ○ ● ○ ○...
  • Page 19 Power Puck Fever GMP Manual SW3 (Note:○=OFF,●=ON) Mode 1 ○ ○ ○ Mode 2 ● ○ ○ Mode 3 ○ ● ○ Mode 4 ● ● ○ BURST MODE Mode 5 ○ ○ ● Mode 6 ● ○ ● Mode 7 ○...
  • Page 20 Power Puck Fever GMP Manual Burst Mode Description: In the absence of a goal, the ball is played in game mode. If a puck goes in, The program will throw the pucks according the pucks scoring during game mode time.
  • Page 21 Power Puck Fever GMP Manual 7.2 Test Locate IO board and press S3 to enter machine test. (Notice: A=Green Digital Tube；B=Red Digital Tube；J=Game round Digital Tube) Digital Tube Test Content Function Key S2/S3 Test Item. （J） Digital Tube, Chase ‘--’,‘--’...
  • Page 22 Power Puck Fever GMP Manual 7.3 Four Legs Light Control Instructions Open the Side cabinet back door and there is a Light controller. Press the Left/Right button to select. Note: Left button to control and adjust light color and status.
  • Page 23 Power Puck Fever GMP Manual 8. TROUBLESHOOTING 8.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly Check connector. connector is loose. Game will not start Frame assembly Contact with UNIS Service. fault Circuit protector Turn on power SW again.
  • Page 24 Power Puck Fever GMP Manual 8.2 No Ball Out Problem Solution No Ball Out Possible Cause: 1. Out of puck. 2. No point shown after pucks in. 3. Ball out mechanism is faulty. 1. “Out of puck” Recommended Action: Refill pucks.
  • Page 25 Power Puck Fever GMP Manual 2. “No point shown after pucks in” Recommended Action: 2.1 Check 1/5 Point. Locate 1/5 point sensor. Check whether the red light flash when the ball passes by.  If the light keeping on, please adjust sensor position.
  • Page 26 Power Puck Fever GMP Manual  If the light off when pucks passing by. Utilize multimeter to check whether voltage is 12V. Check whether voltage is 12V If the voltage is 12V and the light still off. Sensor is faulty. Please replace 1/5 point sensor.
  • Page 27 Power Puck Fever GMP Manual  If the cross bracket do not turn: 1. Check Protect device; 2. Check Cross bracket motor bearing. If become round shape, need to replace. Normal is half-round 3. Cross bracket motor no response. Test the motor first: Insert these pin as shown below: If the motor runs, it means motor drive card is broken.
  • Page 28 Power Puck Fever GMP Manual 9. MAINTENANCE & INSPECTION 9.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 29 Power Puck Fever GMP Manual 9.4 Light Controller Instructions(RF IC Controller Instructions) General description This controller is design for led production which uses IC as driver, it is very useful for light box advertisement, stage light, house decorating, and so on.
  • Page 30 Power Puck Fever GMP Manual Function of remote panels ON/OFF: ON/OFF button, it can open or close led anytime PAUSE: Play/pause button, pressing this button to pause, you can see the static affection of led. PAUSE: Play/pause button, pressing this button to pause, you can see the static affection of led.
  • Page 31 Power Puck Fever GMP Manual PROGRAM Description: Function Description Function Description Static red Static green Static blue Static yellow Static cyan Static purple Static white Three color jumpy change Seven color jumpy change even color stroboflash Red horse race lamp to right...
  • Page 32 Power Puck Fever GMP Manual Function Description Function Description Purple trail to left single direction Blue trail to left single direction Cyan trail to left single direction White trail to left single direction Yellow trail to left single Green trail to left single direction...
  • Page 33 Power Puck Fever GMP Manual Function Description Function Description Seven color jumping trail to right Seven color queue trail to right double double direction direction Seven color alternation trail to right Full color wave to right direction double direction Seven color water move to left...
  • Page 34 Power Puck Fever GMP Manual 10. OVERALL CONSTRUCTION 10.1 General Assembly Part No. Name P167-0270-00 Table panel acrylic Leg assembly(refer to10.2) P167-0296-00 Side barrier P167-0298-00 Side barrier(near side cabinet) P167-0300-00 Middle barrier P167-0274-00 Side cabinet acrylic P167-0281-00 Mallet round acrylic...
  • Page 35 Power Puck Fever GMP Manual 10.2 Leg Assembly Part No. Name P167-0215-00 Leg decoration cover plate P167-0263-00 Leg decoration acrylic B P167-0262-00 Leg white acrylic P167-0214-00 Leg bracket P167-0269-00 Leg decoration acrylic P167-0265-00 Leg square white acrylic P167-0264-00 Leg decoration acrylic C...
  • Page 36 Power Puck Fever GMP Manual 3 Table Assembly Part No. Name P167-0218-00 L coin box cover P167-0230-00 L guide puck Assembly P167-0510-00 Coin mechanism P167-0503-00 Coin door hinge plate P167-0302-00 L&R door decal P167-0301-00 Table side decal P167-0294-00 Table cabinet side acrylic(front/back)
  • Page 37 Power Puck Fever GMP Manual Part No. Name P167-0294-00 Table cabinet side acrylic(front/back) P167-0295-00 Table cabinet side acrylic(L/R) P167-0291-00 Table cabinet surrounding light cover D P167-0288-00 Table cabinet surrounding light cover A-1/A-2 P167-0289-00 Table cabinet surrounding light cover B P167-0288-00...
  • Page 38 Power Puck Fever GMP Manual 10.4 Side Cabinet Part No. Name Picture P167-0245-00 Puck-up assembly P167-0248-00 Ball cover P167-0253-00 Sliding back cover plate 1 03/15/2023...
  • Page 39 Power Puck Fever GMP Manual Part No. Name Picture 2 P167-0509-00 Display board 3 P167-0256-00 Sliding fixing plate 4 P167-0211-00 Blocking cover plate 5 P167-0208-00 Light board cover plate 6 P167-0403-00 Side base plywood 7 P167-0201-00 Puck-out moulding(L/R) 9 P167-0206-00...
  • Page 40 Power Puck Fever GMP Manual Part No. Name Picture 12 P167-0274-00 Side cabinet acrylic 13 P167-0210-00 Back bottom door plate 14 P167-0268-00 L&R bottom side acrylic P167-0201-00 2'' leveller P167-0202-00 2.5'' caster 16 P167-0267-00 L&R upper side acrylic 17 P167-0207-00...
  • Page 41 Power Puck Fever GMP Manual Part No. Name Picture 22 P167-0257-00 Sliding fixing plate(L/R) 23 P167-0520-00 Ball-out sensor 24 P167-0528-00 Power SW(with filter) 25 P167-0202-00 Sliding blocking plate(L/R) 26 P167-0272-00 Top acrylic P167-0258-00 L sliding fixing plate P167-0259-00 R sliding fixing plate...
  • Page 42 Power Puck Fever GMP Manual 10.5 Decals 03/15/2023...
  • Page 43 Power Puck Fever GMP Manual 03/15/2023...
  • Page 44 Power Puck Fever GMP Manual Part No. Name P167-0270-00 Table panel acrylic P167-0301-00 Table side decal P167-0271-00 Table cabinet side acrylic P167-0277-00 Round panel decal A P167-0278-00 Round panel decal B P167-0279-00 Round panel decal C P167-0280-00 Round panel decal D...
  • Page 45 Power Puck Fever GMP Manual 10.6 Electrical Components 03/15/2023...
  • Page 46 Power Puck Fever GMP Manual Part No. Name P167-0542-00 Puck 1 Set P167-0541-00 Mallet P167-0308-00 Cross bracket P167-0525-00 1 point sensor P167-0526-00 5 point sensor P167-0527-00 Ball-out sensor P167-0507-00 Mainboard P167-0508-00 Motor board P167-0509-00 Display board P167-0515-00 Up-ball motor P167-0505-00...
  • Page 47 Power Puck Fever GMP Manual 03/15/2023...
  • Page 48 Power Puck Fever GMP Manual Part No. Name P167-0513-00 Meter P167-0514-00 Light control board P167-0516-00 Speaker P167-0517-00 High volume Speaker P167-0523-00 Adapter P167-0524-00 Wiring column P167-0530-00 Memory card P167-0534-00 Led controller relay board Part No. Name P167-0701-00 UNIS LOGO white light...
  • Page 49 Power Puck Fever GMP Manual Part No. Name P167-0706-00 Upper outside colorful light P167-0707-00 Leg decoration round RGB light P167-0708-00 Side barrier(near side cabinet) R blue light P167-0709-00 Side barrier(near side cabinet) L blue light P167-0710-00 Table bottom blue light...
  • Page 50 Power Puck Fever GMP Manual Part No. Name P167-0527-00 Ball-out sensor P167-0526-00 5 point sensor P167-0525-00 1 point sensor www.unistechnology.com 03/15/2023...
