Bottom I/O Panel Components

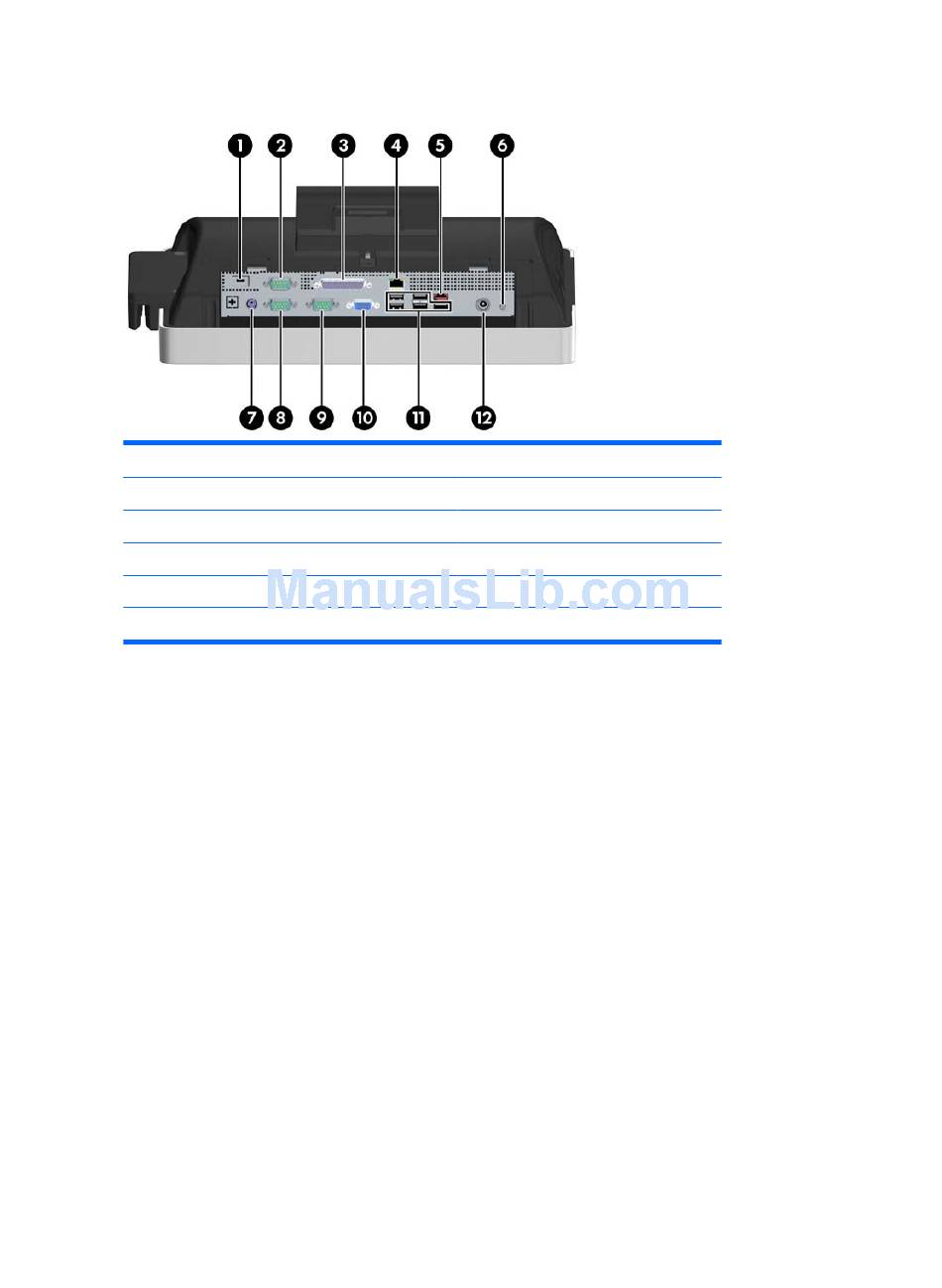

Figure 1-2
Bottom I/O Panel Connectors
1
Kensington Lock Slot
2
Serial Connector (COM2, 5V)
3
Parallel Connector
4
RJ-45 Network Connector
5
24V USB+POWER Connector
6
Power Button
ENWW
7
PS/2 Keyboard Connector
8
Serial Connector (COM1, 5V)
9
Serial Connector (COM3, 12V)
10
VGA Connector
11
Universal Serial Bus (USB) Connectors
12
Power Cord Connector
Bottom I/O Panel Components
3
