9. Remove the five screws that secure the display head to the display head housing. Two of the
screws are located under the bottom I/O cover. The third screw is located under the drive cover.
The fourth screw is located under the MSR. The fifth screw is located below the touch screen
hinge.
NOTE:
included.

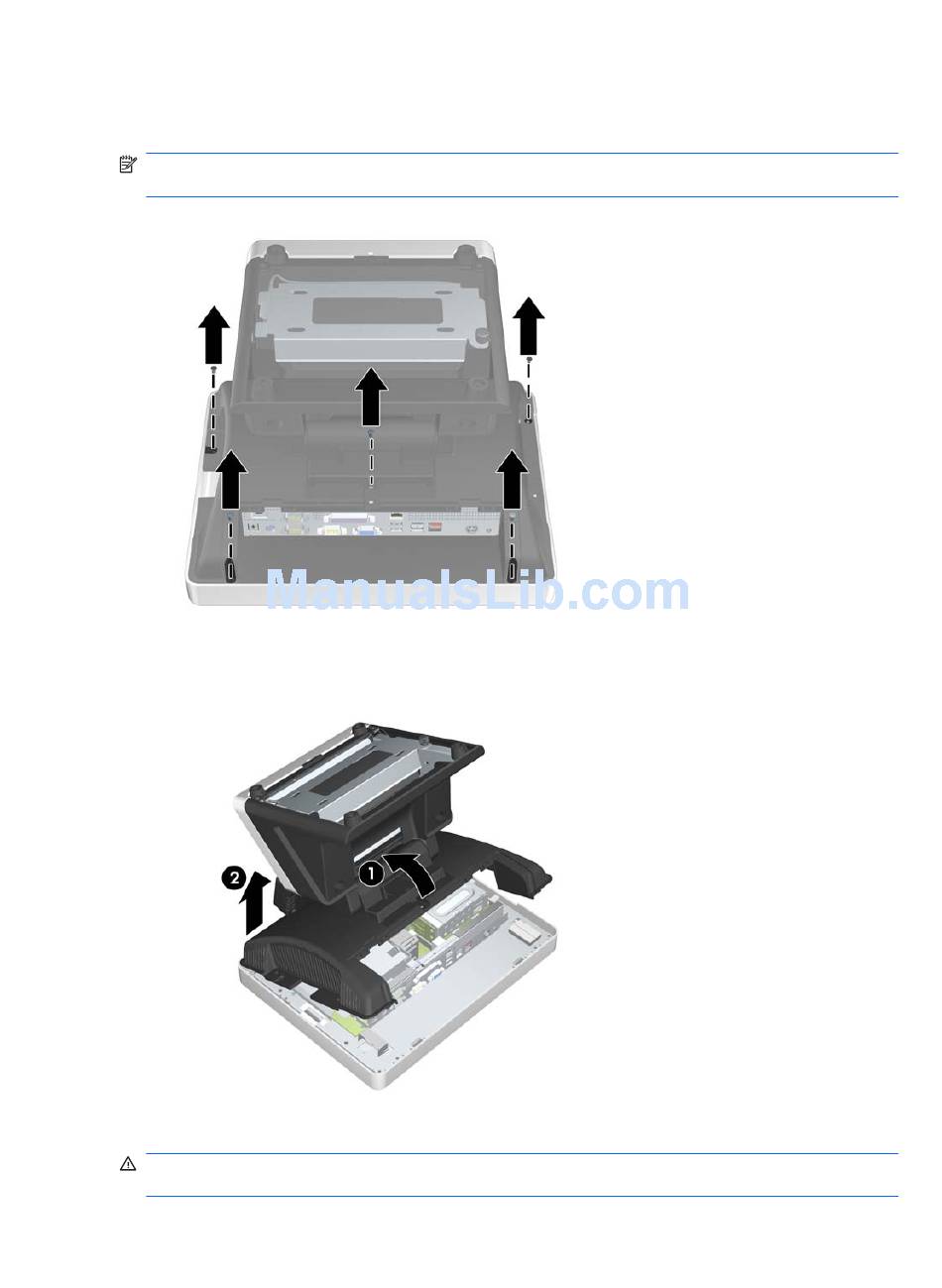

Figure 2-27
10. Lift the bottom side of the display head housing (where the two screws were removed) off the touch
screen (1), then lift the top side off the housing off the touch screen (2).
Figure 2-28
11. Locate the memory module sockets on the system board.
WARNING!
components to cool before touching.
24 Chapter 2 Hardware Upgrades
Some models may have only four screws. The center screw shown below may not be
Removing the Display Head Screws
Removing the Display Head
To reduce risk of personal injury from hot surfaces, allow the internal system
