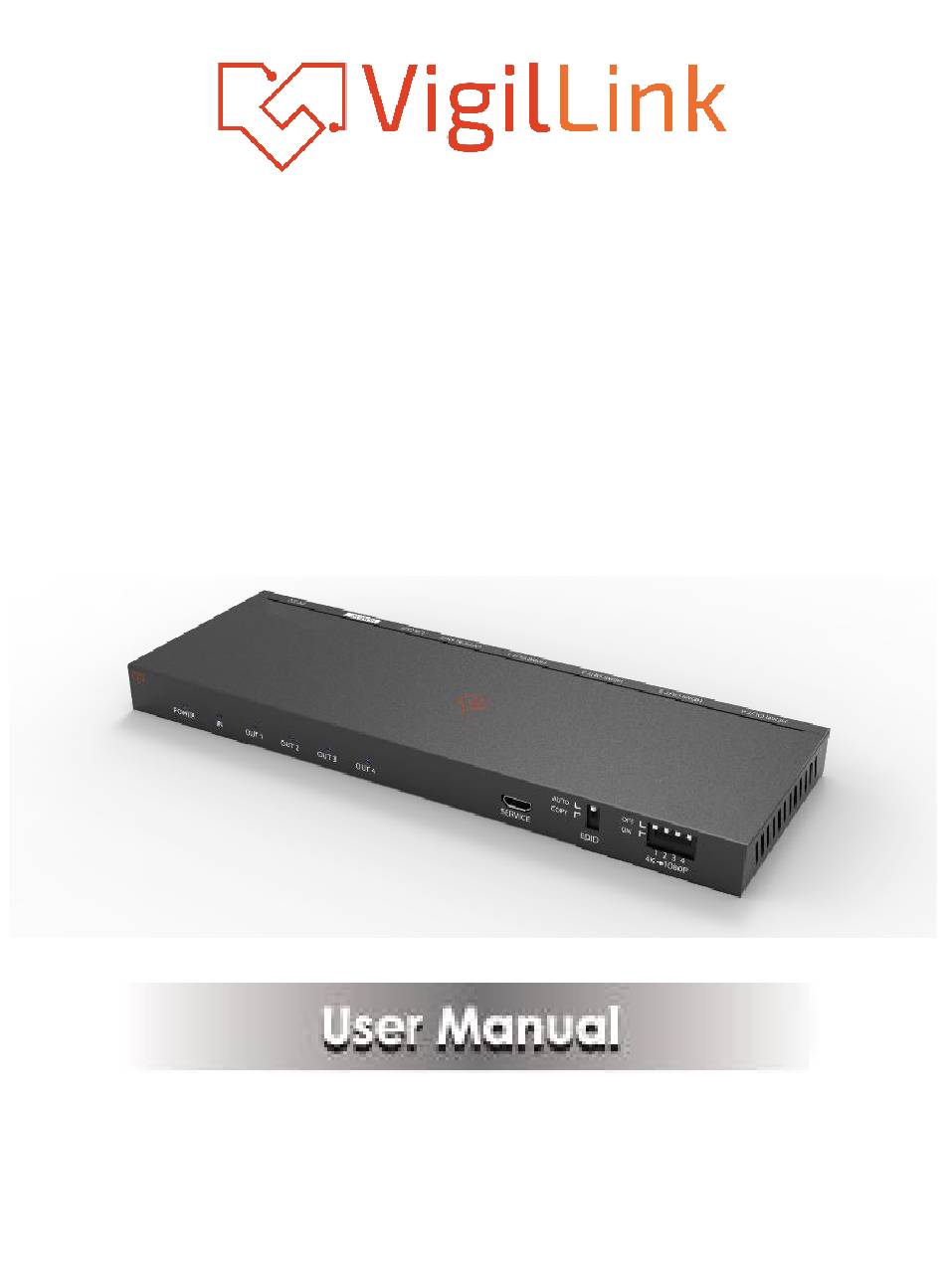

- Page 1 VLSP-AS14H20 1x4 HDMI 2.0 Splitter /w Audio De-embedded & Downscale 18Gbps VER 1.0...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ..............3 2. Features ................3 3. Package Contents ............4 4. Specifications ..............5 5. Operation Controls and Functions ........6 5.1 Front Panel ............. 6 5.2 Rear Panel .............. 8 6. Application Example ............9... -
Page 4: Introduction
1. Introduction The 1x4 HDMI 2.0 Splitter simultaneously route one HDMI source to four HDMI display. Supporting resolutions up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This product supports audio extraction from HDMI source to optical and analog output by selecting COPY, AUTO modes EDID settings. Output supports bypass and downscale(4K->1080P) functions. -
Page 5: Package Contents
switch on the panel. (COPY: It copies OUT 1 port EDID setting to all outputs port If no HDMI OUT 1 capable EDID is detected then the unit will copy HDMI OUT 2. If no HDMI OUT 1~2 capable EDID is detected, then the unit will copy HDMI OUT 3...etc. The priority order is OUT 1 to OUT 4. -
Page 6: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps Video Resolutions 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4) Color Depth 4K60Hz 8-bit, 1080P 12-bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD... -
Page 7: Operation Controls And Functions
Power Supply Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption 3.5W (max) Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) 5.Operation Controls and Functions 5.1 Front Panel Number Name... - Page 8 HDMI These blue LEDs will illuminate when the HDMI OUT port has connected an active OUTPUT display device with an HDMI cable. SERVICE Firmware update used. (Manufacturer use port only.) • AUTO: Compare the EDID setting of the EDID HDMI OUT 1~ 4 port display device, then transmit the best EDID signal to the source device, the source device will transmit again EDID signal to all outputs.
-
Page 9: Rear Panel
5.2 Rear Panel Number Name Function description HDMI Connect to HDMI display devices such as a OUTPUT TV or monitor. OPTICAL Optical audio output. (This port outputs audio from HDMI IN port.) L/R OUT Analog audio output. (This port outputs audio from HDMI IN port.) HDMI IN Connect to HDMI source devices such as a DVD player or a PS4. -
Page 10: Application Example
6. Application Example...
