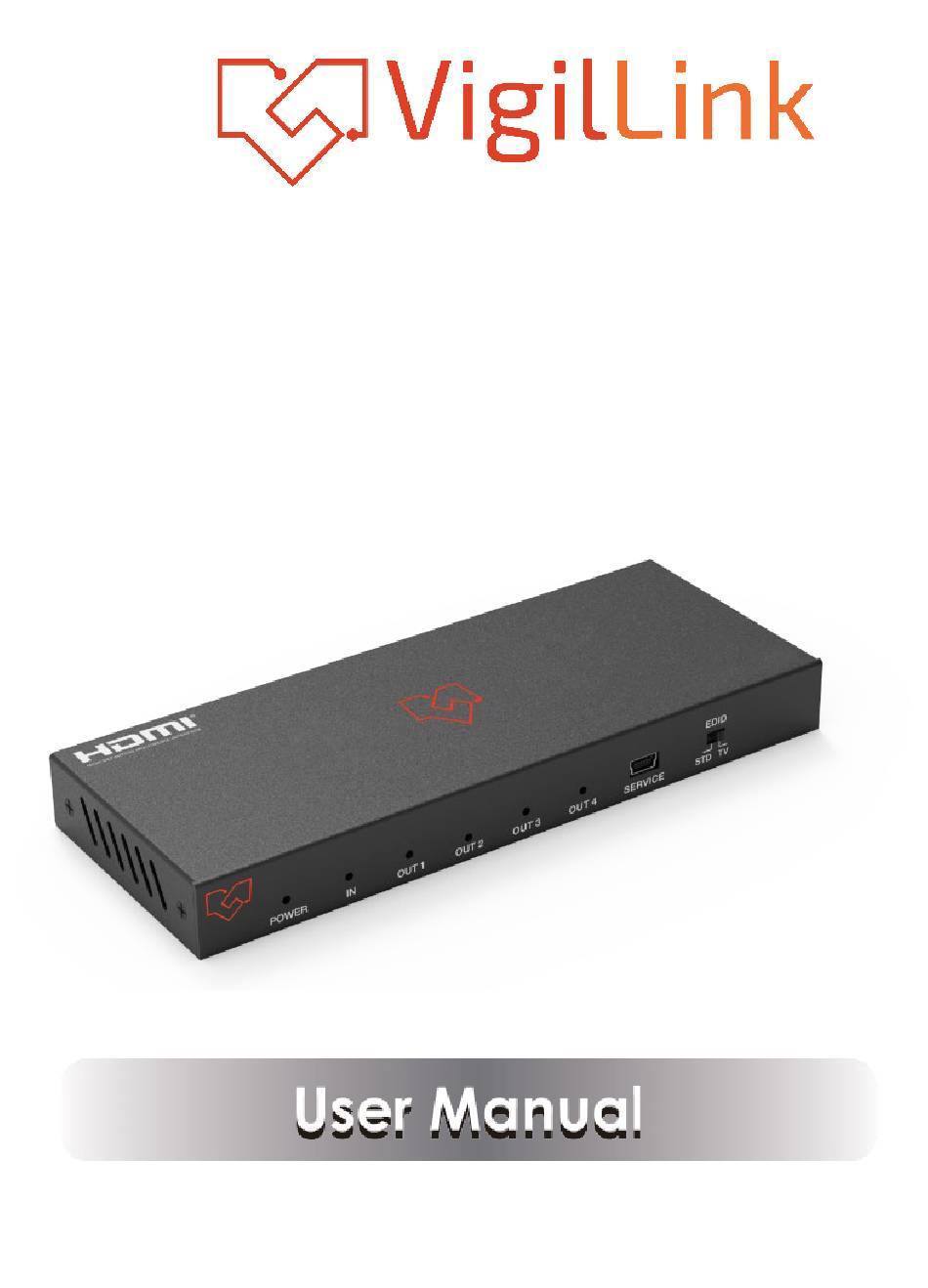

- Page 1 VLSP-14H20 1x4 HDMI 2.0 Splitter 18Gbps VER 1.3...
- Page 2 Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc.
- Page 3 1. Introduction This 1x4 HDMI 18Gbps Splitter is an advanced solution for splitting a single HDMI signal into 4 HDMI displays. It provides high-performance audio and video output through HDMI cables up to 4K2K@60Hz 4:4:4 and can receive and transmit up to 18Gbps of bandwidth with no data loss.
- Page 4 4. Specifications Technical Video Bandwidth 600MHz/18Gbps Input Ports 1×HDMI Type A[19-pin female] Output Ports 4×HDMI Type A[19-pin female] Output Resolution 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz ESD Protection 5V/1A DC (US/EU standards, CE/FCC/UL certified) Power Supply Dimensions 63mm (W) × 163mm (D) × 16mm (H) Weight 260g Chassis Material...
- Page 5 5. Operation Controls and Functions Name Function Description This blue LED illuminates when the device is connected to POWER LED the power supply. This blue LED illuminates when the Source i s connected IN LED to the device. These blue LEDs will indicate which HDMI outputs are OUT LED connected to an active TV/ display/monitor.
- Page 6 6. Application Example...
